DoorBird D1102FV Fingerprint 50 Flush-Mount IP Video Door Station, 2 Call Button in Stainless Steel V4A

DoorBird D1102FV Fingerprint 50 Flush-Mount IP Video Door Station, 2 Call Button in Stainless Steel V4A

SKU: 423872301

Sale price$1,803.29



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D1102FV Fingerprint 50 Flush-Mount IP Video Door Station, 2 Call Button in Stainless Steel V4A

For multi-tenant buildings and businesses with 2 units, 2 call buttons
Stainless steel V4A (salt-water and grinding dust resistant), brushed(GTIN/EAN: 4260423872301, P/N: 423872301)

Highlights

  • Flush-mounting housing included
  • WiFi / LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • Fingerprint sensor by Fingerprint Cards AB
  • 1 freely configurable bistable switching relay

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone - Clear voice transmission
  • Automatic door buzzer - For use in medical offices and office environments
  • Individual action schedules, e.g.: - Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • One freely configurable bistable latching relay - Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install - Quick installation via QR code scan
  • Call button - With backlit nameplate
  • Motion sensor with 4D technology - Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • WiFi enabled - Works within a WiFi network, no LAN cable needed
  • Fingerprint reader - Supported number of fingerprints: 50
    Status LED (RGB)
    Touch sensor
  • Bluetooth Low Energy (BLE) - For access control, compatible external sensors and smart locks

How Does It Work?

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home

Smart Home Starts At The Front Door

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Accessories

DoorBird Front Panel for D1102FV Fingerprint 50 Flush-Mount in Stainless Steel V4A
Front Panel 3 mm (0.12 in)
For further materials and colours see material
board and Online Shop.
Mounting Housing (backbox) Stainless steel
Mounting Type Flush-mounted,
surface-mounted version sold separately
Call button Illuminated
Nameplate Plastic
Metal cover plate and engraving available
separately
Fingerprint Reader Module 50

Configurable via App

  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • 50 fingerprints manageable
  • Event history

Multicolored Status LED

Normal mode:

  • Green + success sound: successfully authenticated
  • Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue)
  • Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds)

Enrollment mode:

  • Blue: wait for finger to touch
  • Green + no sound: scan step successful
  • Green + success sound: entire scan step successful (enrollment done)
  • LED goes off: Timeout during enrollment

Start-up mode:

  • Yellow: Hardware test successful
  • Red: Hardware test not successful (broken)
Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Weight 880 g
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
Weatherproof Yes, IP65
Approvals CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi
CERTIFIED™

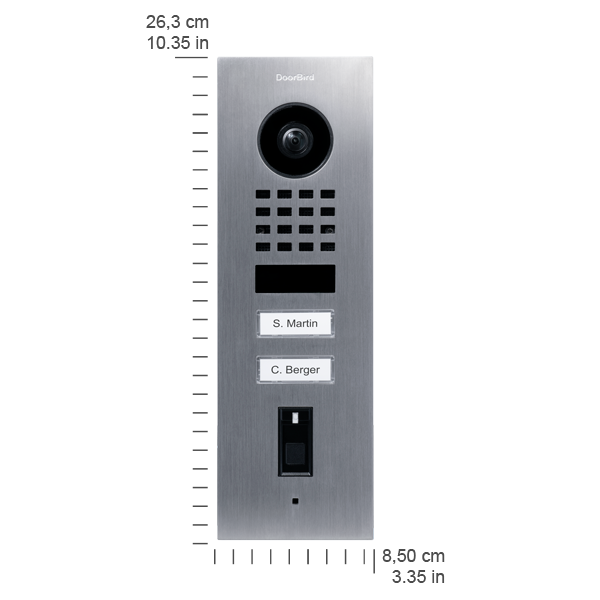

Dimensions

263 x 85 x 29,7 mm (H x W x D)
10.35 x 3.35 x 1.17 in (H x W x D)

Operating Conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of Delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Flush-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors
  • (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
