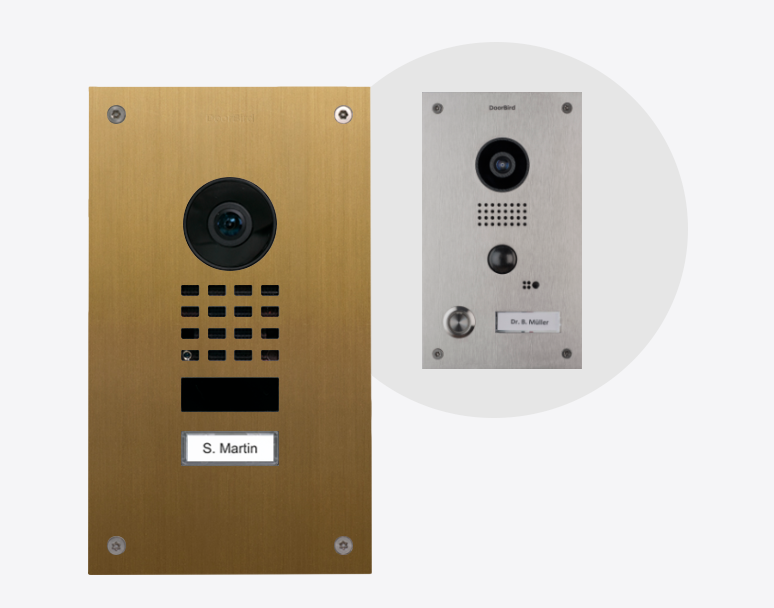

DoorBird video door station in gold with camera, speaker grille, and nameplate

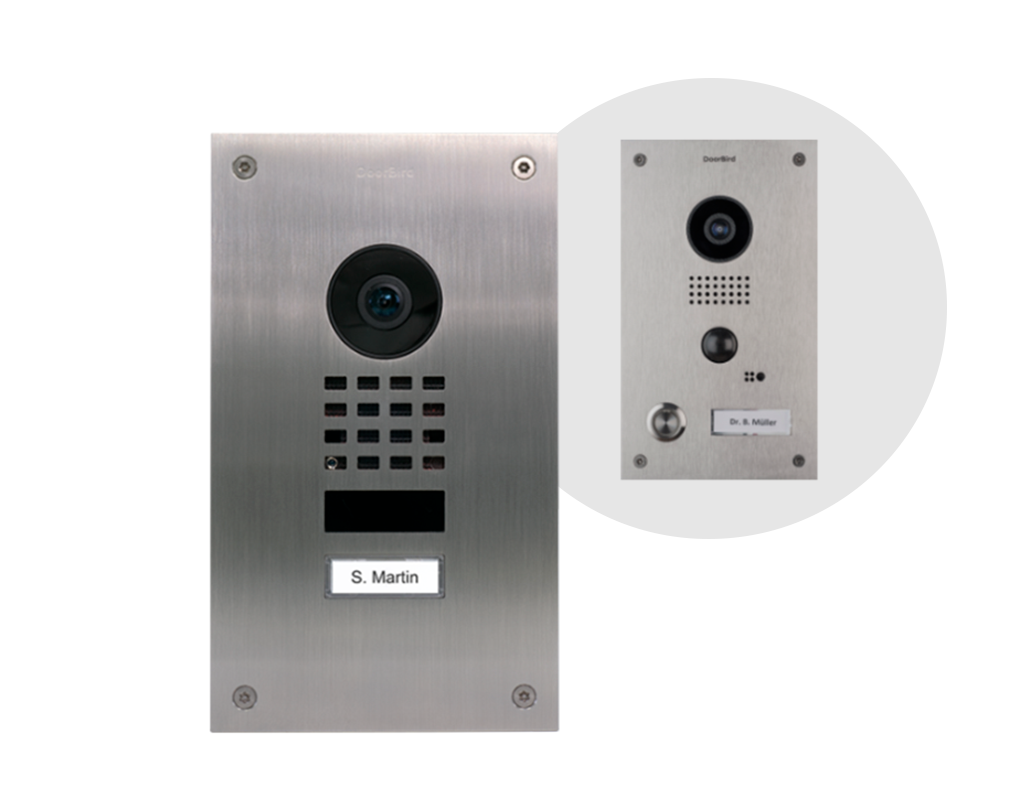

DoorBird video door station in silver with camera, speaker grille, and doorbell button
Roll over image to zoom in Click on image to zoom
DoorBird video door station in gold with camera, speaker grille, and nameplateDoorBird video door station in silver with camera, speaker grille, and doorbell button
Click on image to zoom

DoorBird D1101UV IP Video Door Station in Gold

DoorBirdSKU: 423880368
2 reviews
Price:
$829.53 $1,048.00SAVE 20%
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird D1101UV IP Video Door Station in Gold

Upgrade for DoorBird D201/D202 to D11x Technology

Gold-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423880368, P/N: 423880368)

Highlights

  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor, RFID reader
  • 1 freely configurable bistable switching relay

Features

  • Open API
    Local interface for integration with third-party systems and SIP
  • Video and audio call
    On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM)
    Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone
    Clear voice transmission
  • Automatic door buzzer
    For use in medical offices and office environments
  • Free visitor history
    Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing
    Automatic door and gate opening when returning home
  • Night vision
    With Infrared LEDs
  • HDTV Video
    Ultra wide-angle, hemispheric lens, 180°
  • Light sensor
    For night vision mode
  • One freely configurable bistable latching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install
    Quick installation via QR code scan
  • Call button
    With backlit nameplate
  • Motion sensor with 4D technology
    Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Bluetooth low Energy (BLE)
    Supports A8007 Bluetooth Remote Control
    For access control, compatible external sensors and smart locks
DIMENSIONS & WEIGHT
Weight
778 g
Dimensions
215 x 125 x 28 mm (H x W x D) 8.46 x 4.92 x 1.10 in (H x W x D)
DESIGN & MATERIALS
Front panel
3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with Bronze-Finish, V4A
Mounting housing (backbox)
Not included, use of an already installed D201/ D202 housing is assumed.
POWER & CONNECTIVITY
Power supply
15 V DC (max. 15 W) or Power ov
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
FEATURES
Call Button
Illuminated
Nameplate
Plastic Metal cover plate and engraving available separately
DURABILITY & ENVIRONMENT
Protection Class
IP65, IK08
Approvals
CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Operating conditions
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
