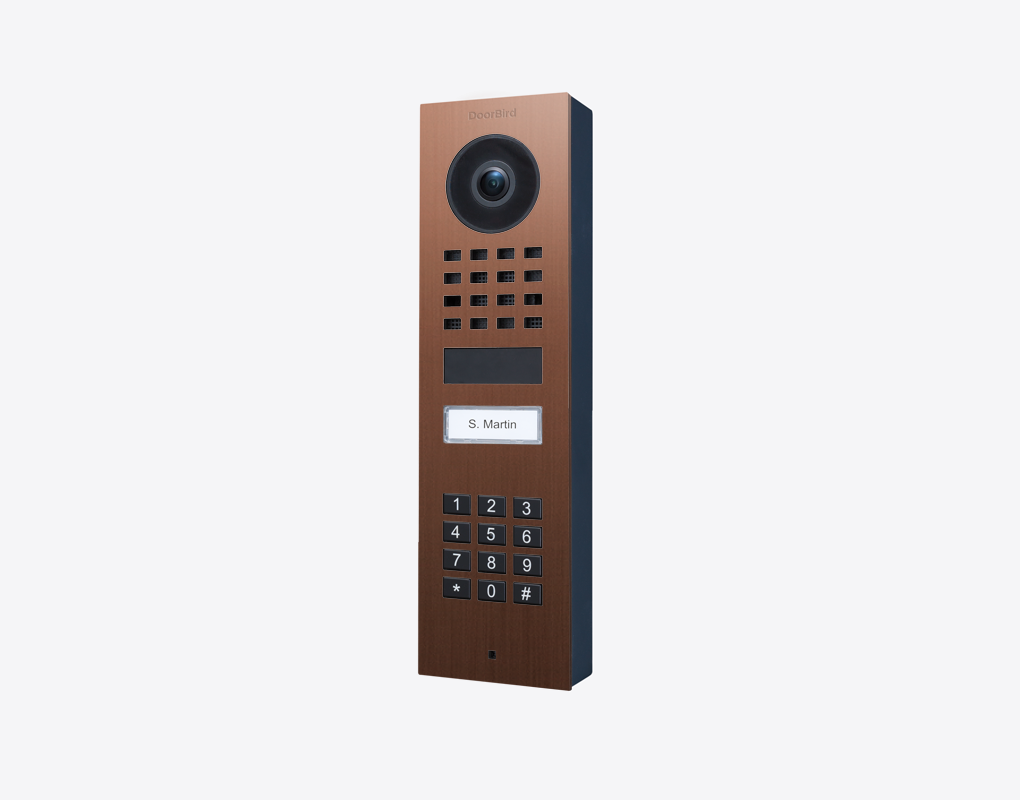

DoorBird D1101KV Surface-Mount IP Video Door Station, 1 Call Button in Bronze

DoorBird D1101KV Surface-Mount IP Video Door Station, 1 Call Button in Bronze

SKU: 423871625

Sale price$1,736.66 Regular price$2,199.00
Save 21%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D1101KV Surface-Mount IP Video Door Station, 1 Call Button in Bronze

For single-family homes and businesses with 1 unit, 1 call button

Bronze-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423871625, P/N: 423871625)

Highlights

  • Keypad included
  • WiFi / LAN connection (PoE capable)
  • Surface-mounting housing included
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs 4D motion sensor
  • Motion sensor with 3D Technology
  • 1 freely configurable bistable switching relay

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call
    On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone - Clear voice transmission
  • Automatic door buzzer - For use in medical offices and office environments
  • Individual action schedules, e.g.:
    Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • One freely configurable bistable latching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install - Quick installation via QR code scan
  • Call button - With backlit nameplate
  • Motion sensor with 4D technology  - Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • WiFi enabled - Works within a WiFi network, no LAN cable needed
  • Bluetooth Low Energy (BLE) - For access control, compatible external sensors and smart locks
  • Keypad Module
    Configurable via App
    Up to 500 individual PIN codes
    Individual events (e.g. trigger a relay, HTTP(s) request)

How Does It Work?

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home.

Smart Home Starts At The Front Door

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Front panel 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
Mounting housing (backbox) Polycarbonate
Mounting type Surface-mounted, flush-mounted version sold separately
Call button Plastic
Nameplate Illuminated
Keypad Module

12 keys, illuminated, configurable via App, e.g.

  • Individual PIN codes
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • Up to 500 PIN codes manageable
Power supply

15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A

Weight 995 g
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
Weatherproof Yes, IP65
Approvals CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
Dimensions 65,00 x 264,00 x 29,50 mm (H x W x D) 2.56 x 10.39 x 1.16 in (H x W x D)
Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Surface-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
