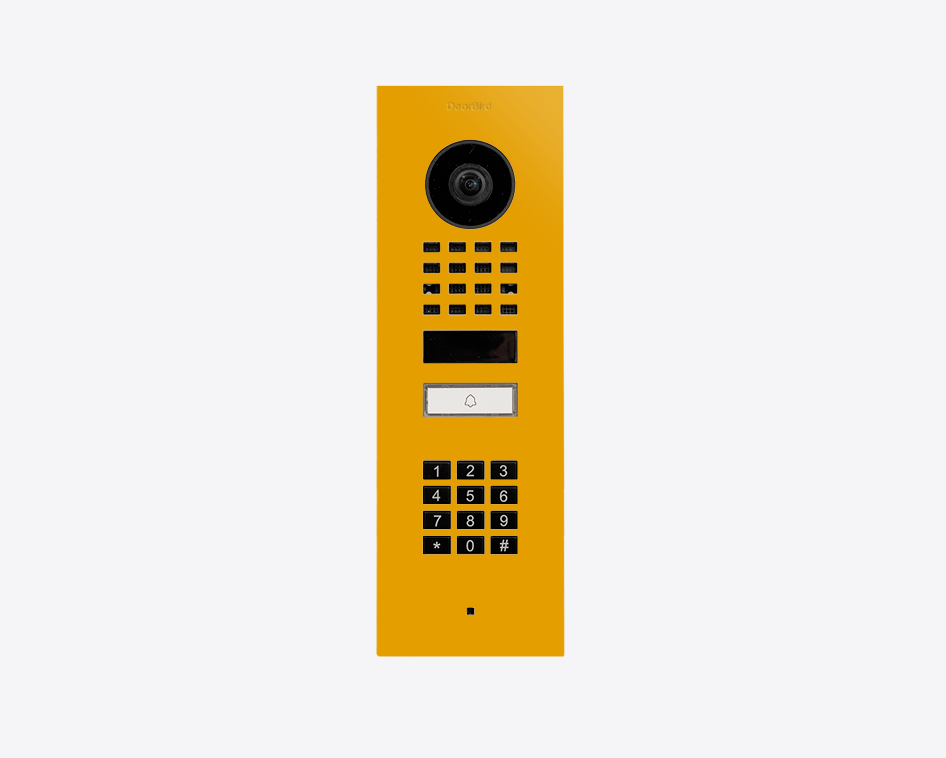

DoorBird D1101KV Flush Mount IP Video Door Station, 1 Call Button in Golden Yellow, RAL 1004
DoorBird D1101KV Flush Mount IP Video Door Station, 1 Call Button in Golden Yellow, RAL 1004
Click on image to zoom Click on image to zoom
DoorBird D1101KV Flush Mount IP Video Door Station, 1 Call Button in Golden Yellow, RAL 1004

DoorBird D1101KV Flush Mount IP Video Door Station, 1 Call Button in Golden Yellow, RAL 1004

SKU: 423898424
$2,043.53 $2,769.00
Save 26%

Type
Style
Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D1101KV Flush Mount IP Video Door Station, 1 Call Button in Golden Yellow, RAL 1004

For single-family homes and businesses with 1 unit, 1 call button

RAL 1004, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423898424, P/N: 423898424)

Highlights

  • Keypad included
  • WiFi / LAN connection (PoE capable)
  • Flush-mounting housing included
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • 1 freely configurable bistable switching relay

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone - Clear voice transmission
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • One freely configurable bistable latching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install - Quick installation via QR code scan
  • Call button - With backlit nameplate
  • Motion sensor with 4D technology - Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • WiFi enabled - Works within a WiFi network, no LAN cable needed
  • Bluetooth Low Energy (BLE) - For access control, compatible external sensors and smart locks
  • Keypad Module
    Configurable via App
    Up to 500 individual PIN codes
    Individual events (e.g. trigger a relay, HTTP(s) request)
Front panel 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
Mounting housing (backbox) Stainless steel
Mounting type Flush-mounted, surface-mounted version sold separately
Call button Plastic
Nameplate Illuminated
Keypad Module

12 keys, illuminated, configurable via App, e.g.

  • Individual PIN codes
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • Up to 500 PIN codes manageable
Power supply

15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Weight

1095 g
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
Weatherproof Yes, IP65
Approvals CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
Dimensions 85,00 x 263,00 x 26,7 mm (H x W x D) 3.35 x 10.35 x 1.05 in (H x W x D)
Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Flush-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
Data Sheet
Installation Manual
App User Manual
