DoorBird D1101KH Modern Surface-Mount IP Video Door Station, 1 Call Button in Stainless Steel V4A

DoorBird D1101KH Modern Surface-Mount IP Video Door Station, 1 Call Button in Stainless Steel V4A

SKU: 423867581

Sale price$1,472.63 Regular price$1,599.99
Save 8%



Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D1101KH Modern Surface-Mount IP Video Door Station, 1 Call Button in Stainless Steel V4A

For single-family homes and businesses with 1 unit, 1 call button
Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423867581, P/N: 423867581)

Highlights

  • Surface-mounting housing included
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • Keypad
  • 1 freely configurable bistable switching relay

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone - Clear voice transmission
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.:  - Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With 12 Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • One freely configurable bistable latching relay - Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install - Quick installation via QR code scan
  • Motion sensor with 4D technology - Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Configurable call button - With backlit nameplate
  • Keypad Module - Configurable via App
    Up to 1000 individual PIN codes
    Individual events (e.g. trigger a relay, HTTP(s) request)
  • Bluetooth Low Energy (BLE) - For access control, compatible external sensors and smart locks

How Does It Work?

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home

Smart Home Starts At The Front Door

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Accessories

DoorBird D1101KH Surface-Mounting Housing Backbox in Stainless Steel V4A
DoorBird Front Panel for D1101KH Modern Surface-/ Flush-Mount in Stainless Steel V4A
Front Panel 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A
Mounting Housing (backbox) Stainless steel
Mounting Type Surface-mounted
Call button Illuminated
Keypad Module

12 keys, illuminated, configurable via App, e.g.

  • Individual PIN codes
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • Up to 1000 PIN codes manageable
Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Weight 2420 g
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
Weatherproof Yes, IP65
Approvals IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471
Dimensions

182,00 x 219,00 x 72.50 mm (H x W x D)

7.17 x 8.62 x 2.85 in (H x W x D)

Operating conditions

-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Scope of delivery

1x Main Electrical Unit

1x Front panel

1x Surface-mounting housing (backbox)

1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)

1x RJ45 adapter

1x Screwdriver

1x Quickstart guide with Digital Passport

1x Installation manua

l 1x Small parts

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page



Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Carl R. (Los Angeles, US)
High quality construction, works great.

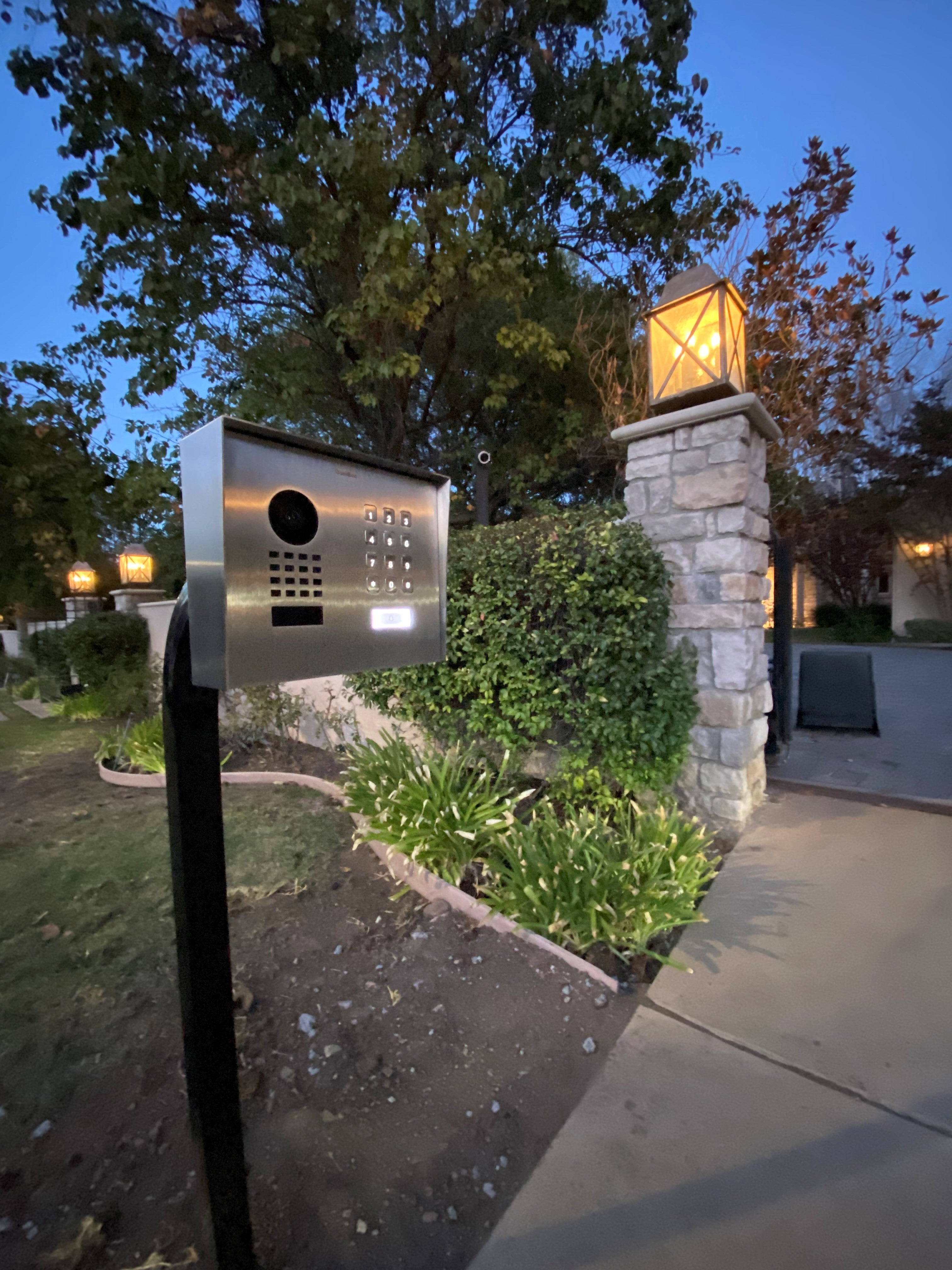

I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
