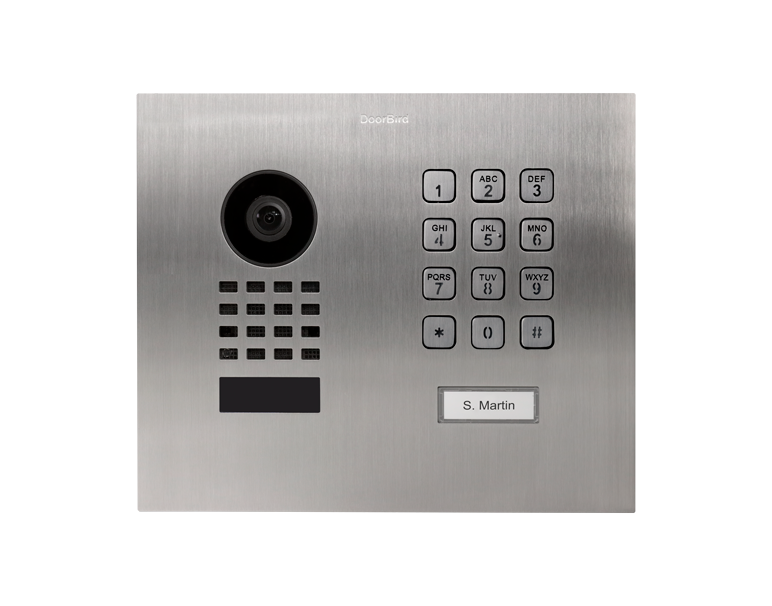

For single-family homes and businesses with 1 unit, 1 call button
Stainless steel V2A, brushed
(GTIN/EAN: 4260423867598, P/N: 423867598)
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.
All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.
|
Front Panel |
3 mm (0.12 in) For further materials and colours see material board and Online Shop. |
|
Mounting Housing (backbox) |
Stainless steel |
|
Mounting Type |
Flush-mounted, |
|
Call Button |
Plastic |
|
Nameplate |
Illuminated |
|
Keypad Module |
12 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • Up to 1000 PIN codes manageable |
|
Power supply |
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
|
Weight |
1600 g |
|
Connectors |
• LAN/PoE (T+, T-, R+, R-) • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W |
| Protection Class |
IP65, IK08 |
|
Approvals |
IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471 |
|
Dimensions |
179,00 x 214,00 x 48,00 mm (H x W x D) 8.43 x 7.05 x 1.89 in (H x W x D) |
|
Operating conditions |
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
|
Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
*Shipping Policy
I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.
The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.
Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
