Description
DIMENSIONS
- Dimensions
- 65 x 26 x 7 mm (W x D x H) 2.56 x 1.02 x 0,27 in (W x D x H)
- Weight
- 11,3 g (without Battery)
GENERAL INFORMATION
- System requirements
- compatible Door stations and Access Control Devices) DoorBird device with Bluetooth integration: -
- DoorBird D11x series - DoorBird A1121 series - DoorBird D1812 series Mobile device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet
- Attachment options

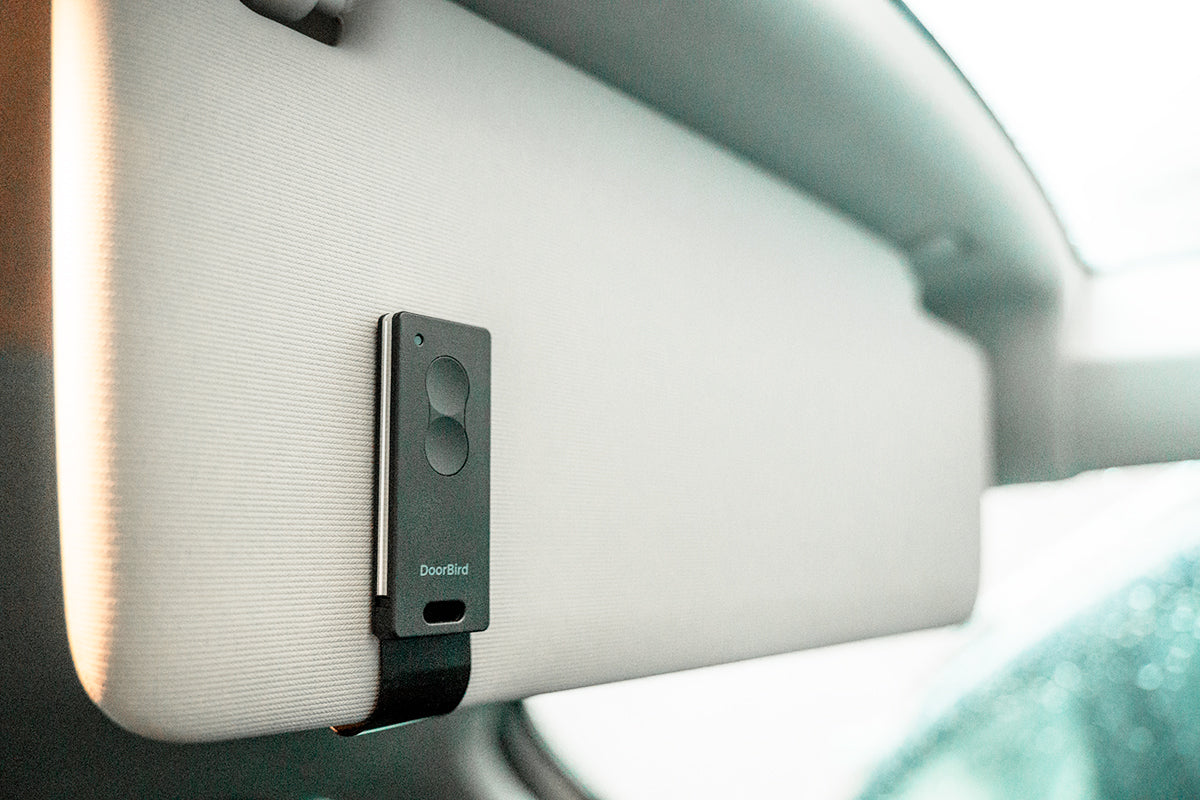

- Key chain Mount for a car sun visor
- Power supply
- Battery CR1632 (not included)
- Range
- Up to 15 m (49,21 ft), depending on environment and usage
- Bluetooth
- 2.4 GHz (BLE, low-energy)
- Display
- Multicolor status LED
- RFID
- 13,56 MHz NFC-A tag integrated
- Operating conditions
- 0 to +55°C / 32 to 131°F Humidity 0 % to 85 % (non condensing)
- Protection class
- IP 56
- Approvals
- CE, FCC, IC, RoHS, UKCA, WEEE
FEATURES
- Functions
- 2x Push button to control: - Integrated relays of DoorBird devices - Relays of paired A1081 Door Controllers - Sending HTTP(s)-request
- Scope of delivery
- 1x Bluetooth Keyfob Remote
- 1x Mount for a car sun visor
- 1x Installation manual
