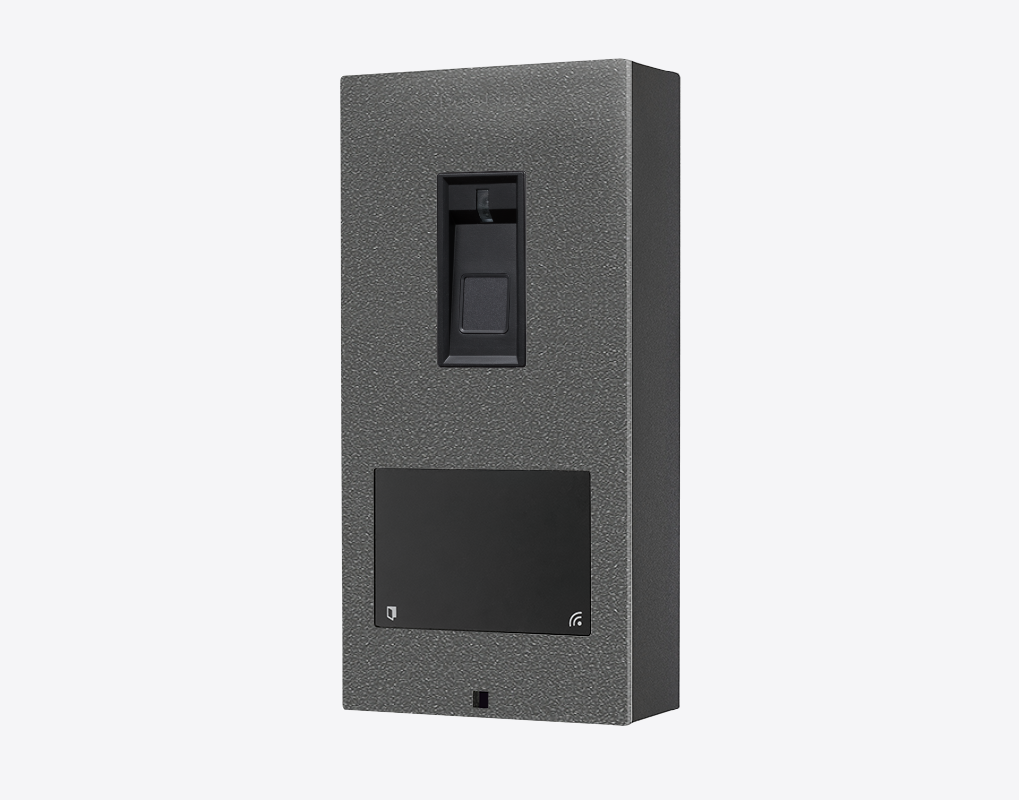

Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
DB 703, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423872769, P/N: 423872769)
| Front panel | 3 mm (0.12 in) For more materials and colours see material board and Online Shop. |
|
Mounting housing (backbox) |
Polycarbonate |
| Mounting type | Surface-mounted. Flush-mounted version sold separately |
| Power supply | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Fingerprint Reader | Configurable via App • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • 50 fingerprints manageable • Event history • Multicolored Status LED |
| Tamper Sensor | Integrated |
| Weight | 250 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • 15 – 48 V DC input (+, -), max. 15 W • Wiegand |
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions | 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit with front panel 1x Wall mounting bracket 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
*Shipping Policy
I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.
The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.
Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
