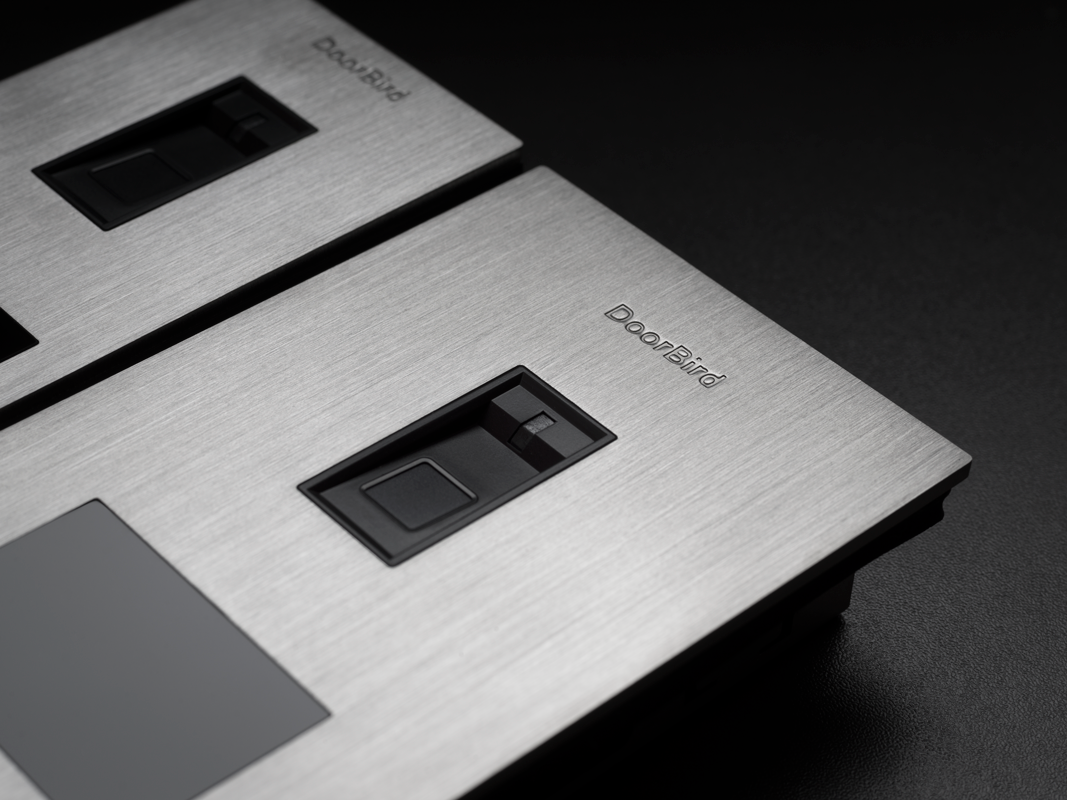

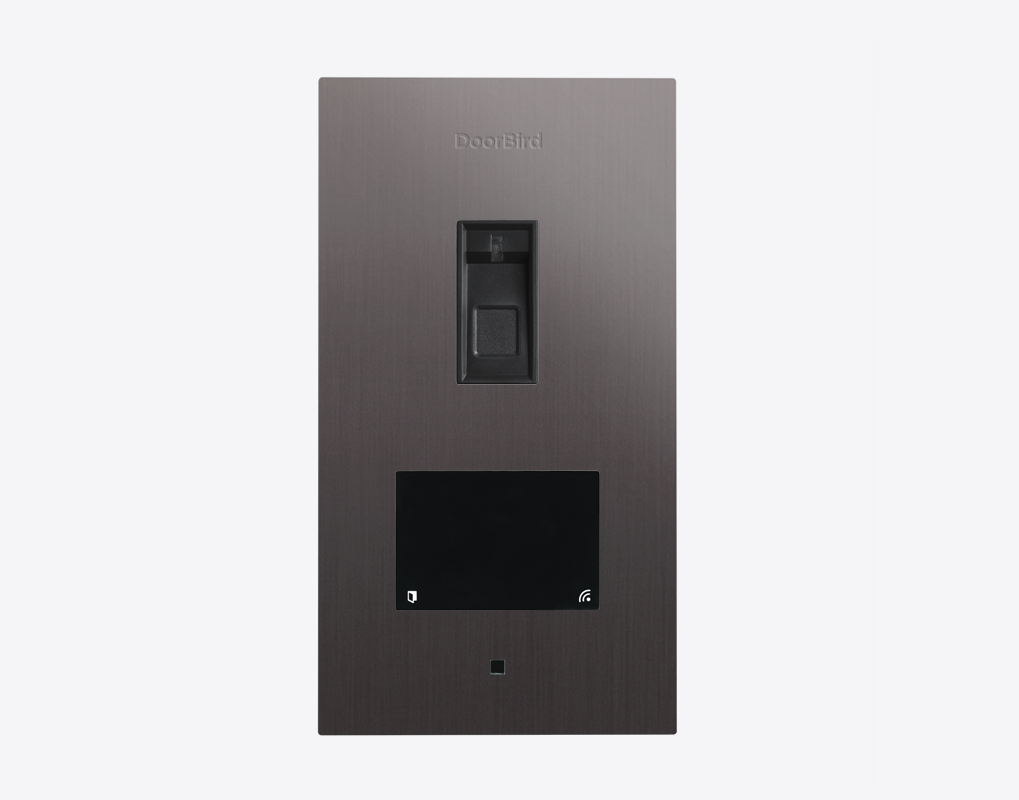

Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Titanium-finish as PVD coating, stainless steel, brushedAll DoorBird products are designed, developed and produced by Bird Home
Automation Group in Berlin, Germany. We manufacture all products with
the greatest care and precision, and deliver them to our customers all over
the world.
| Front panel | 3 mm (0.12 in) For more materials and colours see material board and Online Shop. |
|
Mounting housing (backbox) |
Stainless steel |
| Mounting type | Flush-mounted. Surface-mounted and retrofit version sold separately |
| Power supply | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Fingerprint Reader |
Configurable via App |
| Tamper Sensor | Integrated |
| Weight | 465 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • 15 – 48 V DC input (+, -), max. 15 W • Wiegand |
| Weatherproof | Yes, IP65 |
| Yes, IP65 | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions |
152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
