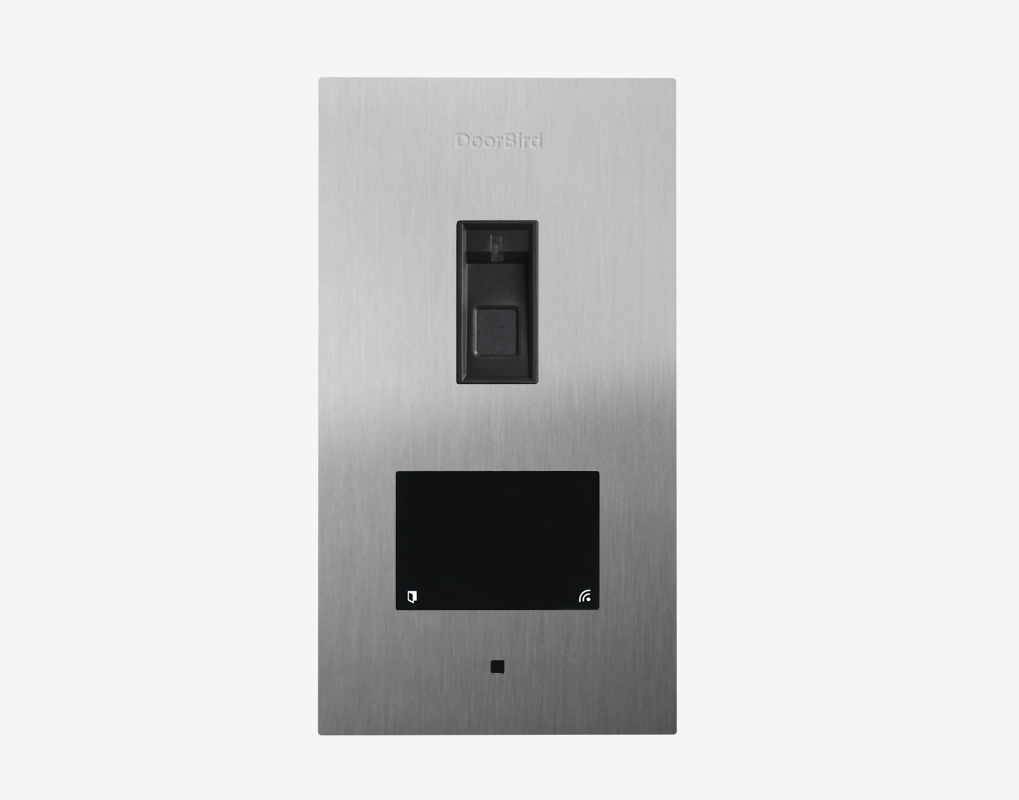

DoorBird A1122 Flush-Mount IP Access Control Device Fingerprint 50 in Stainless Steel V4A

Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423872806, P/N: 423872806)


  • Flush-mount housing included
  • WiFi / LAN connection (PoE capable)

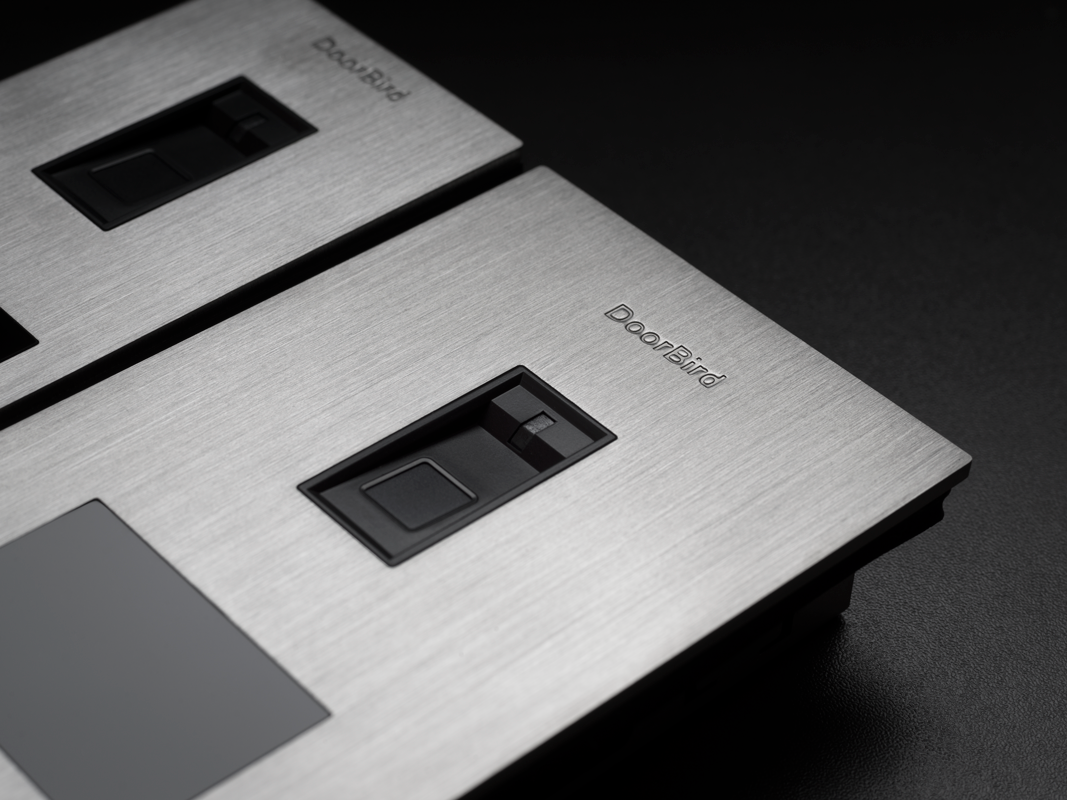

  • Fingerprint sensor by Fingerprint Cards AB
  • 125 KHz and 13.56 MHz RFID reader
  • 2 freely configurable bistable switching relays
  • Tamper sensor
  • Wiegand interface


  • Three separate access control devices combined:
    Fingerprint reader
    RFID Reader
    Bluetooth low Energy (BLE)
  • Fingerprint reader
    Supports up to 50 fingerprints
    Integrated Status LED (RGB) and Touch sensor
  • RFID sensor
    125 KHz
    13.56 MHZ
  • Bluetooth low Energy (BLE)
    Supports A8007 Bluetooth Remote Control
    For access control, compatible external sensors and smart locks
  • WiFi-capable - Works within a WiFi network, no LAN cable needed
  • Two freely configurable bistable switching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Wiegand interface
  • Manipulation sensor

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home
Automation Group in Berlin, Germany. We manufacture all products with
the greatest care and precision, and deliver them to our customers all over
the world.

Front panel 3 mm (0.12 in) For more materials and colours see material board and Online Shop.
Mounting housing
Stainless steel
Mounting type Flush-mounted. Surface-mounted and retrofit version sold separately
Power supply 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Fingerprint Reader

Configurable via App
• Individual events (e.g. switch a relay, HTTP(s)
• Individual schedules
• 50 fingerprints manageable
• Event history
• Multicolored Status LED

Tamper Sensor Integrated
Weight 465 g
Connectors • LAN/PoE (T+, T-, R+, R-)
• 2 x Bistable latching relay (potential-free),
max. 1-24 V DC/AC, 1 A, e.g. for electric
door opener
• 15 – 48 V DC input (+, -), max. 15 W
• Wiegand
Weatherproof Yes, IP65
Yes, IP65 IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368

152 x 83 x 31 mm (H x W x D)

5.99 x 3.27 x 1.22 in (H x W x D)

Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery 1x Main Electrical Unit
1x Front panel
1x Flush-mounting housing (backbox)
1x Power supply unit (mains adaptor) with up
to 4 country-specific outlet adaptors
(110 - 240 V AC to 15 V DC)
1x RJ45 adapter
1x Screwdriver
1x Quickstart guide with Digital Passport
1x Installation manual
1x Small parts
