Description

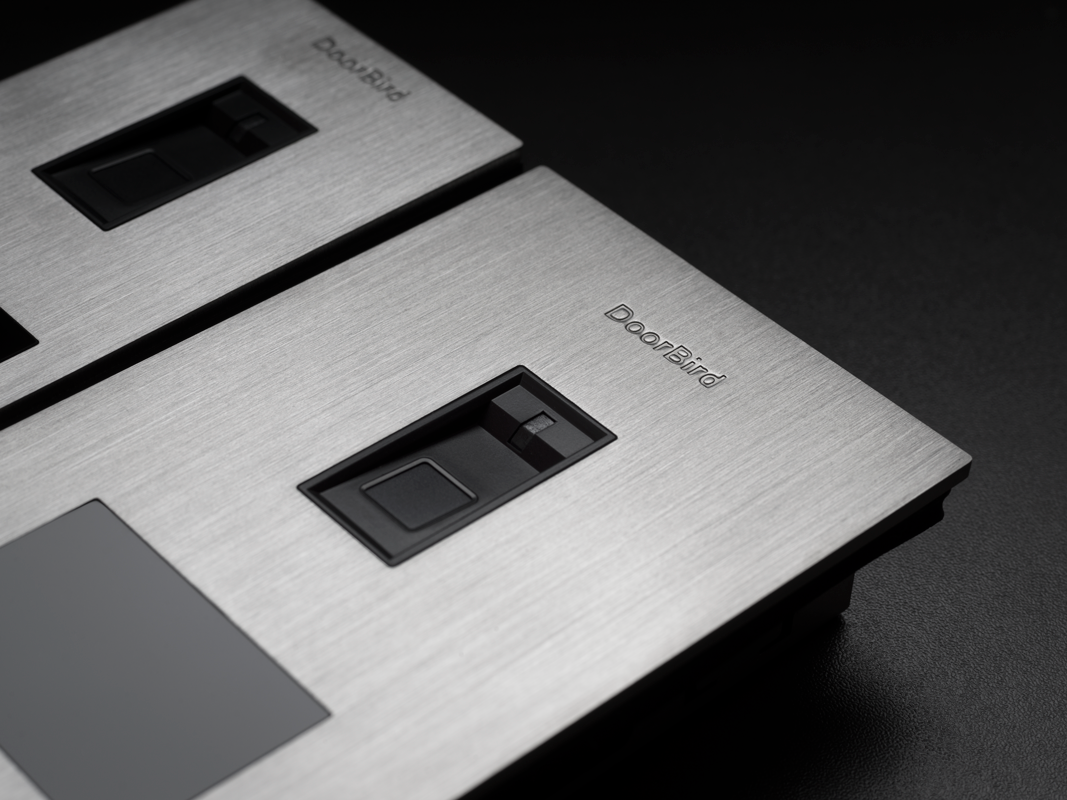

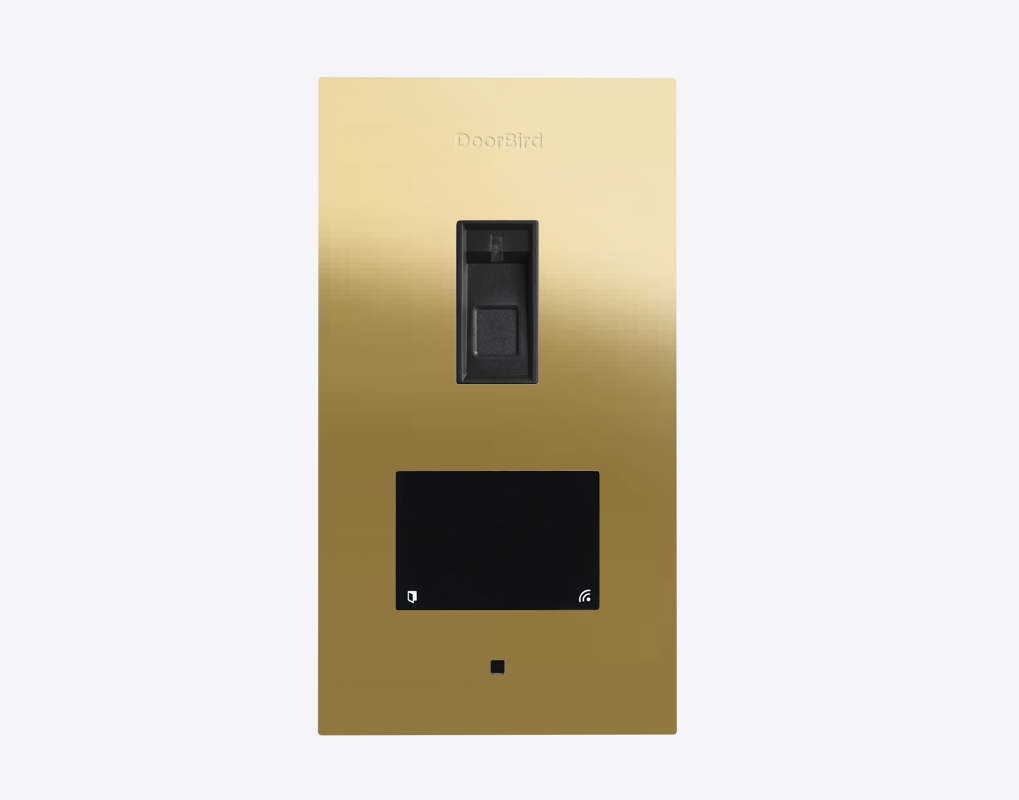

DoorBird A1122 Flush-Mount IP Access Control Device Fingerprint 50 in Brass-Finish as PVD Coating, Stainless Steel V4A, High-Gloss Polished

Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

Brass-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423912694, P/N: 423912694)

Features

  • Flush-mount housing included
  • WiFi / LAN connection (PoE capable)
  • Fingerprint sensor by Fingerprint Cards AB
  • 125 KHz and 13.56 MHz RFID reader
  • 2 freely configurable bistable switching relays
  • Tamper sensor
  • Three separate access control devices combined - Fingerprint reader, 125 KHz RFID Reader, and 13.56 MHz RFID Reader
  • Fingerprint reader - Supports up to 50 fingerprints, Integrated Status LED (RGB) and Touch sensor
  • WiFi-capable - Works within a WiFi network, no LAN cable needed
  • Two freely configurable bistable switching relays - Control one door or one gate via App. Status configurable via App: temporary or permanent circuit
  • Bluetooth Low Energy (BLE) - Supports A8007 Bluetooth Remote Control. For access control, compatible external sensors and smart lock
  • RFID sensor
  • Wiegand interface
  • Manipulation sensor
Front panel  3 mm (0.12 in) For more materials and colours see material board and Online Shop.
Mounting housing
(backbox) 		Stainless steel
Mounting type Flush-mounted. Surface-mounted and retrofit version sold separately
Power supply 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Fingerprint Reader Configurable via App
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • 50 fingerprints manageable
  • Event history
  • Multicolored Status LED
Tamper Sensor Integrated
Weight 465 g
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • 15 – 48 V DC input (+, -), max. 15 W
  • Wiegand
Weatherproof Yes, IP65
Yes, IP65 IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368
Dimensions 152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D)
Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Flush-mounting housing (backbox)
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
