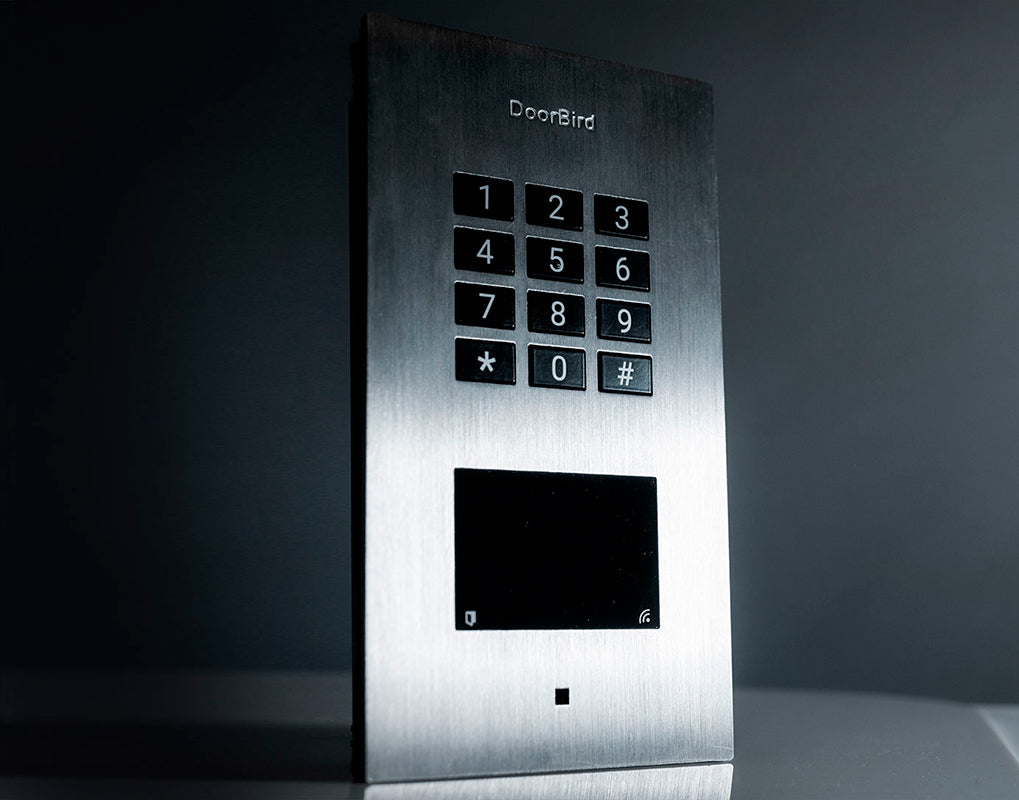

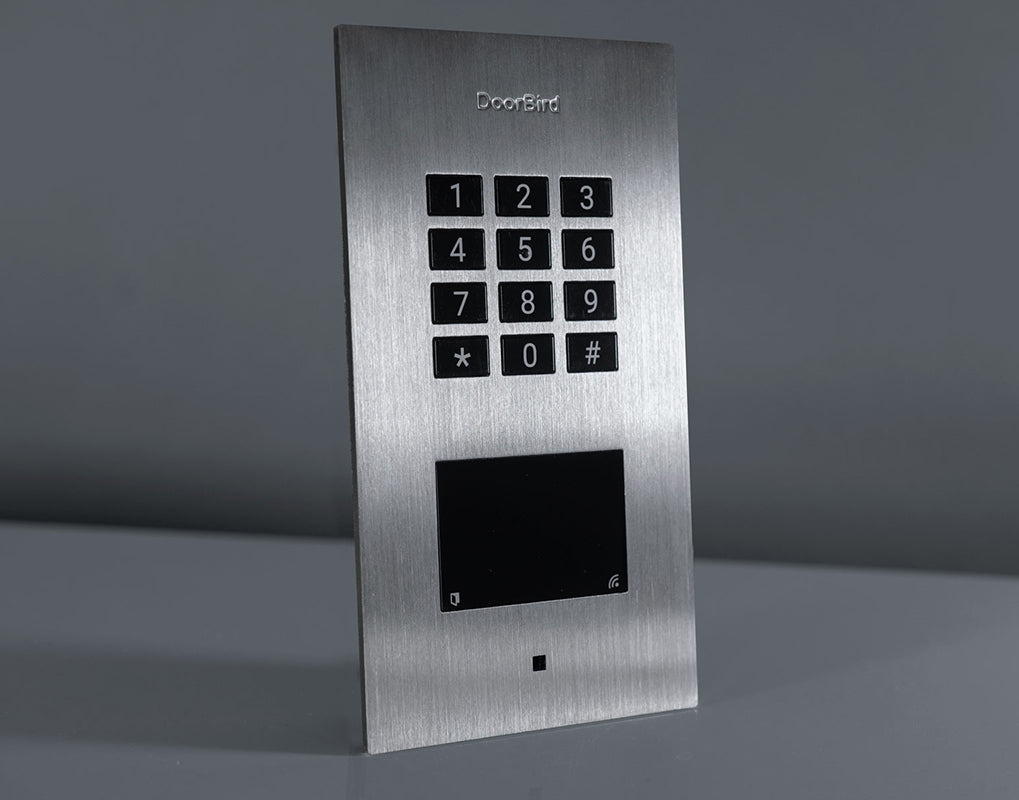

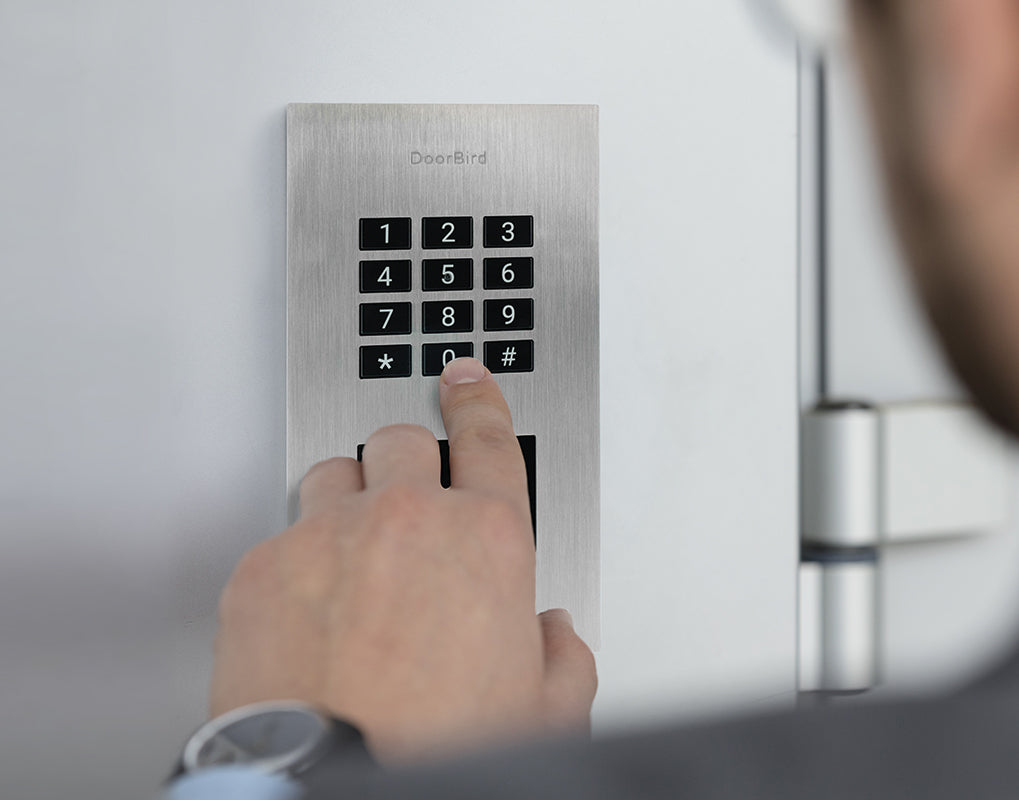

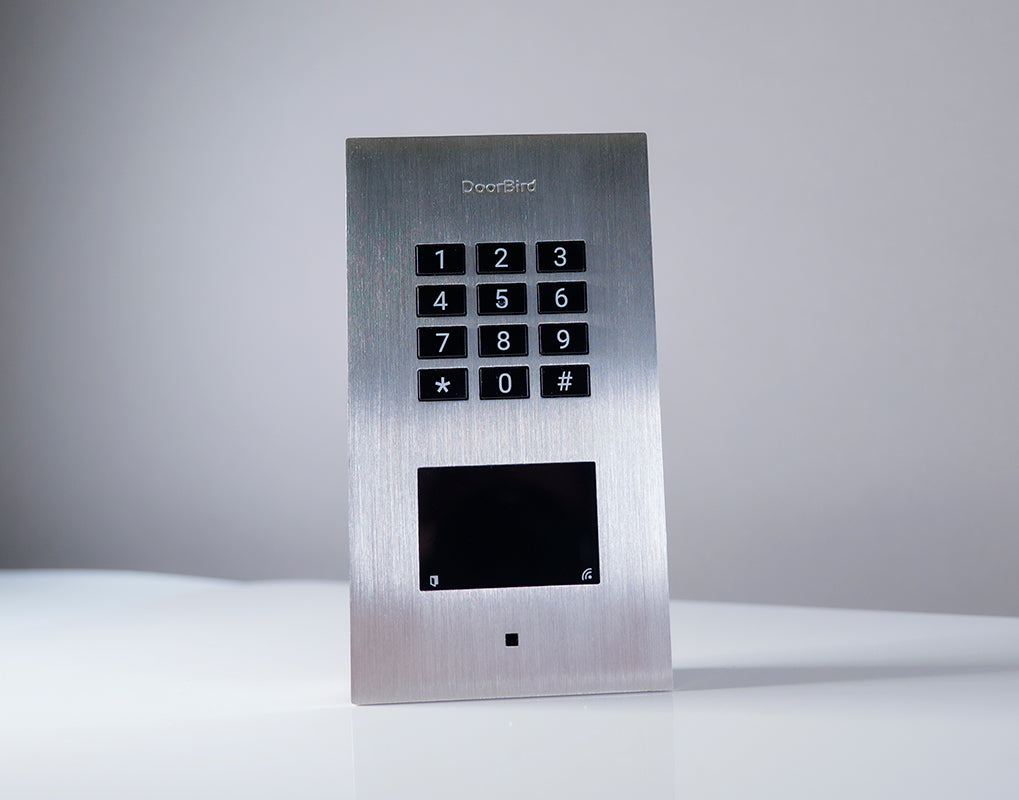

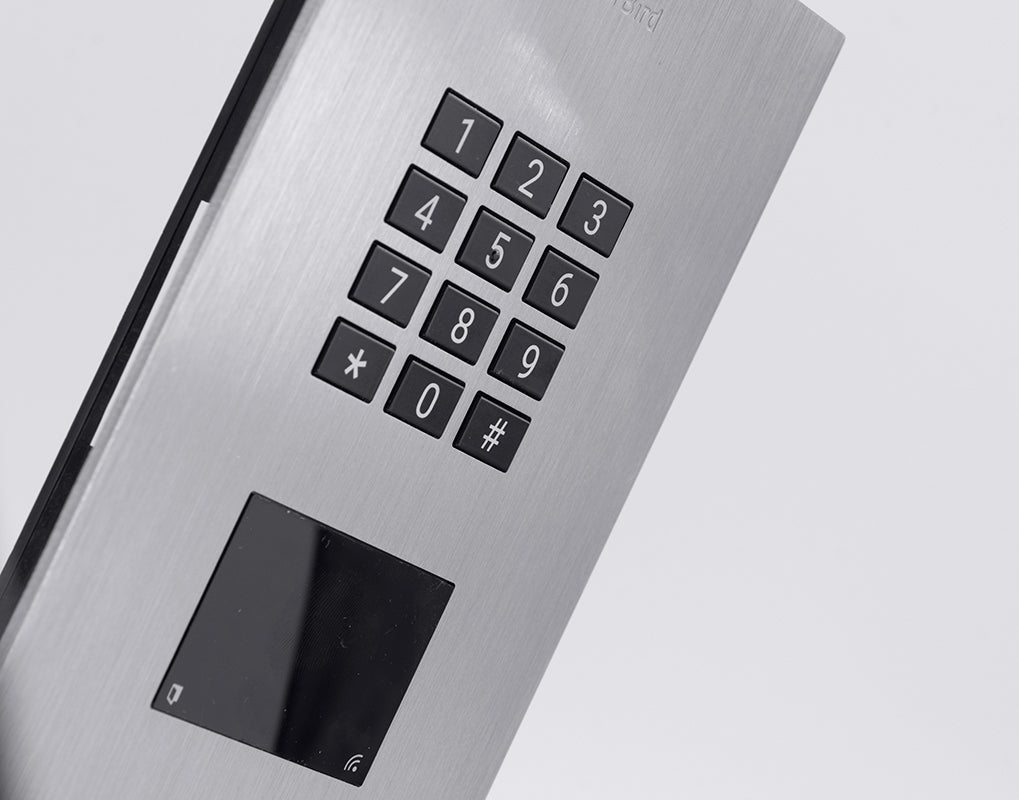

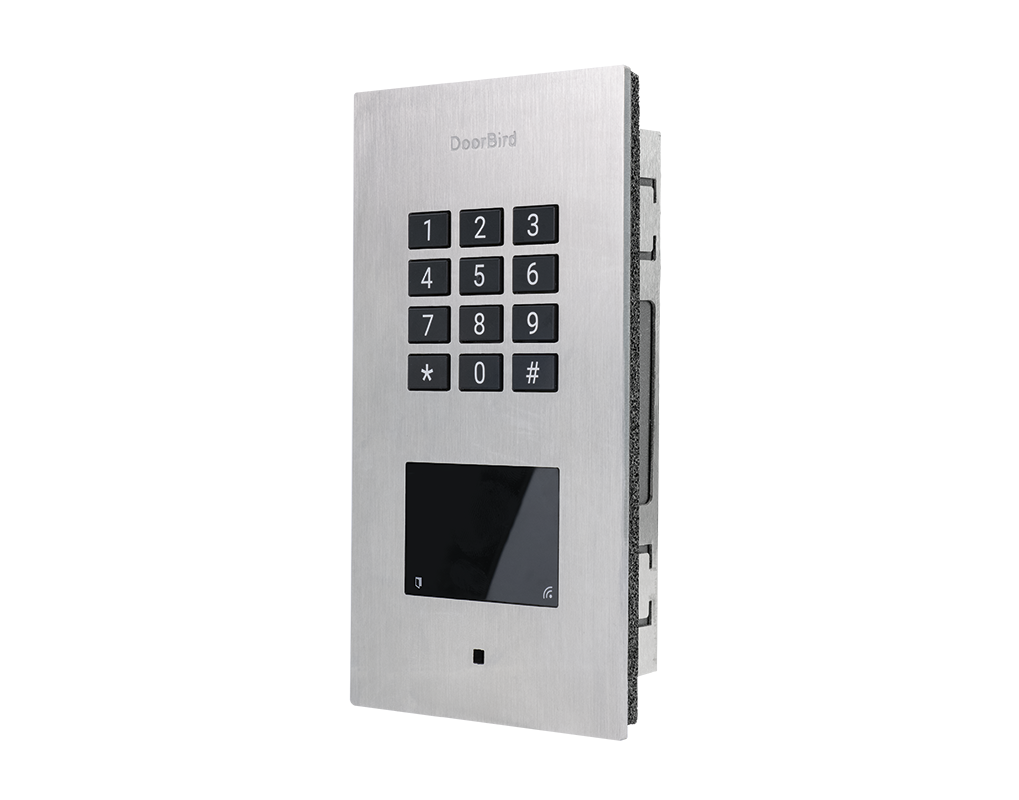

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Titanium-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423893672, P/N: 423893672)
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar) |
|
Mounting housing (backbox) |
Stainless steel |
| Mounting type | Flush-mounted. Surface-mounted and retrofit version sold separately |
| Power supply | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Keypad module |
12 keys, illuminated, configurable via App, e.g.
|
| Tamper Sensor | Integrated |
| Weight | 465g |
| Connectors |
|
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions | 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D) |
| Operating conditions | 152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D) |
| Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
*Shipping Policy
I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.
The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.
Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
