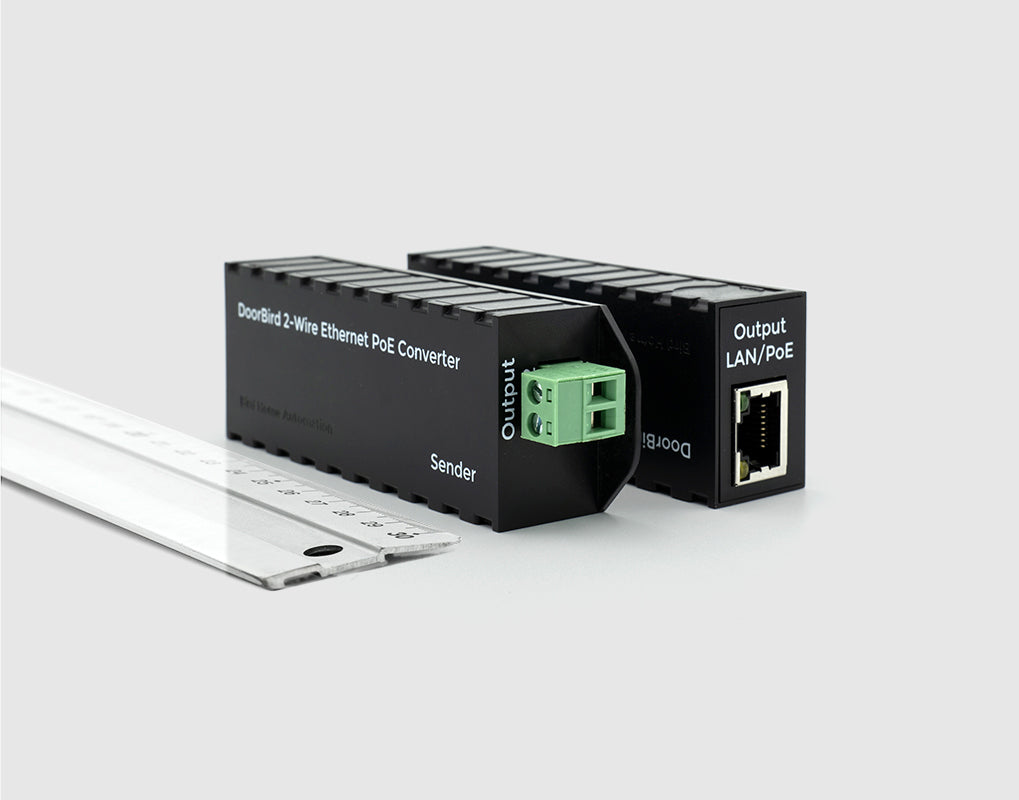

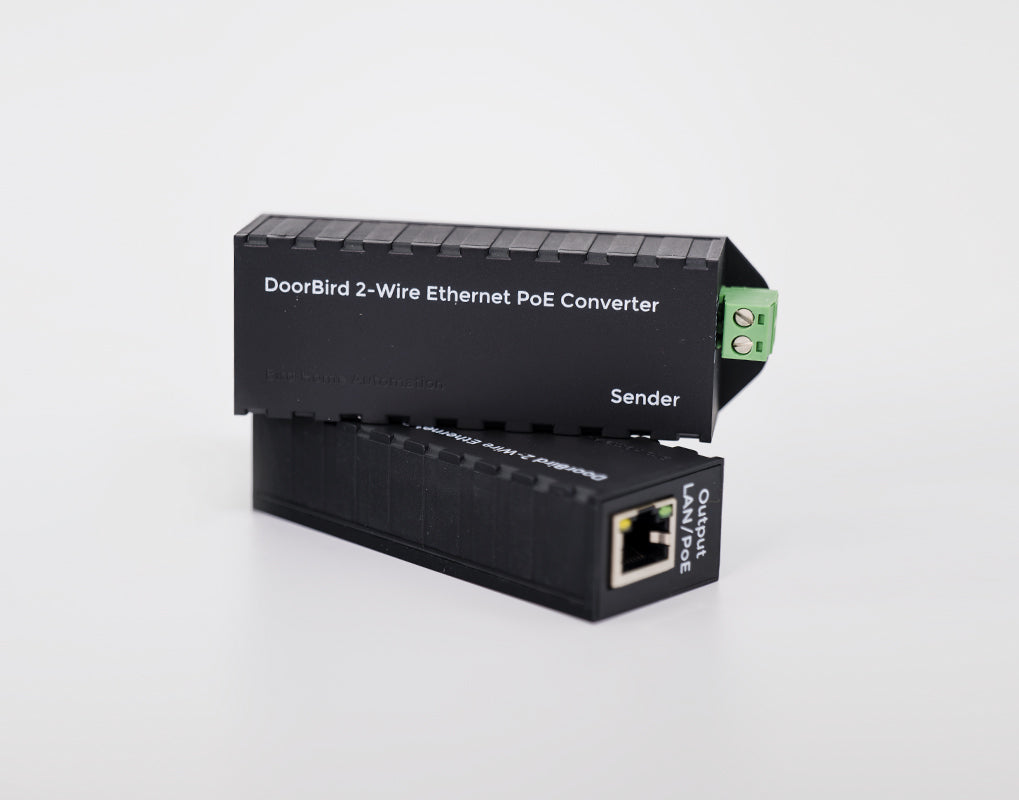

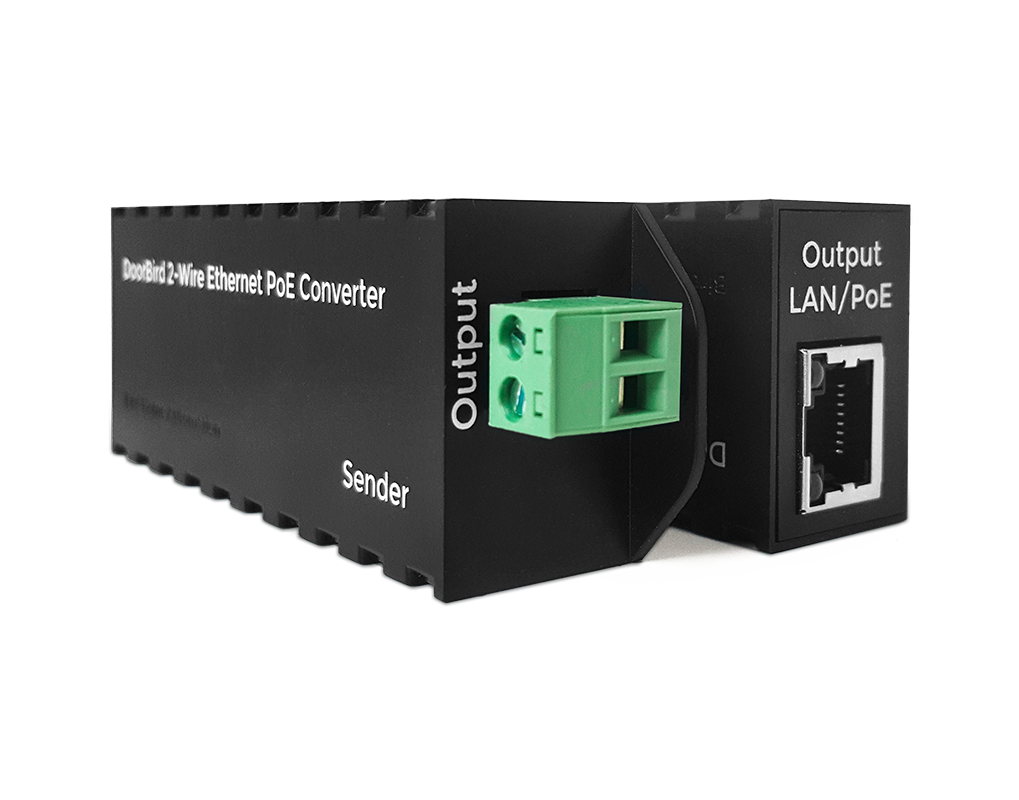

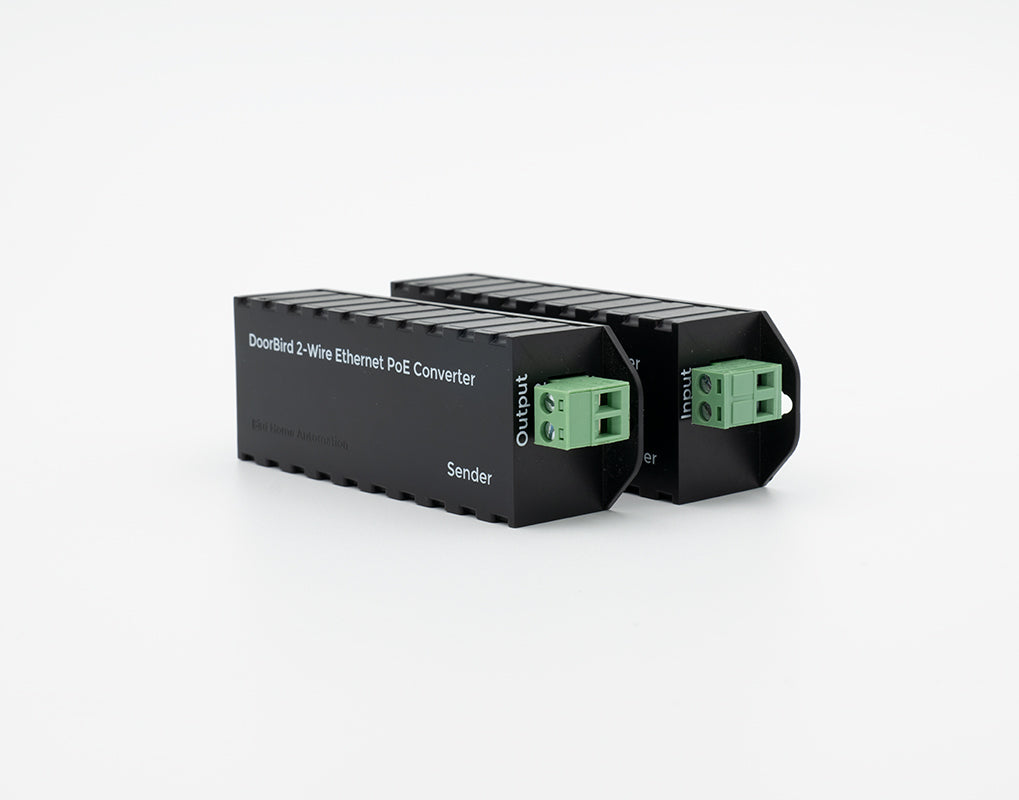

The DoorBird 2-Wire Ethernet PoE Converter is probably the world‘s smallest and most powerful converter. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances. For example; existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.
| DIMENSIONS | |
|---|---|
| Dimensions | 33 x 25 x 88 mm (H x W x D) 1,30 x 0,98 x 3,46 in (H x W x D) |
| Weight | 140g |
| GENERAL INFORMATION | |
| Speed | Up to 60 mbit/s at maximum transmission range |
| Latency | -0.01 ms |
| Data line pair | 1/2 (+), 3/6 (-) |
| Required accessories | 2 x Network cable, IEEE 802.3 af PoE Switch or PoE Injector, e.g. DoorBird Gigabit PoE Injector, D-Link DGS-1008P or TPLink TL-PoE150S Compatible with all DoorBird IP Video Door Stations. |
| Power supply | PoE-Switch or PoE-Injector (IEEE 802.3 af), not included |
| Connectors |
|
| PoE | PoE 802.3 af/at Mode-A and PoE +, up to 30 W |
| Range | 80 meters / 262 feet with unshielded two-wire cable |
| Operating conditions | -25 to 55°C / -13 to 131°F |
| Approvals | CE, FCC, RoHS, IP50 |
| Weather-proof | No |
| FEATURES | |
| Scope of delivery | 1 x DoorBird 2-Wire Ethernet PoE Converter Sender 1 x DoorBird 2-Wire Ethernet PoE Converter Receiver 1 x DIN-Rail adapter |
