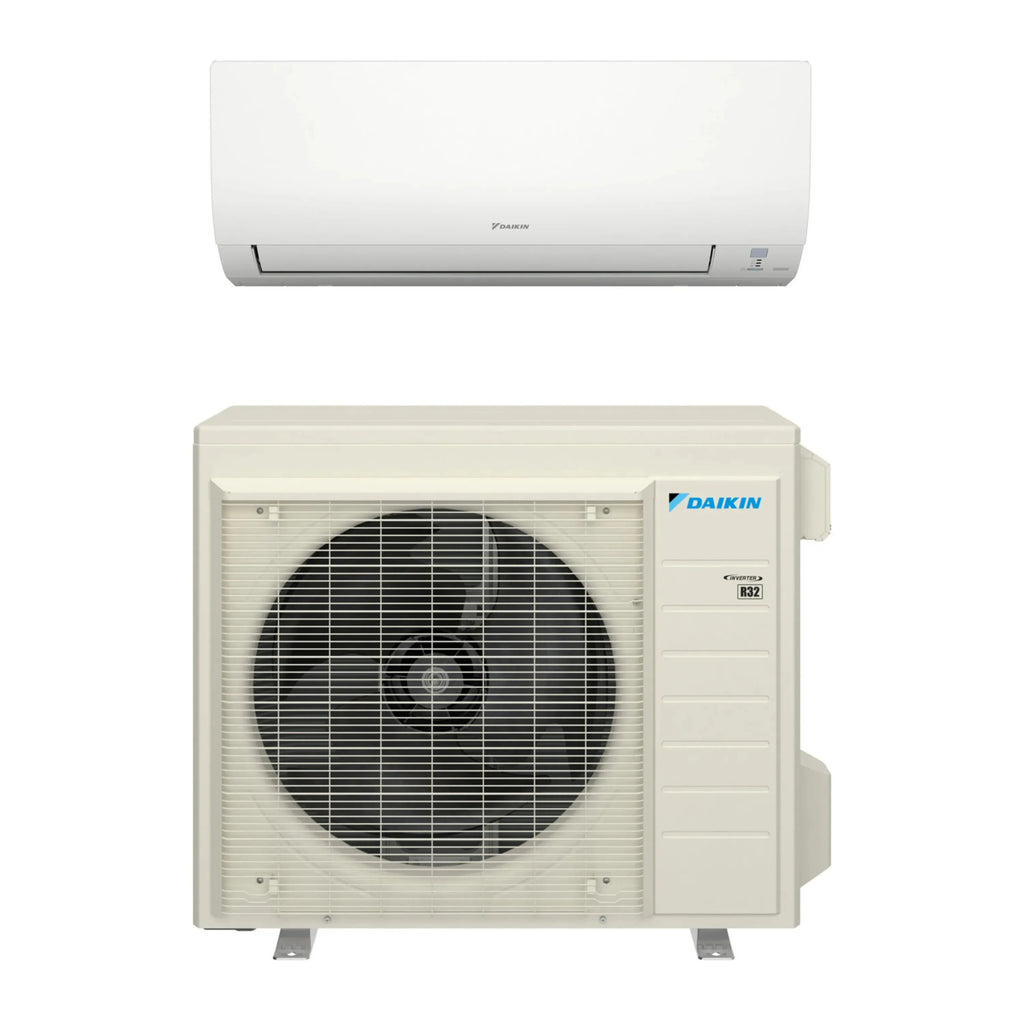

What's in this package
$141.17 less than buying separatelyEvery piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

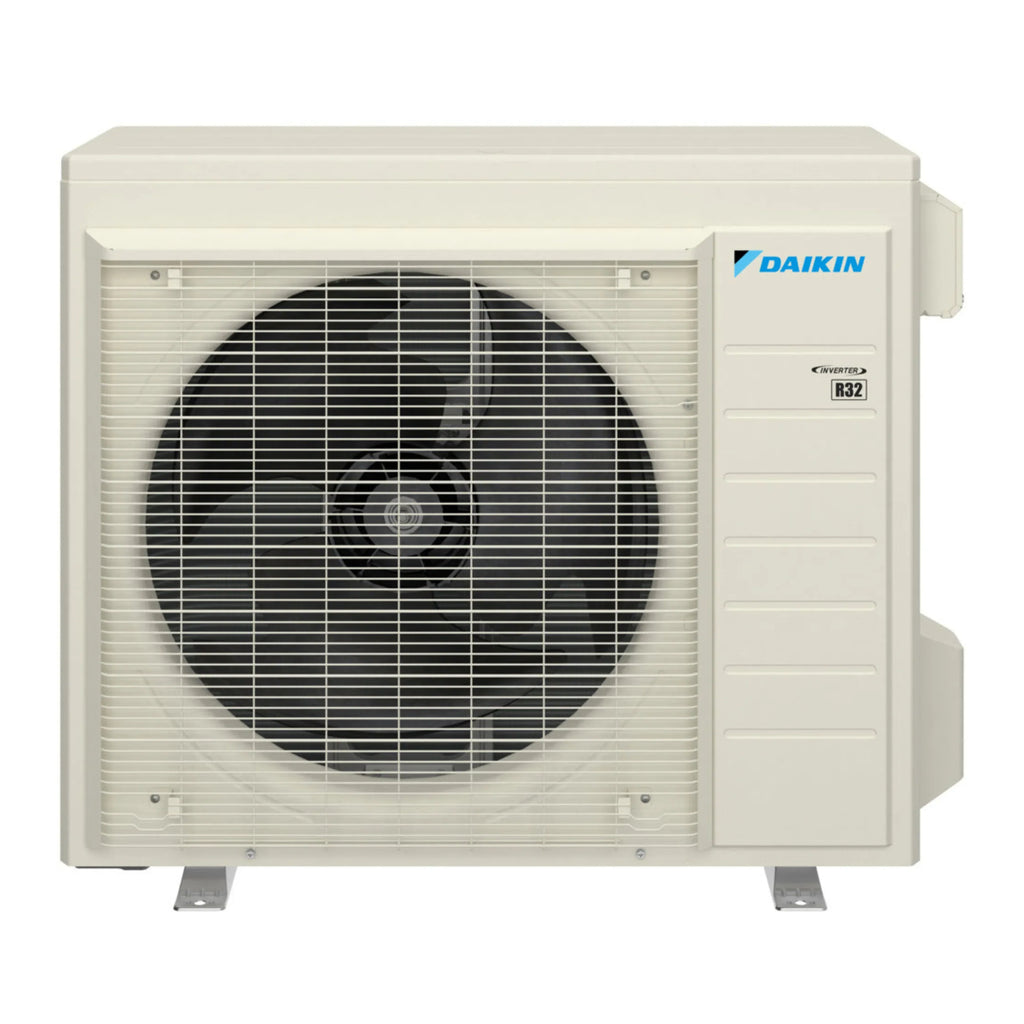

Piece 1 of 2 — MINI SPLIT CONDENSER
The Daikin Oterra 115V Series is a 0.75 ton single-zone ductless mini split heat pump that connects to a dedicated 115V, 15 A circuit. Delivers up to 20 SEER2 efficiency with optional Wi-Fi control.
Features
- Up to 20 SEER2 / Up to 9 HSPF2 / Up to 12 EER2 for efficient cooling and heating operation
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Cooling Range: 50°F to 115°F
- Heating Range: 5°F to 65°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 1.15 lbs)
- Outdoor Sound Pressure as low as 48 dB(A)
- 115V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 14.9 A | Max Overcurrent Protection: 15 A
- 12-Year Parts Limited Warranty with online registration
Refrigerant charge: the outdoor unit is factory-charged for up to 49-1/4 ft of line set; longer runs need about 0.22 oz of additional R-32 per foot beyond that, added at installation.
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 26-9/16 W" x 11-3/16 D" x 21-15/16 H"
- Unit Weight
- 59 lbs
- Pallet Qty
- 8
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- RXQ_ASBU9
- Family Description
- 0.75 - 1 Ton 20 Series Heat Pump Up to 20 SEER2 / 9 HSPF2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (50° - 115°)
- Series
- Daikin Oterra
CAPACITY & PERFORMANCE
- Tonnage
- 0.75 Ton
- Cooling Capacity (Rated)
- 9,000 Btu/H
- Heating Capacity (Rated)
- 10,900 Btu/H
- Airflow Rate High (Cooling)
- 1,233 ft³/min
- Airflow Rate High (Heating)
- 1,151 ft³/min
- SEER2 (Max)
- 20
- HSPF2 (Max)
- 9
- EER2 (Max)
- 12
- Cooling Operating Range
- 50°F to 115°F
- Heating Operating Range
- 5°F to 65°F
COMPRESSOR & MOTORS
- Compressor Type
- Swing
- Compressor Stages
- Inverter
ELECTRICAL REQUIREMENTS
- Power Voltage
- 115 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 14.9
- Max Overcurrent Protection
- 15 A
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Max Piping Length
- 65-5/8 ft
- Max Height Difference
- 49-1/4 ft
- Min Piping Length
- 10 ft
- Chargeless Piping Length
- 49-1/4 ft
- Additional Refrigerant Charge
- 0.22 oz/ft beyond chargeless length
- Line Set
- Not included (sold separately)
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
NOISE LEVELS
- Sound Pressure (Outdoor)
- 48 dB(A) cooling / 49 dB(A) heating
Piece 2 of 2 — MINI SPLIT AIR HANDLER
The Daikin Oterra 115V FTXQ9 wall-mount indoor air handler provides high-efficiency comfort in a compact wall design with optional Wi-Fi. The system connects to a dedicated 115V, 15 A circuit at the outdoor unit.
Features
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Airflow up to 424 CFM (High)
- Indoor Sound Pressure as low as 21 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Auto, Quiet
- Air Filter: Removable, Washable
- Wi-Fi: Optional adapter
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 115V, 1-Phase, 60 Hz
- Unit Weight: 18 lbs
- 12-Year Parts Limited Warranty with online registration
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 30-5/16 W" x 8-3/4 D" x 11-1/4 H"
- Unit Weight
- 18 lbs
- Pallet Qty
- 16
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXQ_ASBU9
- Family Description
- 0.75 - 1 Ton 20 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 21 dB(A)
- Series
- Daikin Oterra
CAPACITY & PERFORMANCE
- Tonnage
- 0.75 Ton
- Cooling Capacity (Rated)
- 9,000 Btu/H
- Heating Capacity (Rated)
- 10,900 Btu/H
- Airflow Rate High (Cooling)
- 424 ft³/min
- Airflow Rate High (Heating)
- 413 ft³/min
- SEER2 (Matched System)
- 20
- HSPF2 (Matched System)
- 9
- EER2 (Matched System)
- 12
NOISE LEVELS
- Sound Pressure (High)
- 43 dB(A)
- Sound Pressure (Silent)
- 21 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 115 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Line Set
- Not included (sold separately)
CONTROLS & CONNECTIVITY
- Wi-Fi
- Optional adapter (BRP084A61 wireless LAN adapter)
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
