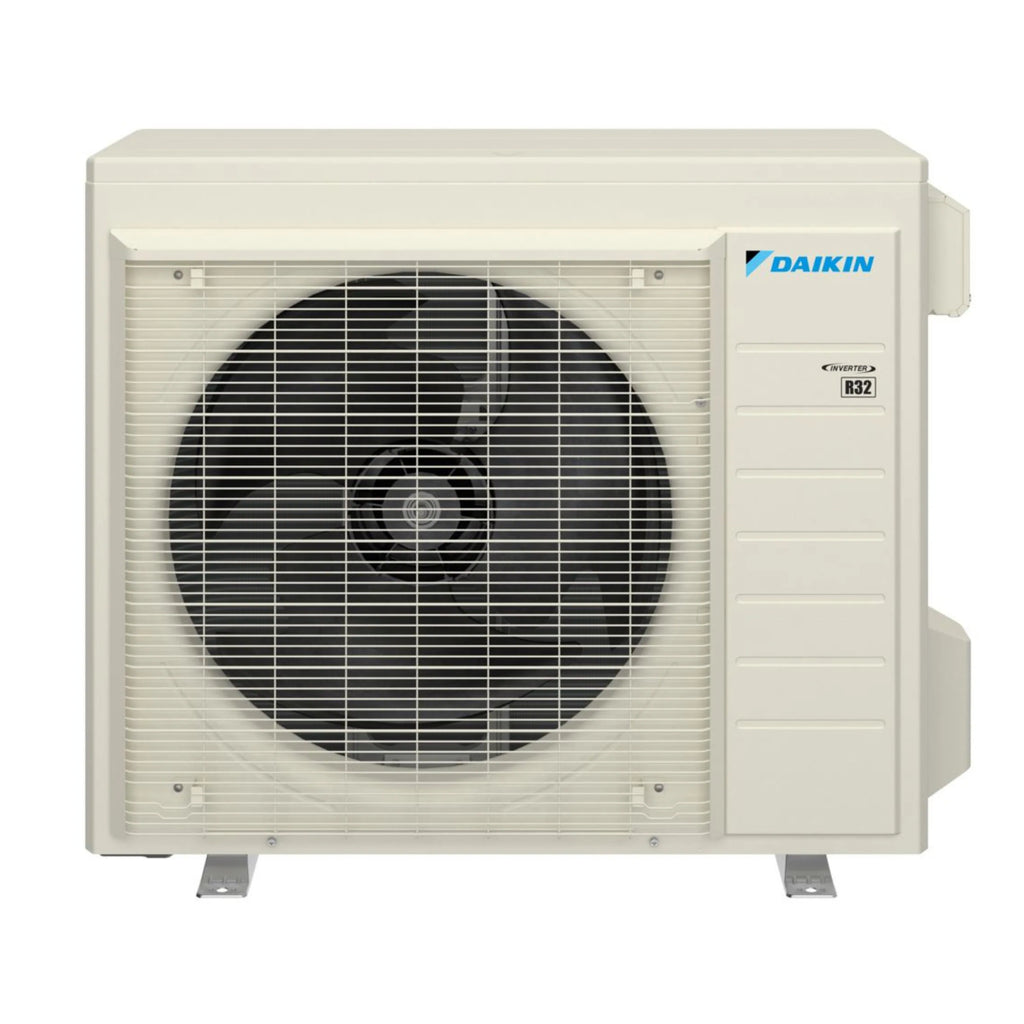

The Daikin Oterra Series is a premium 0.75 ton single-zone ductless mini split heat pump delivering up to 21 SEER2 high-efficiency performance with built-in Wi-Fi smart controls. The Oterra outdoor condenser uses inverter variable-speed technology to maintain precise comfort while minimizing energy use, paired with a matched FTKF or FTXF wall-mount air handler.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 26-1/2 W" x 11-3/16 D" x 21-11/16 H" |
| Unit Weight | 60 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RXF_BVJU9 |
| Family Description | 0.75 - 2 Ton 21 Series Heat Pump Up to 21 SEER2 / 10.2 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 0.75 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 8 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 118°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 9,000 Btu/H |
| Heating Capacity (Rated) | 10,900 Btu/H |
| Airflow Rate High (Cooling) | 1,051 ft³/min |
| Airflow Rate High (Heating) | 1,051 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Swing |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 11.6 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
