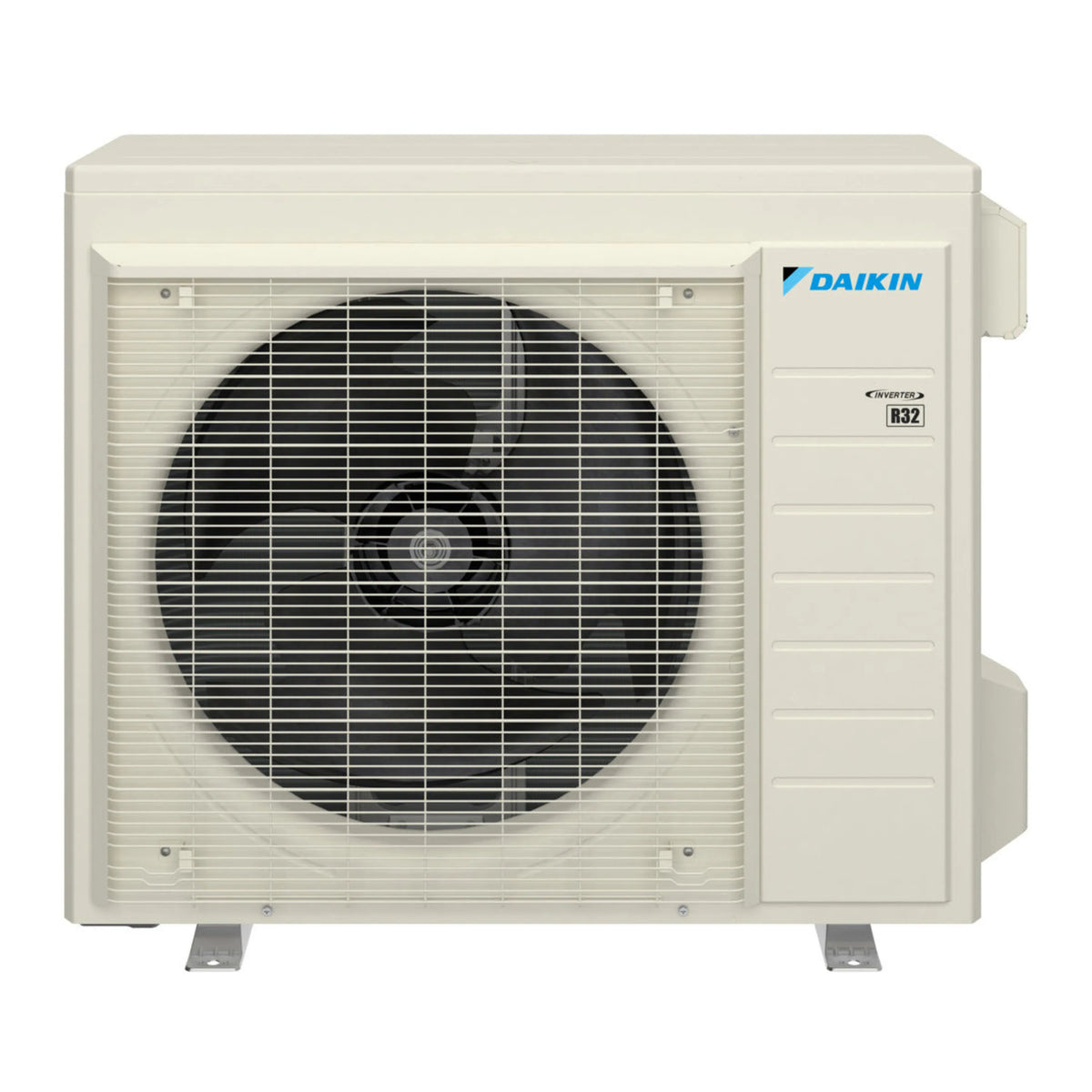

The Daikin Oterra RKF Series is a 1.87 ton single-zone cooling-only ductless mini split delivering up to 21 SEER2 high-efficiency cooling for warm-climate applications where heating is not required. Pairs with a matched FTKF wall-mount air handler for a complete inverter cooling system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 34-1/4 W" x 12-5/8 D" x 29-1/2 H" |
| Unit Weight | 113 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RKF_BVJU9 |
| Family Description | 0.75 - 2 Ton 21 Series Cooling Only Up to 21 SEER2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Air Conditioner |
| Tonnage | 1.8666666666666667 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 4 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 122°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 22,400 Btu/H |
| Airflow Rate High (Cooling) | 2,327 ft³/min |
| Airflow Rate High (Heating) | N/A (Cooling Only) |
| Energy Star Certified | Yes |
| Heating Capacity (Rated) | N/A (Cooling Only) |
| Compressor | |
| Compressor Type | Rotary |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 21.6 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 5/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
