What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

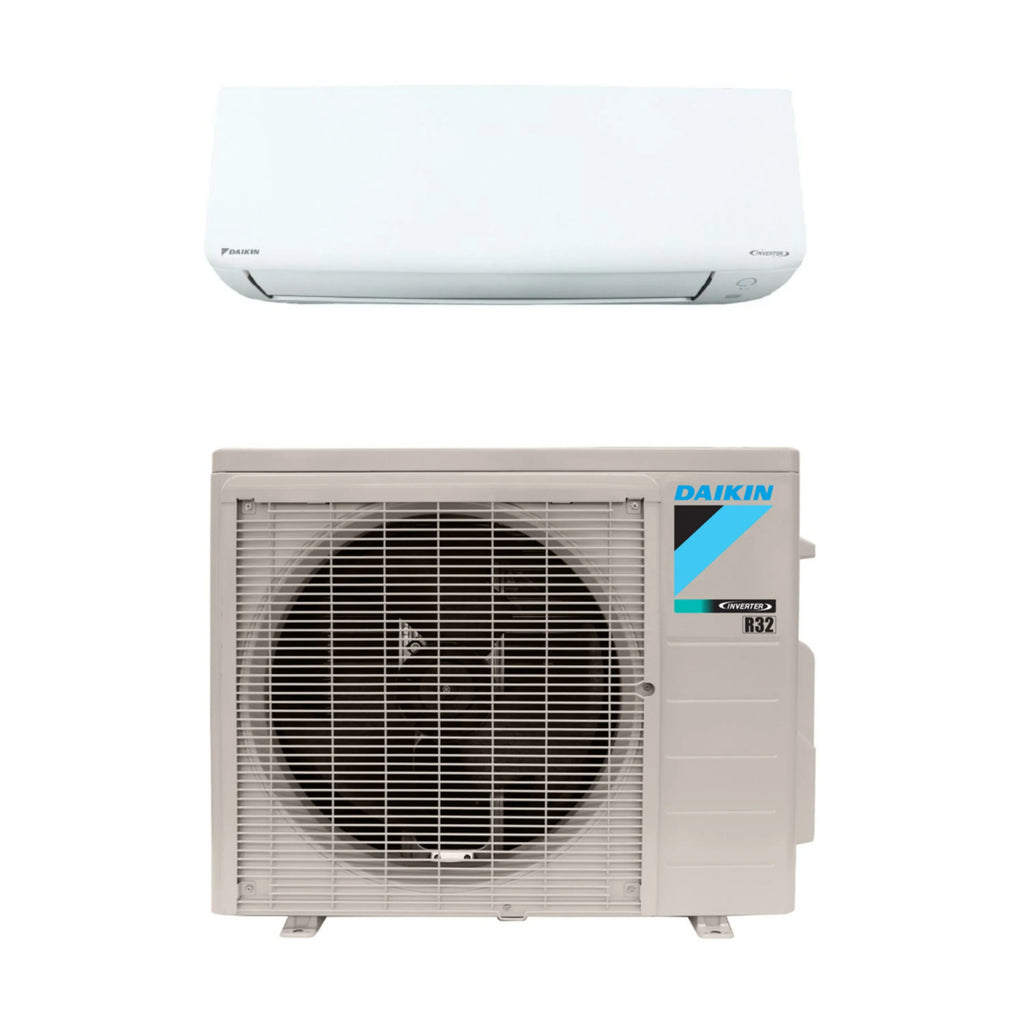

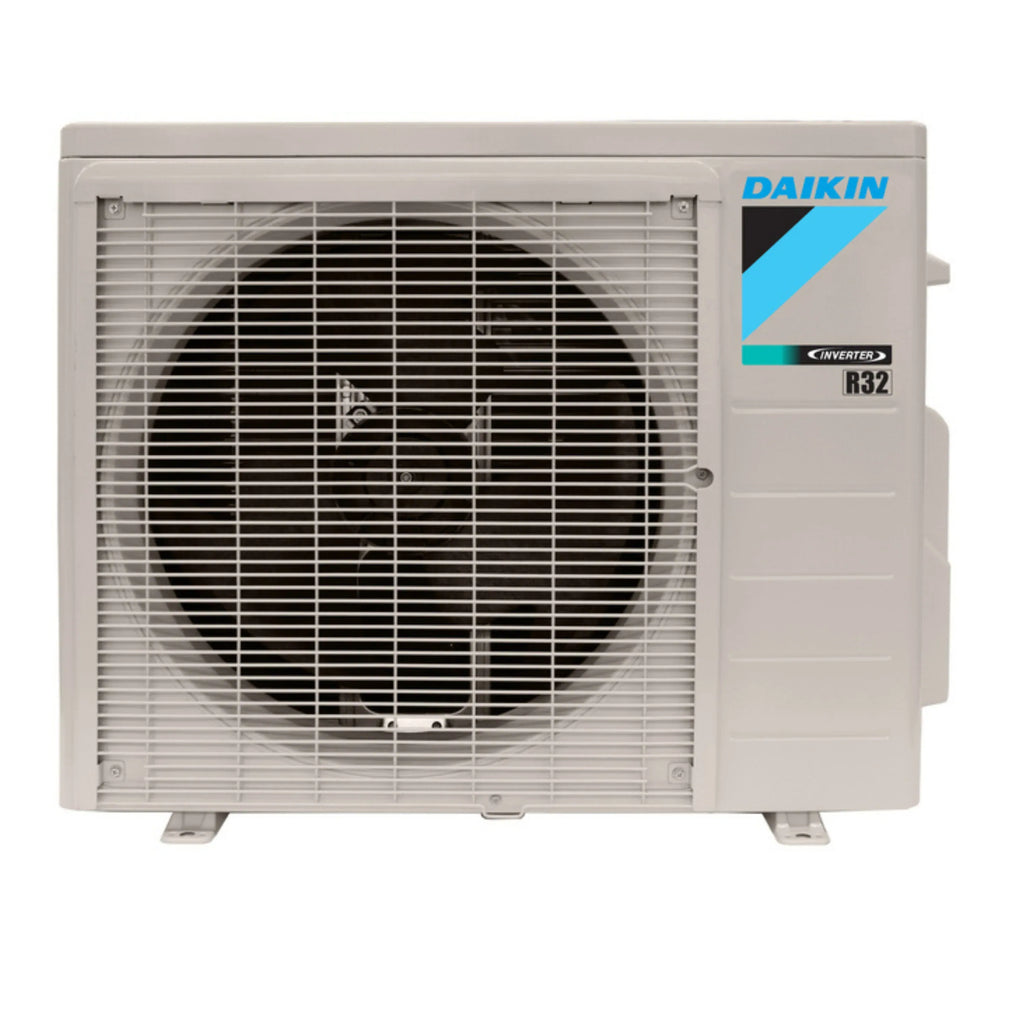

The Daikin Oterra RKF Series is a 1.5 ton single-zone cooling-only ductless mini split delivering up to 21 SEER2 high-efficiency cooling for warm-climate applications where heating is not required. Pairs with a matched FTKF wall-mount air handler for a complete inverter cooling system.
Features
- Up to 21 SEER2 / Up to 12 EER2 for efficient cooling operation
- Cooling Capacity: 18,000 BTU/h
- Cooling Range: 50°F to 122°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 2.45 lbs)
- Outdoor Sound Pressure as low as 54 dB(A)
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 21.4 A | Max Overcurrent Protection: 25 A
- ENERGY STAR® Certified
- 12-Year Parts Limited Warranty with online registration
- Unit Dimensions
- 34-1/4 W" x 12-5/8 D" x 29-1/2 H"
- Unit Weight
- 113 lbs
- Pallet Qty
- 6
- Brand
- Daikin
- Product Family
- RKF_AXVJU
- Family Description
- 0.75 - 2 Ton 21 Series Cooling Only Up to 21 SEER2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Air Conditioner
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (50° - 122°)
- Tonnage
- 1.5
- Cooling Capacity (Rated)
- 18,000 Btu/H
- Airflow Rate High (Cooling)
- 2,327 ft³/min
- Airflow Rate High (Heating)
- N/A (Cooling Only)
- Heating Capacity (Rated)
- N/A (Cooling Only)
- Compressor Type
- Swing
- Compressor Stages
- Inverter
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 21.4
- Refrigerant Type
- R-32
- Pipe Size Gas
- 1/2 in
- Pipe Size Liquid
- 1/4 in
- Energy Star Certified
- Yes
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years

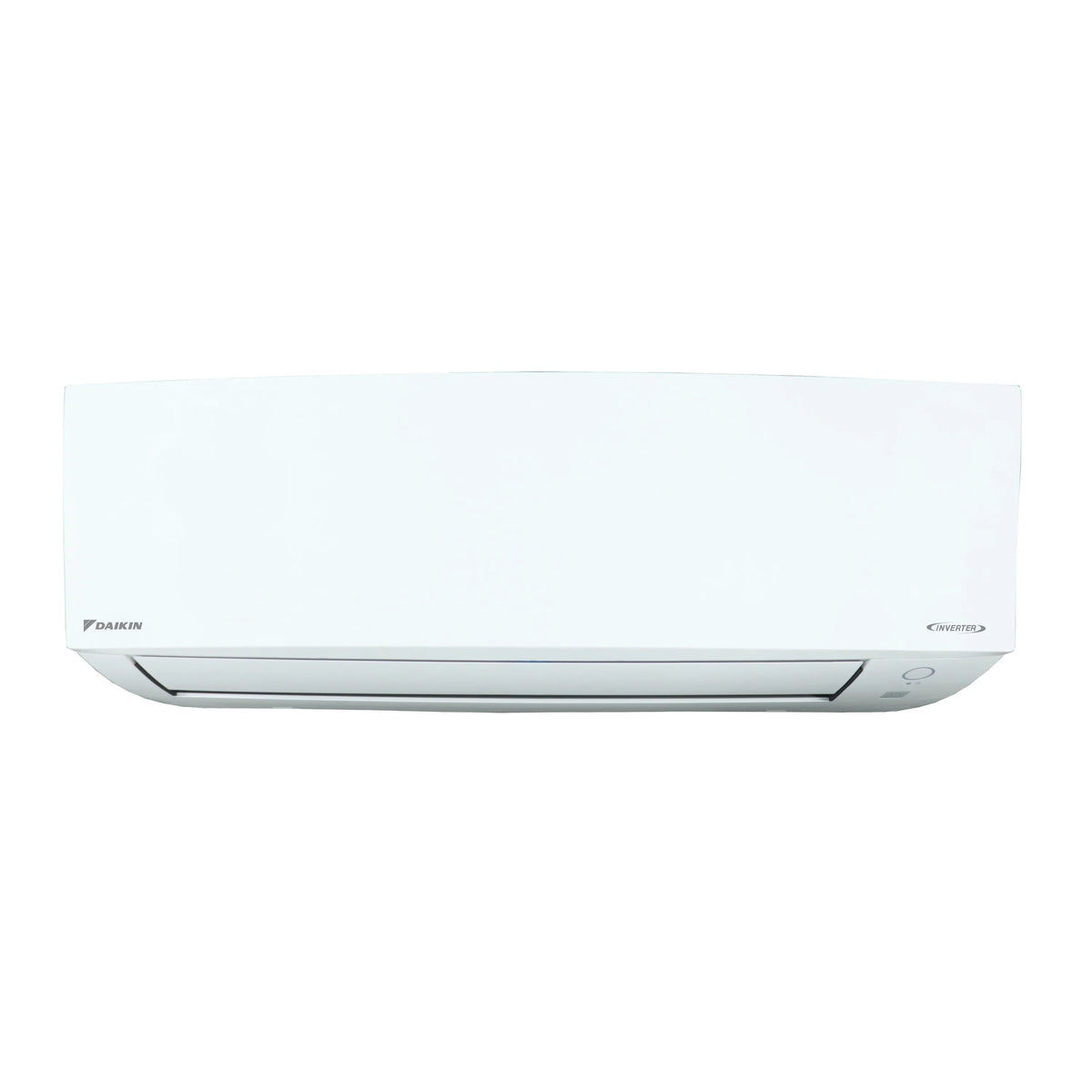

The Daikin Oterra FTKF18 wall-mount indoor air handler delivers high-efficiency cooling and heating with built-in Wi-Fi smart controls (Wi-Fi via optional adapter), a washable Titanium Apatite Photocatalytic air-purifying filter, and ultra-quiet operation. Pairs with a matching Oterra outdoor condenser for a complete inverter system.
Features
- Cooling Capacity: 18,000 BTU/h
- Airflow up to 565 CFM (High)
- Indoor Sound Pressure as low as 33 dB(A) on Silent mode
- Fan Speed Steps: 3 Steps, Auto, Quiet, Turbo
- Air Filter: Catechin
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 28 lbs
- 12-Year Parts Limited Warranty with online registration
- Unit Dimensions
- 39-3/8 W" x 10-3/8 D" x 11-5/8 H"
- Unit Weight
- 28 lbs
- Pallet Qty
- 12
- Brand
- Daikin
- Product Family
- FTKF_AXVJU
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 33 dB(A)
- Tonnage
- 1.5
- Cooling Capacity (Rated)
- 18,000 Btu/H
- Heating Capacity (Rated)
- N/A
- Airflow Rate High (Cooling)
- 565 ft³/min
- Airflow Rate High (Heating)
- 565 ft³/min
- Sound Pressure (High)
- 48 dB(A)
- Sound Pressure (Silent)
- 33 dB(A)
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Refrigerant Type
- R-32
- Pipe Size Gas
- 1/2 in
- Pipe Size Liquid
- 1/4 in
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
