What's in this package
$37.66 less than buying separatelyEvery piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

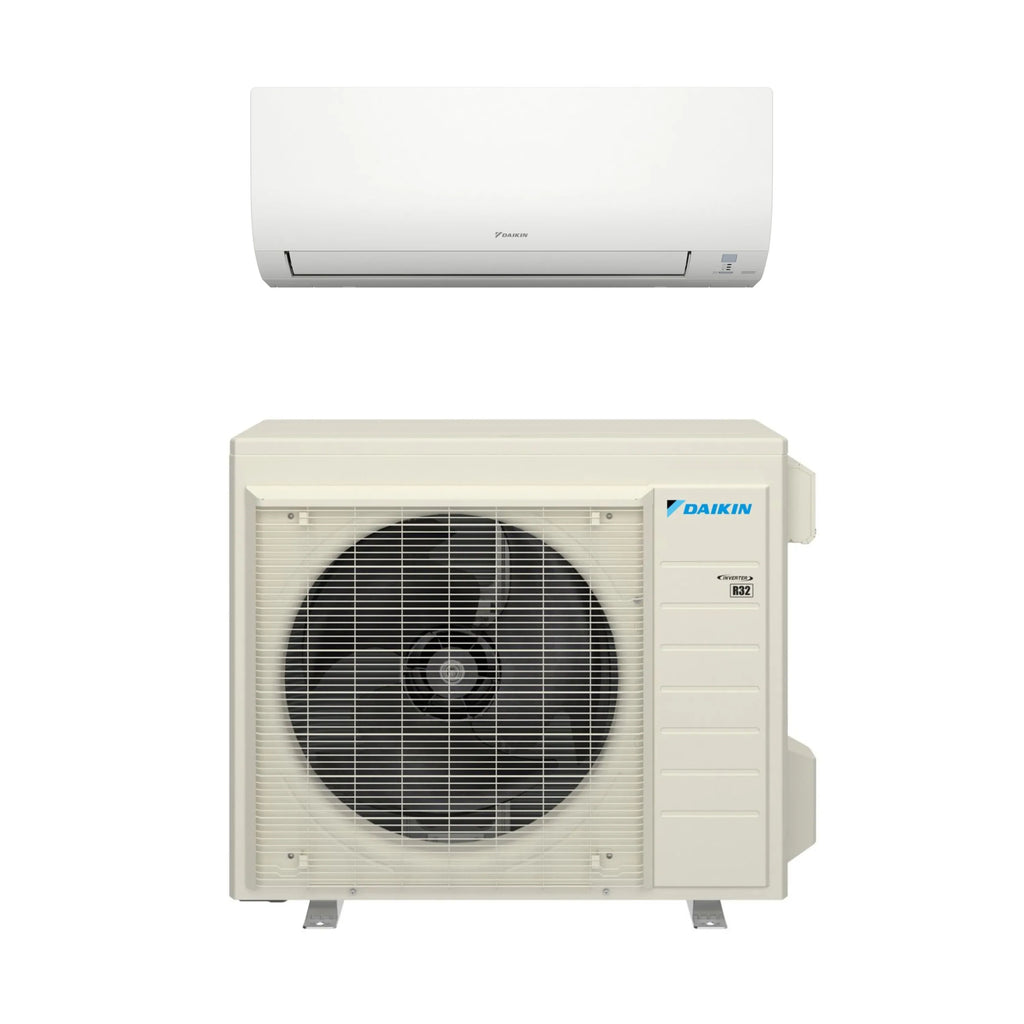

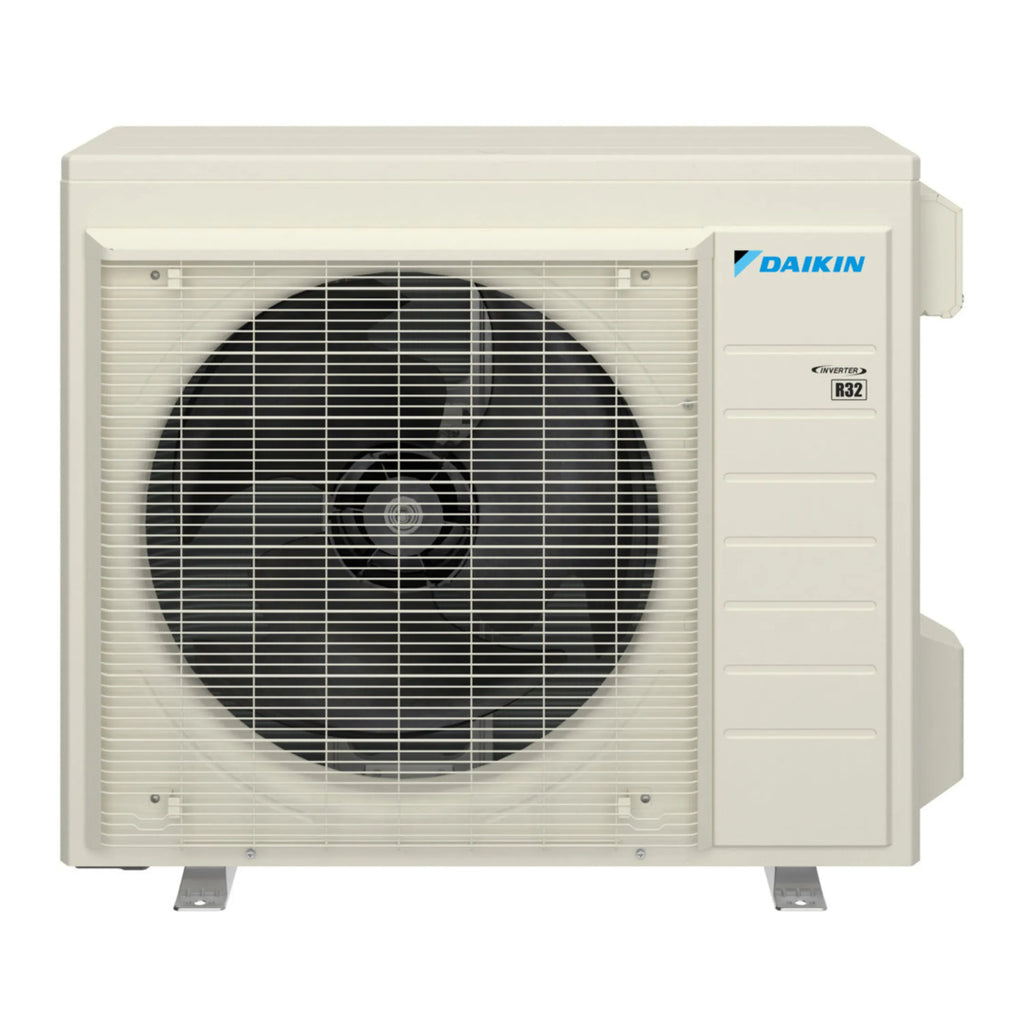

The Daikin Oterra RKF Series is a 1 ton single-zone cooling-only ductless mini split delivering up to 21 SEER2 high-efficiency cooling for warm-climate applications where heating is not required. Pairs with a matched FTKF wall-mount air handler for a complete inverter cooling system.
Features
- Up to 21 SEER2 / Up to 12.5 EER2 for efficient cooling
- Cooling Capacity: 12,000 BTU/h
- Cooling Range: 50°F to 118°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 1.74 lbs)
- Outdoor Sound Pressure as low as 49 dB(A)
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 14.6 A | Max Overcurrent Protection: 15 A
- ENERGY STAR® Certified
- 12-Year Parts Limited Warranty with online registration
Refrigerant charge: the outdoor unit is factory-charged for up to 49-1/4 ft of line set; longer runs need about 0.22 oz of additional R-32 per foot beyond that, added at installation.
Line set sold separately. Refrigerant line sets are not included with this unit.
- Unit Dimensions
- 26-9/16 W" x 11-3/16 D" x 21-15/16 H"
- Unit Weight
- 63 lbs
- Pallet Qty
- 8
- Brand
- Daikin
- Product Family
- RKF_BVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Cooling Only Up to 21 SEER2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Air Conditioner
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (50° - 118°)
- Series
- Daikin Oterra
- Tonnage
- 1 Ton
- Cooling Capacity (Rated)
- 12,000 Btu/H
- Airflow Rate High (Cooling)
- 1,088 ft³/min
- SEER2 (Max)
- 21
- EER2 (Max)
- 12.5
- Cooling Operating Range
- 50°F to 118°F
- Compressor Type
- Swing
- Compressor Stages
- Inverter
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 14.6
- Max Overcurrent Protection
- 15 A
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Max Piping Length
- 65-5/8 ft
- Max Height Difference
- 49-1/4 ft
- Min Piping Length
- 10 ft
- Chargeless Piping Length
- 49-1/4 ft
- Additional Refrigerant Charge
- 0.22 oz/ft beyond chargeless length
- Line Set
- Not included (sold separately)
- Energy Star Certified
- Yes
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
- Sound Pressure (Outdoor)
- 49 dB(A)

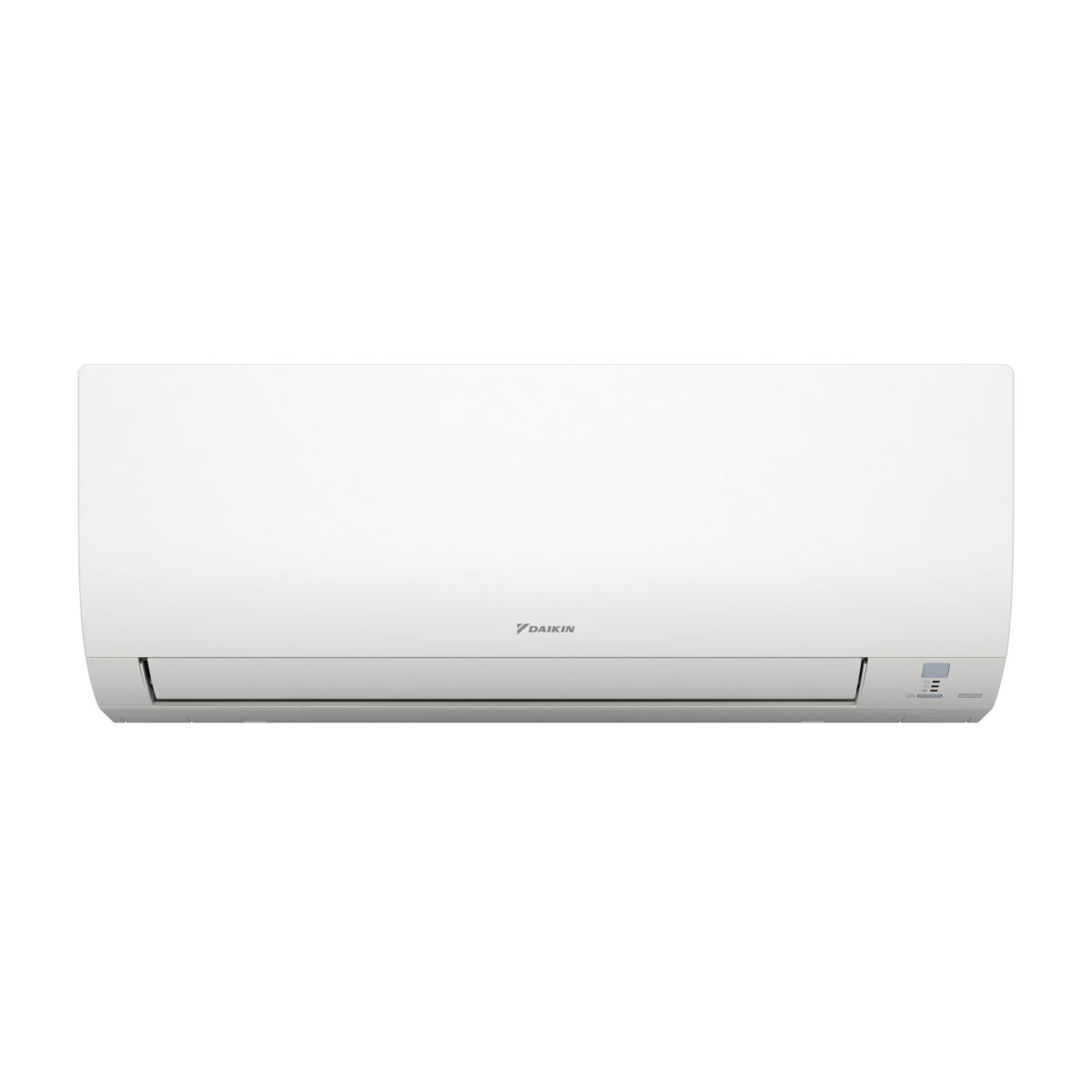

The Daikin Oterra FTKF12 wall-mount indoor air handler delivers high-efficiency cooling with built-in Wi-Fi smart controls, a washable Titanium Apatite Photocatalytic air-purifying filter, and ultra-quiet operation. Pairs with a matching Oterra outdoor condenser for a complete inverter system.
Features
- Cooling Capacity: 12,000 BTU/h
- Airflow up to 436 CFM (High)
- Indoor Sound Pressure as low as 19 dB(A) on Silent mode
- Fan Speed Steps: 3 Steps, Auto, Quiet, Turbo
- Air Filter: Catechin
- Wi-Fi: Built-in
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 19.8 lbs
- 12-Year Parts Limited Warranty with online registration
Line set sold separately. Refrigerant line sets are not included with this unit.
- Unit Dimensions
- 30-5/8 W" x 8-3/4 D" x 11-1/4 H"
- Unit Weight
- 19.8 lbs
- Pallet Qty
- 16
- Brand
- Daikin
- Product Family
- FTKF_BVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 19 dB(A)
- Series
- Daikin Oterra
- Tonnage
- 1 Ton
- Cooling Capacity (Rated)
- 12,000 Btu/H
- Airflow Rate High (Cooling)
- 436 ft³/min
- SEER2 (Matched System)
- 21
- EER2 (Matched System)
- 12.5
- Sound Pressure (High)
- 46 dB(A)
- Sound Pressure (Silent)
- 19 dB(A)
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Line Set
- Not included (sold separately)
- Wi-Fi
- Built-in Wi-Fi
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
