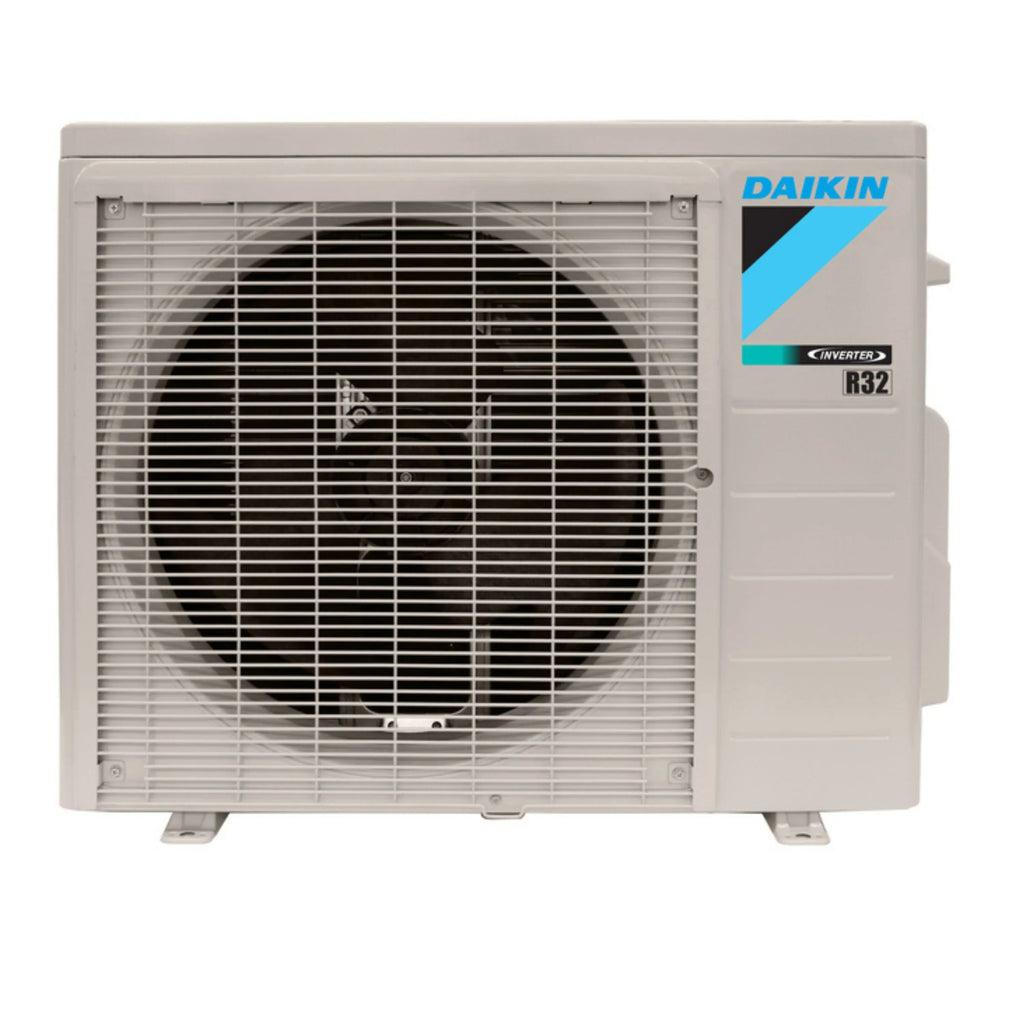

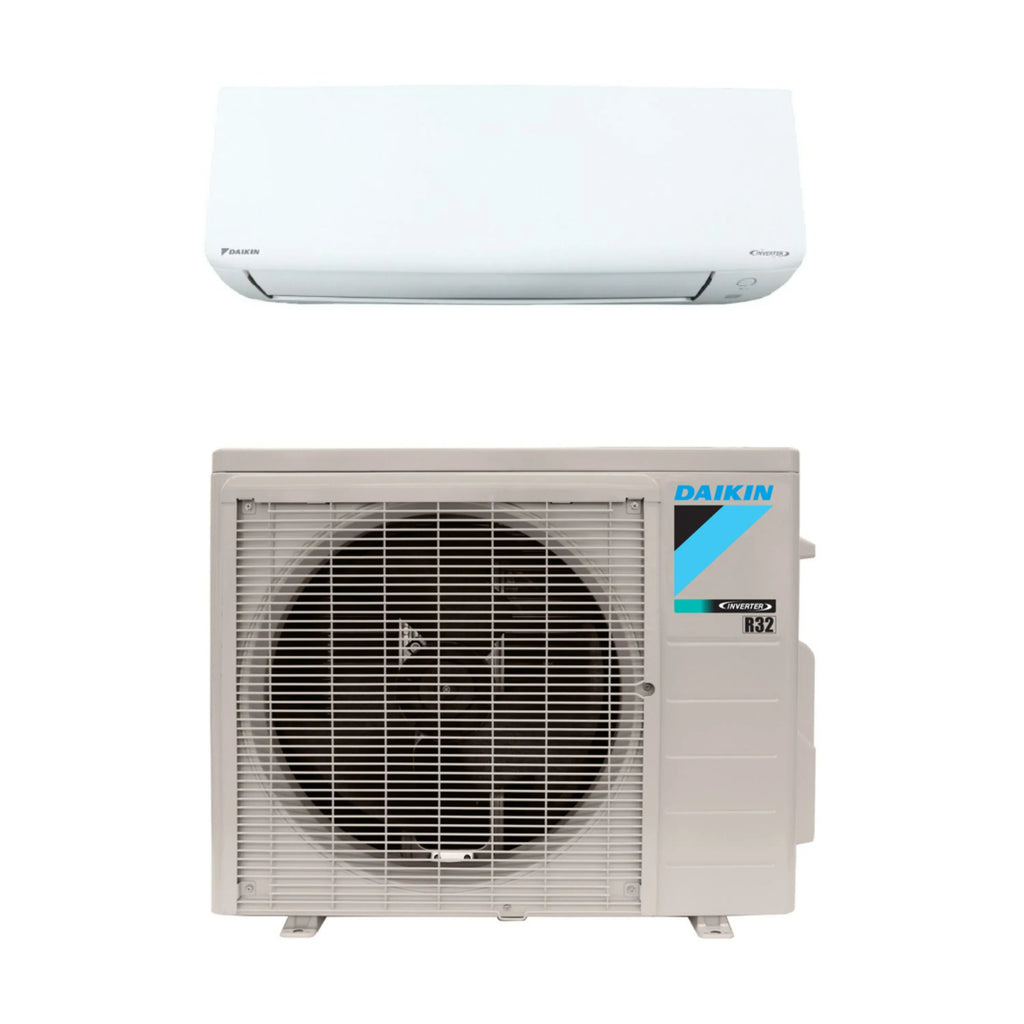

The Daikin Oterra RKF Series is a 1 ton single-zone cooling-only ductless mini split delivering up to 21 SEER2 high-efficiency cooling for warm-climate applications where heating is not required. Pairs with a matched FTKF wall-mount air handler for a complete inverter cooling system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 26-9/16 W" x 11-3/16 D" x 21-15/16 H" |
| Unit Weight | 63 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RKF_AXVJU |
| Family Description | 0.75 - 2 Ton 21 Series Cooling Only Up to 21 SEER2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Air Conditioner |
| Tonnage | 1 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 8 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 118°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 12,000 Btu/H |
| Airflow Rate High (Cooling) | 1,088 ft³/min |
| Airflow Rate High (Heating) | N/A (Cooling Only) |
| Energy Star Certified | Yes |
| Heating Capacity (Rated) | N/A (Cooling Only) |
| Compressor | |
| Compressor Type | Swing |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 14.6 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |

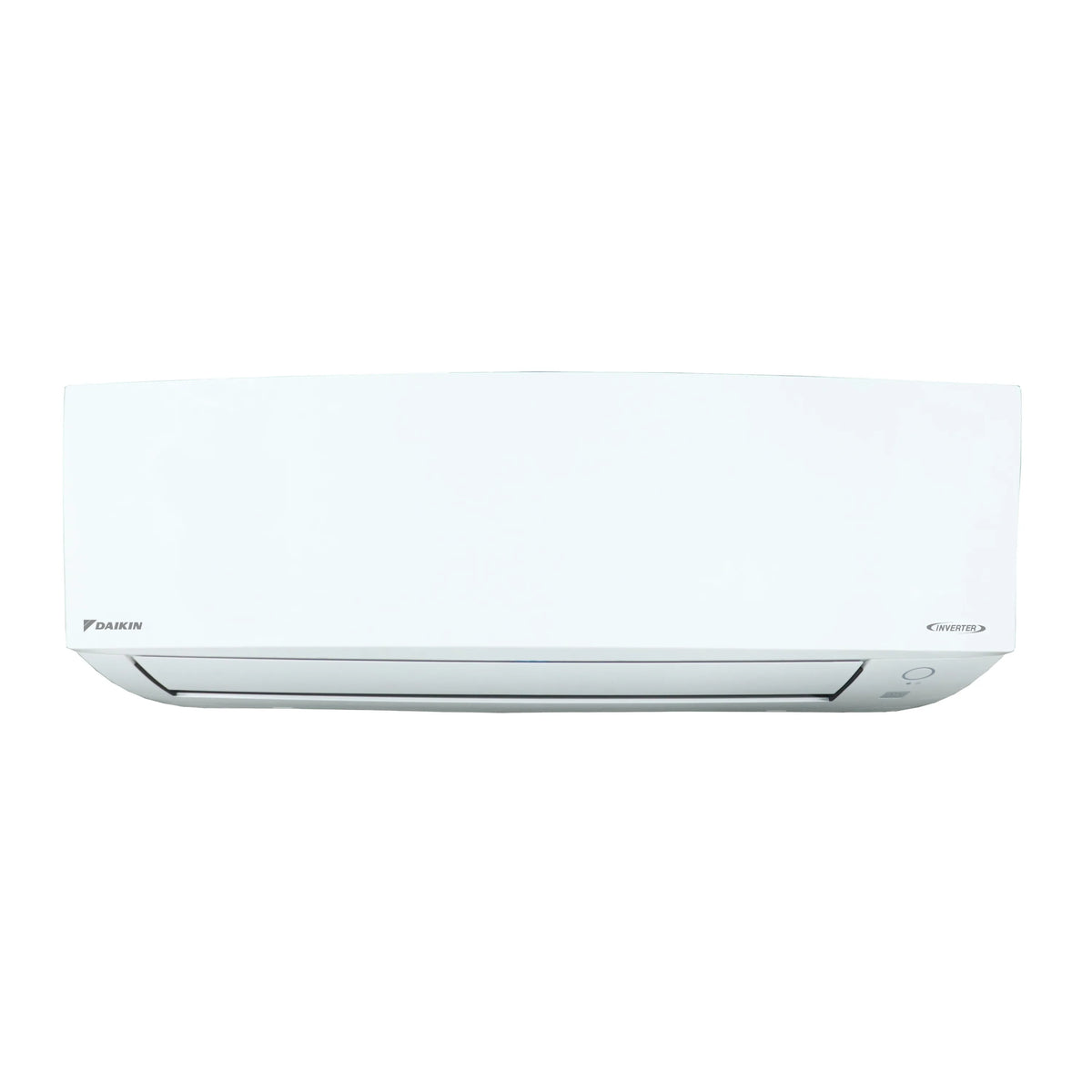

The Daikin Oterra FTKF12 wall-mount indoor air handler delivers high-efficiency cooling and heating with built-in Wi-Fi smart controls (Wi-Fi via optional adapter), a washable Titanium Apatite Photocatalytic air-purifying filter, and ultra-quiet operation. Pairs with a matching Oterra outdoor condenser for a complete inverter system.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 30-5/8 W" x 8-3/4 D" x 11-1/4 H" |
| Unit Weight | 19.8 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTKF_AXVJU |
| Family Description | 0.75 - 2 Ton 21 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 1 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 16 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 19 dB(A) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 12,000 Btu/H |
| Heating Capacity (Rated) | N/A |
| Airflow Rate High (Cooling) | 436 ft³/min |
| Airflow Rate High (Heating) | 436 ft³/min |
| Sound Pressure (High) | 46 dB(A) |
| Sound Pressure (Silent) | 19 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
