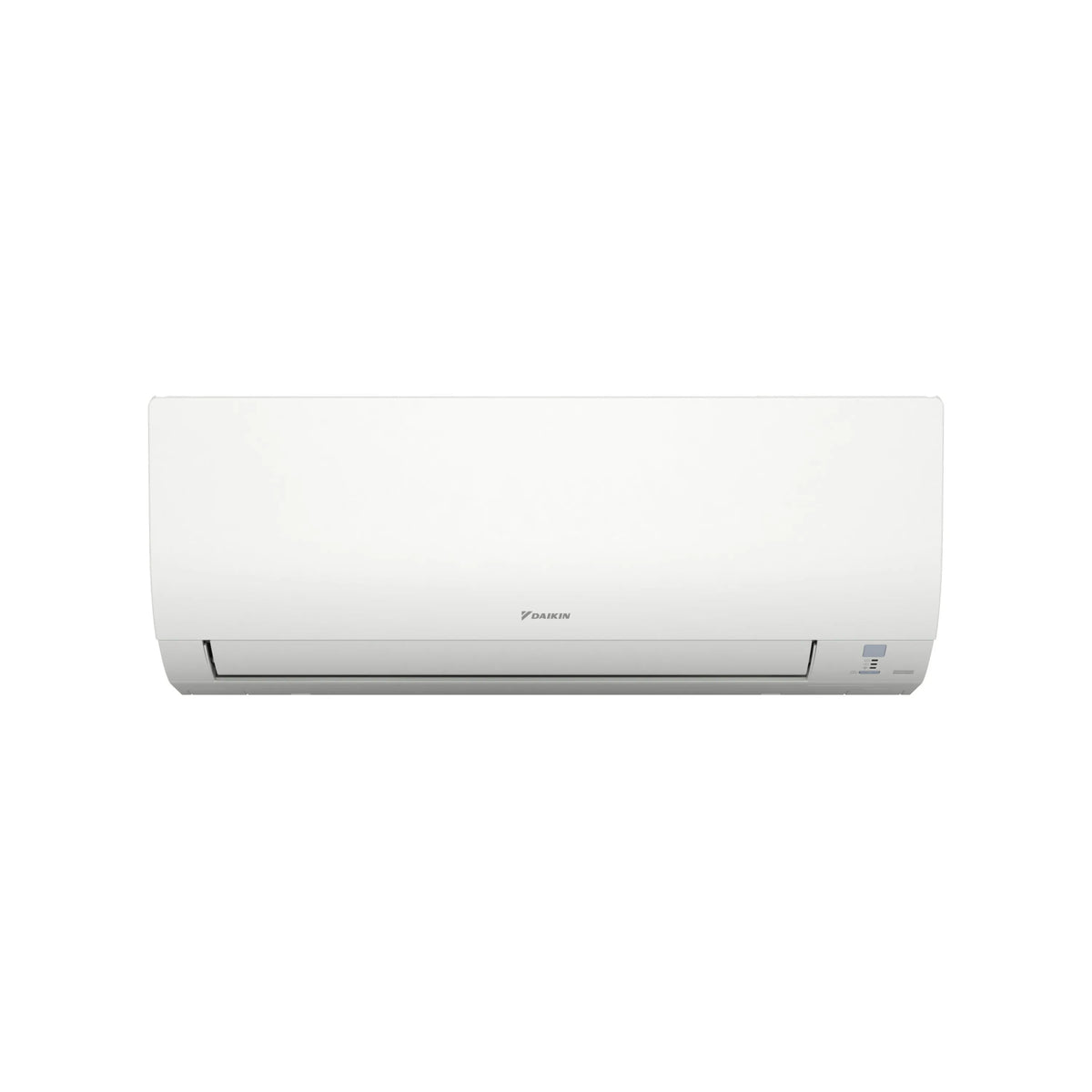

The Daikin Oterra 115V FTXQ12 wall-mount indoor air handler provides high-efficiency comfort in a compact wall design with built-in Wi-Fi. Plugs into a standard 115V outlet for easy installation in spaces without 208/230V power.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 30-5/16 W" x 8-3/4 D" x 11-1/4 H" |
| Unit Weight | 19 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTXQ_ASBU9 |
| Family Description | 0.75 - 1 Ton 20 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 1 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 16 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 21 dB(A) |
| Wi-Fi | Built-in |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 12,000 Btu/H |
| Heating Capacity (Rated) | 13,500 Btu/H |
| Airflow Rate High (Cooling) | 413 ft³/min |
| Airflow Rate High (Heating) | 413 ft³/min |
| Sound Pressure (High) | 46 dB(A) |
| Sound Pressure (Silent) | 21 dB(A) |
| Electrical Requirements | |
| Power Voltage | 115 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
