What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

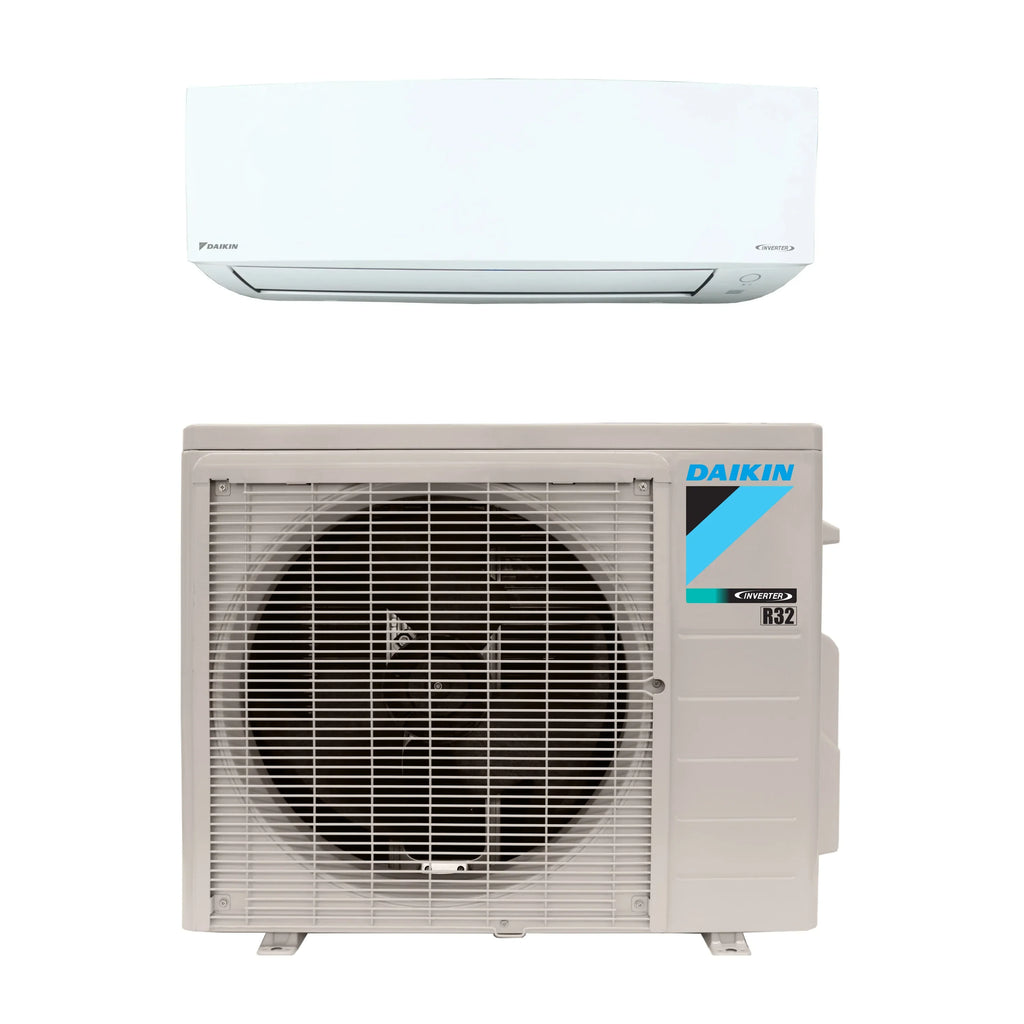

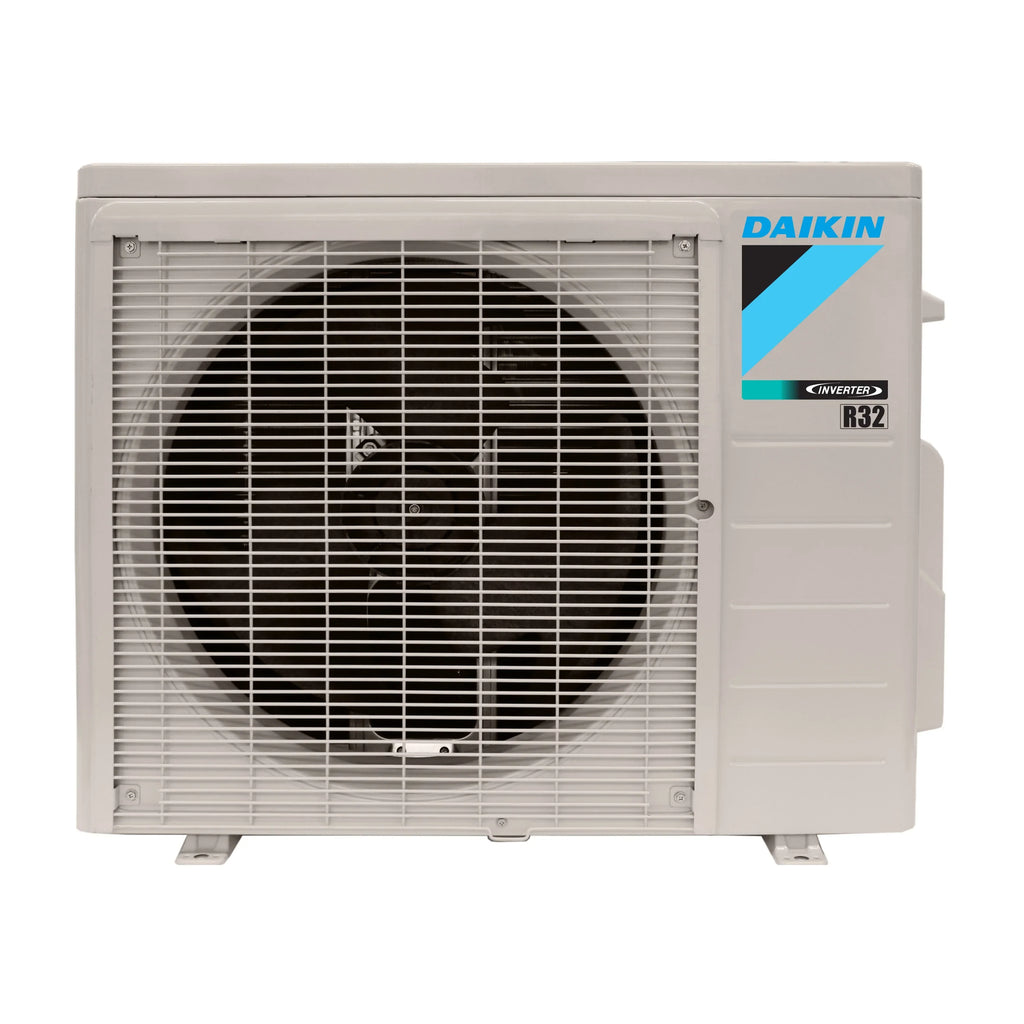

The Daikin Entra Series is an energy-efficient 1.87 ton single-zone ductless mini split heat pump engineered for affordable year-round comfort. Featuring inverter technology, a quiet wall-mount design, and reliable cold-weather operation, the Entra outdoor condenser pairs with a matched FTXC wall-mount air handler for a complete factory-paired system.
Features
- Up to 18 SEER2 / Up to 9 HSPF2 / Up to 10.5 EER2 for efficient cooling and heating operation
- Cooling Capacity: 22,400 BTU/h
- Heating Capacity: 23,000 BTU/h
- Cooling Range: 50°F to 115°F
- Heating Range: 5°F to 65°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 3.31 lbs)
- Outdoor Sound Pressure as low as 52 dB(A)
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 16.34 A | Max Overcurrent Protection: 20 A
- ENERGY STAR® Certified
- 10-Year Parts Limited Warranty with online registration
- Unit Dimensions
- 36-5/8 W" x 13-13/16 D" x 27-3/8 H"
- Unit Weight
- 101 lbs
- Pallet Qty
- 4
- Brand
- Daikin
- Product Family
- RXC_AXVJU
- Family Description
- 0.75 - 2 Ton 18 Series Heat Pump Up to 18 SEER2 / 9 HSPF2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 10 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (50° - 115°)
- Tonnage
- 1.8666666666666667
- Cooling Capacity (Rated)
- 22,400 Btu/H
- Heating Capacity (Rated)
- 23,000 Btu/H
- Airflow Rate High (Cooling)
- 1,879 ft³/min
- Airflow Rate High (Heating)
- 1,879 ft³/min
- Compressor Type
- Rotary
- Compressor Stages
- Inverter
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 16.34
- Refrigerant Type
- R-32
- Pipe Size Gas
- 5/8 in
- Pipe Size Liquid
- 1/4 in
- Energy Star Certified
- Yes
- Registered Parts Warranty - Residential
- All Parts - 10 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 10 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
The Daikin Entra FTXC24 wall-mount indoor air handler delivers efficient cooling and heating with a streamlined wall design. Features a washable Titanium Apatite Photocatalytic air-purifying filter, multi-speed fan operation, and quiet sound levels for everyday residential comfort. Pairs with a matching Entra RXC outdoor condenser.
Features
- Cooling Capacity: 22,400 BTU/h
- Heating Capacity: 23,000 BTU/h
- Airflow up to 716 CFM (High)
- Indoor Sound Pressure as low as 34 dB(A) on Silent mode
- Fan Speed Steps: 3 Steps, Auto, Quiet, Turbo
- Air Filter: Catechin
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 30.5 lbs
- 10-Year Parts Limited Warranty with online registration
- Unit Dimensions
- 39-9/16 W" x 11-5/16 D" x 11-11/16 H"
- Unit Weight
- 30.5 lbs
- Pallet Qty
- 12
- Brand
- Daikin
- Product Family
- FTXC_AXVJU
- Family Description
- 0.75 - 2 Ton 18 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 10 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 34 dB(A)
- Tonnage
- 1.8666666666666667
- Cooling Capacity (Rated)
- 22,400 Btu/H
- Heating Capacity (Rated)
- 23,000 Btu/H
- Airflow Rate High (Cooling)
- 716 ft³/min
- Airflow Rate High (Heating)
- 716 ft³/min
- Sound Pressure (High)
- 51 dB(A)
- Sound Pressure (Silent)
- 34 dB(A)
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Refrigerant Type
- R-32
- Pipe Size Gas
- 5/8 in
- Pipe Size Liquid
- 1/4 in
- Registered Parts Warranty - Residential
- All Parts - 10 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 10 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
