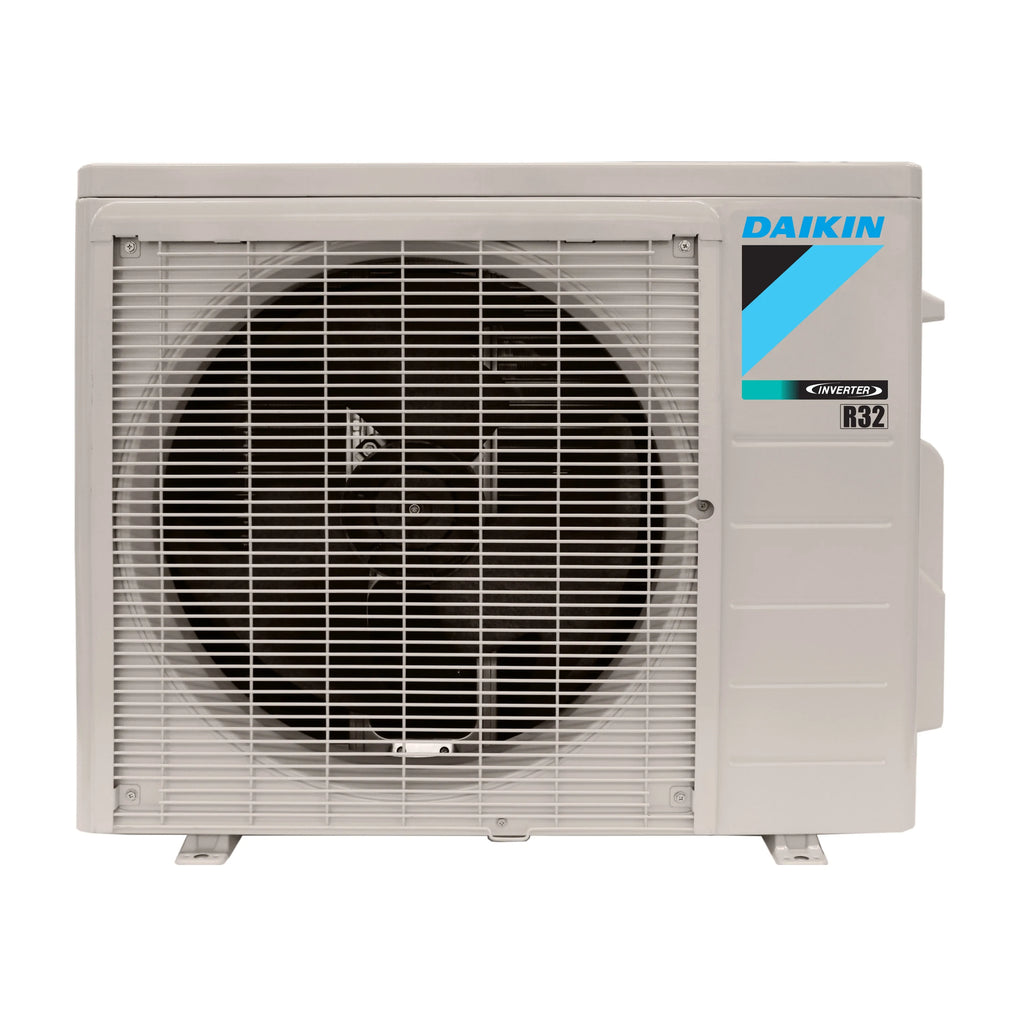

Daikin ductless mini split heat pump outdoor unit with front fan grille
Roll over image to zoom in Click on image to zoom
Daikin ductless mini split heat pump outdoor unit with front fan grille
Click on image to zoom

Daikin Entra 18K BTU 1.5 Ton Ductless Mini Split Heat Pump Condenser, R-32 (RXC18AXVJU)

DaikinSKU: RXC18AXVJU
Price:
$1,242.69 $1,499.95SAVE 17%
BTU:
In Stock
Estimated delivery: Oct 11th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Daikin Entra Series is an energy-efficient 1.5 ton single-zone ductless mini split heat pump engineered for affordable year-round comfort. Featuring inverter technology, a quiet wall-mount design, and dependable inverter performance, the Entra outdoor condenser pairs with a matched FTXC wall-mount air handler for a complete factory-paired system.

Features

  • Up to 18 SEER2 / Up to 9 HSPF2 / Up to 10.5 EER2 for efficient cooling and heating operation
  • Cooling Capacity: 18,100 BTU/h
  • Heating Capacity: 18,000 BTU/h
  • Cooling Range: 50°F to 115°F
  • Heating Range: 5°F to 65°F
  • Variable-speed inverter compressor for precise temperature control and lower energy use
  • Low-GWP R-32 refrigerant (Factory Charge: 3.31 lbs)
  • Outdoor Sound Pressure as low as 53 dB(A)
  • 208/230V, 1-Phase, 60 Hz power supply
  • Min. Circuit Amps: 16.34 A | Max Overcurrent Protection: 20 A
  • 10-Year Parts Limited Warranty with online registration

Refrigerant charge: the outdoor unit is factory-charged for up to 32-13/16 ft of line set; longer runs need about 0.18 oz of additional R-32 per foot beyond that, added at installation.

Line set sold separately. Refrigerant line sets are not included with this unit.

DIMENSIONS & WEIGHT
Unit Dimensions
36-5/8 W" x 13-13/16 D" x 27-13/32 H"
Unit Weight
101 lbs
Pallet Qty
6
GENERAL INFORMATION
Brand
Daikin
Product Family
RXC_AXVJU
Family Description
0.75 - 2 Ton 18 Series Heat Pump Up to 18 SEER2 / 9 HSPF2
Unit Type
Outdoor
Product Class
Mini-Split Heat Pump
Vendor
Daikin Comfort Tech
Product Benefits
10 Year Limited Parts Warranty with Online Registration
Standard Features
Operating Range - Cooling (50° - 115°)
Series
Daikin Entra
CAPACITY & PERFORMANCE
Tonnage
1.5 Ton
Cooling Capacity (Rated)
18,100 Btu/H
Heating Capacity (Rated)
18,000 Btu/H
Airflow Rate High (Cooling)
1,879 ft³/min
Airflow Rate High (Heating)
1,833 ft³/min
SEER2 (Max)
18
HSPF2 (Max)
9
EER2 (Max)
10.5
Cooling Operating Range
50°F to 115°F
Heating Operating Range
5°F to 65°F
COMPRESSOR & MOTORS
Compressor Type
Swing
Compressor Stages
Inverter
ELECTRICAL REQUIREMENTS
Power Voltage
208-230 V
Power Phase
1 Ph
Power Frequency
60 Hz
Min. Circuit Amps
16.34
Max Overcurrent Protection
20 A
REFRIGERANT & PIPING
Refrigerant Type
R-32
Pipe Size Gas
1/2 in
Pipe Size Liquid
1/4 in
Max Piping Length
98-1/2 ft
Max Height Difference
32-13/16 ft
Min Piping Length
10 ft
Chargeless Piping Length
32-13/16 ft
Additional Refrigerant Charge
0.18 oz/ft beyond chargeless length
Line Set
Not included (sold separately)
WARRANTY
Registered Parts Warranty - Residential
All Parts - 10 Years
Registered Parts Warranty - Multi-Family
All Parts - 10 Years
Registered Parts Warranty - Commercial
All Parts - 5 Years
Standard Parts Warranty - Residential
All Parts - 5 Years
Standard Parts Warranty - Multi-Family
All Parts - 5 Years
Standard Parts Warranty - Commercial
All Parts - 5 Years
NOISE LEVELS
Sound Pressure (Outdoor)
53 dB(A)
