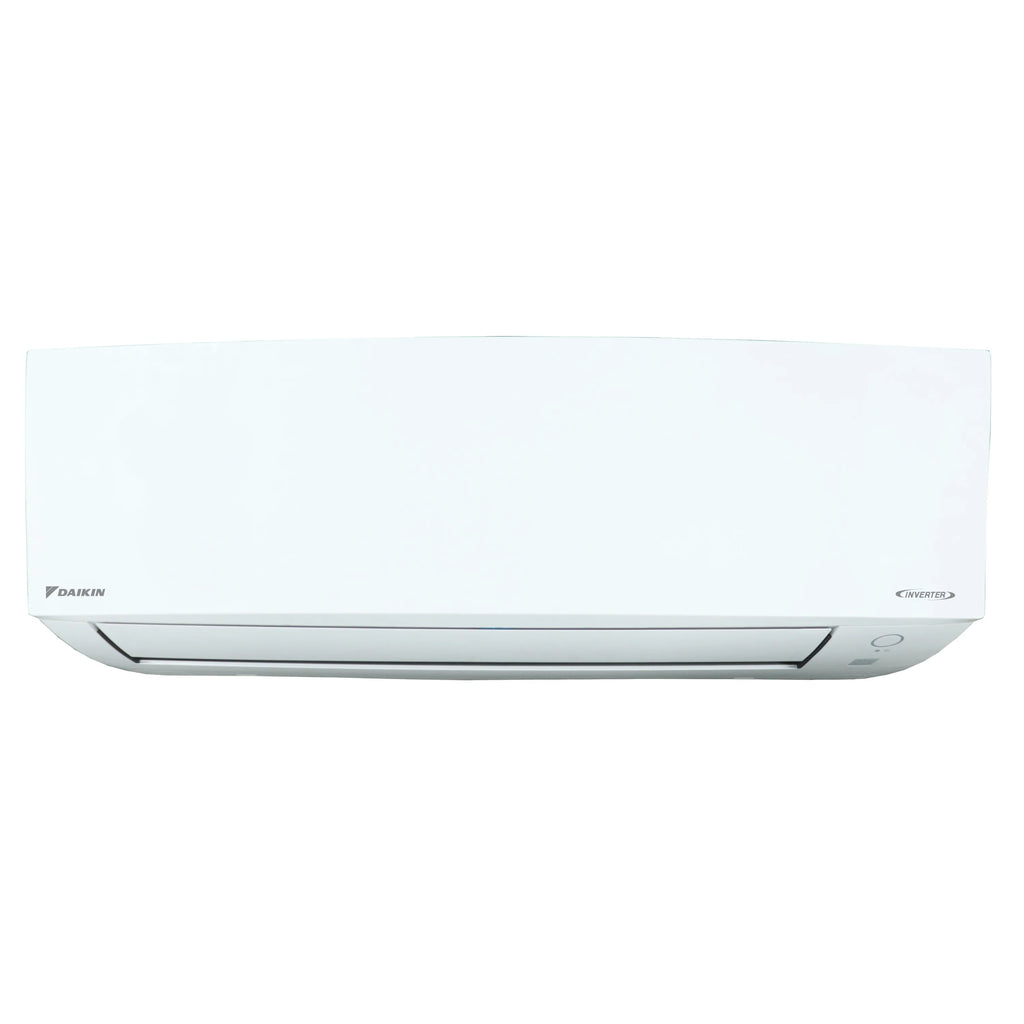

White ductless mini split indoor wall unit with front air outlet grille
Roll over image to zoom in Click on image to zoom
White ductless mini split indoor wall unit with front air outlet grille
Click on image to zoom

Daikin Entra 18K BTU Mini Split Wall Mount Air Handler (FTXC18AXVJU)

DaikinSKU: FTXC18AXVJU
Price:
$637.46 $799.95SAVE 20%
BTU:
In Stock
Estimated delivery: Oct 11th-25th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The Daikin Entra FTXC18 wall-mount indoor air handler delivers efficient cooling and heating with a streamlined wall design. Features a washable Titanium Apatite Photocatalytic air-purifying filter, multi-speed fan operation, and quiet sound levels for everyday residential comfort. Pairs with a matching Entra RXC outdoor condenser.

Features

  • Cooling Capacity: 18,100 BTU/h
  • Heating Capacity: 18,000 BTU/h
  • Airflow up to 716 CFM (High)
  • Indoor Sound Pressure as low as 33 dB(A) on Silent mode
  • Fan Speed Steps: 3 Steps, Auto, Quiet, Turbo
  • Air Filter: Catechin
  • Refrigerant: R-32 (low GWP)
  • Streamlined wall-mount design
  • Power Supply: 208/230V, 1-Phase, 60 Hz
  • Unit Weight: 30.5 lbs
  • 10-Year Parts Limited Warranty with online registration

Line set sold separately. Refrigerant line sets are not included with this unit.

DIMENSIONS & WEIGHT
Unit Dimensions
39-9/16 W" x 11-5/16 D" x 11-11/16 H"
Unit Weight
30.5 lbs
Pallet Qty
12
GENERAL INFORMATION
Brand
Daikin
Product Family
FTXC_AXVJU
Family Description
0.75 - 2 Ton 18 Series Wall Mount Air Handler
Unit Type
Indoor
Product Class
Mini-Split Wall Mount Air Handler
Vendor
Daikin Comfort Tech
Product Benefits
10 Year Limited Parts Warranty with Online Registration
Standard Features
Sound Pressure as low as 33 dB(A)
Series
Daikin Entra
CAPACITY & PERFORMANCE
Tonnage
1.5 Ton
Cooling Capacity (Rated)
18,100 Btu/H
Heating Capacity (Rated)
18,000 Btu/H
Airflow Rate High (Cooling)
716 ft³/min
Airflow Rate High (Heating)
716 ft³/min
SEER2 (Matched System)
18
HSPF2 (Matched System)
9
EER2 (Matched System)
10.5
NOISE LEVELS
Sound Pressure (High)
48 dB(A)
Sound Pressure (Silent)
33 dB(A)
ELECTRICAL REQUIREMENTS
Power Voltage
208-230 V
Power Phase
1 Ph
Power Frequency
60 Hz
REFRIGERANT & PIPING
Refrigerant Type
R-32
Pipe Size Gas
1/2 in
Pipe Size Liquid
1/4 in
Line Set
Not included (sold separately)
WARRANTY
Registered Parts Warranty - Residential
All Parts - 10 Years
Registered Parts Warranty - Multi-Family
All Parts - 10 Years
Registered Parts Warranty - Commercial
All Parts - 5 Years
Standard Parts Warranty - Residential
All Parts - 5 Years
Standard Parts Warranty - Multi-Family
All Parts - 5 Years
Standard Parts Warranty - Commercial
All Parts - 5 Years
CONTROLS & CONNECTIVITY
Wi-Fi
Optional adapter (AZAI6WSCDKB DKN Cloud Wi-Fi adapter)
