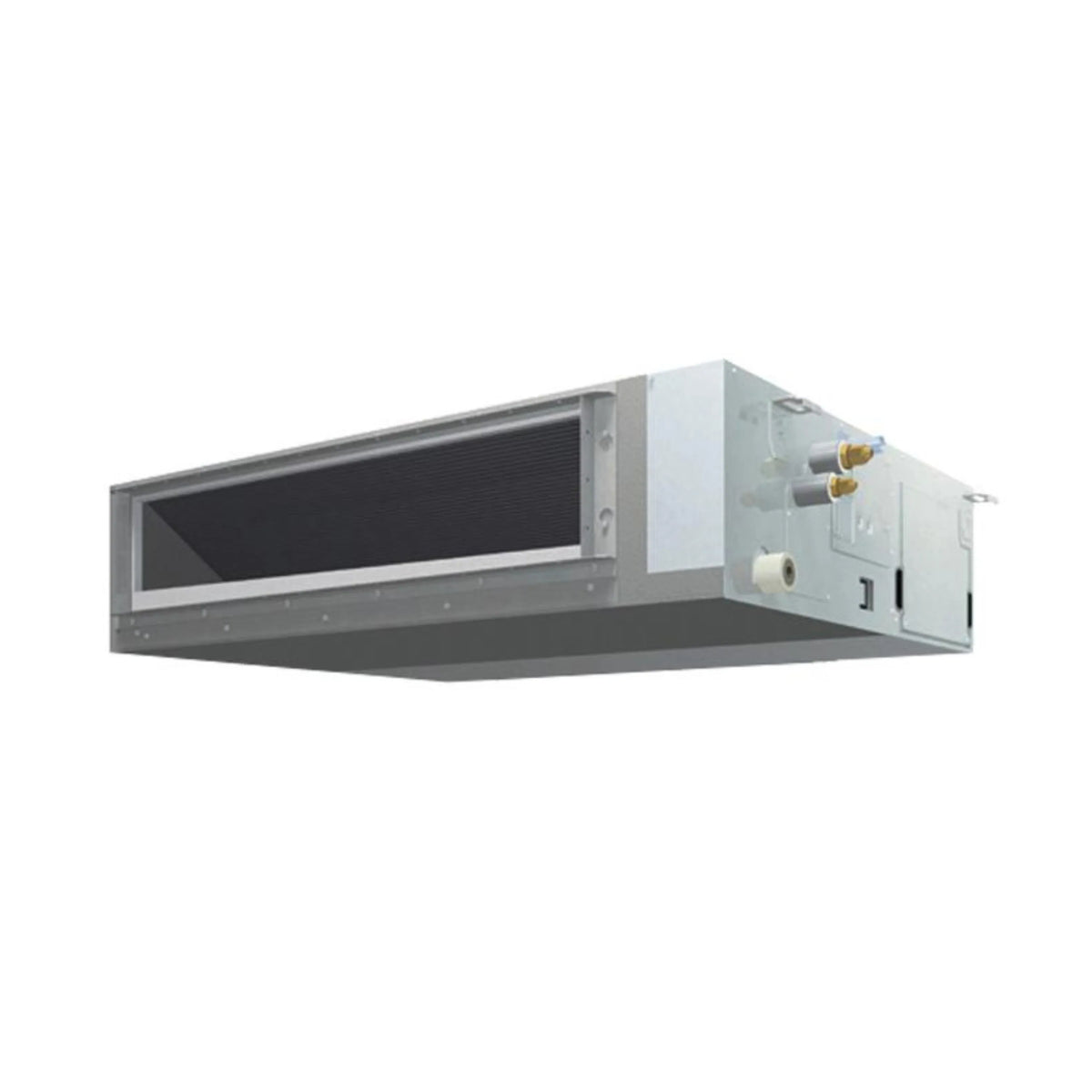

The Daikin Aurora FDMA12 concealed ducted indoor unit installs in ceilings, soffits, or closets and delivers air through standard residential ductwork — with no visible indoor head. Adjustable external static pressure up to 0.6 in. WG supports longer duct runs than standard mini splits.
| DIMENSIONS & WEIGHT | |
|---|---|
| Unit Dimensions | 27-9/16 W" x 31-1/2 D" x 9-5/8 H" |
| Unit Weight | 64 lbs |
| Pallet Qty | 2 |
| GENERAL INFORMATION | |
| Brand | Daikin |
| Product Family | FDMA_AVJU9 |
| Family Description | 0.75 - 2 Ton 18.3 Series Concealed Ducted Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Concealed Ducted Air Handler |
| Vendor | Daikin Comfort Tech |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Variable-Speed DC Inverter Fan Motor |
| CAPACITY & PERFORMANCE | |
| Tonnage | 1 |
| Cooling Capacity (Rated) | 12,000 Btu/H |
| Heating Capacity (Rated) | 12,500 Btu/H |
| Airflow Rate High (Cooling) | 440 ft³/min |
| Airflow Rate High (Heating) | 440 ft³/min |
| External Static Pressure | 0.12-0.60 in. WG |
| NOISE LEVELS | |
| Sound Pressure (High) | 33 dB(A) |
| Sound Pressure (Silent) | N/A |
| ELECTRICAL REQUIREMENTS | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| CONTROLS & CONNECTIVITY | |
| Wi-Fi | Compatible (adapter) |
| WARRANTY | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
