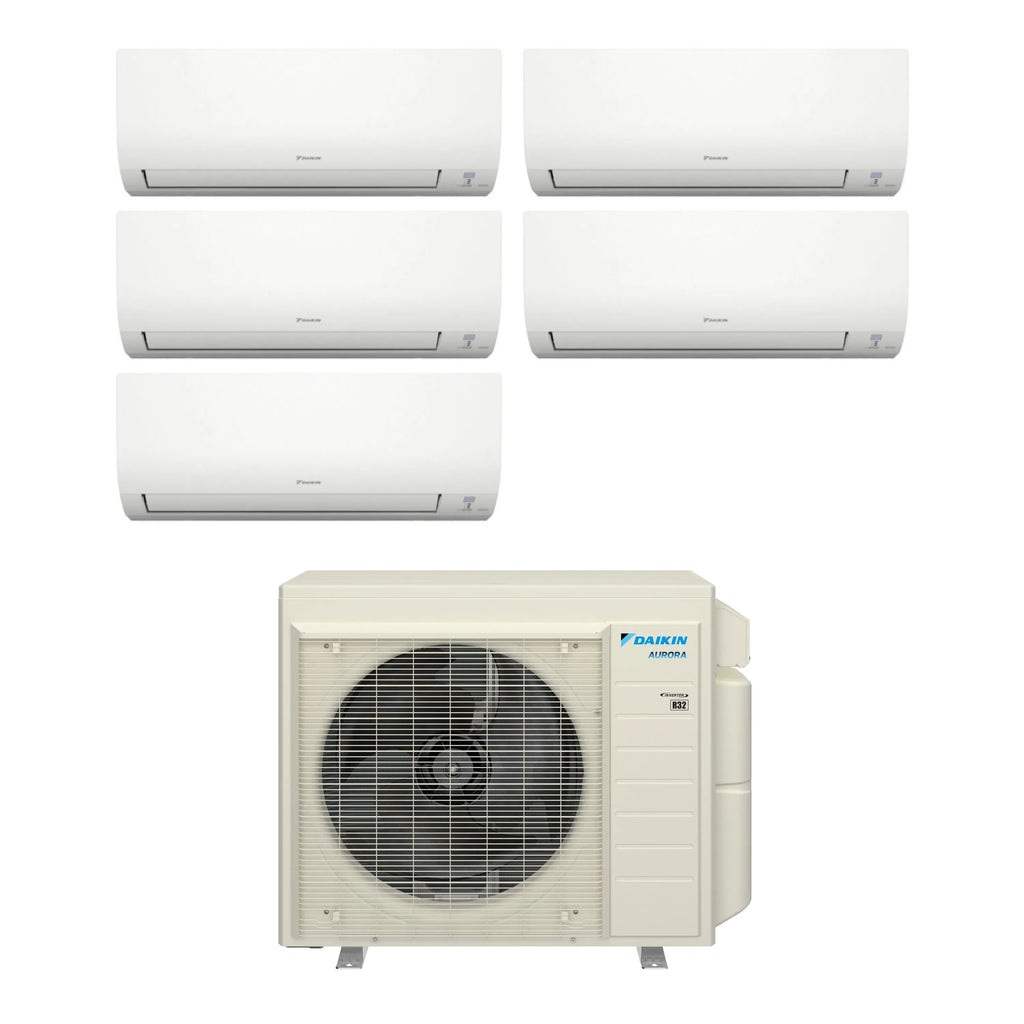

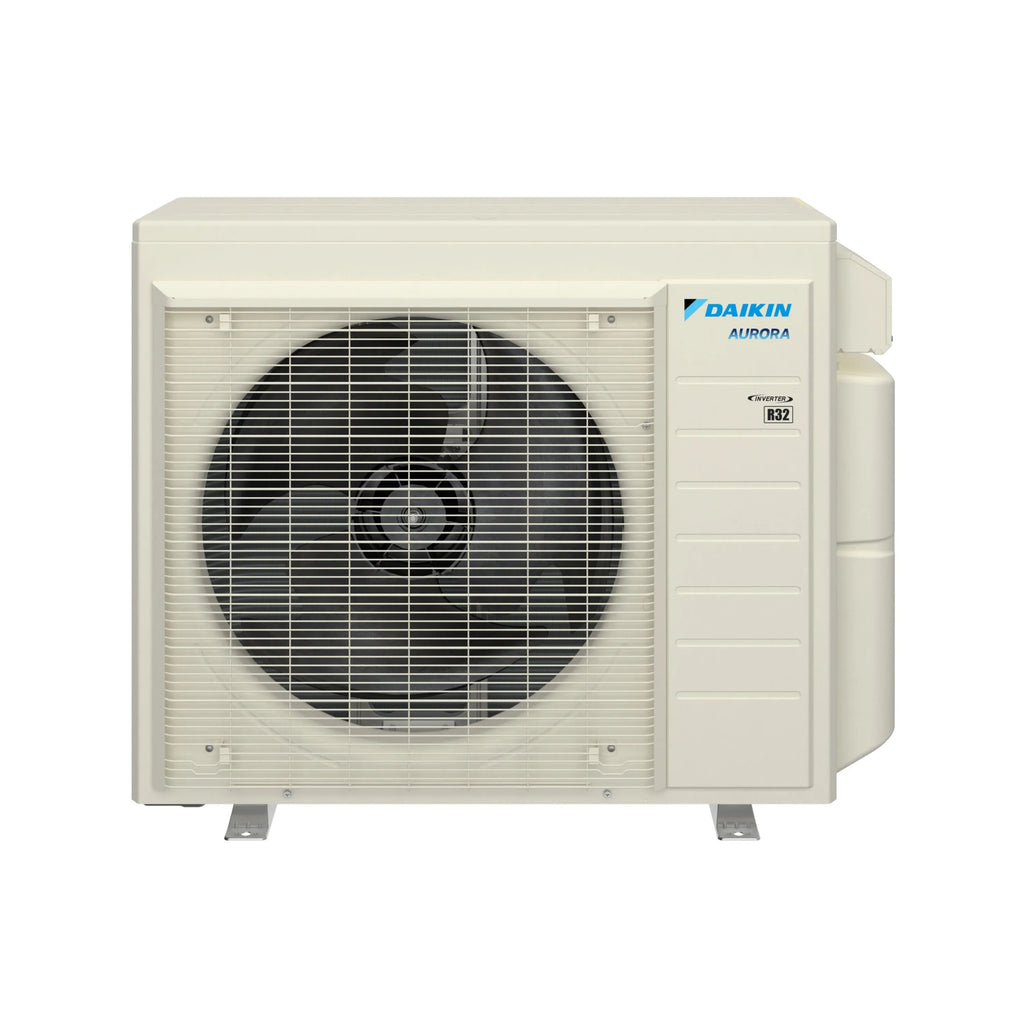

The Daikin Aurora 5-zone multi-zone outdoor unit serves up to 5 indoor air handlers from a single condenser, delivering up to 21 SEER2 cooling efficiency and reliable cold-climate heating down to -13°F. Engineered for whole-home or multi-room installations where independent room control is needed.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 43-5/16 W" x 18-1/8 D" x 34-1/4 H" |
| Unit Weight | 221 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | 5MXT_AVJU9 |
| Family Description | 1.5 - 5 Ton 21 Series Multi-Zone Heat Pump Up to 21 SEER2 / 10 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 3.3333333333333335 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 1 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (14° - 115°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 40,000 Btu/H |
| Heating Capacity (Rated) | 40,000 Btu/H |
| Airflow Rate High (Cooling) | 3,137 ft³/min |
| Airflow Rate High (Heating) | 3,137 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Rotary |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 38.6 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in × 1, 1/2 in × 2, 5/8 in × 2 |
| Pipe Size Liquid | 1/4 in (× 5) |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
The Daikin Aurora FTXV9 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 30-5/16 W" x 8-3/4 D" x 11-1/4 H" |
| Unit Weight | 19 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTXV_AVJU9 |
| Family Description | 0.75 - 2 Ton 21 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 0.75 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 16 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 19 dB(A) |
| Wi-Fi | Built-in |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 9,000 Btu/H |
| Heating Capacity (Rated) | 10,900 Btu/H |
| Airflow Rate High (Cooling) | 381 ft³/min |
| Airflow Rate High (Heating) | 381 ft³/min |
| Sound Pressure (High) | 43 dB(A) |
| Sound Pressure (Silent) | 19 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
