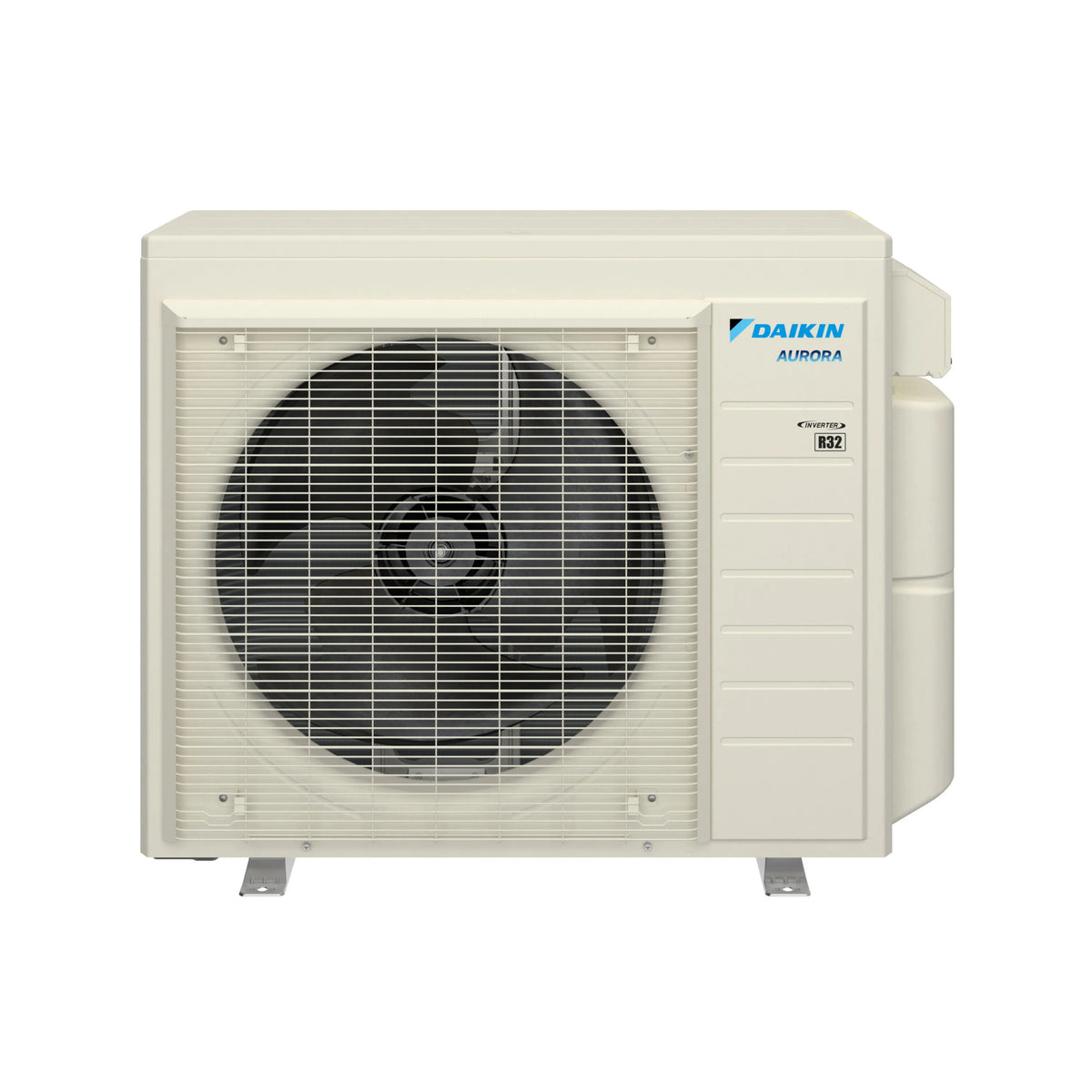

The Daikin Aurora 3-zone multi-zone outdoor unit serves up to 3 indoor air handlers from a single condenser, delivering up to 21 SEER2 cooling efficiency and reliable cold-climate heating down to -13°F. Engineered for whole-home or multi-room installations where independent room control is needed.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 43-5/16 W" x 18-1/8 D" x 34-1/4 H" |
| Unit Weight | 215 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | 3MXT_AVJU9 |
| Family Description | 1.5 - 5 Ton 21 Series Multi-Zone Heat Pump Up to 21 SEER2 / 10 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 2 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 4 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (14° - 115°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 24,000 Btu/H |
| Heating Capacity (Rated) | 24,000 Btu/H |
| Airflow Rate High (Cooling) | 3,137 ft³/min |
| Airflow Rate High (Heating) | 3,137 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Rotary |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 34.4 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in × 1, 1/2 in × 2 |
| Pipe Size Liquid | 1/4 in (× 3) |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
