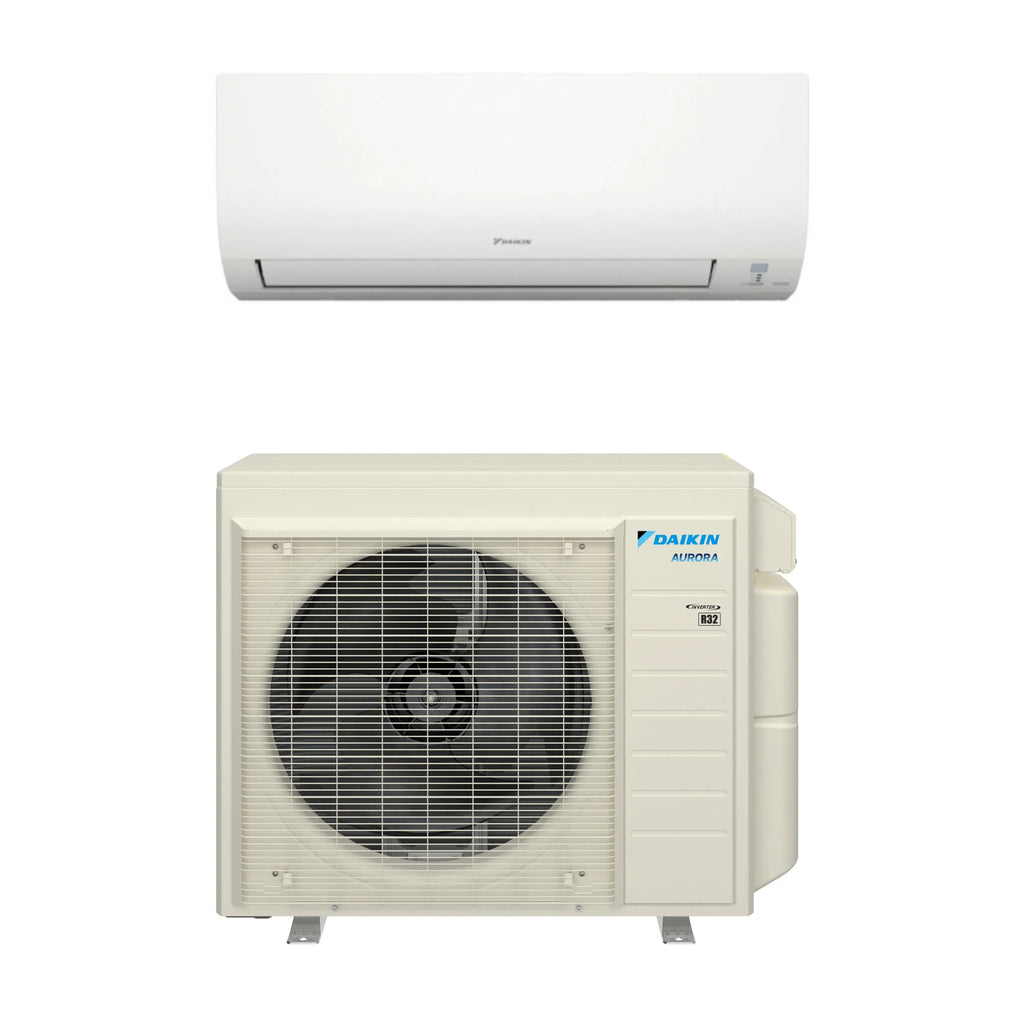

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

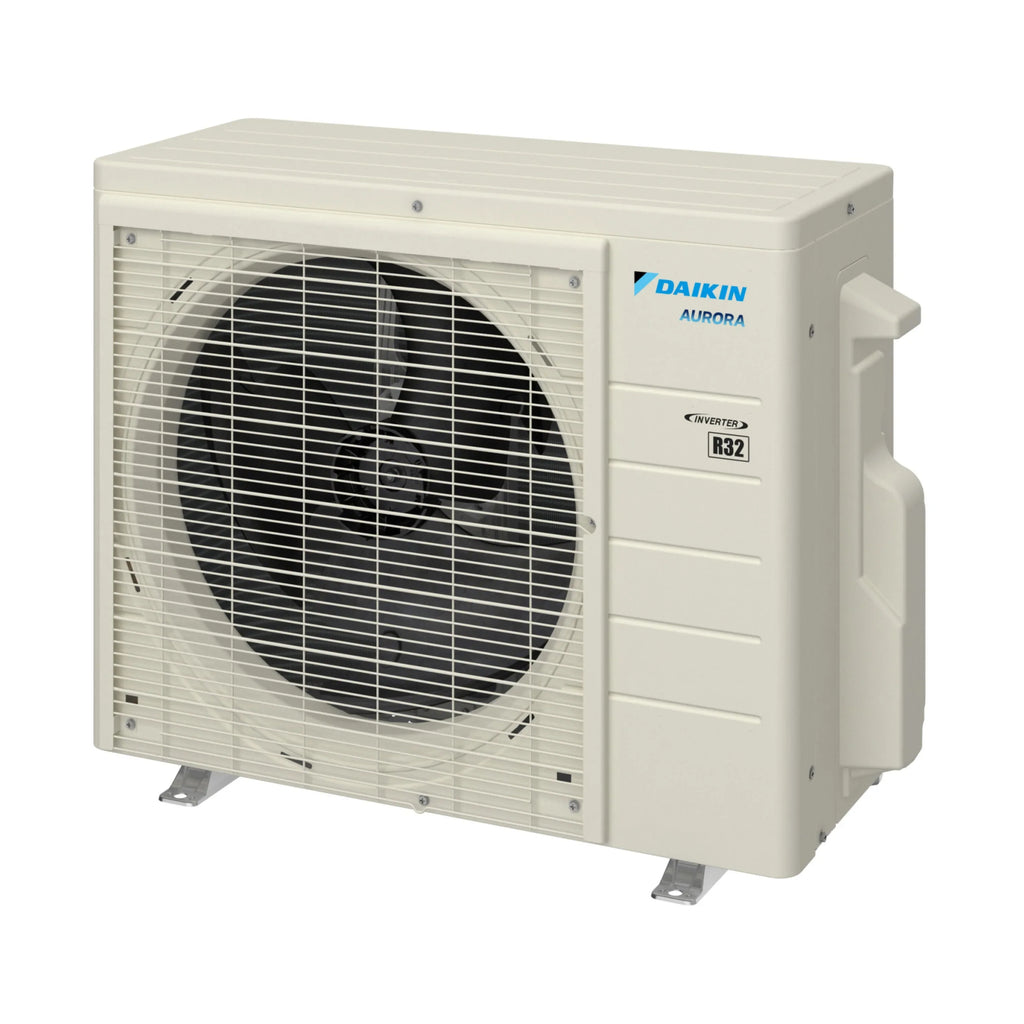

Piece 1 of 2 — MINI SPLIT CONDENSER
The Daikin Aurora RXT24AVJU9 is a 2 ton single-zone inverter heat pump outdoor unit, built for cold climates with heating down to -13°F and up to 21 SEER2 cooling efficiency.
Features
- Up to 21 SEER2 / Up to 9.5 HSPF2 / Up to 12 EER2 for efficient cooling and heating operation
- Cooling Capacity: 22,400 BTU/h
- Heating Capacity: 24,000 BTU/h
- Cooling Range: 50°F to 115°F
- Heating Range: -13°F to 65°F
- Cold-climate heating with continuous operation as low as -13°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 3.04 lbs)
- Outdoor Sound Pressure: 55 dB(A) cooling / 57 dB(A) heating
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 18.8 A | Max Overcurrent Protection: 20 A
- ENERGY STAR® Certified
- 12-Year Parts Limited Warranty with online registration
Refrigerant charge: the outdoor unit is factory-charged for up to 49-1/4 ft of line set; longer runs need about 0.22 oz of additional R-32 per foot beyond that, added at installation.
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 34-1/4 W" x 12-5/8 D" x 29-1/2 H"
- Unit Weight
- 127 lbs
- Pallet Qty
- 8
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- RXT_AVJU9
- Family Description
- 0.75-2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Country of Origin
- Mexico
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Swing Inverter Compressor
- Extended Operating Range and Capacity
- Automatic Defrost
- Series
- Daikin Aurora
CAPACITY & PERFORMANCE
- Tonnage
- 2 Ton
- Cooling Capacity (Rated)
- 22,400 Btu/H
- Heating Capacity (Rated)
- 24,000 Btu/H
- Airflow Rate High (Cooling)
- 2,383 ft³/min
- Airflow Rate High (Heating)
- 2,327 ft³/min
- Cooling Operating Range
- 50°F to 115°F
- Heating Operating Range
- -13°F to 65°F
- SEER2 (Max)
- 21
- HSPF2 (Max)
- 9.5
- EER2 (Max)
- 12
COMPRESSOR & MOTORS
- Compressor Type
- Swing
- Compressor Stages
- Inverter
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 18.8
- Max Overcurrent Protection
- 20 A
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 5/8 in
- Pipe Size Liquid
- 1/4 in
- Max Piping Length
- 98-1/2 ft
- Max Height Difference
- 65-5/8 ft
- Min Piping Length
- 10 ft
- Chargeless Piping Length
- 49-1/4 ft
- Additional Refrigerant Charge
- 0.22 oz/ft beyond chargeless length
- Line Set
- Not included (sold separately)
SAFETY
- Energy Star Certified
- Yes
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
NOISE LEVELS
- Sound Pressure (Outdoor)
- 55 dB(A) cooling / 57 dB(A) heating

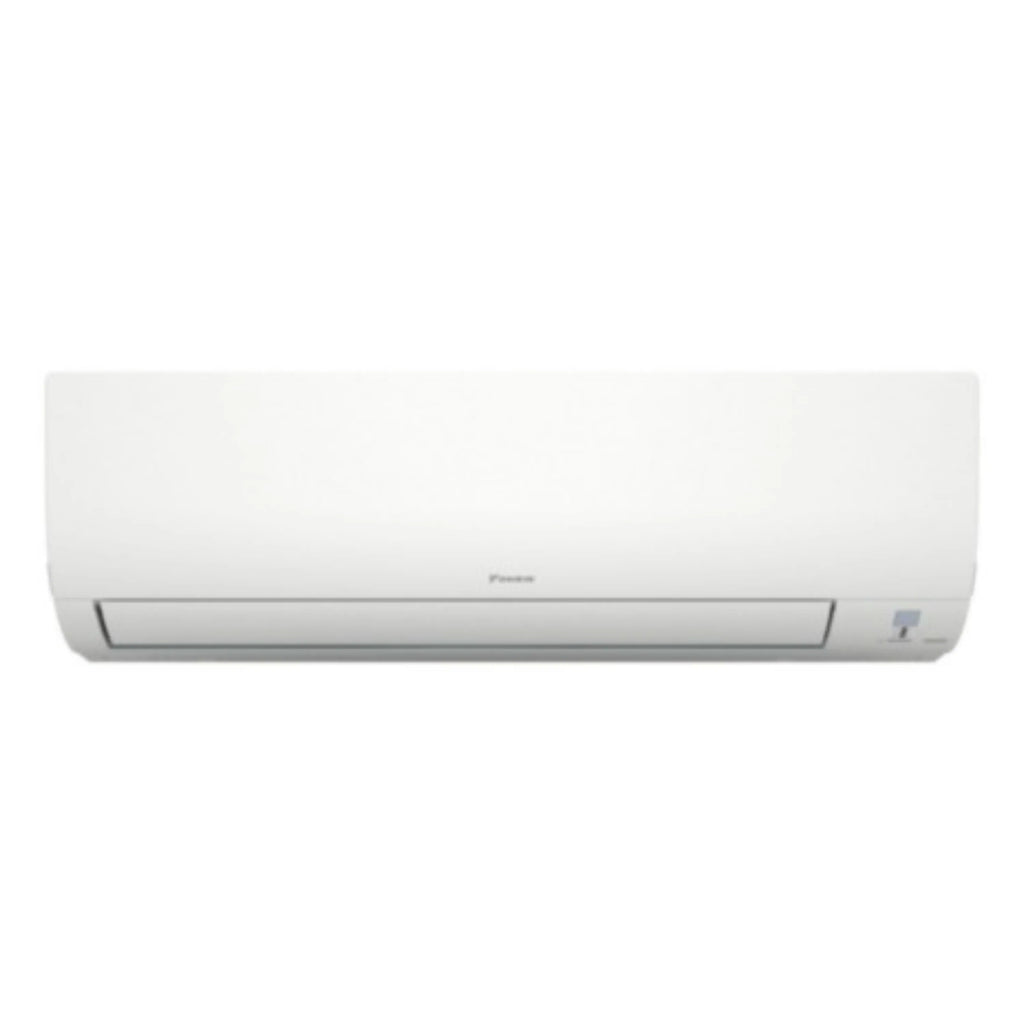

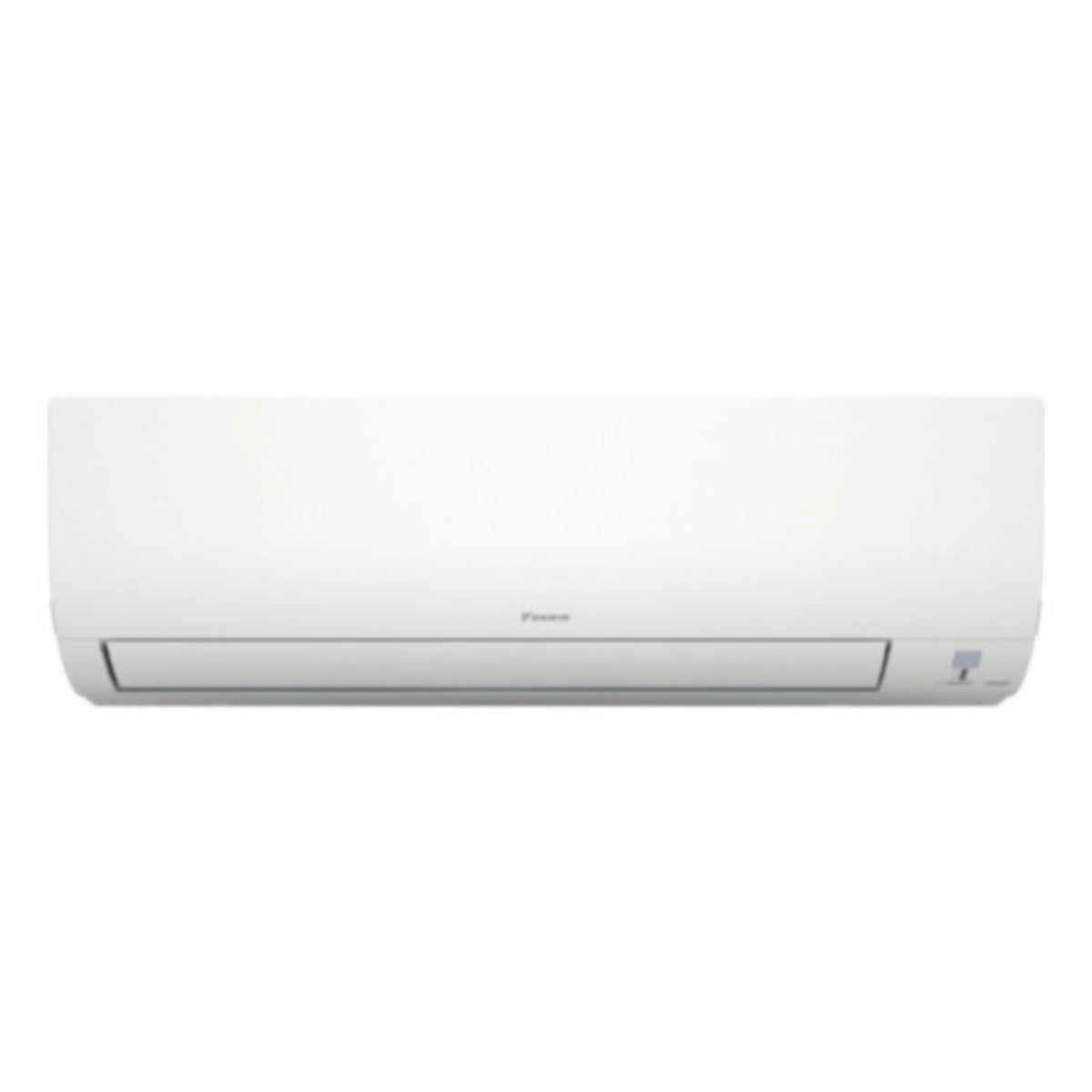

Piece 2 of 2 — MINI SPLIT AIR HANDLER
The Daikin Aurora FTXV24 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
Features
- Cooling Capacity: 22,400 BTU/h
- Heating Capacity: 24,000 BTU/h
- Airflow up to 629 CFM (High)
- Indoor Sound Pressure as low as 34 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Quiet, Auto
- Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
- Wi-Fi: Built-in
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 27 lbs
- 12-Year Parts Limited Warranty with online registration
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 39 W" x 10-3/8 D" x 11-5/8 H"
- Unit Weight
- 27 lbs
- Pallet Qty
- 12
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXV_AVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 34 dB(A)
- Series
- Daikin Aurora
CAPACITY & PERFORMANCE
- Tonnage
- 2 Ton
- Cooling Capacity (Rated)
- 22,400 Btu/H
- Heating Capacity (Rated)
- 24,000 Btu/H
- Airflow Rate High (Cooling)
- 629 ft³/min
- Airflow Rate High (Heating)
- 717 ft³/min
- SEER2 (Matched System)
- 21
- HSPF2 (Matched System)
- 9.5
- EER2 (Matched System)
- 12
NOISE LEVELS
- Sound Pressure (High)
- 52 dB(A)
- Sound Pressure (Silent)
- 34 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 5/8 in
- Pipe Size Liquid
- 1/4 in
- Line Set
- Not included (sold separately)
CONTROLS & CONNECTIVITY
- Wi-Fi
- Built-in Wi-Fi
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
