Daikin Aurora 18K BTU 2-Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 12K + 12K Wall Mount Air Handler

Click on image to zoom Click on image to zoom

Daikin Aurora 18K BTU 2-Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 12K + 12K Wall Mount Air Handler

Name: Daikin Aurora 18K BTU 2-Zone Ductless Mini Split Air Conditioner and Heat Pump Condenser with 12K + 12K Wall Mount Air Handler
Brand: Daikin
SKU: 2MXTH18AVJU9/FTXV12AVJU9-FTXV12AVJU9
Price: 5272.0 USD
Availability: InStock

SKU: 2MXTH18AVJU9/FTXV12AVJU9-FTXV12AVJU9

$5,272.00 $6,877.00

Air Handler BTUs

Choose Line Set Lengths:

Air Handler 12K Air Handler Line Set:

In Stock Estimated delivery: Jun 29th-13th

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

Package Overview

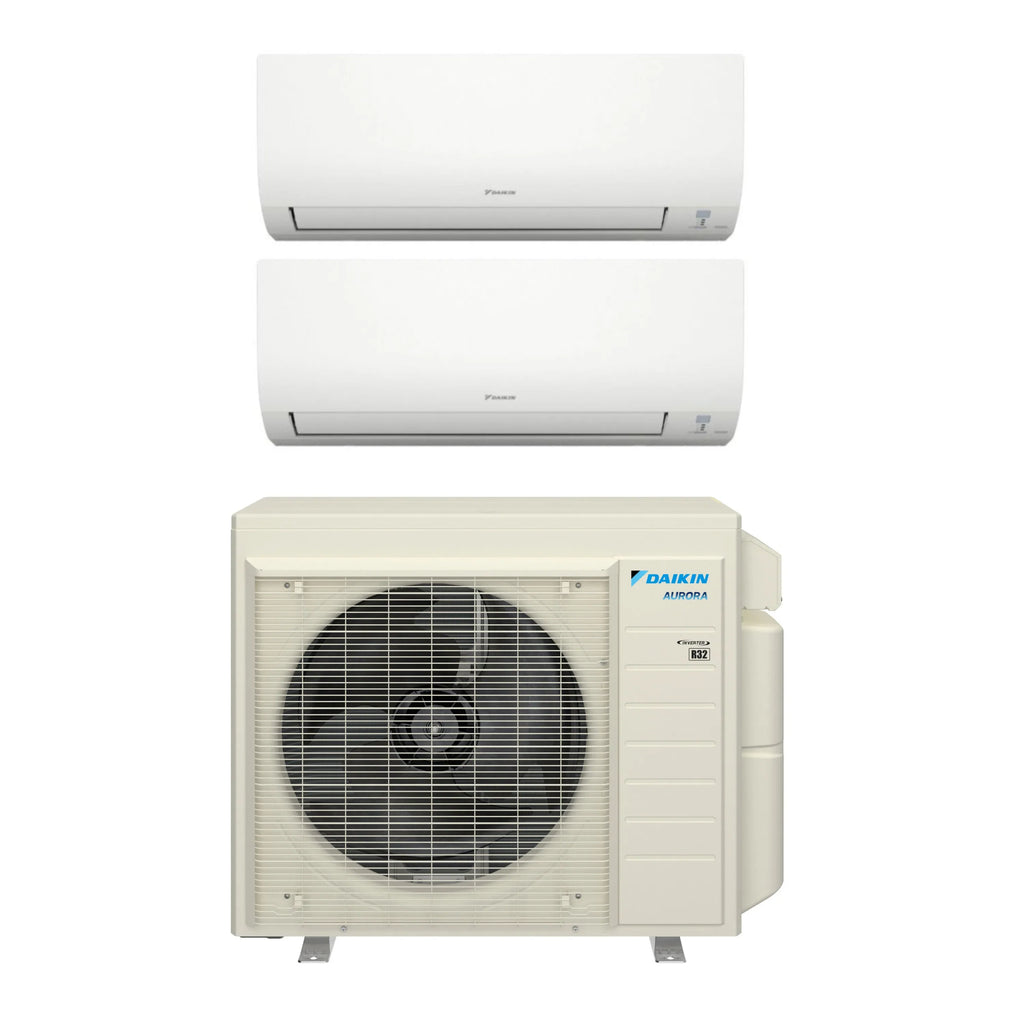

This Daikin Aurora Hyper-Heat 2-zone ductless mini split bundle pairs the 2MXTH18AVJU9 18,000 BTU multi-zone inverter heat pump with two FTXV12AVJU9 12,000 BTU wall-mount air handlers to deliver independent heating and cooling to two separate rooms. The Aurora Hyper-Heat series is engineered for the harshest winters, delivering 100% rated heating capacity at 5°F and reliable operation down to -13°F.

Key Features

Condenser BTU: 18,000 BTU — Total cooling/heating capacity of the outdoor condenser; higher BTU covers a larger area.
Condenser Tonnage: 1.5 Ton — Industry sizing equivalent (1 ton = 12,000 BTU) for matching system capacity to your space.
Zones: 2-Zone — Number of indoor air handlers the condenser supports, each with independent temperature control.
SEER2: 21 — Seasonal Energy Efficiency Ratio 2; higher numbers mean lower cooling-season operating costs.
Installation: Professional Required — Must be installed and refrigerant-charged by a licensed HVAC technician.

Package Includes:

Description

Product Specs

Manuals & Guides

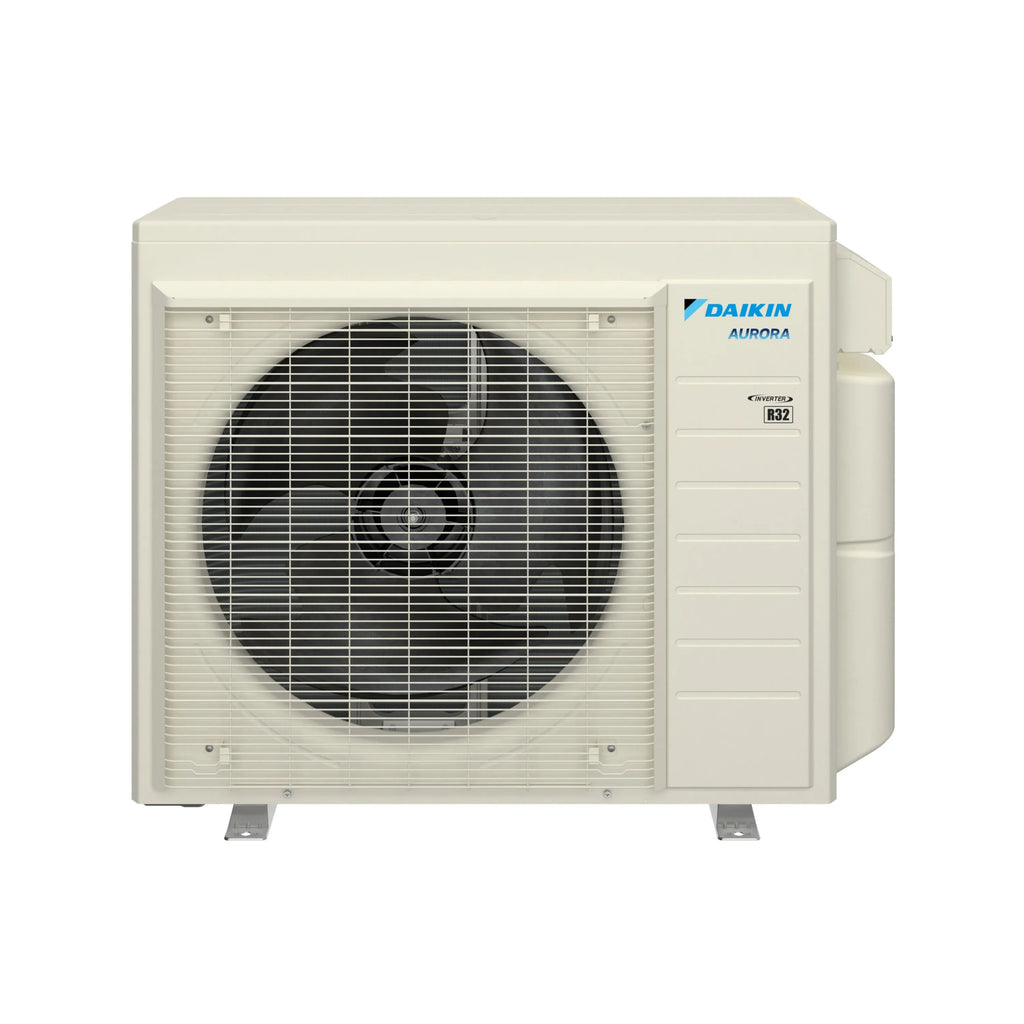

The Daikin Aurora Hyper-Heat 2-zone multi-zone outdoor unit delivers 100% rated heating capacity at 5°F and confirmed continuous operation down to -13°F — ideal for whole-home zoned comfort in the harshest cold climates. Includes a factory-installed drain pan heater and serves up to 2 indoor handlers.

Features

Up to 21 SEER2 / Up to 10 HSPF2 / Up to 12 EER2 for efficient cooling and heating operation
Cooling Capacity: 17,200 BTU/h
Heating Capacity: 18,000 BTU/h
Cooling Range: 14°F to 115°F
Heating Range: -13°F to 60°F
100% rated heating capacity at 5°F with continuous operation as low as -13°F
Variable-speed inverter compressor for precise temperature control and lower energy use
Low-GWP R-32 refrigerant (Factory Charge: 4.9 lbs)
Outdoor Sound Pressure as low as 52 dB(A)
208/230V, 1-Phase, 60 Hz power supply
Min. Circuit Amps: 19.6 A | Max Overcurrent Protection: 20 A
Connects up to 2 indoor units from a single outdoor unit
ENERGY STAR® Certified
12-Year Parts Limited Warranty with online registration

Dimensions & Weight
Unit Dimensions	34-1/4 W" x 12-5/8 D" x 29-1/2 H"
Unit Weight	140 lbs
General Information
Brand	Daikin
Product Family	2MXTH_AVJU9
Family Description	1.5 - 5 Ton 21 Series Hyper-Heat Multi-Zone Heat Pump Up to 21 SEER2 / 10 HSPF2
Unit Type	Outdoor
Product Class	Mini-Split Heat Pump
Tonnage	1.4333333333333333
Vendor	Daikin Comfort Tech
Pallet Qty	6
Product Benefits	12 Year Limited Parts Warranty with Online Registration
Standard Features	Operating Range - Cooling (14° - 115°)
Capacity & Performance
Cooling Capacity (Rated)	17,200 Btu/H
Heating Capacity (Rated)	18,000 Btu/H
Airflow Rate High (Cooling)	2,112 ft³/min
Airflow Rate High (Heating)	2,112 ft³/min
Energy Star Certified	Yes
Compressor
Compressor Type	Swing
Compressor Stages	Inverter
Electrical Requirements
Power Voltage	208-230 V
Power Phase	1 Ph
Power Frequency	60 Hz
Min. Circuit Amps	19.6
Refrigerant & Piping
Refrigerant Type	R-32
Pipe Size Gas	3/8 in × 1, 1/2 in × 1
Pipe Size Liquid	1/4 in (× 2)
Certifications & Warranty
Registered Parts Warranty - Residential	All Parts - 12 Years
Registered Parts Warranty - Multi-Family	All Parts - 12 Years
Registered Parts Warranty - Commercial	All Parts - 5 Years
Standard Parts Warranty - Residential	All Parts - 5 Years
Standard Parts Warranty - Multi-Family	All Parts - 5 Years
Standard Parts Warranty - Commercial	All Parts - 5 Years

Description

Product Specs

Manuals & Guides

The Daikin Aurora FTXV12 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.

Features

Cooling Capacity: 10,600 BTU/h
Heating Capacity: 13,500 BTU/h
Airflow up to 393 CFM (High)
Indoor Sound Pressure as low as 19 dB(A) on Silent mode
Fan Speed Steps: 5 Steps, Quiet, Auto
Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
Wi-Fi: Built-in
Refrigerant: R-32 (low GWP)
Streamlined wall-mount design
Power Supply: 208/230V, 1-Phase, 60 Hz
Unit Weight: 19 lbs
12-Year Parts Limited Warranty with online registration

Dimensions & Weight
Unit Dimensions	30-5/16 W" x 8-3/4 D" x 11-1/4 H"
Unit Weight	19 lbs
General Information
Brand	Daikin
Product Family	FTXV_AVJU9
Family Description	0.75 - 2 Ton 21 Series Wall Mount Air Handler
Unit Type	Indoor
Product Class	Mini-Split Wall Mount Air Handler
Tonnage	0.8833333333333333
Vendor	Daikin Comfort Tech
Pallet Qty	16
Product Benefits	12 Year Limited Parts Warranty with Online Registration
Standard Features	Sound Pressure as low as 19 dB(A)
Wi-Fi	Built-in
Capacity & Performance
Cooling Capacity (Rated)	10,600 Btu/H
Heating Capacity (Rated)	13,500 Btu/H
Airflow Rate High (Cooling)	393 ft³/min
Airflow Rate High (Heating)	393 ft³/min
Sound Pressure (High)	45 dB(A)
Sound Pressure (Silent)	19 dB(A)
Electrical Requirements
Power Voltage	208-230 V
Power Phase	1 Ph
Power Frequency	60 Hz
Refrigerant & Piping
Refrigerant Type	R-32
Pipe Size Gas	3/8 in
Pipe Size Liquid	1/4 in
Certifications & Warranty
Registered Parts Warranty - Residential	All Parts - 12 Years
Registered Parts Warranty - Multi-Family	All Parts - 12 Years
Registered Parts Warranty - Commercial	All Parts - 5 Years
Standard Parts Warranty - Residential	All Parts - 5 Years
Standard Parts Warranty - Multi-Family	All Parts - 5 Years
Standard Parts Warranty - Commercial	All Parts - 5 Years

What BTU rating should I choose for my air handler?

This depends on the coverage area/room size you are trying to heat/cool
An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area

Air Handler BTU	Coverage Area/Room Size (Sq. Ft.)*
6K	Up to 200 Sq. Ft.
9K	Up to 375 Sq. Ft.
12K	Up to 500 Sq. Ft.
18K	Up to 750 Sq. Ft.
24k	Up to 1,000 Sq. Ft.
36k	Up to 1,500 Sq. Ft.

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
