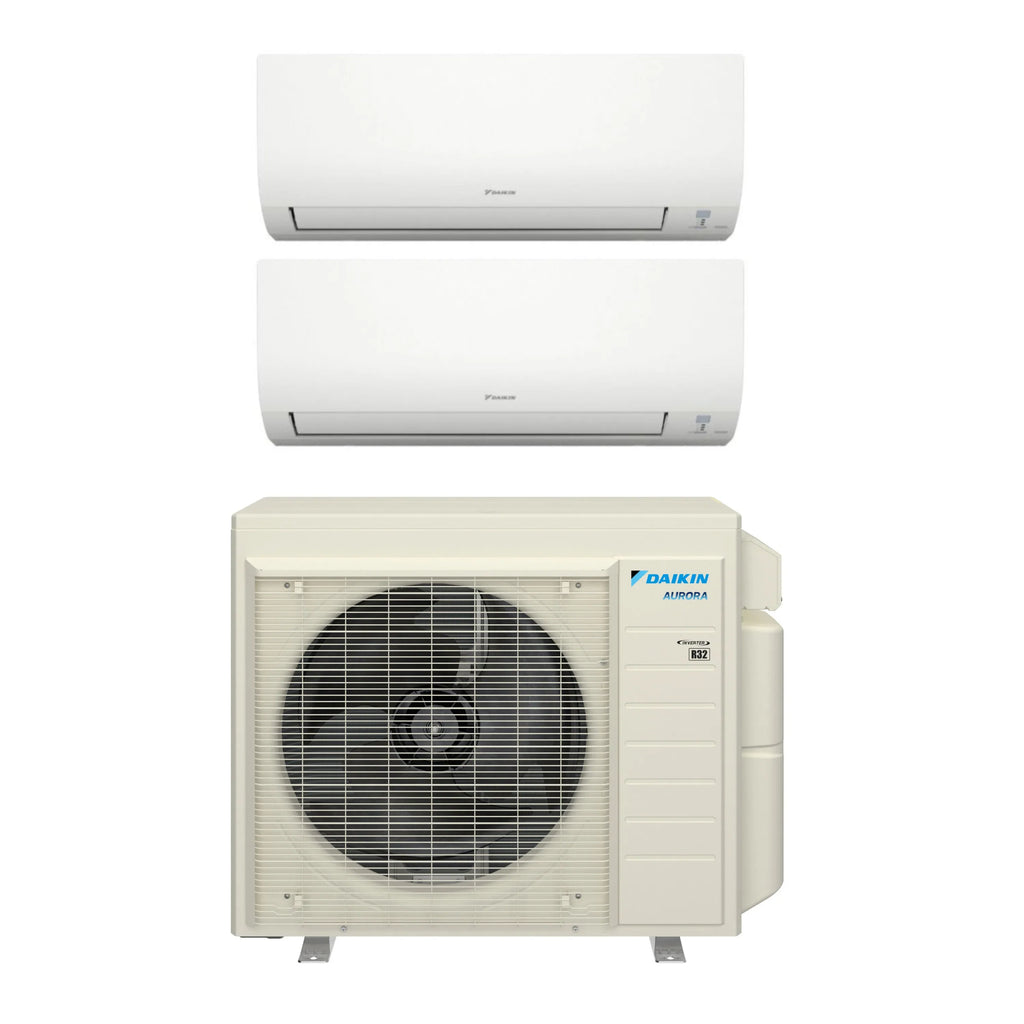

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

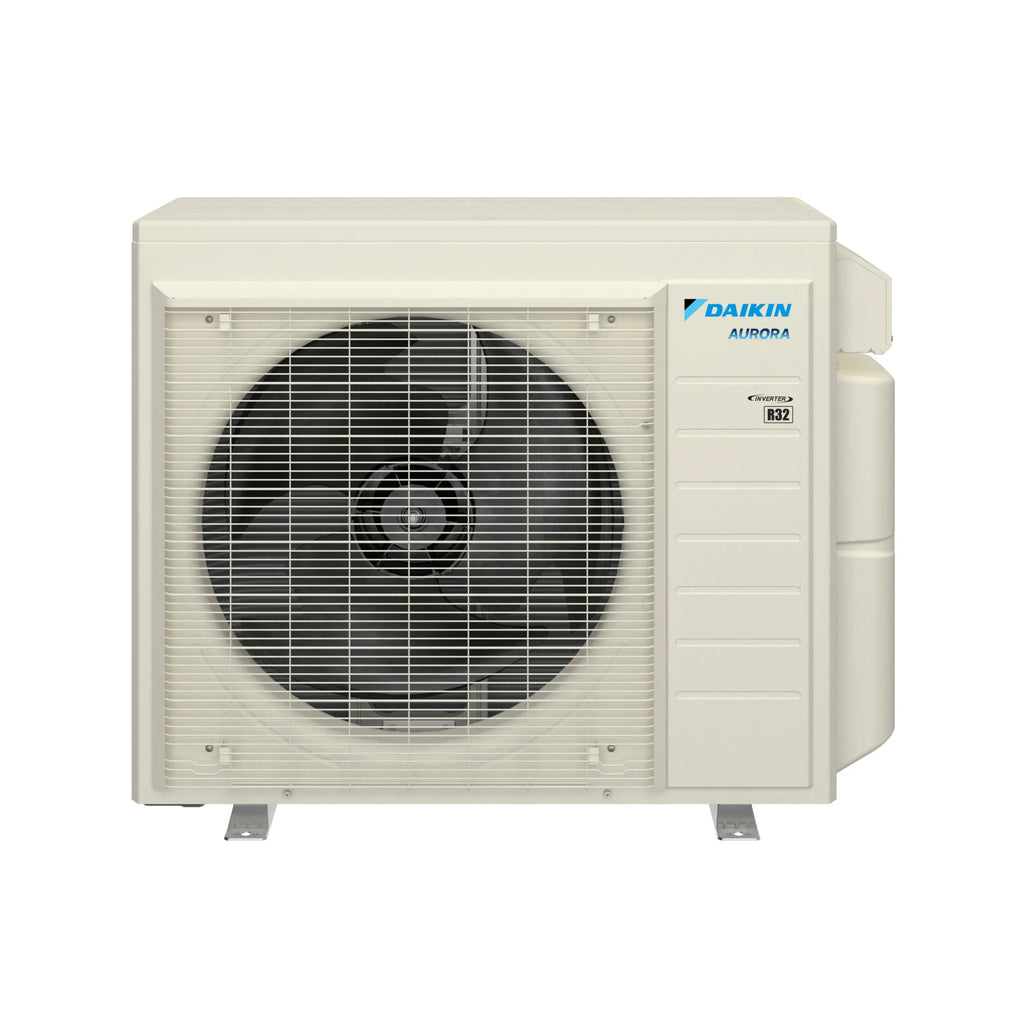

Piece 1 of 2 — MINI SPLIT CONDENSER
The Daikin MXM 2-zone multi-zone outdoor unit serves up to 2 indoor air handlers from a single condenser, delivering up to 21 SEER2 high-efficiency cooling and heating in a flexible whole-home configuration.
Features
- Up to 21 SEER2 / Up to 10 HSPF2 / Up to 12 EER2 for efficient cooling and heating operation
- Cooling Capacity: 17,200 BTU/h
- Heating Capacity: 18,500 BTU/h
- Cooling Range: 14°F to 115°F
- Heating Range: 5°F to 60°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 3.3 lbs)
- Outdoor Sound Pressure as low as 54 dB(A)
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 15.6 A | Max Overcurrent Protection: 20 A
- Connects up to 2 indoor units from a single outdoor unit
- 12-Year Parts Limited Warranty with online registration
DIMENSIONS & WEIGHT
- Unit Dimensions
- 34-1/4 W" x 12-5/8 D" x 29-1/2 H"
- Unit Weight
- 127 lbs
- Pallet Qty
- 6
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- 2MXM_AVJU9
- Family Description
- 1.5 - 4 Ton 21 Series Multi-Zone Heat Pump Up to 21 SEER2 / 10 HSPF2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (14° - 115°)
CAPACITY & PERFORMANCE
- Tonnage
- 1.4333333333333333
- Cooling Capacity (Rated)
- 17,200 Btu/H
- Heating Capacity (Rated)
- 18,500 Btu/H
- Airflow Rate High (Cooling)
- 2,112 ft³/min
- Airflow Rate High (Heating)
- 2,112 ft³/min
COMPRESSOR & MOTORS
- Compressor Type
- Swing
- Compressor Stages
- Inverter
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 15.6
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in × 1
- 1/2 in × 1
- Pipe Size Liquid
- 1/4 in (× 2)
SAFETY
- Energy Star Certified
- No
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
Piece 2 of 2 — MINI SPLIT AIR HANDLER QTY ×2
The Daikin Aurora FTXV9 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
Features
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Airflow up to 381 CFM (High)
- Indoor Sound Pressure as low as 19 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Quiet, Auto
- Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
- Wi-Fi: Built-in
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 19 lbs
- 12-Year Parts Limited Warranty with online registration
DIMENSIONS & WEIGHT
- Unit Dimensions
- 30-5/16 W" x 8-3/4 D" x 11-1/4 H"
- Unit Weight
- 19 lbs
- Pallet Qty
- 16
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXV_AVJU9
- Family Description
- 0.75 - 2 Ton 21 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 19 dB(A)
CAPACITY & PERFORMANCE
- Tonnage
- 0.75
- Cooling Capacity (Rated)
- 9,000 Btu/H
- Heating Capacity (Rated)
- 10,900 Btu/H
- Airflow Rate High (Cooling)
- 381 ft³/min
- Airflow Rate High (Heating)
- 381 ft³/min
NOISE LEVELS
- Sound Pressure (High)
- 43 dB(A)
- Sound Pressure (Silent)
- 19 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
CONTROLS & CONNECTIVITY
- Wi-Fi
- Built-in
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
