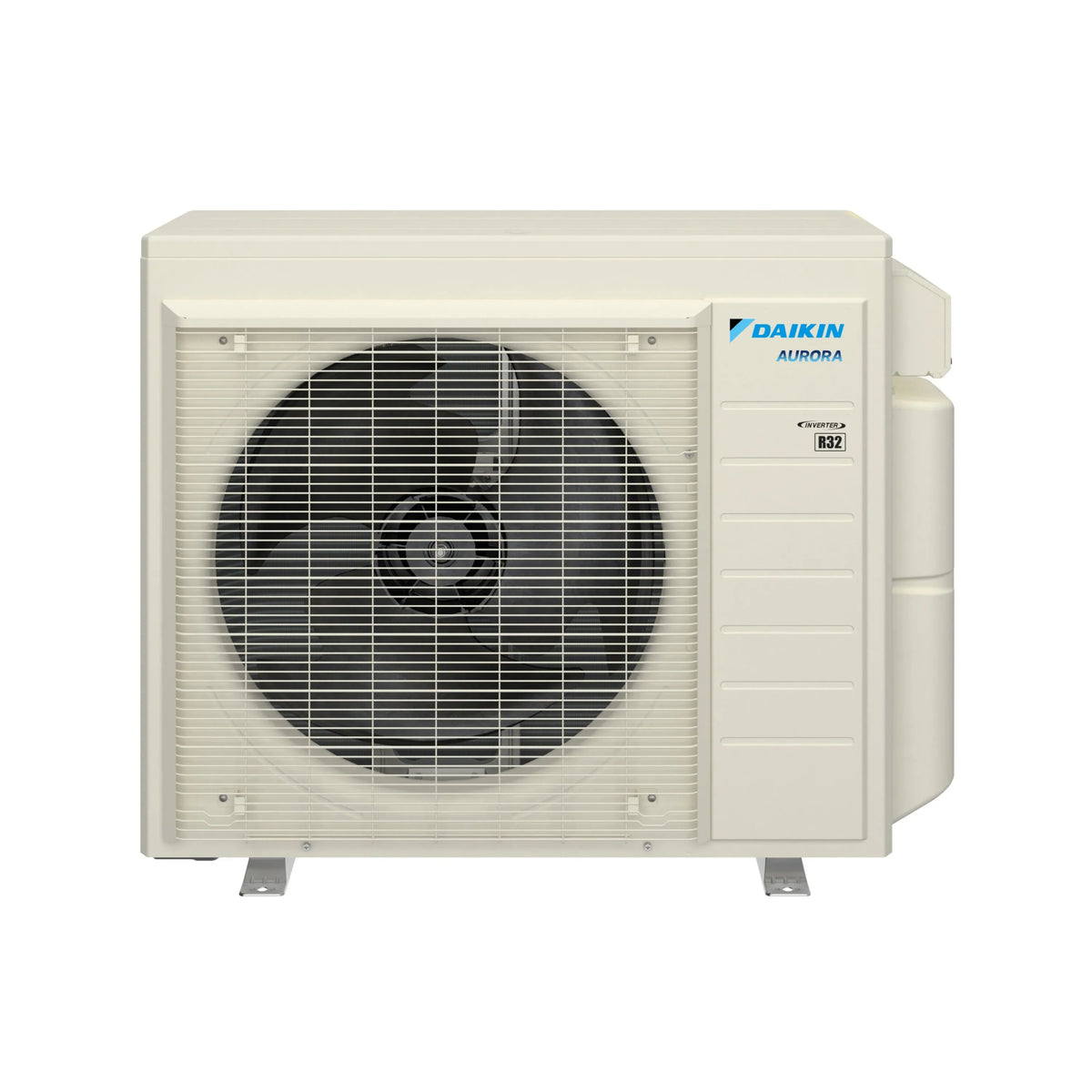

The Daikin MXM 2-zone multi-zone outdoor unit serves up to 2 indoor air handlers from a single condenser, delivering up to 21 SEER2 high-efficiency cooling and heating in a flexible whole-home configuration.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 34-1/4 W" x 12-5/8 D" x 29-1/2 H" |
| Unit Weight | 127 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | 2MXM_AVJU9 |
| Family Description | 1.5 - 4 Ton 21 Series Multi-Zone Heat Pump Up to 21 SEER2 / 10 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 1.4333333333333333 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 6 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (14° - 115°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 17,200 Btu/H |
| Heating Capacity (Rated) | 18,500 Btu/H |
| Airflow Rate High (Cooling) | 2,112 ft³/min |
| Airflow Rate High (Heating) | 2,112 ft³/min |
| Energy Star Certified | No |
| Compressor | |
| Compressor Type | Swing |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 15.6 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in × 1, 1/2 in × 1 |
| Pipe Size Liquid | 1/4 in (× 2) |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
