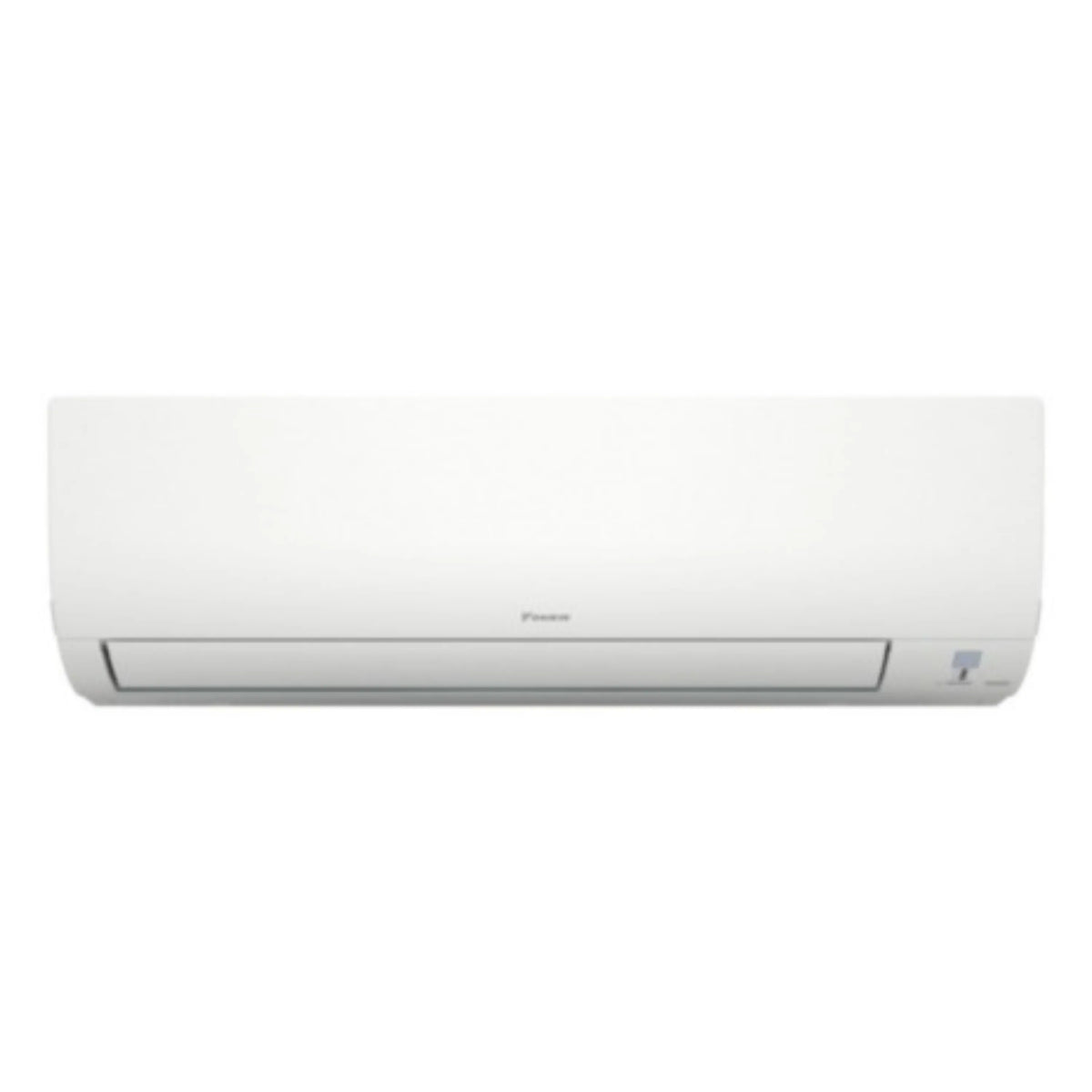

The Daikin Aurora FTXV18 wall-mount indoor air handler delivers reliable cold-climate comfort with built-in Wi-Fi smart controls, a Titanium Apatite Photocatalytic air-purifying filter, and exceptional quiet operation. Pairs with a matching Aurora outdoor condenser for confirmed continuous operation down to -13°F.
| DIMENSIONS & WEIGHT | |
|---|---|
| Unit Dimensions | 39 W" x 10-3/8 D" x 11-5/8 H" |
| Unit Weight | 27 lbs |
| Pallet Qty | 12 |
| GENERAL INFORMATION | |
| Brand | Daikin |
| Product Family | FTXV_AVJU9 |
| Family Description | 0.75 - 2 Ton 21 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Vendor | Daikin Comfort Tech |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 33 dB(A) |
| CAPACITY & PERFORMANCE | |
| Tonnage | 1.5 |
| Cooling Capacity (Rated) | 18,000 Btu/H |
| Heating Capacity (Rated) | 21,600 Btu/H |
| Airflow Rate High (Cooling) | 565 ft³/min |
| Airflow Rate High (Heating) | 565 ft³/min |
| NOISE LEVELS | |
| Sound Pressure (High) | 48 dB(A) |
| Sound Pressure (Silent) | 33 dB(A) |
| ELECTRICAL REQUIREMENTS | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 1/2 in |
| Pipe Size Liquid | 1/4 in |
| CONTROLS & CONNECTIVITY | |
| Wi-Fi | Built-in |
| WARRANTY | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
