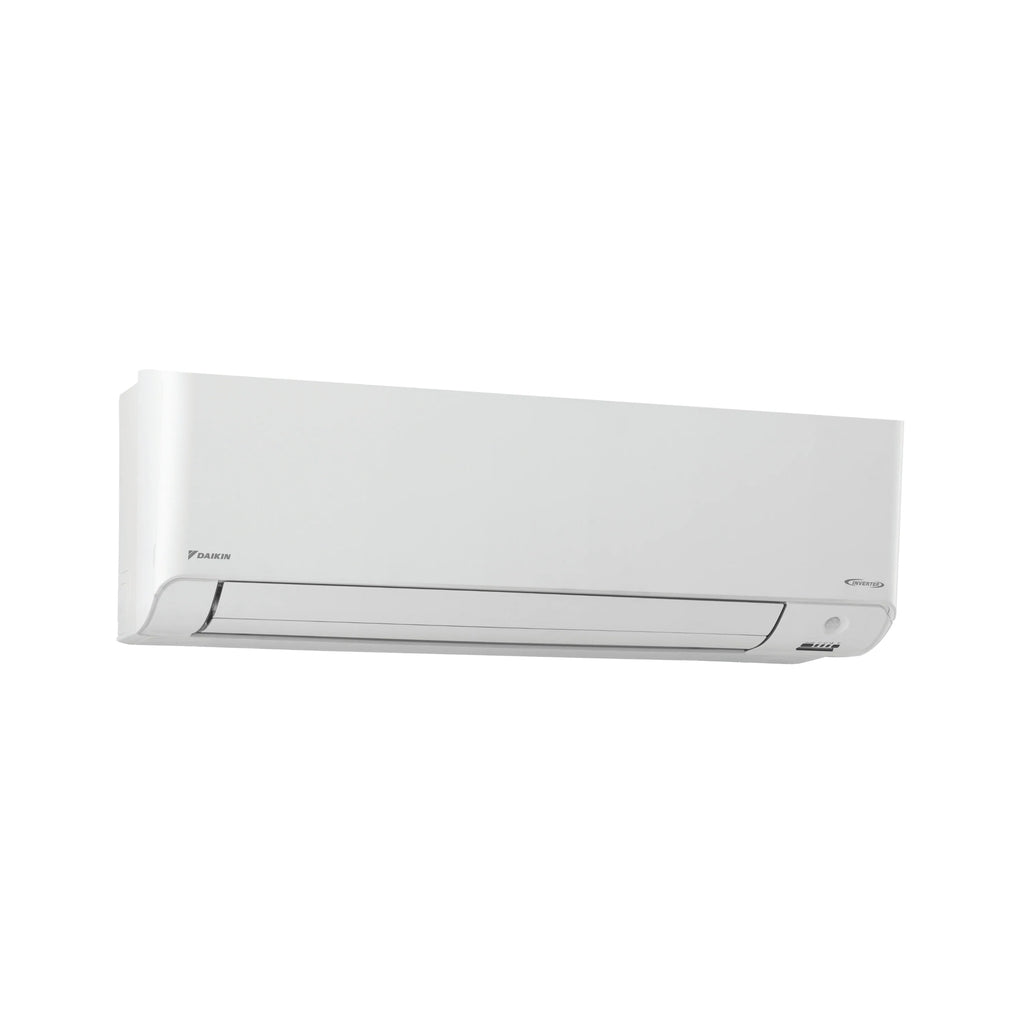

The Daikin Atmosphera FTXM9 wall-mount indoor air handler is the flagship indoor unit, featuring built-in Daikin Comfort Control Wi-Fi, advanced air purification with Streamer technology, 3-D Airflow, and the lowest sound levels in the Daikin lineup.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 36-1/4 W" x 10-13/16 D" x 11-3/4 H" |
| Unit Weight | 29 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTXM_WVJU9 |
| Family Description | 0.75 - 2 Ton 27.4 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 0.75 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 16 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 22 dB(A) |
| Wi-Fi | Built-in (Daikin Comfort Control) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 9,000 Btu/H |
| Heating Capacity (Rated) | 11,000 Btu/H |
| Airflow Rate High (Cooling) | 516 ft³/min |
| Airflow Rate High (Heating) | 516 ft³/min |
| Sound Pressure (High) | 43 dB(A) |
| Sound Pressure (Silent) | 22 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 3/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
