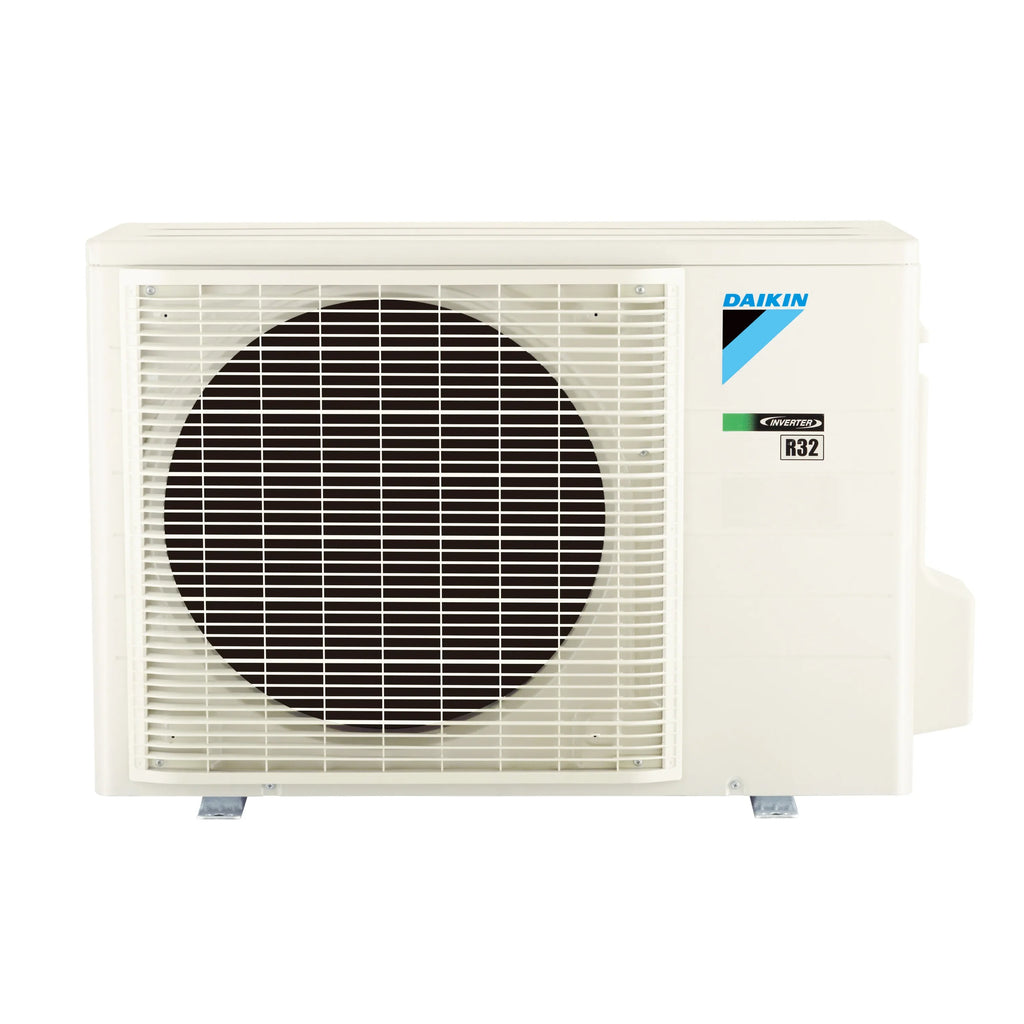

The Daikin Atmosphera is the flagship single-zone ductless mini split system, delivering industry-leading 27.4 SEER2 efficiency. This 1.8 ton outdoor condenser features Daikin's most advanced inverter compressor, premium air filtration, and exceptional quiet operation for primary living areas.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 34-1/4 W" x 12-5/8 D" x 28-15/16 H" |
| Unit Weight | 132 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | RXM_WVJU9 |
| Family Description | 0.75 - 2 Ton 27.4 Series Heat Pump Up to 27.4 SEER2 / 11.2 HSPF2 |
| Unit Type | Outdoor |
| Product Class | Mini-Split Heat Pump |
| Tonnage | 1.8 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 4 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Operating Range - Cooling (50° - 114.8°) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 21,600 Btu/H |
| Heating Capacity (Rated) | 24,000 Btu/H |
| Airflow Rate High (Cooling) | 2,179 ft³/min |
| Airflow Rate High (Heating) | 2,179 ft³/min |
| Energy Star Certified | Yes |
| Compressor | |
| Compressor Type | Rotary |
| Compressor Stages | Inverter |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Min. Circuit Amps | 19.8 |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 5/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
The Daikin Atmosphera FTXM24 wall-mount indoor air handler is the flagship indoor unit, featuring built-in Daikin Comfort Control Wi-Fi, advanced air purification with Streamer technology, 3-D Airflow, and the lowest sound levels in the Daikin lineup.
| Dimensions & Weight | |
|---|---|
| Unit Dimensions | 43-5/16 W" x 10-13/16 D" x 11-3/4 H" |
| Unit Weight | 33 lbs |
| General Information | |
| Brand | Daikin |
| Product Family | FTXM_WVJU9 |
| Family Description | 0.75 - 2 Ton 27.4 Series Wall Mount Air Handler |
| Unit Type | Indoor |
| Product Class | Mini-Split Wall Mount Air Handler |
| Tonnage | 1.8 |
| Vendor | Daikin Comfort Tech |
| Pallet Qty | 12 |
| Product Benefits | 12 Year Limited Parts Warranty with Online Registration |
| Standard Features | Sound Pressure as low as 34 dB(A) |
| Wi-Fi | Built-in (Daikin Comfort Control) |
| Capacity & Performance | |
| Cooling Capacity (Rated) | 21,600 Btu/H |
| Heating Capacity (Rated) | 24,000 Btu/H |
| Airflow Rate High (Cooling) | 844 ft³/min |
| Airflow Rate High (Heating) | 844 ft³/min |
| Sound Pressure (High) | 51 dB(A) |
| Sound Pressure (Silent) | 34 dB(A) |
| Electrical Requirements | |
| Power Voltage | 208-230 V |
| Power Phase | 1 Ph |
| Power Frequency | 60 Hz |
| Refrigerant & Piping | |
| Refrigerant Type | R-32 |
| Pipe Size Gas | 5/8 in |
| Pipe Size Liquid | 1/4 in |
| Certifications & Warranty | |
| Registered Parts Warranty - Residential | All Parts - 12 Years |
| Registered Parts Warranty - Multi-Family | All Parts - 12 Years |
| Registered Parts Warranty - Commercial | All Parts - 5 Years |
| Standard Parts Warranty - Residential | All Parts - 5 Years |
| Standard Parts Warranty - Multi-Family | All Parts - 5 Years |
| Standard Parts Warranty - Commercial | All Parts - 5 Years |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
