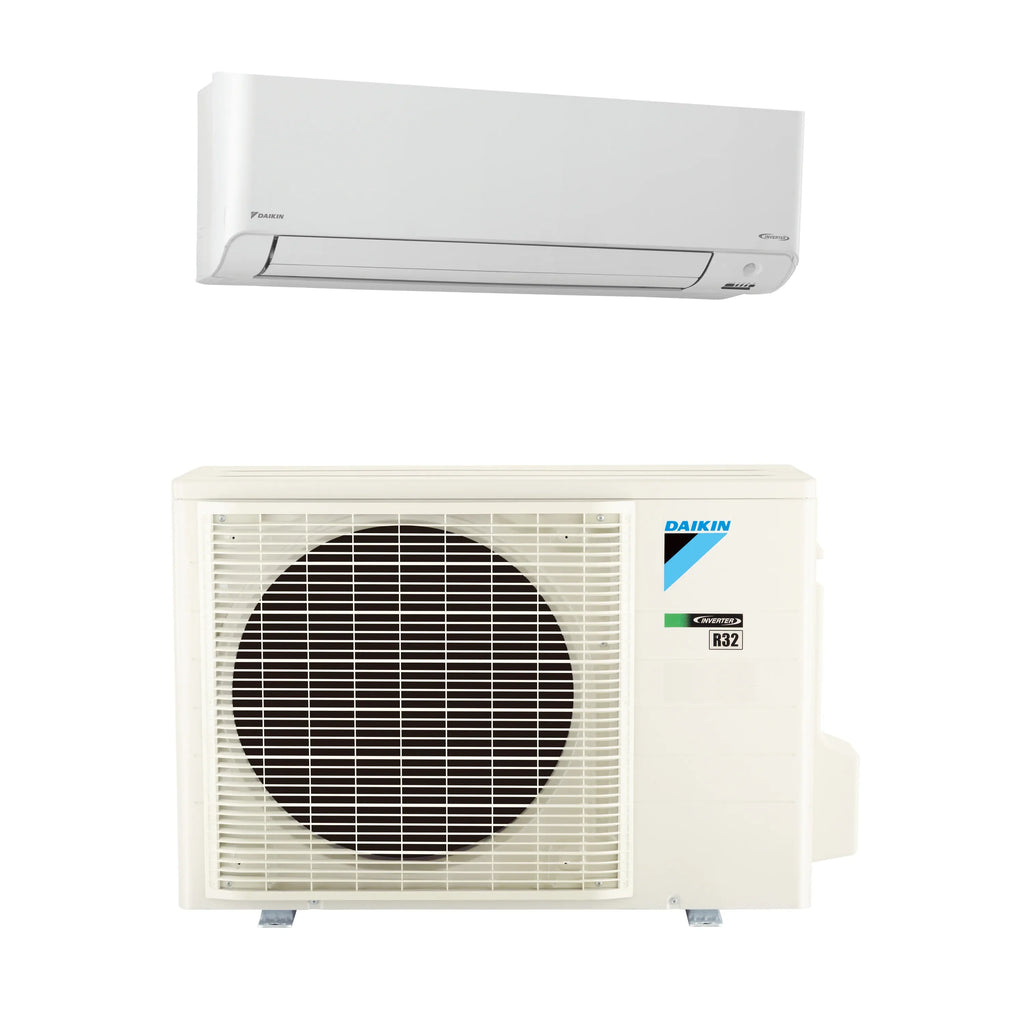

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

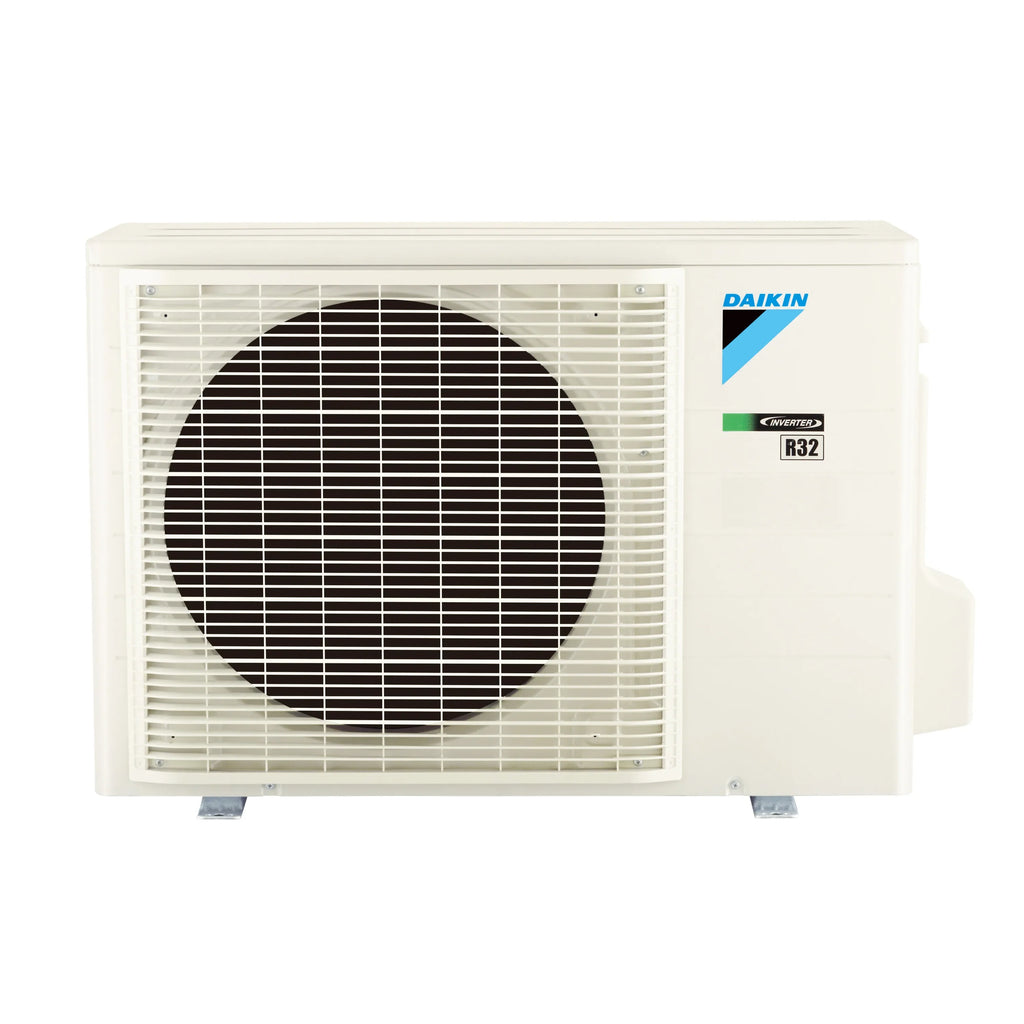

Piece 1 of 2 — MINI SPLIT CONDENSER
The Daikin Atmosphera is the flagship single-zone ductless mini split system, delivering industry-leading 25.2 SEER2 efficiency. This 1 ton outdoor condenser features Daikin's most advanced inverter compressor, premium air filtration, and exceptional quiet operation for primary living areas.
Features
- Up to 25.2 SEER2 / Up to 10.7 HSPF2 / Up to 13.2 EER2 for efficient cooling and heating operation
- Cooling Capacity: 12,000 BTU/h
- Heating Capacity: 13,600 BTU/h
- Cooling Range: 50°F to 115°F
- Heating Range: -13°F to 65°F
- 100% rated heating capacity at 5°F with continuous operation as low as -13°F
- Variable-speed inverter compressor for precise temperature control and lower energy use
- Low-GWP R-32 refrigerant (Factory Charge: 2.16 lbs)
- Outdoor Sound Pressure as low as 49 dB(A)
- 208/230V, 1-Phase, 60 Hz power supply
- Min. Circuit Amps: 12.3 A | Max Overcurrent Protection: 15 A
- 12-Year Parts Limited Warranty with online registration
Refrigerant charge: the outdoor unit is factory-charged for up to 49-1/4 ft of line set; longer runs need about 0.22 oz of additional R-32 per foot beyond that, added at installation.
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 33-1/4 W" x 11-13/16 D" x 23-7/16 H"
- Unit Weight
- 96 lbs
- Pallet Qty
- 8
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- RXM_WVJU9
- Family Description
- 0.75 - 2 Ton 27.4 Series Heat Pump Up to 27.4 SEER2 / 11.2 HSPF2
- Unit Type
- Outdoor
- Product Class
- Mini-Split Heat Pump
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Operating Range - Cooling (50° - 114.8°)
- Series
- Daikin Atmosphera
CAPACITY & PERFORMANCE
- Tonnage
- 1 Ton
- Cooling Capacity (Rated)
- 12,000 Btu/H
- Heating Capacity (Rated)
- 13,600 Btu/H
- Airflow Rate High (Cooling)
- 1,487 ft³/min
- Airflow Rate High (Heating)
- 1,487 ft³/min
- SEER2 (Max)
- 25.2
- HSPF2 (Max)
- 10.7
- EER2 (Max)
- 13.2
- Cooling Operating Range
- 50°F to 115°F
- Heating Operating Range
- -13°F to 65°F
COMPRESSOR & MOTORS
- Compressor Type
- Swing
- Compressor Stages
- Inverter
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
- Min. Circuit Amps
- 12.3
- Max Overcurrent Protection
- 15 A
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Max Piping Length
- 82 ft
- Max Height Difference
- 65-5/8 ft
- Min Piping Length
- 10 ft
- Chargeless Piping Length
- 49-1/4 ft
- Additional Refrigerant Charge
- 0.22 oz/ft beyond chargeless length
- Line Set
- Not included (sold separately)
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
NOISE LEVELS
- Sound Pressure (Outdoor)
- 49 dB(A) cooling / 52 dB(A) heating
Piece 2 of 2 — MINI SPLIT AIR HANDLER
The Daikin Atmosphera FTXM12 wall-mount indoor air handler is the flagship indoor unit, featuring built-in Daikin Comfort Control Wi-Fi, advanced air purification with Streamer technology, 3-D Airflow, and exceptionally quiet operation.
Features
- Cooling Capacity: 12,000 BTU/h
- Heating Capacity: 13,600 BTU/h
- Airflow up to 558 CFM (High)
- Indoor Sound Pressure as low as 23 dB(A) on Silent mode
- Fan Speed Steps: 5 Steps, Quiet, Auto
- Air Filter: Removable, Washable; Titanium Apatite Photocatalytic
- Wi-Fi: Built-in (Daikin Comfort Control)
- Refrigerant: R-32 (low GWP)
- Streamlined wall-mount design
- Power Supply: 208/230V, 1-Phase, 60 Hz
- Unit Weight: 29 lbs
- 12-Year Parts Limited Warranty with online registration
Line set sold separately. Refrigerant line sets are not included with this unit.
DIMENSIONS & WEIGHT
- Unit Dimensions
- 36-1/4 W" x 10-13/16 D" x 11-3/4 H"
- Unit Weight
- 29 lbs
- Pallet Qty
- 16
GENERAL INFORMATION
- Brand
- Daikin
- Product Family
- FTXM_WVJU9
- Family Description
- 0.75 - 2 Ton 27.4 Series Wall Mount Air Handler
- Unit Type
- Indoor
- Product Class
- Mini-Split Wall Mount Air Handler
- Vendor
- Daikin Comfort Tech
- Product Benefits
- 12 Year Limited Parts Warranty with Online Registration
- Standard Features
- Sound Pressure as low as 23 dB(A)
- Series
- Daikin Atmosphera
CAPACITY & PERFORMANCE
- Tonnage
- 1 Ton
- Cooling Capacity (Rated)
- 12,000 Btu/H
- Heating Capacity (Rated)
- 13,600 Btu/H
- Airflow Rate High (Cooling)
- 558 ft³/min
- Airflow Rate High (Heating)
- 558 ft³/min
- SEER2 (Matched System)
- 25.2
- HSPF2 (Matched System)
- 10.7
- EER2 (Matched System)
- 13.2
NOISE LEVELS
- Sound Pressure (High)
- 45 dB(A)
- Sound Pressure (Silent)
- 23 dB(A)
ELECTRICAL REQUIREMENTS
- Power Voltage
- 208-230 V
- Power Phase
- 1 Ph
- Power Frequency
- 60 Hz
REFRIGERANT & PIPING
- Refrigerant Type
- R-32
- Pipe Size Gas
- 3/8 in
- Pipe Size Liquid
- 1/4 in
- Line Set
- Not included (sold separately)
CONTROLS & CONNECTIVITY
- Wi-Fi
- Built-in Wi-Fi
WARRANTY
- Registered Parts Warranty - Residential
- All Parts - 12 Years
- Registered Parts Warranty - Multi-Family
- All Parts - 12 Years
- Registered Parts Warranty - Commercial
- All Parts - 5 Years
- Standard Parts Warranty - Residential
- All Parts - 5 Years
- Standard Parts Warranty - Multi-Family
- All Parts - 5 Years
- Standard Parts Warranty - Commercial
- All Parts - 5 Years
