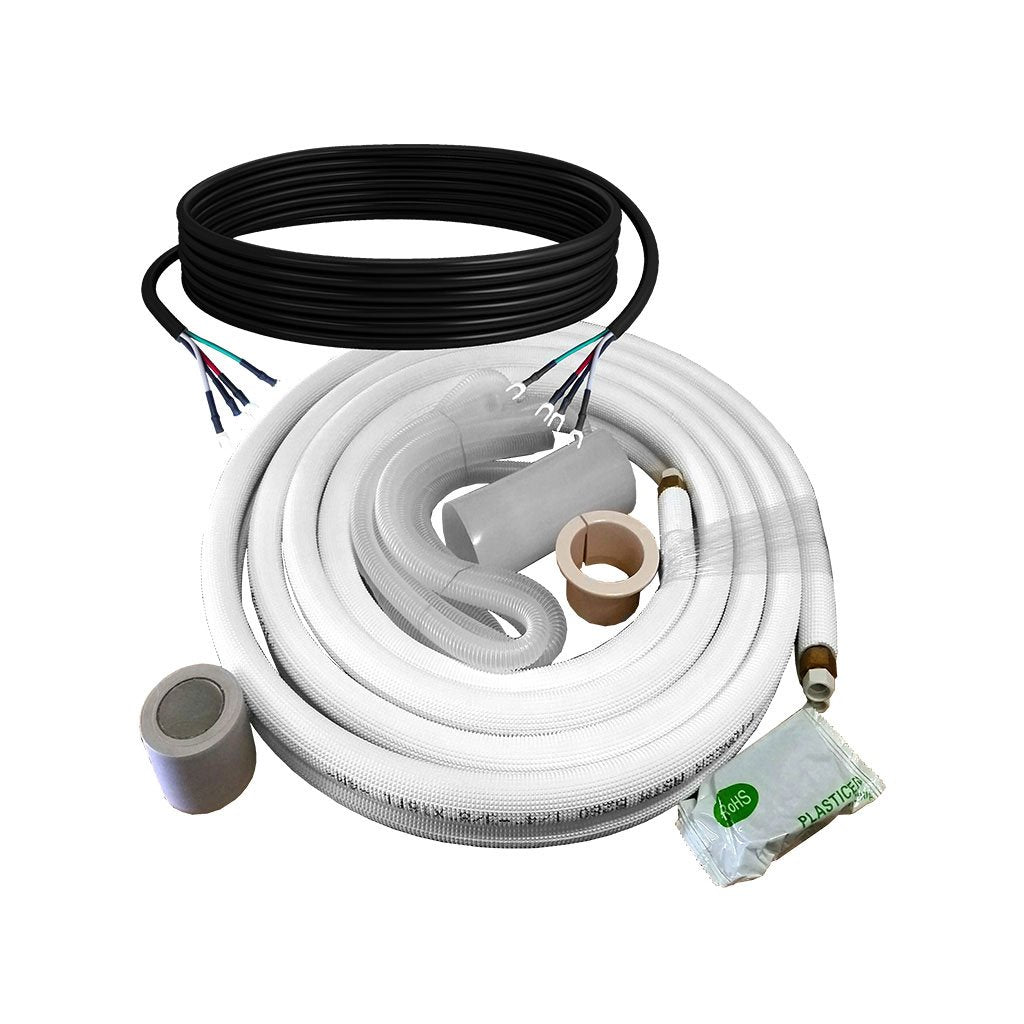

Mini split copper piping line set kit with coiled insulated tubing and fittings

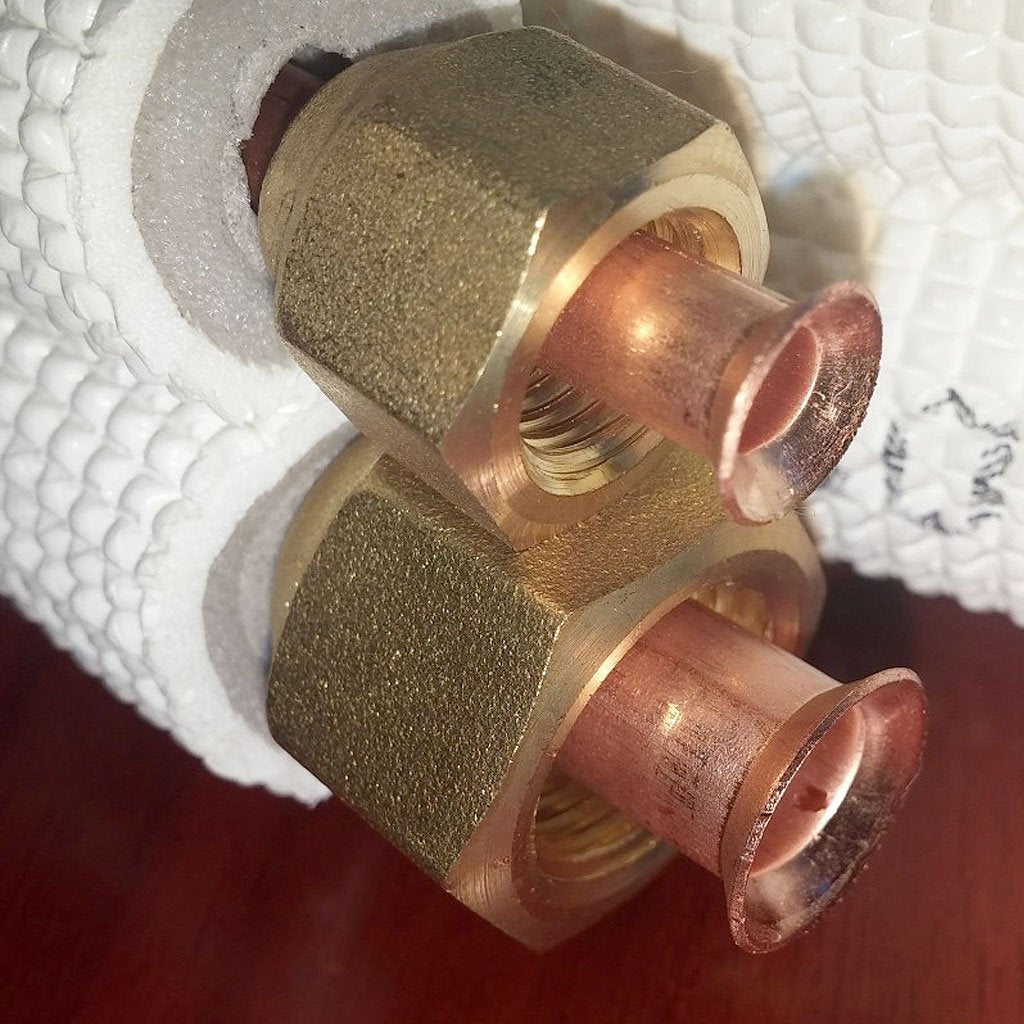

Mini split copper piping flare fittings with brass adapters on insulated foam

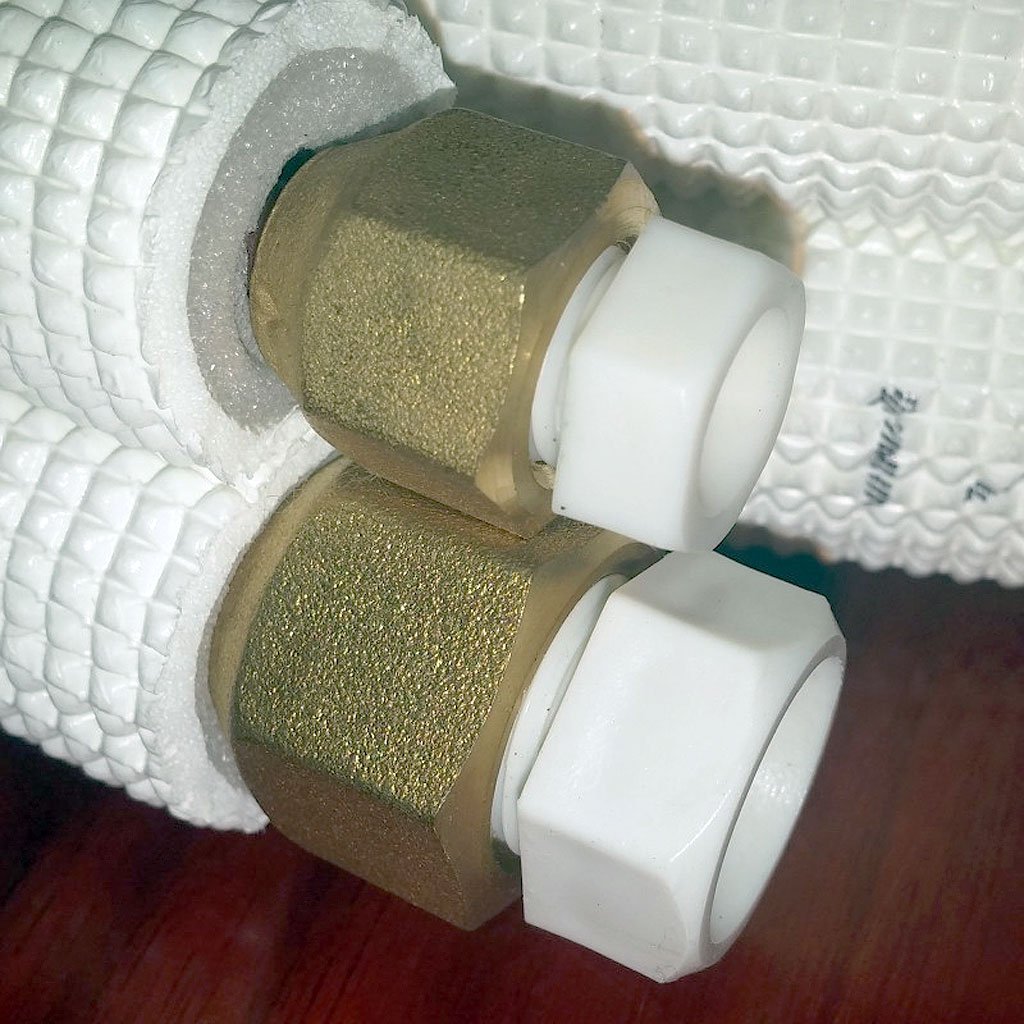

Mini split copper line set with paired shutoff fittings, white caps, and foam insulation
Roll over image to zoom in Click on image to zoom
Mini split copper piping line set kit with coiled insulated tubing and fittingsMini split copper piping flare fittings with brass adapters on insulated foamMini split copper line set with paired shutoff fittings, white caps, and foam insulation
Click on image to zoom

Pioneer Copper Piping Line Set Kit for Mini Split Installation

PioneerSKU: PKW-3/8-5/8-10
4 reviews
Price:
$125.00 $155.75SAVE 19%
Diameter: 3/8 - 5/8
Length: 10 Ft
Type:
In Stock
Estimated delivery: Oct 22nd-29th
Free shipping — delivered to your door by parcel carrier

Free shipping

Included on every order
Ships free by parcel carrier. Your order ships with FedEx, UPS, USPS, or similar.
Tracking lands in your inbox. We email your tracking number as soon as the order leaves our warehouse.
Delivered to your door. Most parcel deliveries don't require a signature, so you don't need to be home.
Something arrives damaged: contact us right away and we'll make it right.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Connect your indoor and outdoor units securely with a copper piping kit line set for mini split installation. Copper tube kits offer long-term durability that allows you to install them and forget about them as you enjoy the benefits of your new heating and cooling system.

Our kits come equipped with all the essentials for mini split piping, from nonadhesive wrapping tape to copper pre-flared refrigerant pipes that reduce the risks of rusting and future maintenance requirements. Shop Pioneer’s copper piping kit lineset for mini split installations and pair your heat pump with quality components that maximizes its performance.

Features

  • Highest Quality Full Copper Piping Kit Set.
  • Compliance with ASTM-B280 Standard (USA-Canada).
  • Dehydrated Soft Drawn Copper Tubes.
  • Three Layer Water Proof P.E. Insulation.
  • Brass Flare Nuts, on ready formed flare ends.
  • Matching Length 16 Gauge 4 Lead Signal Cable set.
  • Plastic dust caps, to keep clean during installation.
  • Wall Sleeve/Liner with Cap.
  • Wall Filler Putty.
  • Non Adhesive Wrapping Tape.

Pioneer’s Copper Tubing Kits Include

  • Copper pipes
  • 3 layer insulation
  • Brass flare nuts
  • Includes the following:
    • Insulated pre-flared copper refrigerant pipes (length and diameter as chosen)
    • 4 lead communication wire between indoor and outdoor unit (same length as chosen)
    • 10 ft. condensate drain hose
    • Wall passage sleeve with cap and putty
    • Non-adhesive wrapping tape (2" wide, 50' length)
DIMENSIONS
Line Diameter
Wrench Size
GENERAL INFORMATION
1/4"
5/8"
3/8"
13/16"
1/2"
15/16"
5/8"
1-1/16"
3/4"
1-5/16"
9,000 BTU Models (except for WYS009AMFI22RL)
1/4"-3/8"
12,000-18,000 BTU Models (as well as WYS009AMFI22RL)
1/4"-1/2"
24,000 BTU and Above Models
3/8"-5/8"
9,000 BTU - 18,000 BTU
1/4"-3/8"
24,000 BTU
1/4"-1/2"
36,000 BTU
1/4"-5/8"
9,000 BTU - 12,000 BTU
1/4"-3/8"
18,000 BTU
1/4"-1/2"

Pioneer Mini Split BTU Guide

Drawn to scale — 1 square = 2 × 2 ft
48K BTU
36K BTU
30K BTU
24K BTU
18K BTU
12K BTU
9K BTU
9K BTU up to 350 sq ft · Bedroom, home office
12K BTU up to 500 sq ft · Large bedroom, den
18K BTU up to 750 sq ft · Living room, master suite
24K BTU up to 1000 sq ft · Open living area
30K BTU up to 1200 sq ft · Large open area
36K BTU up to 1400 sq ft · Great room, small home
48K BTU up to 1800 sq ft · Whole floor, large open space
Between sizes? Round up. A slightly larger unit runs efficiently at partial load — an undersized one runs constantly.
