Description
DIMENSIONS
- Width
- 35 7/8"
- Cabinet Depth
- 25"
- Depth to Oven Door
- 27 1/4"
- Depth with Oven Door Open
- 43 1/4"
- Height
- 36 1/2"
- Shipping Weight
- 450 lbs.
GENERAL INFORMATION
- Product Type
- Gas Range
- Size
- 36"
- Number of Burners
- 6
- Number of Ovens
- 1
- Oven Capacity
- 4.6 cu. ft.
- Field Convertible to LP or NG
- Yes

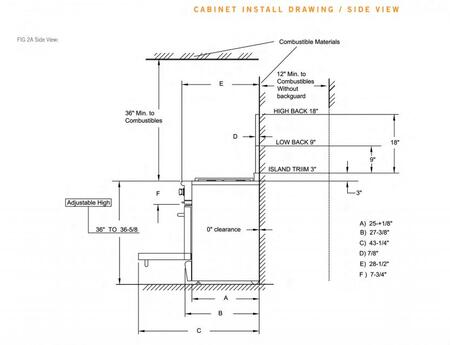

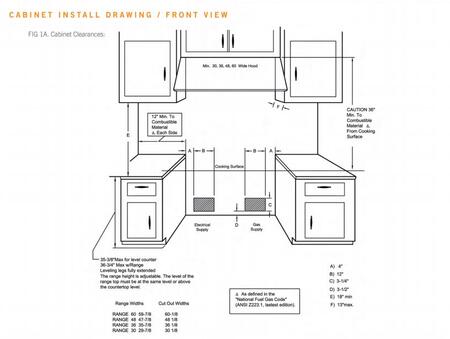

- Base Cabinet Installation
- "0" Clearance
- Adjustable Rear Casters
- Yes
- Adjustable Front Legs
- Yes
DESIGN & FINISH
- Finish
- Matte Porcelain
- Cooktop
- Smooth-top Cast-Iron Grates
- Knobs
- Stay-Cool Chrome Plated Die-Cast Metal (Capital Exclusive)
- Handles
- 1-1/4" Thick Professional Style
- Island Trim Kit
- Included
- Oven Interior
- Titanium Speck Porcelain
- Large Oven Viewing Window
- Yes
TECHNICAL DETAILS
- Electrical Requirements
- 120V, 60 Hz, single phase 20 AMP
COOKTOP FEATURES
- Sealed Burners

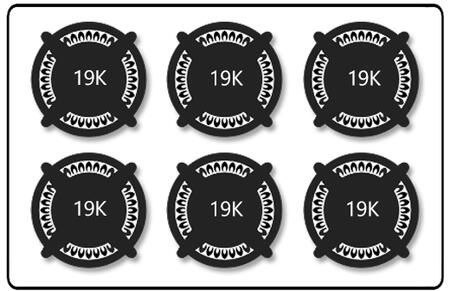

- 6 x 19,000 BTU Power-Flo w/ 140°F Simmer
- Automatic Ignition
- All Burners
- Automatic Re-ignition
- All Burners
- Full Extension Drip Trays
- Yes on EZ-Glides
- Grates
- Smooth-top Cast-Iron Grates
OVEN FEATURES
- Oven Capacity
- 4.6 cu. ft.
- Large Oven Dimensions (W x D x H)
- 27" x 21" x 14"
- Self-Clean
- Yes
- Gas Convection
- 30,000 BTU
- Gas Infrared Broiler
- 18,000 BTU Behind Glass
- Oven Cooking Modes
- Convection Bake
- Convection Broil
- Convection Rotisserie
- Open-Door Broil
- Rotisserie
- Standard Bake
- Infrared-Broil
- Defrost
- Preheat
- Warm
- Slow Cooking
- Normal Thawing
- Advanced Thawing
- Motorized Rotisserie System
- Moto-Rotis
- Rotisserie Spit Rod
- Stainless Steel
- Oven Racks
- 3 Flex-Roll
- Rack Positions
- 4
- Broiler Pan
- Included
- Oven Lights
- 25-Watt
- Heavy-Duty Oven Door Hinges
- Yes
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Full Parts and Labor (Conditions Apply)
- Certifications
- ETL Certified for USA and Canada
