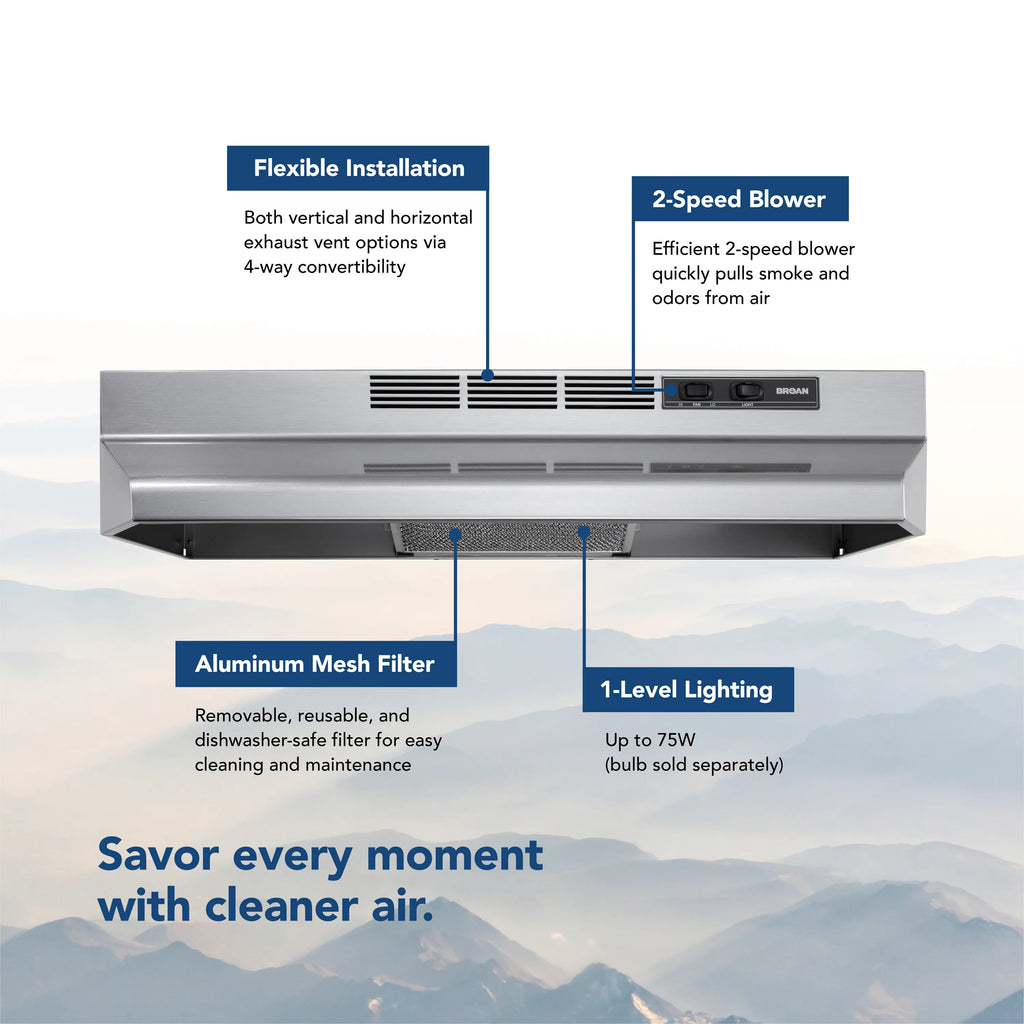

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation.
| General Information | |
|---|---|
| Material | Steel |
| Color | Stainless Steel |
| Manufacturer Warranty | 1 Year |
| ADA Compliance | Yes |
| Technical Information | |
| Filter Type | Aluminum |
| Lighting Type | LED |
| Light Bulb Wattage | 75W |
| Light Levels | 1 |
| Light Bulbs Included | No |
| Nightlight Setting | No |
| Sound Level | 3.5 Sones |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Boost Mode | No |
| Built-In Timer | No |
| CFM | 230 |
| Rated Voltage | 120V |
| Rated Amps | 2.5A |
| Wattage | 240W |
| Duct Direction | Horizontal/Vertical |
| Ventilation | |
| Ductless Recirculation Capable | Yes |
| Ductless Filter or Kit Included | No |
| Damper Included | No |
| Remote Operation Capable | Yes |
| Heat Sentry | No |
| Certifications | |
| UL Listed | Yes |
| HVI Certified | Yes |
| Energy Star Certified | No |
| Dimensions | |

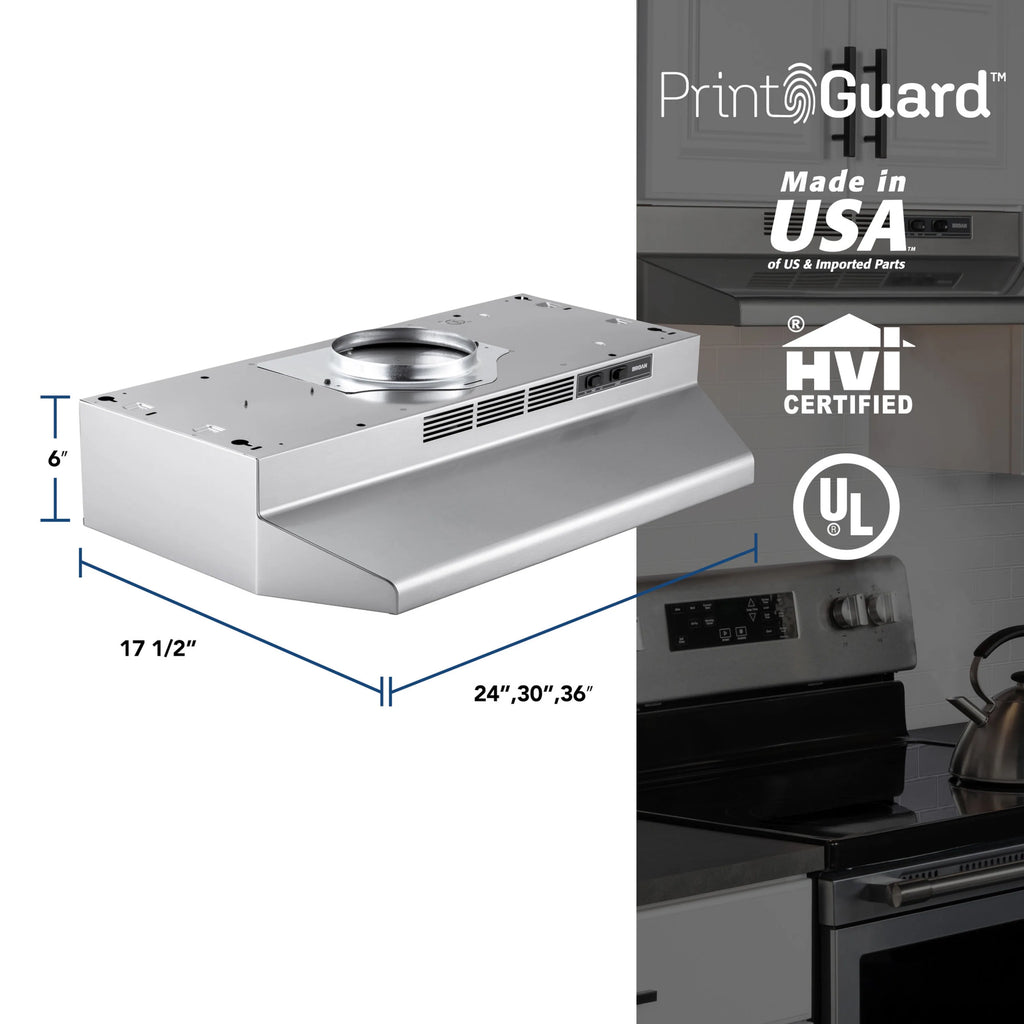

| Product Width | 30in |
| Product Height | 6in |
| Product Depth | 17.5in |
| Accommodates Ceiling Height | 18in |
