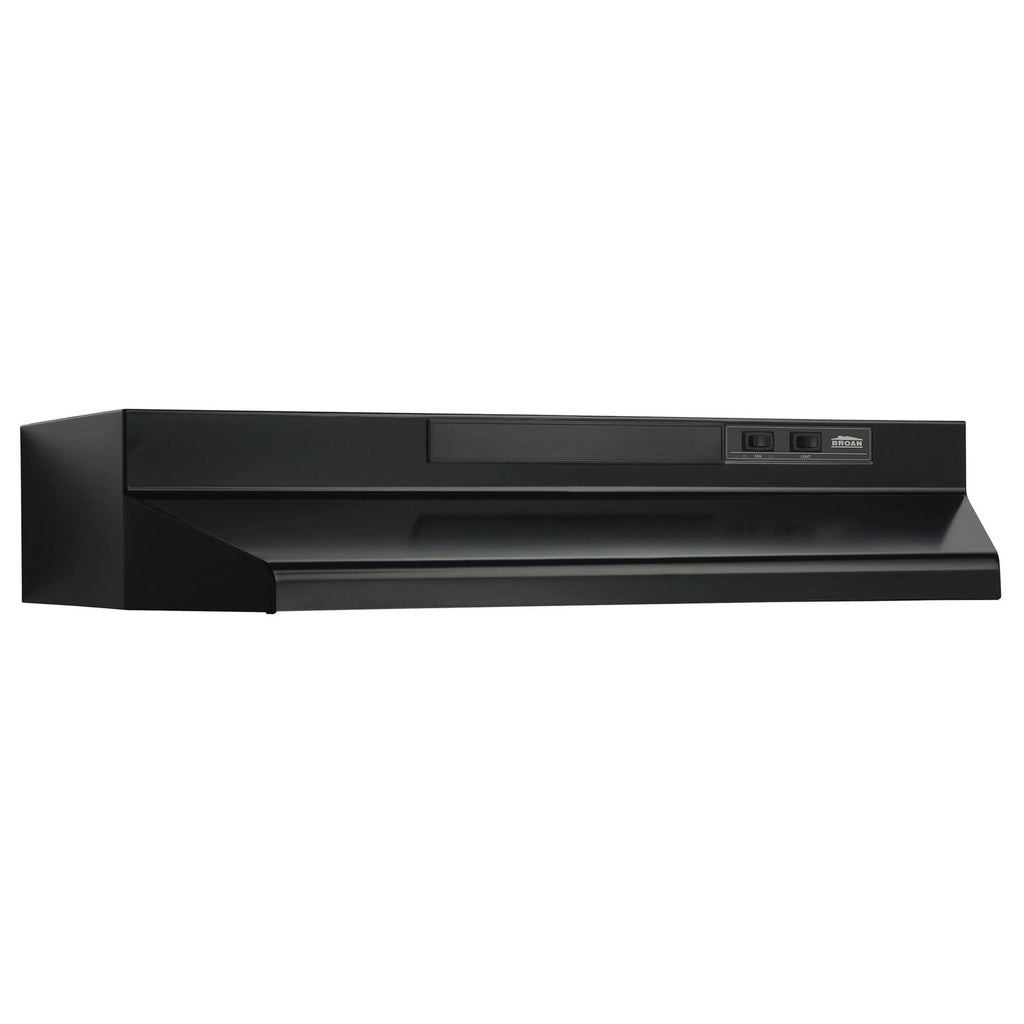

Black under-cabinet range hood vent cover with control panel and label

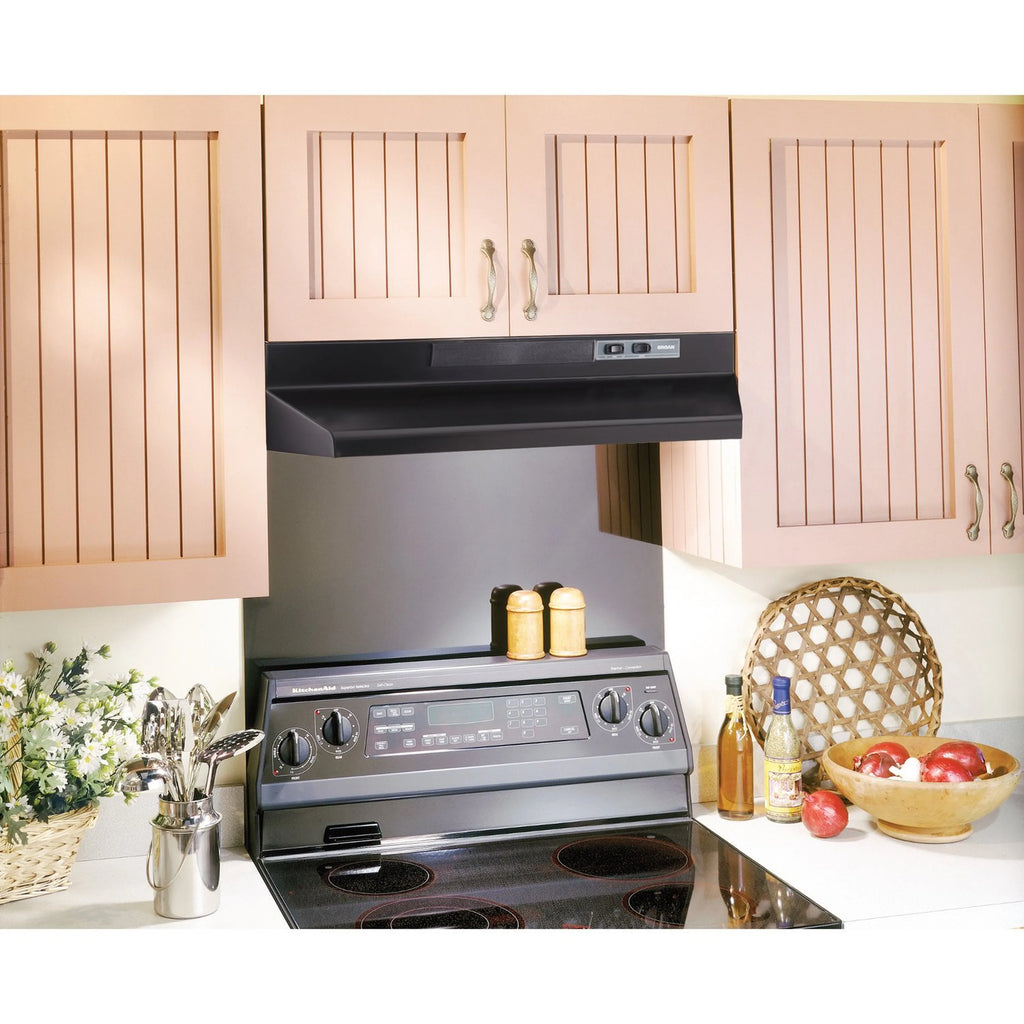

Black convertible under-cabinet range hood mounted under cabinets in a kitchen

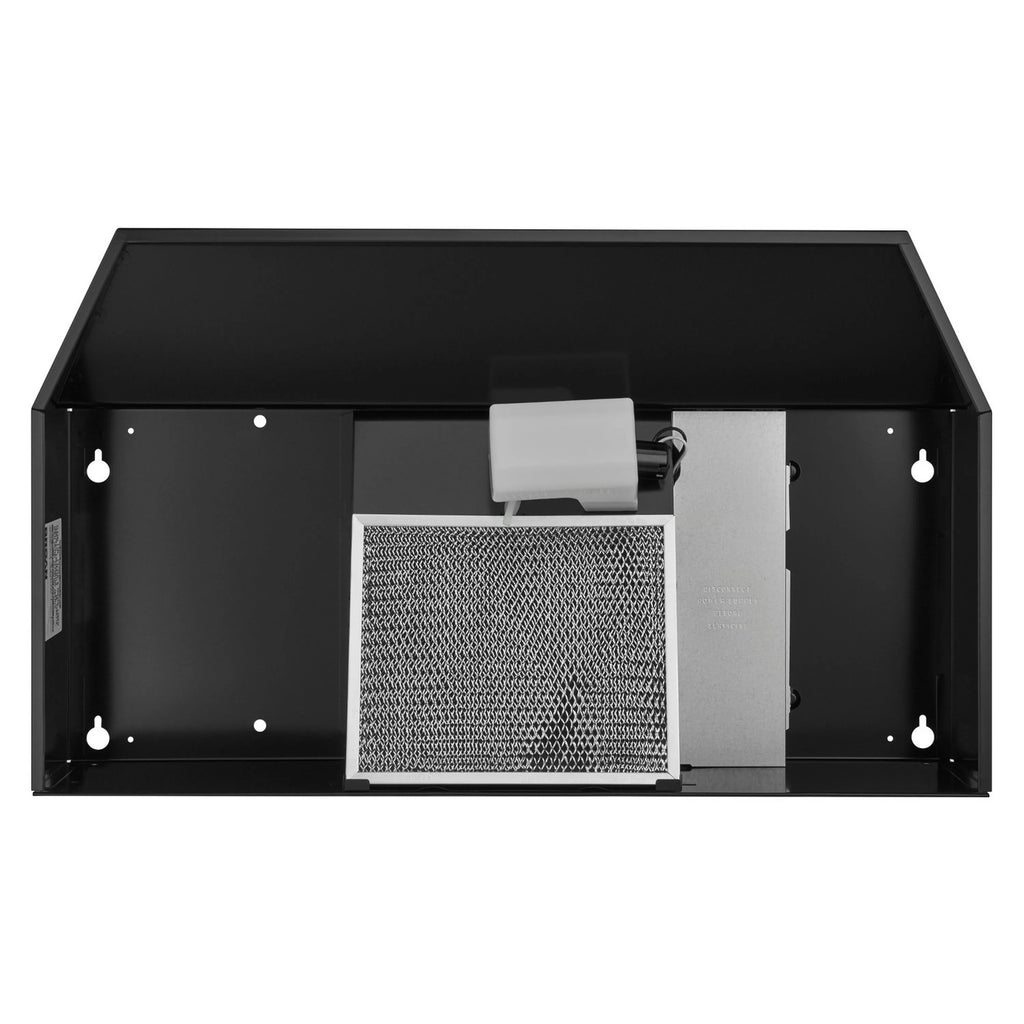

Black convertible under-cabinet range hood interior with mesh filter and baffle cover

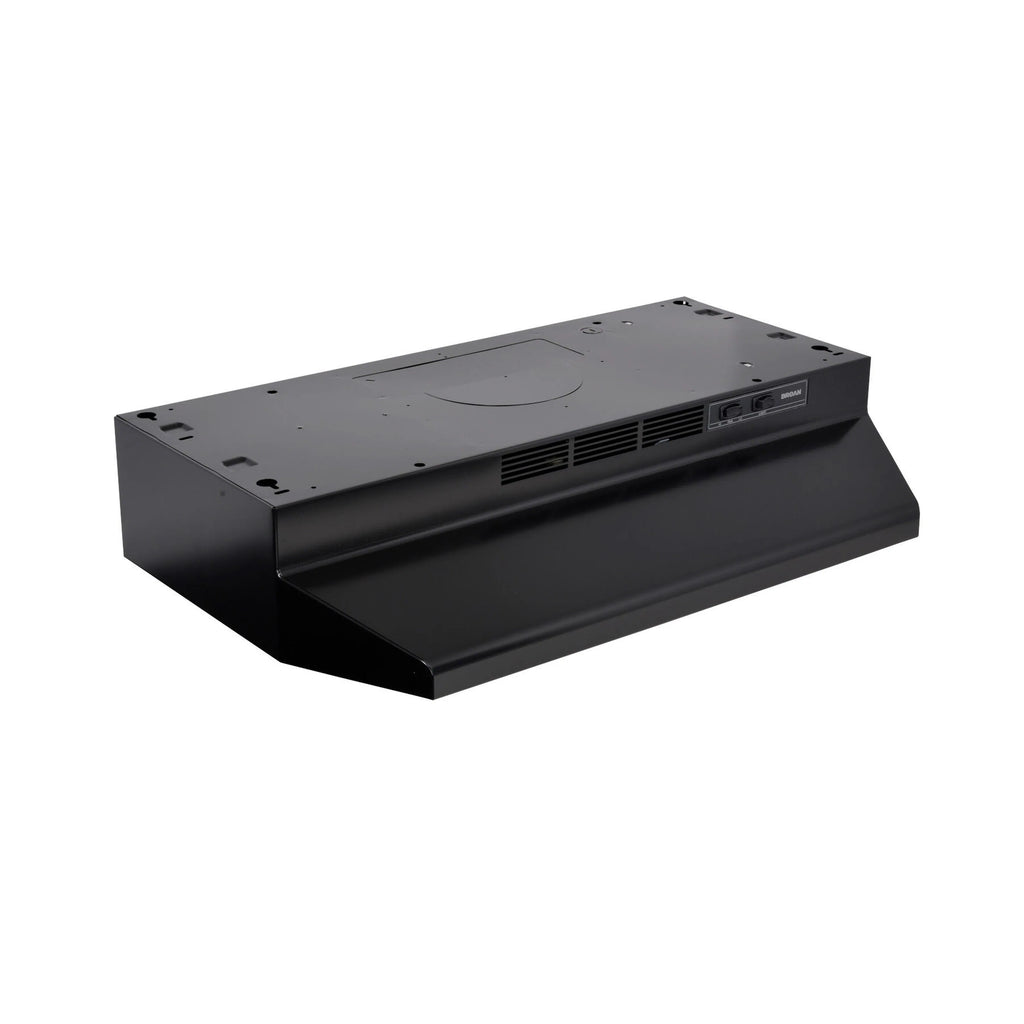

Black under-cabinet range hood mounting housing with vent openings on top plate
Under-cabinet range hood in a kitchen with certification badge graphic

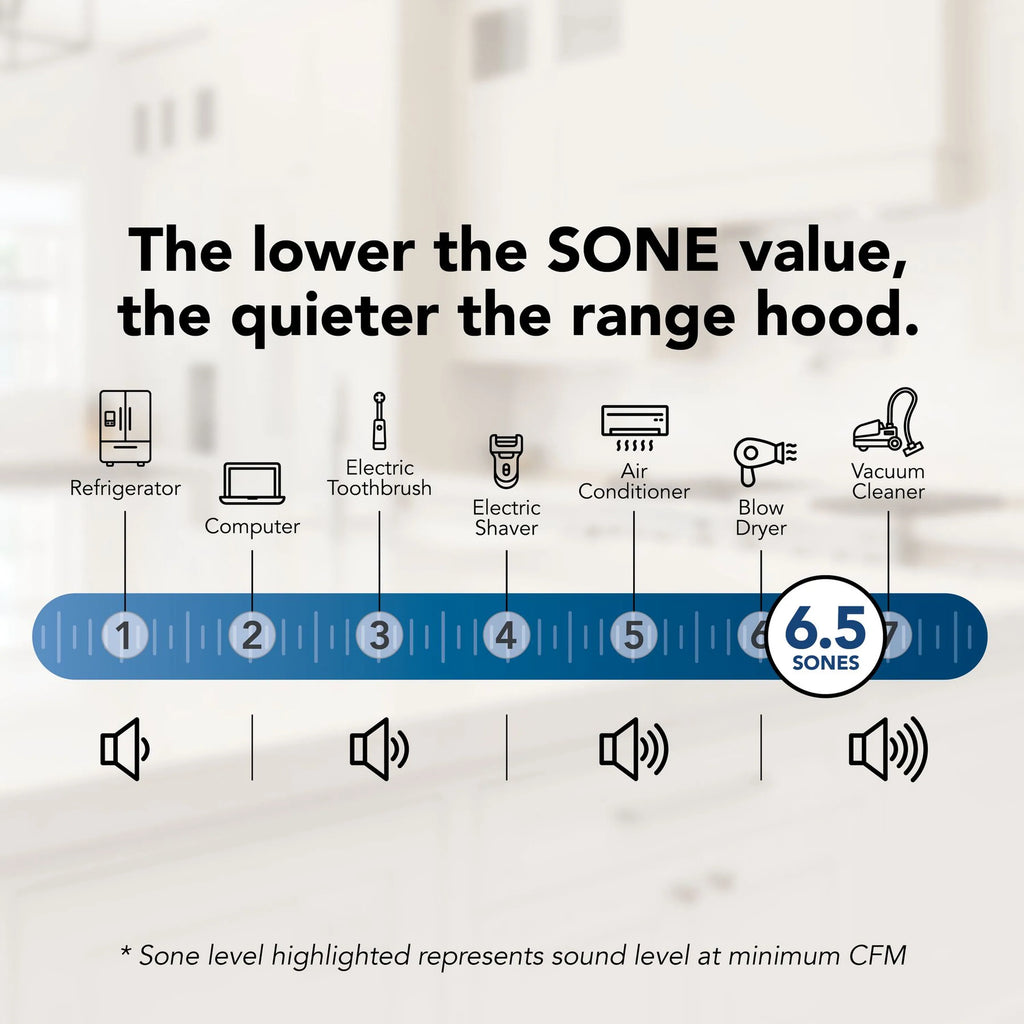

Sound level rating graphic for range hood operation, shown as 6.5 sones

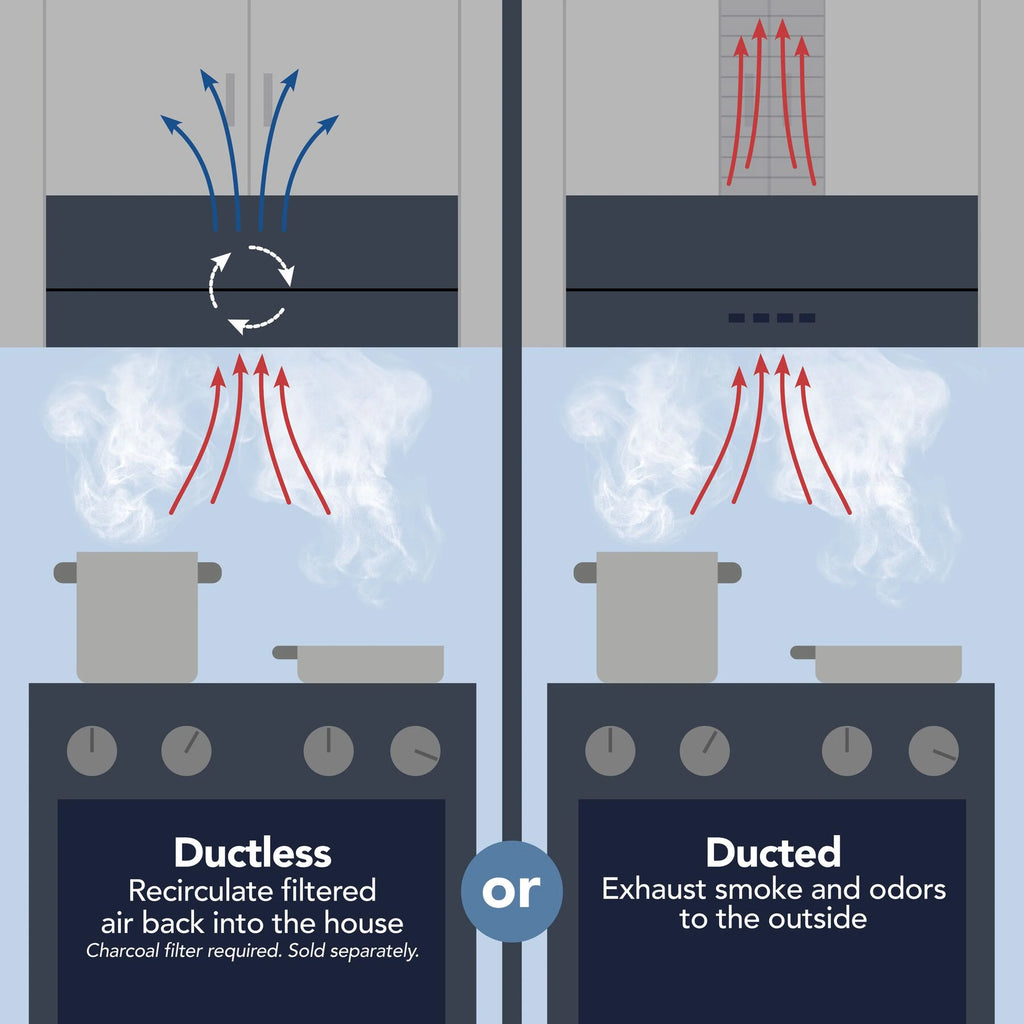

Ductless vs ducted range hood airflow diagram with red and blue airflow arrows
Roll over image to zoom in Click on image to zoom
Black under-cabinet range hood vent cover with control panel and labelBlack convertible under-cabinet range hood mounted under cabinets in a kitchenBlack convertible under-cabinet range hood interior with mesh filter and baffle coverBlack under-cabinet range hood mounting housing with vent openings on top plateUnder-cabinet range hood in a kitchen with certification badge graphicSound level rating graphic for range hood operation, shown as 6.5 sonesDuctless vs ducted range hood airflow diagram with red and blue airflow arrows
Click on image to zoom

Broan-NuTone 30-Inch 230 CFM Convertible Under Cabinet Range Hood in Black (F403023)

Broan-NuToneSKU: F403023
Price:
$109.00 $124.99SAVE 12%
Size:
Finish: Black
In Stock
Estimated delivery: Oct 9th-17th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood is equipped with a 230 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, and control switches for fan speed and light activation

Features

  • Provides installation flexibility with 4-way convertibility to fit virtually all applications
  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 230 MAX Blower CFM quickly removes smoke and cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Designed for LED, 75w max, not included.  If using incandescent bulb, purchase light guard # S99110437 separately.
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified
DIMENSIONS
Available Widths
24" / 30" / 36"
Depth
17-1/2"
Height
6"
GENERAL INFORMATION
Brand
Broan
Series
F40000 (Economy)
Type
Under-Cabinet Range Hood
Available Sizes
24", 30", 36"
Mounting Height
18" - 24" from cooktop to bottom of hood
ADA Compatible
Yes
Use
Indoor Use Only
Models by Finish
  • White-on-White: F402411 / F403011 / F403611
  • Black: F402423 / F403023 / F403623
  • Stainless Finish: F4024SF / F4030SF / F4036SF
  • Stainless: F402404 / F403004 / F403604
DESIGN & FINISH
Available Finishes
White-on-White, Black, Stainless Finish, Stainless
Control Type
2-Speed Rocker Switch
Lighting
1-Level Intensity (Designed for LED bulb, not included – A19, E26 base)
TECHNICAL DETAILS
AC Input
120 V, 60 Hz - 2.5 Amps
Duct Direction
  • Vertical: 7" round (damper sold separately)
  • Vertical / Horizontal: 3-1/4" x 10" (damper included)
PERFORMANCE & FEATURES
Max Blower CFM
230 (open air)
HVI Airflow (0.1 in. w.g.)
  • Vertical Rectangular (3-1/4" x 10"): 110 Normal / 160 High CFM
  • Horizontal Rectangular (3-1/4" x 10"): 100 Normal / 160 High CFM
  • Vertical Round (7"): 140 Normal / 190 High CFM
Sones
  • Vertical Rectangular: 4.0 Normal / 7.5 High
  • Horizontal Rectangular: 4.5 Normal / 7.0 High
  • Vertical Round: 3.5 Normal / 6.5 High
Number of Speeds
2
Grease Filter
Aluminum (Qty. 1)
Recirculation
Charcoal filter sold separately
Delay Off
No
Filter Clean Reminder
No
Heat Sentry
No
ENERGY STAR
No
WARRANTY & CERTIFICATIONS
Warranty
1-Year Limited
Certifications
  • UL Listed
  • HVI-2100 Certified
