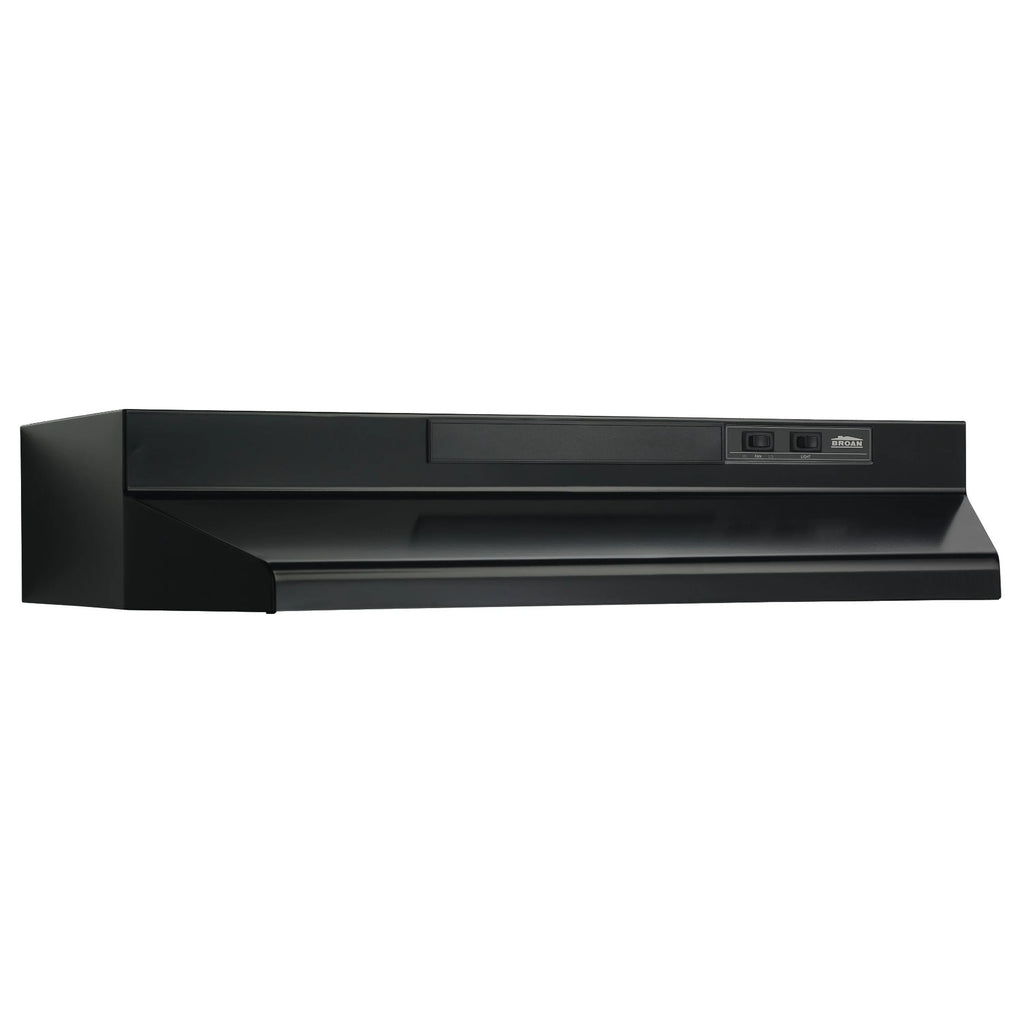

Black under-cabinet range hood canopy with control panel and side vents

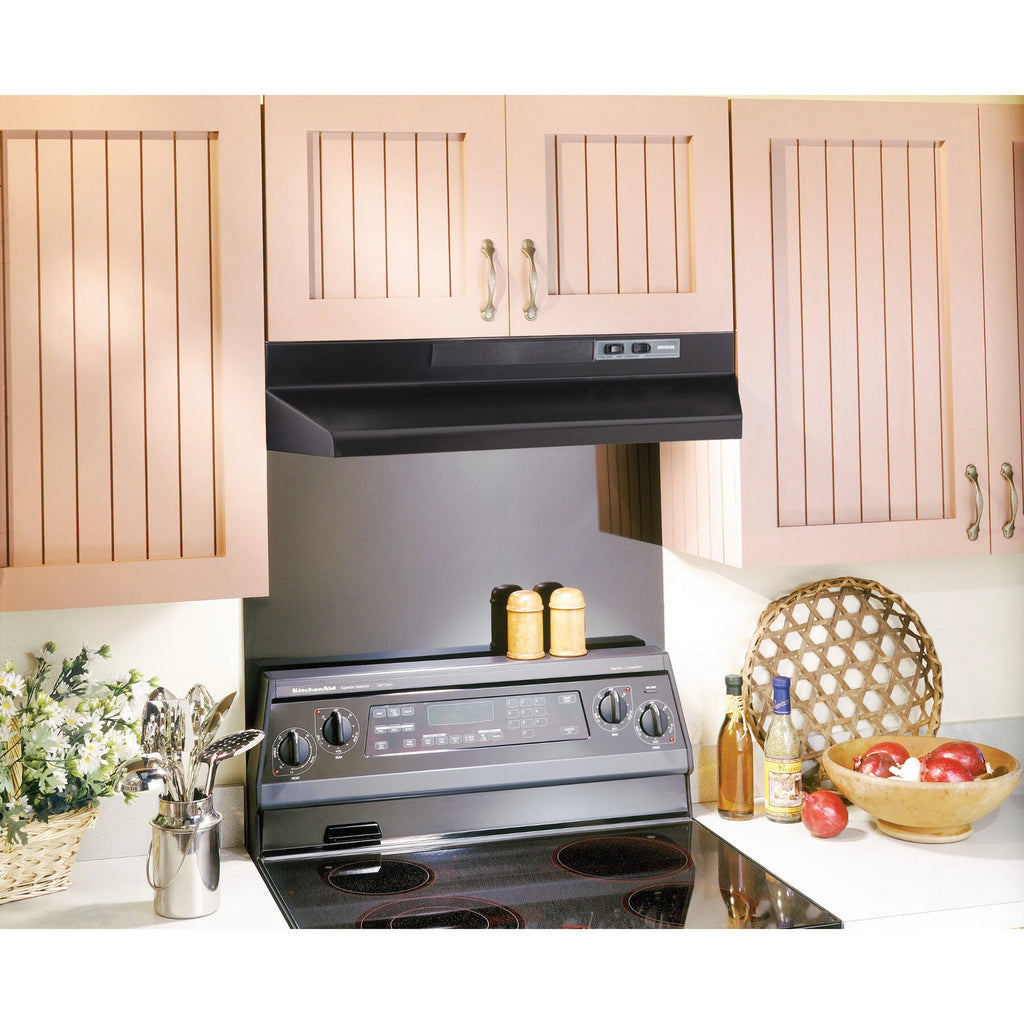

Black under-cabinet range hood installed above a cooktop in a kitchen

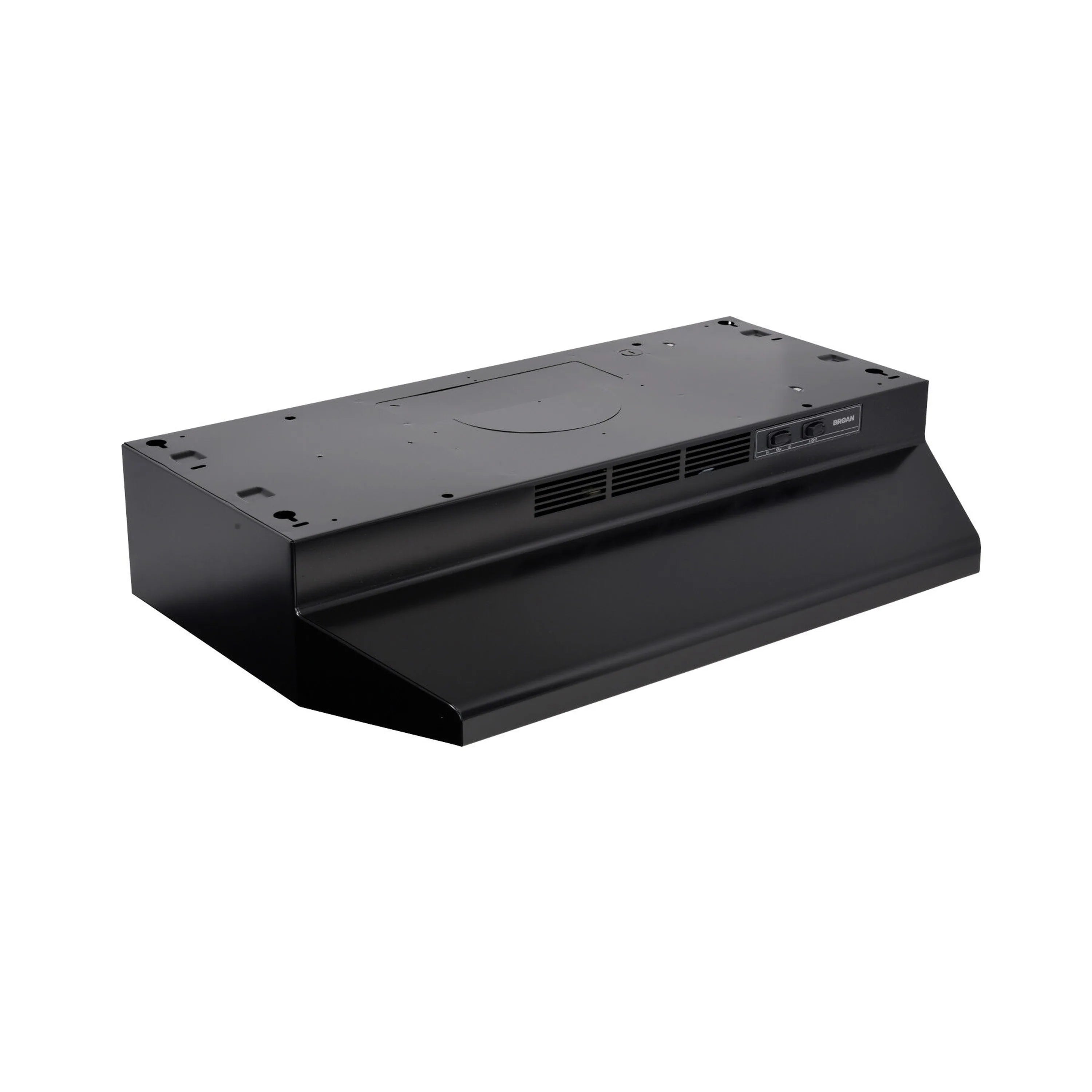

Black range hood blower housing with vent openings and mounting slots

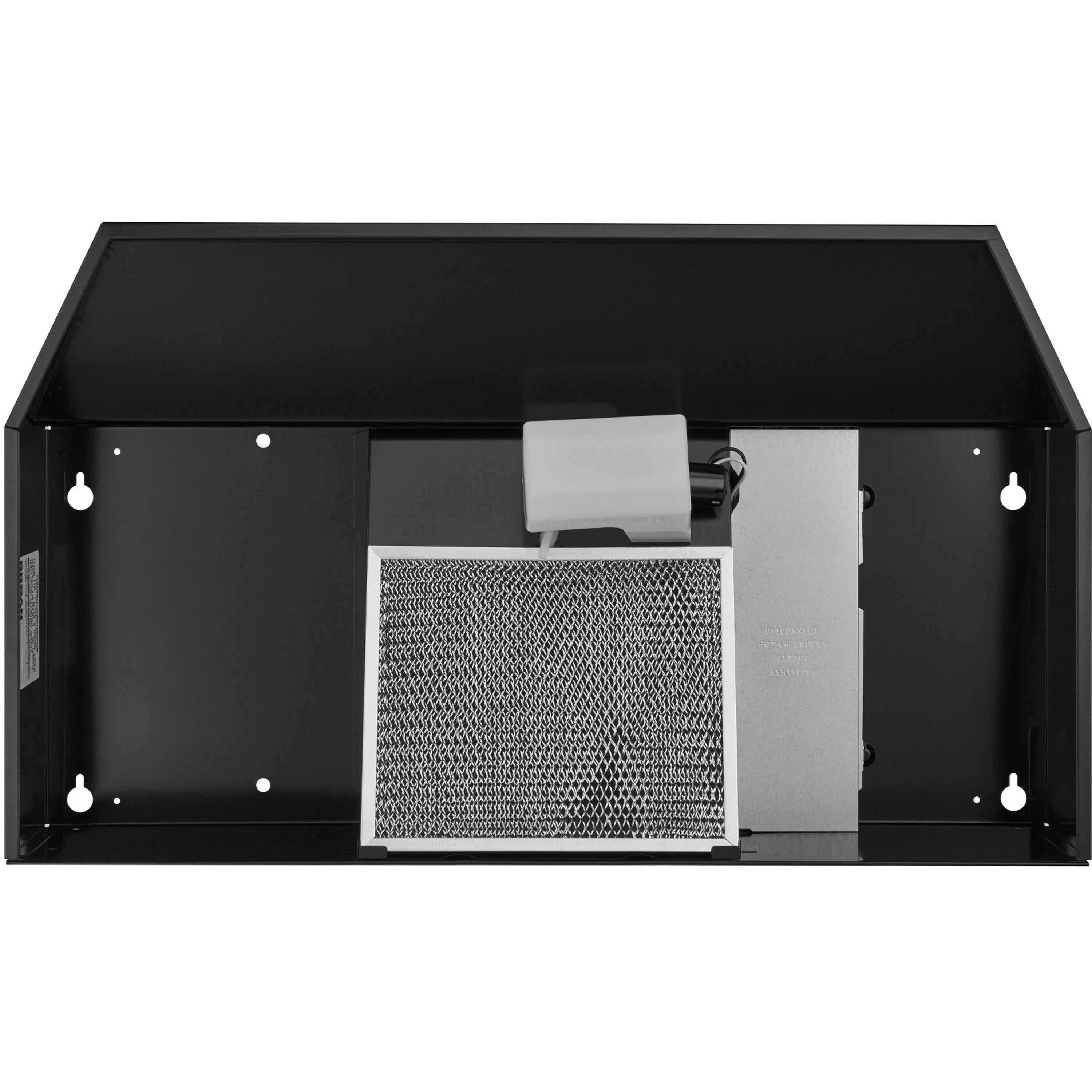

Black under-cabinet range hood with removable mesh filter and control panel

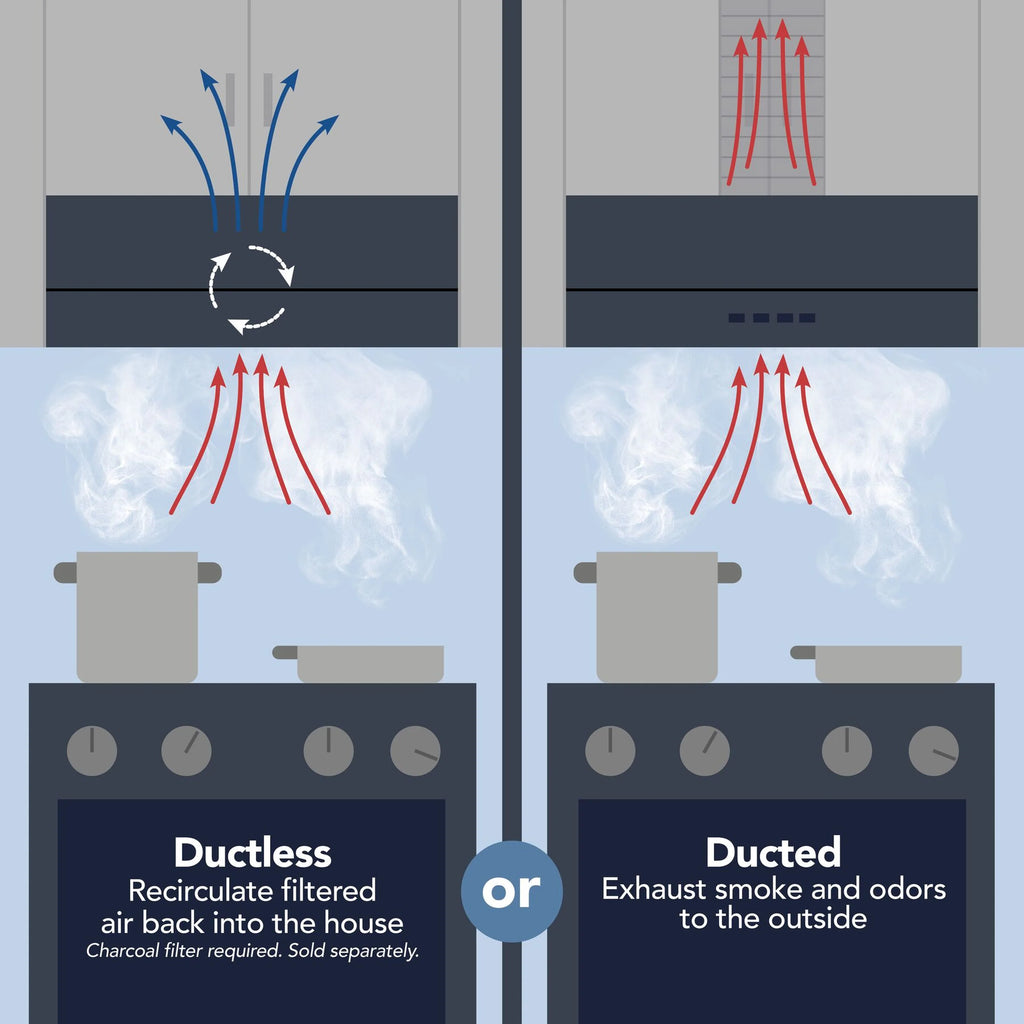

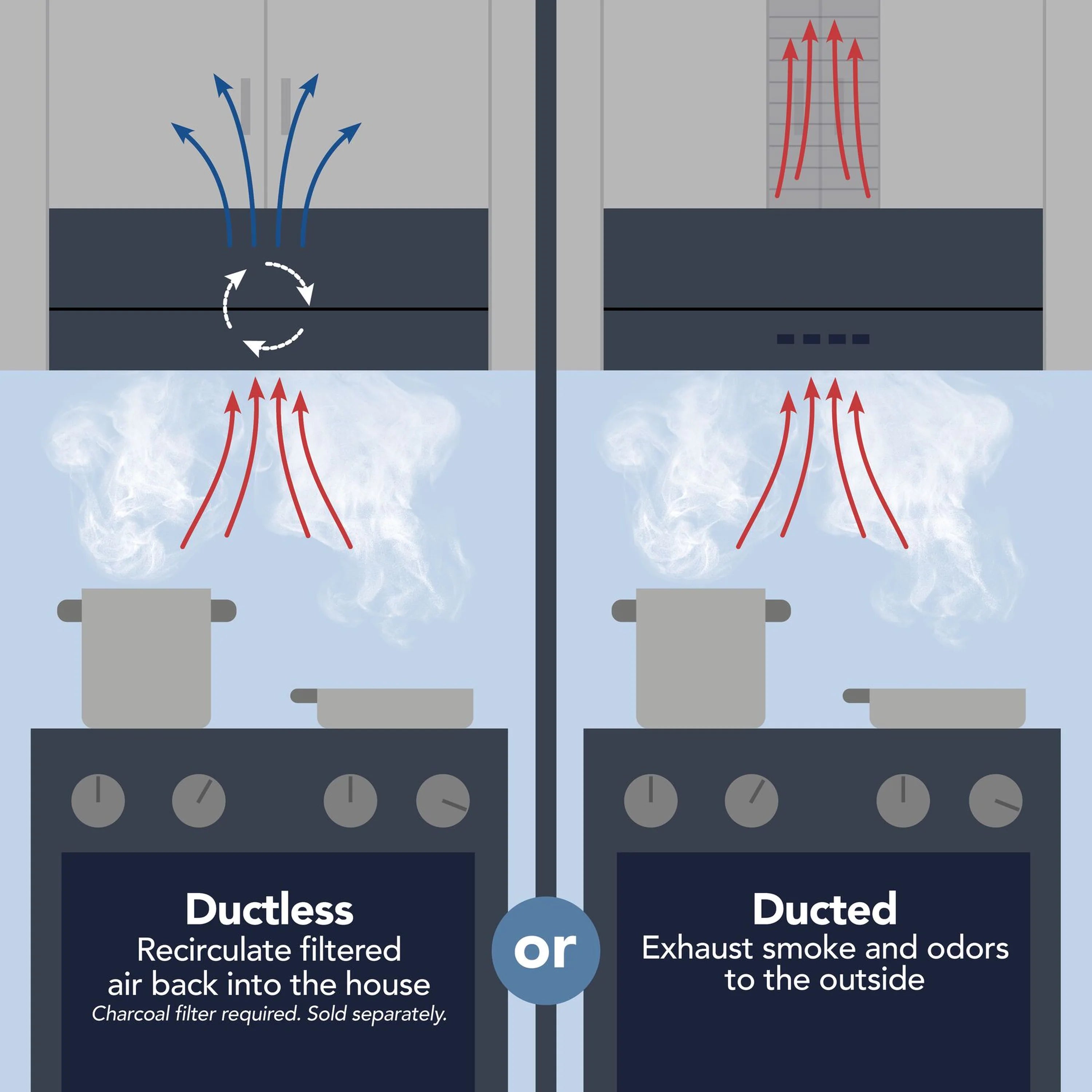

Range hood airflow diagram showing ducted vs ductless operation with arrows
Range hood performance trust badge graphic with checkmark beside the hood
Range hood sound level infographic with Sones scale and speaker icons
Roll over image to zoom in Click on image to zoom
Black under-cabinet range hood canopy with control panel and side ventsBlack under-cabinet range hood installed above a cooktop in a kitchenBlack range hood blower housing with vent openings and mounting slotsBlack under-cabinet range hood with removable mesh filter and control panelRange hood airflow diagram showing ducted vs ductless operation with arrowsRange hood performance trust badge graphic with checkmark beside the hoodRange hood sound level infographic with Sones scale and speaker icons
Click on image to zoom

Broan-NuTone 24-Inch 230 CFM Convertible Under Cabinet Range Hood in Black (F402423)

Broan-NuToneSKU: F402423
Price:
$109.00 $120.00SAVE 9%
Size:
Finish: Black
In Stock
Estimated delivery: Sep 14th-22nd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

This F40000 Series 24-inch range hood features a sleek design that is perfect for any modern or traditional kitchen. Our range hood provides installation flexibility with 4-way convertibility to fit virtually all applications. Designed for under-cabinet installation, this range hood installs with a 3.25-in. x 10-in. ducted opening with vertical or horizontal ducting; or 7-in. round vertical ducting or as non-ducted with air recirculation. The powerful 160 - 190 CFM fan quickly removes smoke and odors from your kitchen. Convenient incandescent lighting brightly illuminates the cooktop below. Our dishwasher safe aluminum grease filter is removable and reusable to make cleaning your F40000 Series range hood easy to clean.

Features

  • Hide ductwork inside cabinetry with this under cabinet vent hood
  • Vent all dirt and air pollutants like smoke, steam, and grease from your kitchen with this 30" wide vent hood
  • Achieve a stylish look with this black color vent hood that complements the entire kitchen
  • Incandescent bulb that provides extra lighting for your cooking surface
  • 4-way convertibility provides flexibility within installation to accommodate nearly any application
  • Dishwasher-safe aluminum grease filter is removable and reusable
  • 160 - 190 CFM quickly removes smoke and other odors from your kitchen
  • Vertical and horizontal ducting options
  • Requires 18-in. to 24-in. mounting height from cooktop to bottom of hood
  • Includes a 3-1/4-in. x 10-in. damper/adapter and a 7-in. round adapter for easy installation (adapter sold separately)
  • UL listed and HVI 2100 certified
  • Can be wired for ADA applications
DIMENSIONS
Product Width
24in
Product Height
6in
Product Depth
17.5in
GENERAL INFORMATION
Country of Origin
United States
DESIGN & FINISH
Material
Steel
Switch Control Type
Rocker
TECHNICAL DETAILS
Filter Type
Aluminum
Lighting Type
LED
Light Bulb Wattage
75W
Light Levels
1
Light Bulbs Included
No
Bulb Recommended Type
A19
Nightlight Setting
No
Sound Level
3.5 Sones
Speed Levels
2
Boost Mode
No
Built-In Timer
No
CFM
230 Max
Rated Voltage
120V
Rated Amps
2.5A
Wattage
240W
Duct Direction
Horizontal or Vertical
Diameter
7in Round
Vent Type
Convertible Built-In
Ductless Recirculation Capable
Yes
Ductless Filter or Kit Included
No
Damper Included
No
Remote Operation Capable
Yes
Heat Sentry
No
WARRANTY & CERTIFICATIONS
Manufacturer Warranty
1 Year
ADA Compliance
Yes
UL Listed
Yes
HVI Certified
Yes
Energy Star Certified
No
