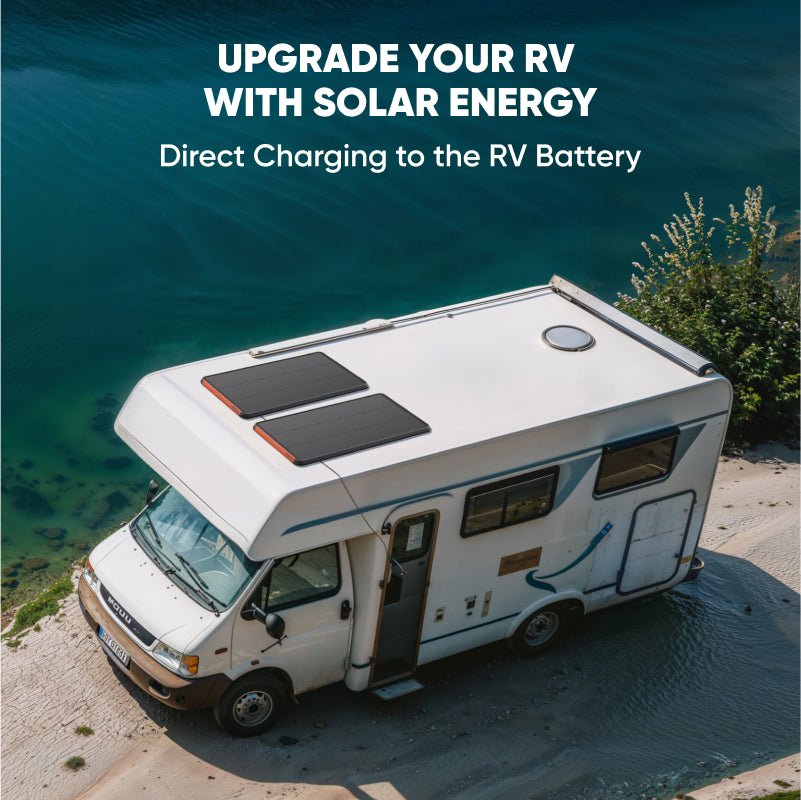

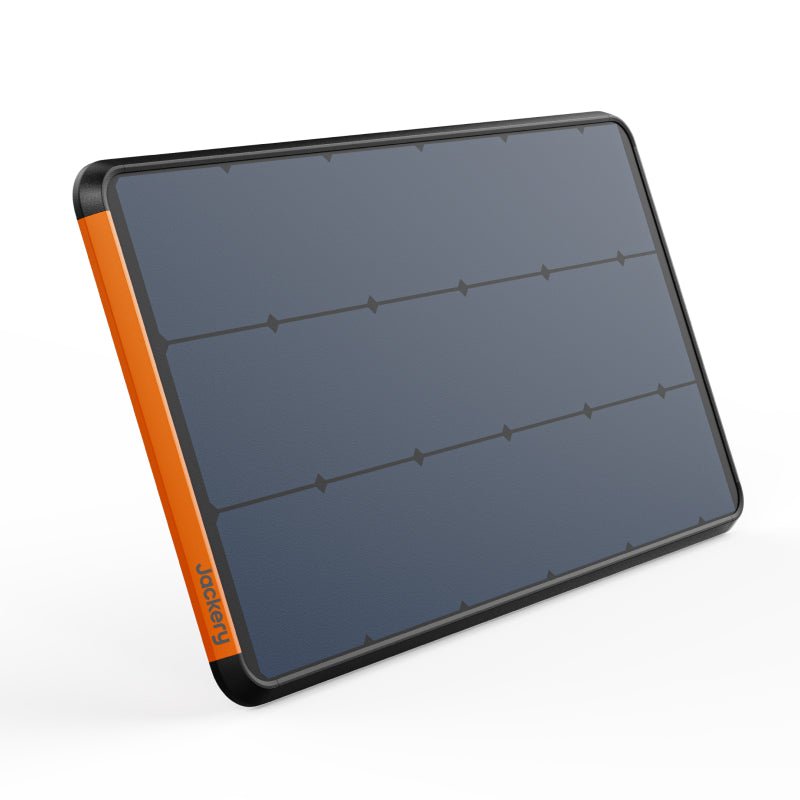

Capture more sunlight with the Jackery SolarSaga 100 Prime Solar Panel, featuring an unshaded front design that maximizes solar absorption and converts more energy into usable power. Its flexible setup makes it ideal for RVs, camping, and emergency power needs, while the patented arc design adds aesthetic appeal alongside redefined safety standards. Backed by international certifications and a 5-year warranty, it delivers long-lasting, reliable performance wherever you go.

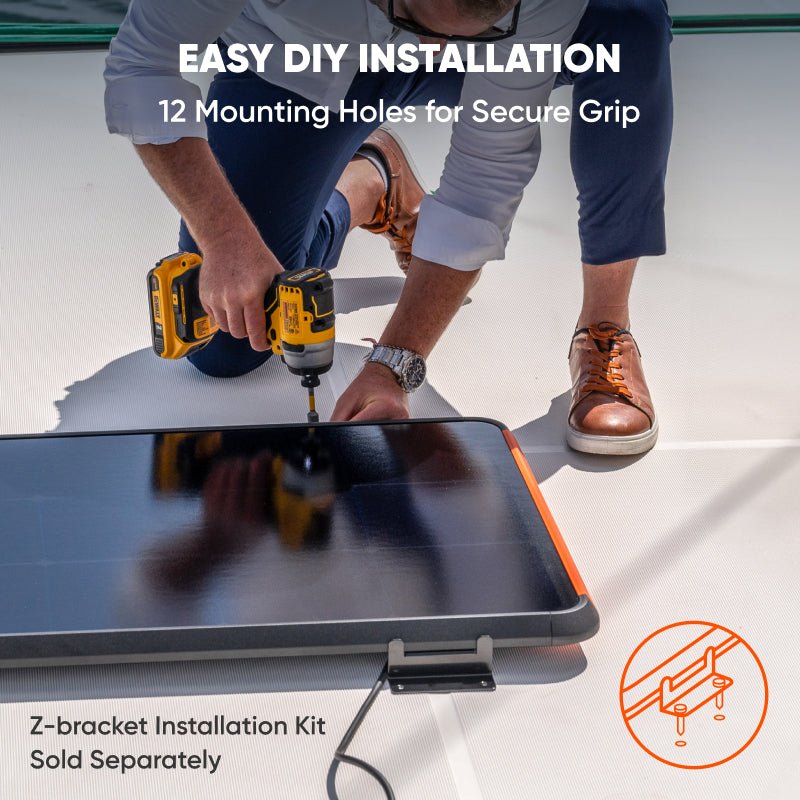

The package includes the SolarSaga 100 Prime panel, a 9.58-foot solar panel cable, an Anderson to DC8020 adapter, a Z Bracket Kit, and a user guide — everything you need to get started. Note: a DC8020 to DC7909 adapter is required for older Jackery models like the E1000, E550, E500, E300, E240, and E160.
| SolarSaga 100 Prime Solar Panel | |
|---|---|
| Solar | |
| Maximum System Voltage | 600V DC |
| Maximum Reverse Current | 15A |

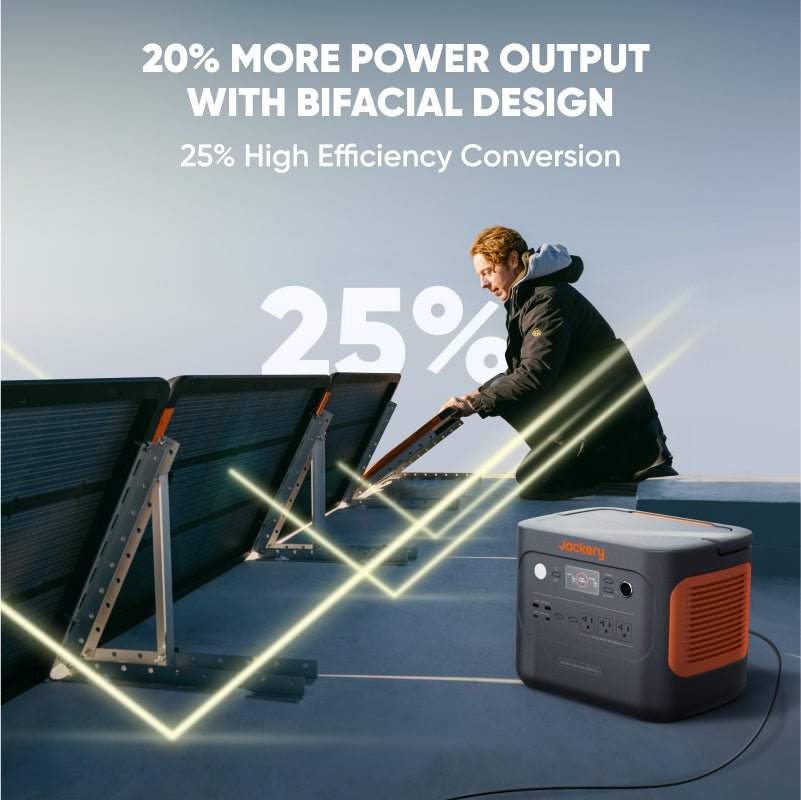

| Bifaciality Coefficient (back/front) | Pmax≥65%, Voc≥97%, Isc≥65% |
| Voltage Temperature Coefficient | -0.268%/°C |
| Power Temperature Coefficient | -0.29%/°C |
| General | |
| Weight | 13.23 lbs (6 kg) |
| Protection Class Against Electric Shock | Class II |

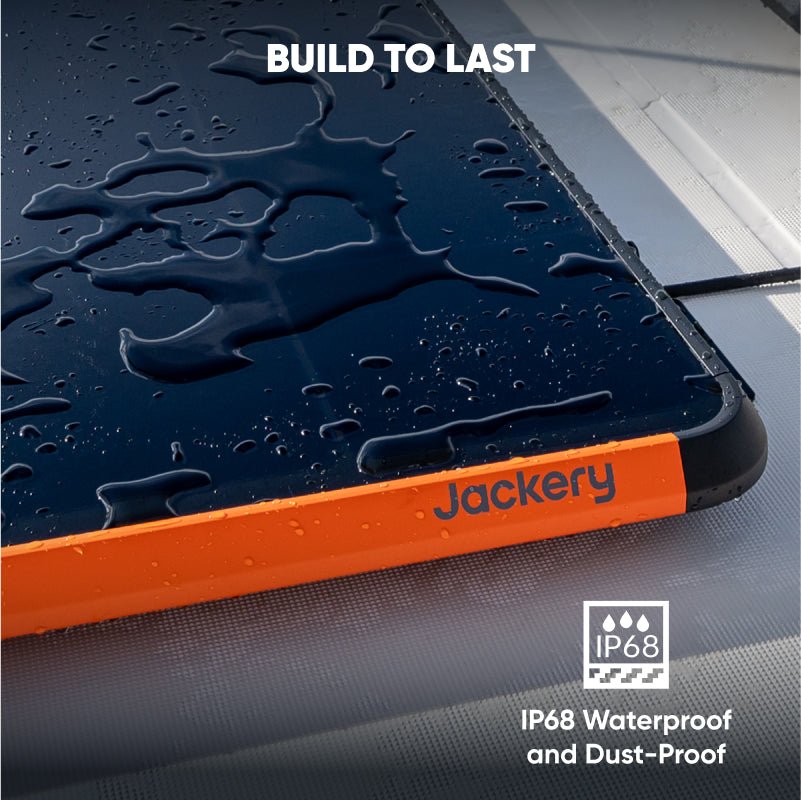

| Waterproof | IP68 |

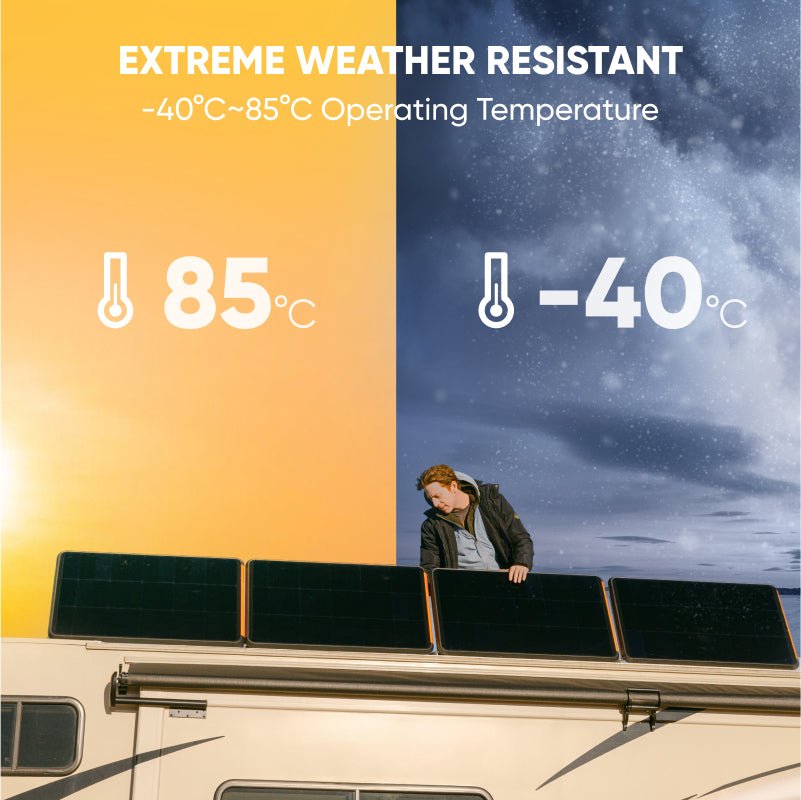

| Operating Temperature Range | -40°C~85°C (-40°F~185°F) |
| Warranty | 3+2 Years |
| STC (1000W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 100W±5% |
| Open Circuit Voltage (VOC) | 22.7V±5% |
| Short Circuit Current (Isc) | 5.53A±5% |
| Power Voltage (Vmp) | 18.7V±5% |
| Power Current (Imp) | 5.30A±5% |
| BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5) | |
| Peak Power (Pmax) | 108W±5% |
| Open Circuit Voltage (Voc) | 23.0V±5% |
| Short Circuit Current (Isc) | 5.86A±5% |
| Power Voltage (Vmp) | 19.0V±5% |
| Power Current (Imp) | 5.62A±5% |
| Dimensions | |
| Folded | NO |
| Unfolded | 38.8 × 21.7 × 1.1 in (986 × 552 × 29mm) |
