Description

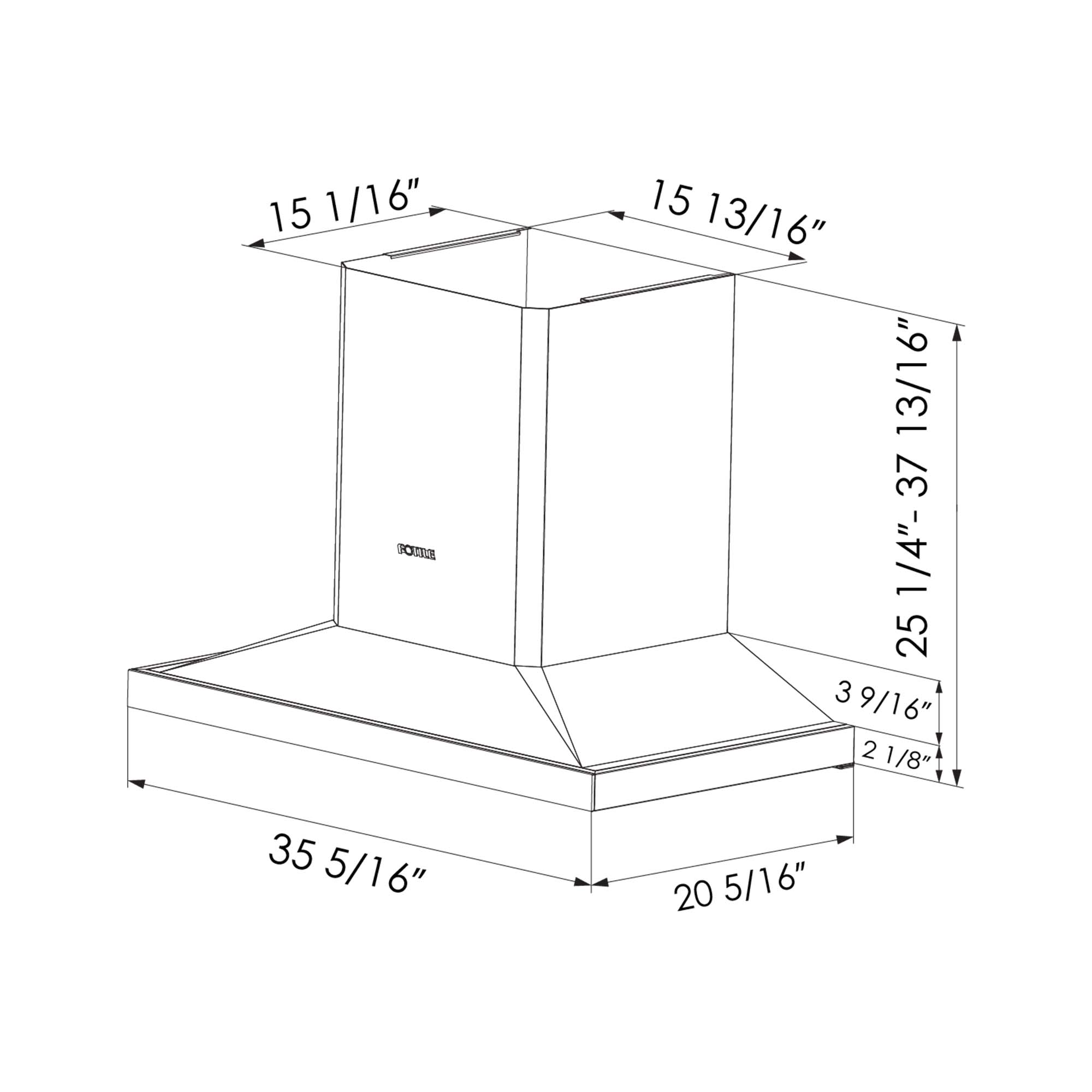

DIMENSIONS
- Product Dimensions (W x D x H) (Inch)
- 35 5/16 x 20 5/16 x 25 1/4
- Net Weight (lb)
- 73
- Gross Weight (lb)
- 87.7
GENERAL INFORMATION
- Model
- EMS9026
- Installation
- Wall Mount
DESIGN & FINISH
- Control Type
- Patent 2.0 Gen
TECHNICAL DETAILS
- Power Supply
- 120V/60HZ
- Speed Setting
- 2+Turbo
- Max. EQUIV.CFM
- 1,000*
- Noise Level(dB)
- 43.79/49.83/56.06
- Input Power
- 310W
- Motor
- AC Motor
- CAT (CFM Adjustment Tech)
- N
- Duct Type
- Vertical
FEATURES
- Max Static Pressure(Pa)
- 500Pa
- Packing-Box Size(WxDxH) (inch)
- 39 5/8 × 29 3/8 × 24 1/4
- Illumination(W)
- 2W × 2 (LED)
- Night Mode Lighting
- N
- Oil Cup
- One Oversized Oil Cup
- Oil Filter
- Removable & Dishwasher Free
- Capture Shield
- Patent 2.0 Gen
- Delay Shutoff
- 2min
- Screen Lock
- N
- Intelligent Self-Adjusting
- Y (Manually)
- Boost
- Y
- Intelligent Air Management
- N
- Oil Filtration Rate
- 92.50%
- Odor Elimination Rate
- 97%
WARRANTY & CERTIFICATIONS
- Certification
- ETL
- Warranty
- FOTILE is offering five years limited warranty on range hood products. Lifetime limited warranty on motors. From your purchase date, ONE (1) YEARS FULL WARRANTY ON ALL FOTILE RANGE HOOD PRODUCTS AND PARTS AND FOUR (4) YEARS LIMITED WARRANTY ON ALL PARTS OF FOTILE RANGE HOOD PRODUCTS
