Description

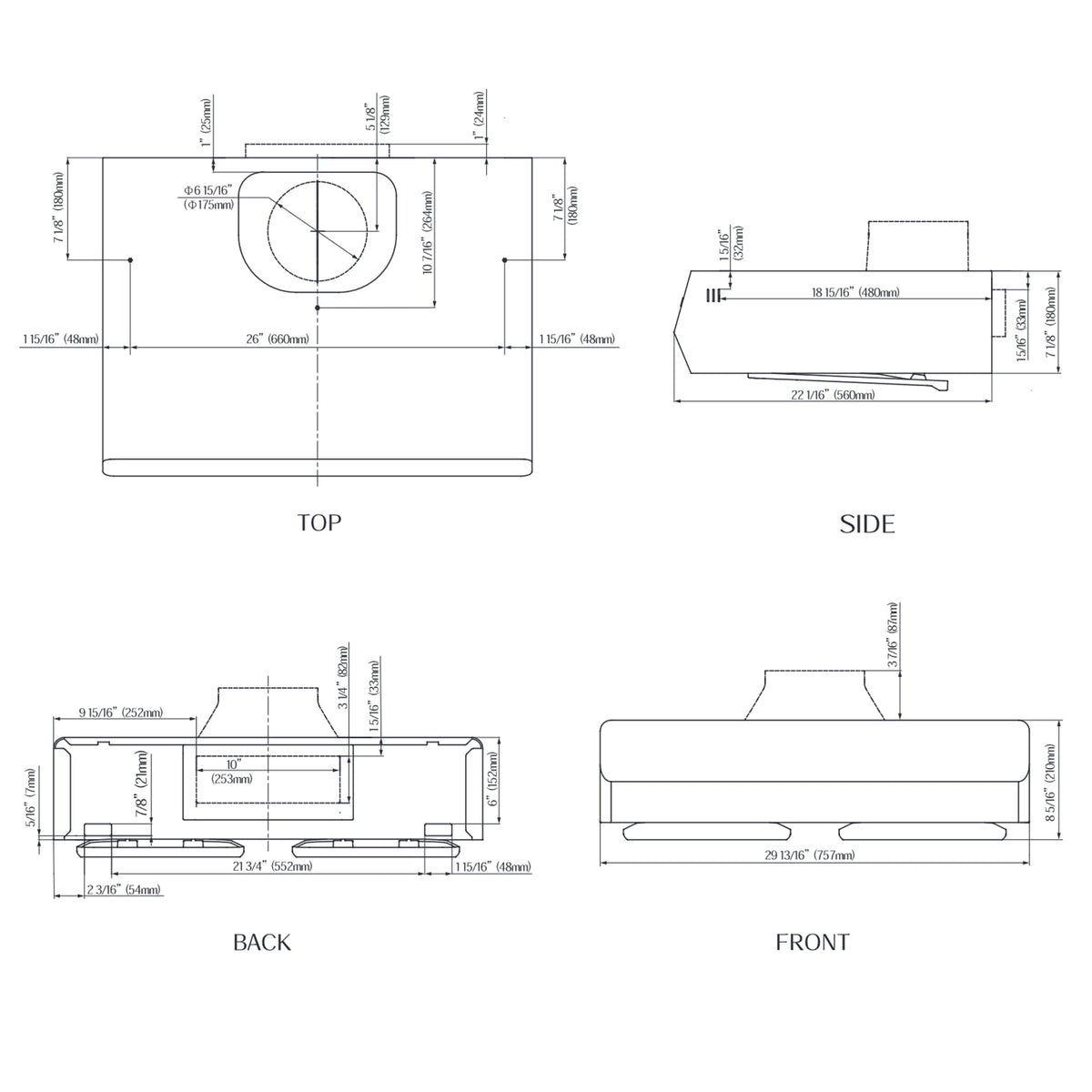

DIMENSIONS
- Product Dimensions (WxDxH)
- 35 3/4″ x 22 1/16″ x 8 5/16″
- Net Weight (lb)
- 56.2
- Duct Diameter
- Vertical: 7″ Round; Horizontal: 3 1/4″ x 10″
GENERAL INFORMATION
- Series
- Pixie Air
- Installation
- Under Cabinet
- Venting Type
- Ducted / Recirculating (kit sold separately)
PERFORMANCE
- Max. Equivalent CFM
- 850
- CFM (HVI) - Vertical
- 240 / 370 / 470 / 600
- Minimum Noise Level
- 38 dB
- Max Static Pressure
- 410 Pa
- Fan Speeds
- 4 Speed (with Boost)
- Motor
- Dual AC Motors
- Motor Power
- 260W
- Grease Separation Rate
- 94%
- Odor Elimination Rate
- 99%
- Coverage
- 6-7.2 sq. ft.
FEATURES & CONTROLS
- Control Type
- Touch + Motion (Touch-Free)
- Intelligent Air Management
- Yes
- CAT (CFM Adjustment Tech)
- Yes
- Boost
- Yes
- Delay Shut Off
- 5 / 15 / 30 Min
- Capture Shield
- Patented 3.0 (2 dishwasher-safe plates with oil cups)
- Illumination
- 3W x 2 (LED), up to 600 LUX
- Night Mode Lighting
- Yes
DESIGN & FINISH
- Color / Design
- White Tempered Glass (Stainless Steel also available)
- Profile
- Ultra-slim under-cabinet
TECHNICAL DETAILS
- Power Supply
- 120V / 60Hz
- Accessories Included
- Vertical Duct Kit, Bracket, Capture Shield x2
WARRANTY & CERTIFICATIONS
- Warranty
- 5-Year Limited, 2-Year Full, Lifetime Motor
- Certification
- ETL, HVI, CEC
