Description

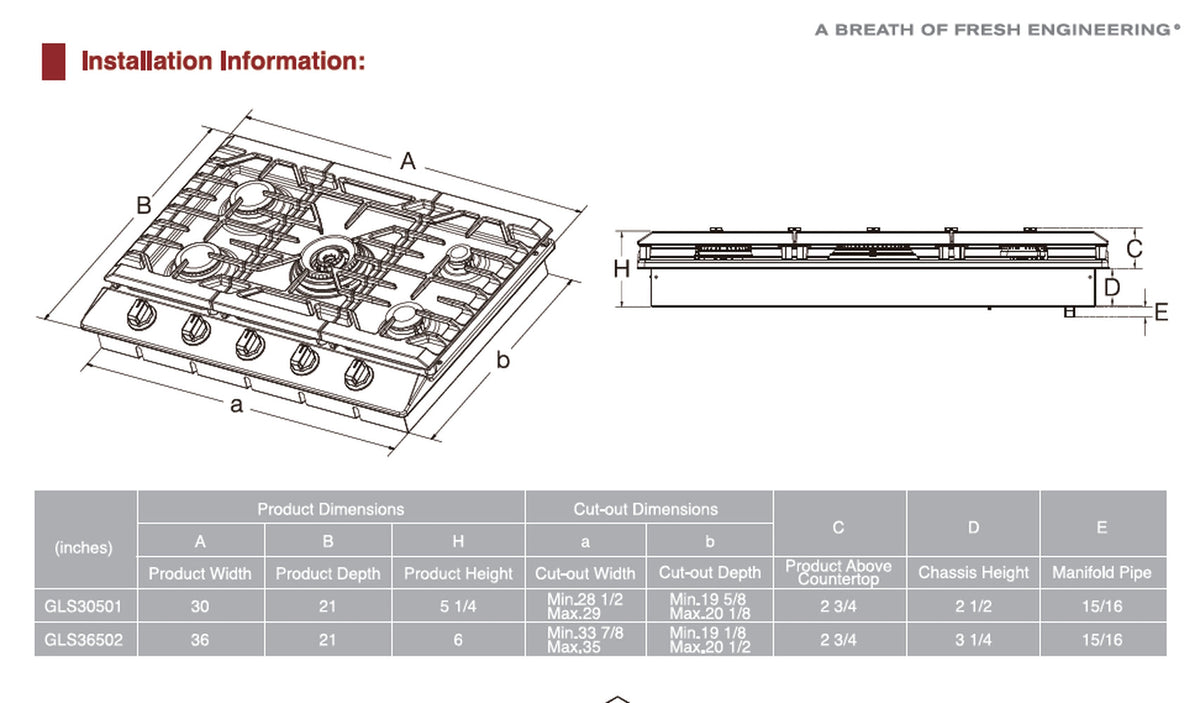

DIMENSIONS
- Product Dimensions (WxDxH)
- 36″ x 21″ x 6″
- Cut-Out Dimension (WxD)
- Min 33 7/8″ - Max 35″ x Min 19 1/8″ - Max 20 1/2″
- Build-In Size (WxDxH)
- 33 5/8″ x 18 7/8″ x 4 3/16″
- Packing-Box Size (WxDxH)
- 40″ x 25 3/16″ x 11 13/16″
- Net Weight (lb)
- 59.5
- Gross Weight (lb)
- 70.5
GENERAL INFORMATION
- Energy Source
- Gas
- Gas Type
- NG/LPG

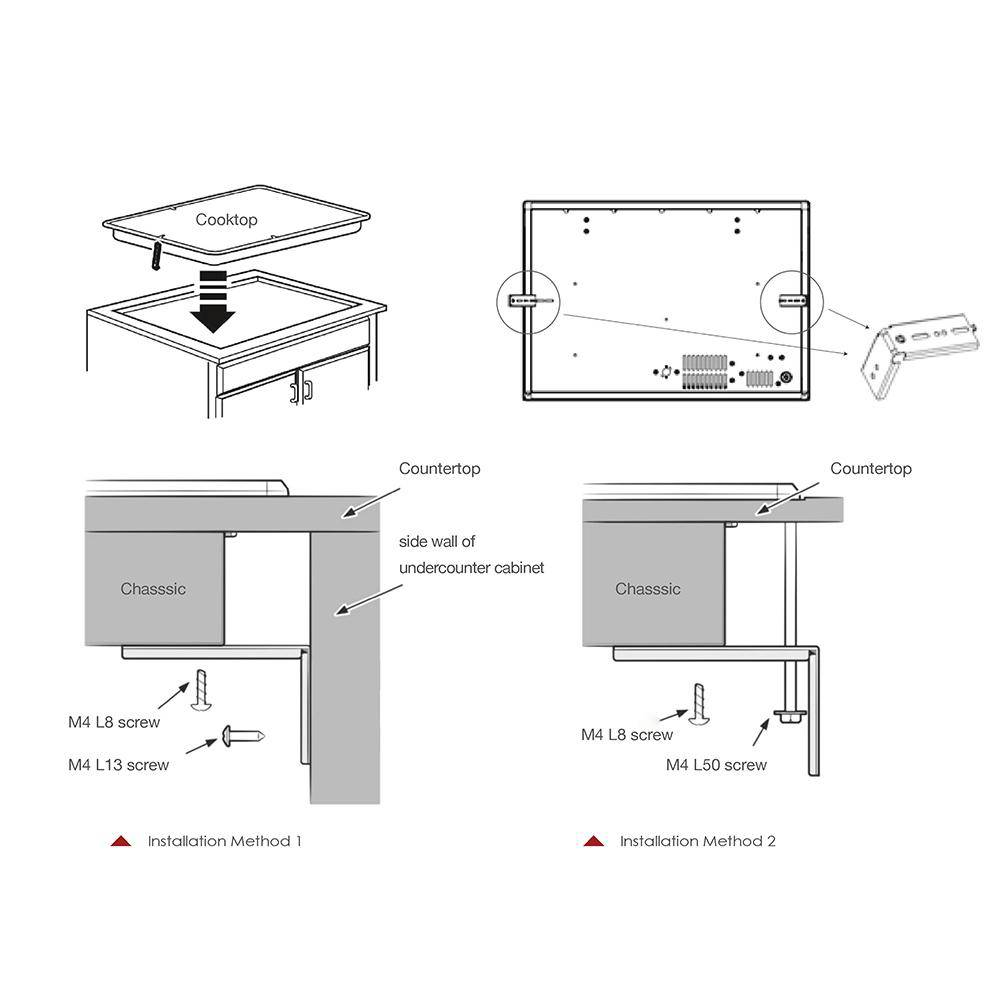

- Installation Type
- Built-In
COOKTOP FEATURES
- No. of Burners
- 5
- Burner Sealness
- Sealed Burners
- Grate Material
- Cast Iron (Continuous)
- Heating Load (BTU)

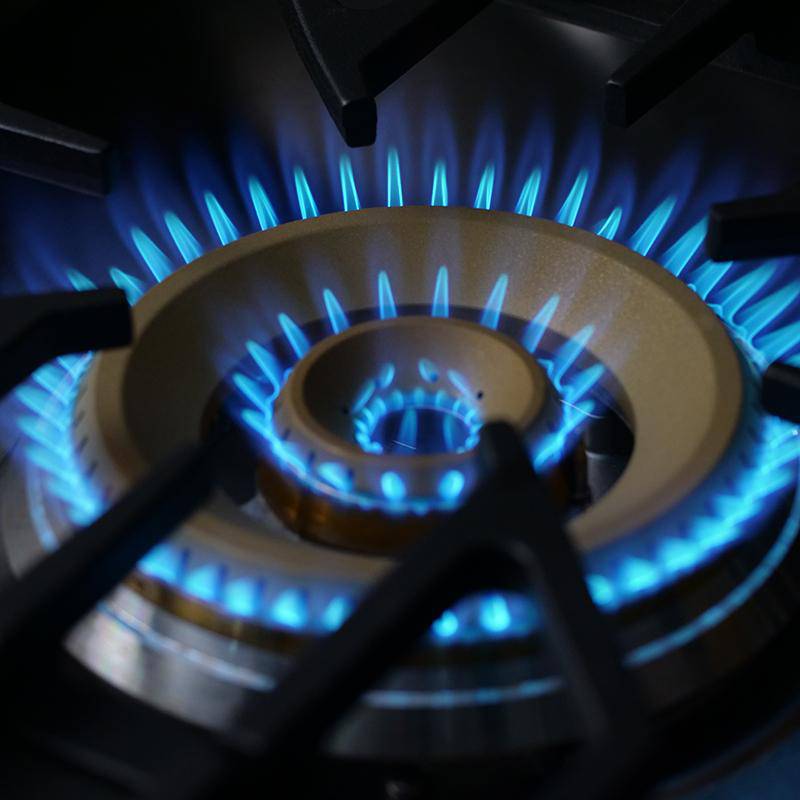

- Total: 57,000 - Center Tri-Ring: 22,000; LF/RF: 13,000; RR: 3,000; LR: 6,000
- Highest Output
- 22,000 BTU (Center Tri-Ring)
- Ignition Type
- Fast Ignition

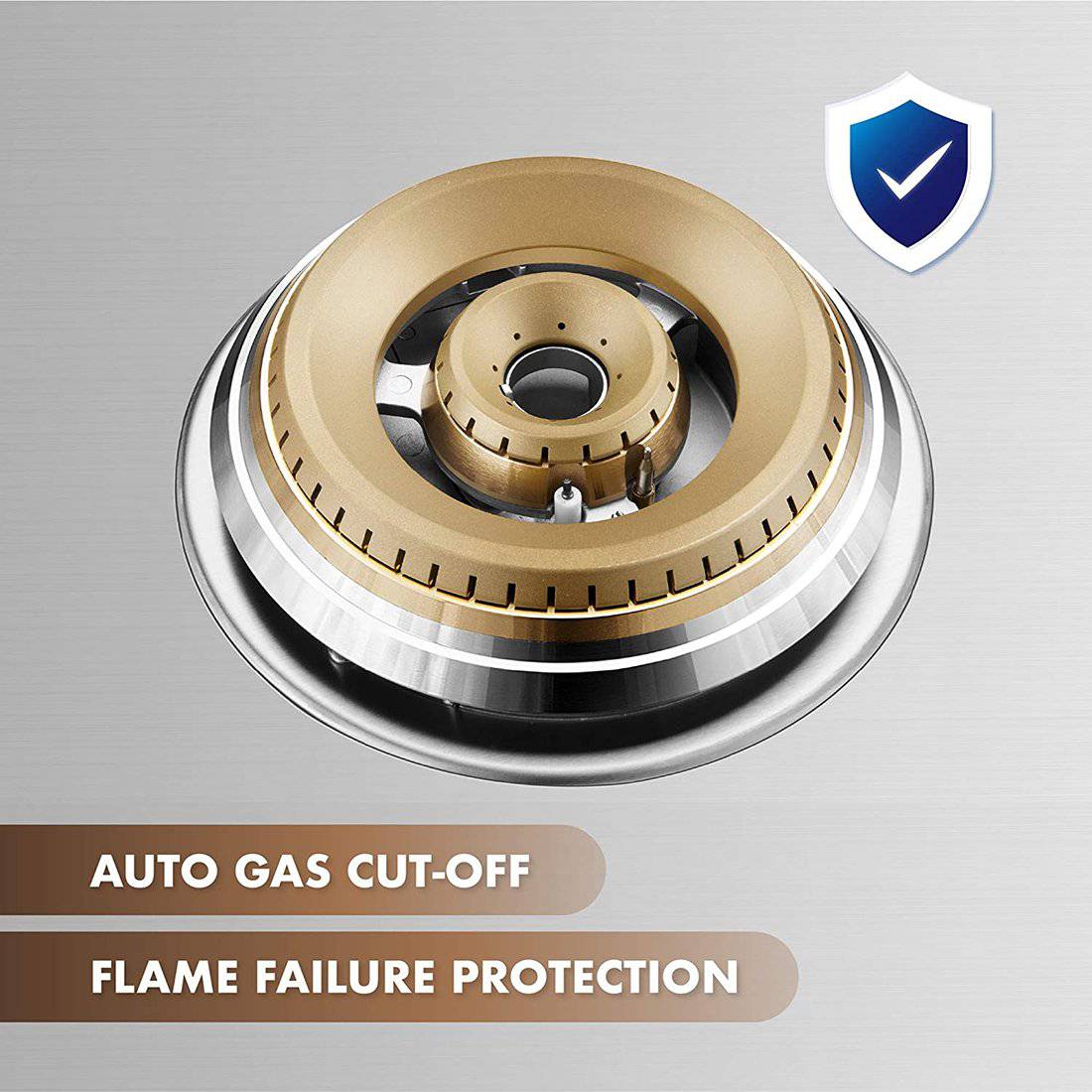

- Safety Device
- Flame Failure Device
DESIGN & FINISH
- Color of Frame / Surface
- Stainless Steel
- Burner Material
- Aluminum, Brass
- Knob Material
- Zinc alloy, Nylon
TECHNICAL DETAILS
- Power Supply
- 120V / 60 Hz
- Location of Gas Connection
- Bottom
- Power Cord Length
- 51 3/16″ total, 39 3/8″ outside
- Propane (LP) Convertible
- Yes
- Propane Conversion Kit Included
- Yes

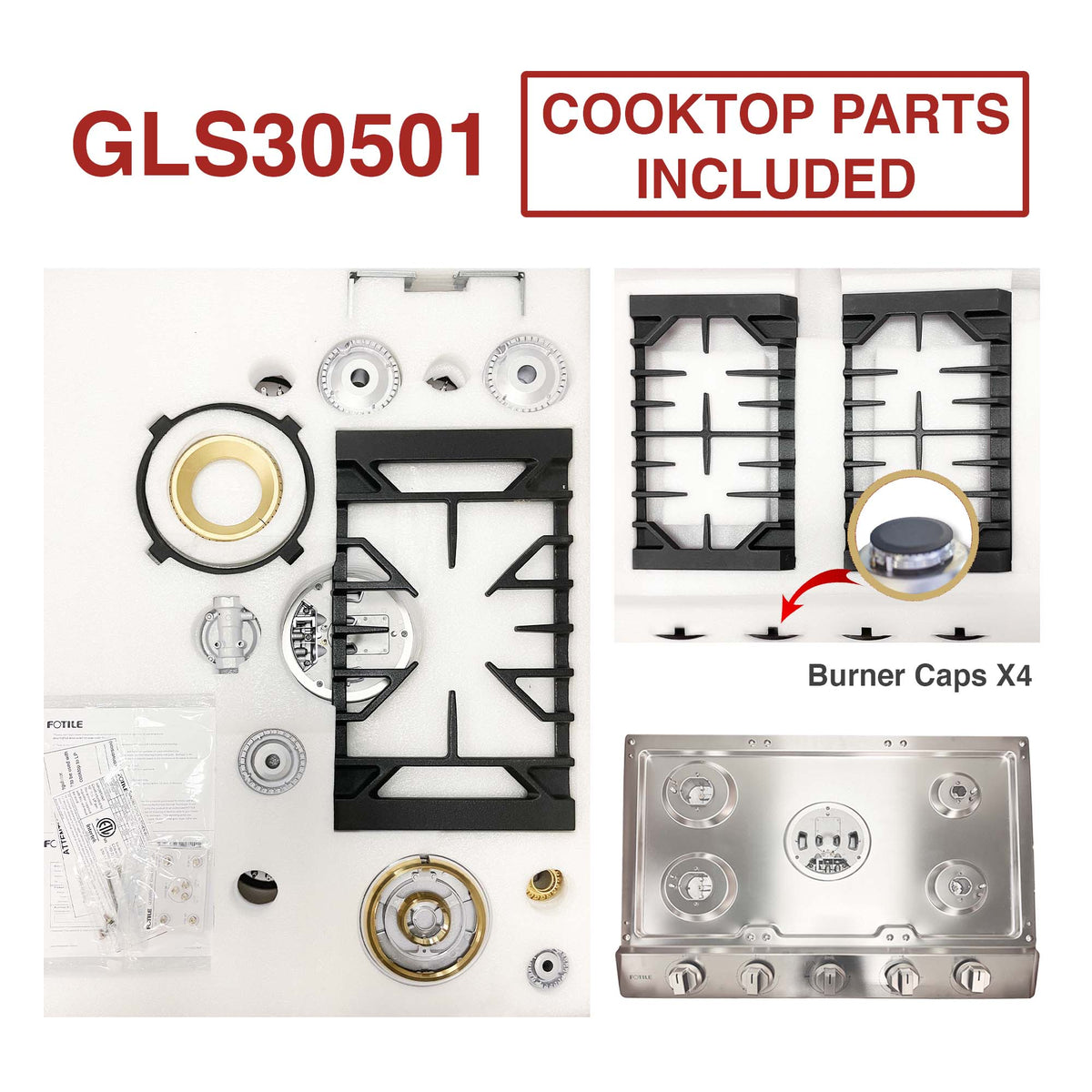

- Accessories Included
- 3 Cast Iron Grates, 5 Burners, Wok Ring, User Manuals, Installation Kit, Propane (LP) Conversion Kit
WARRANTY & CERTIFICATIONS
- Warranty
- 5-year Limited Warranty (1-year Labor, 5-year Parts)
- Certification
- CSA, ISTA-3A
