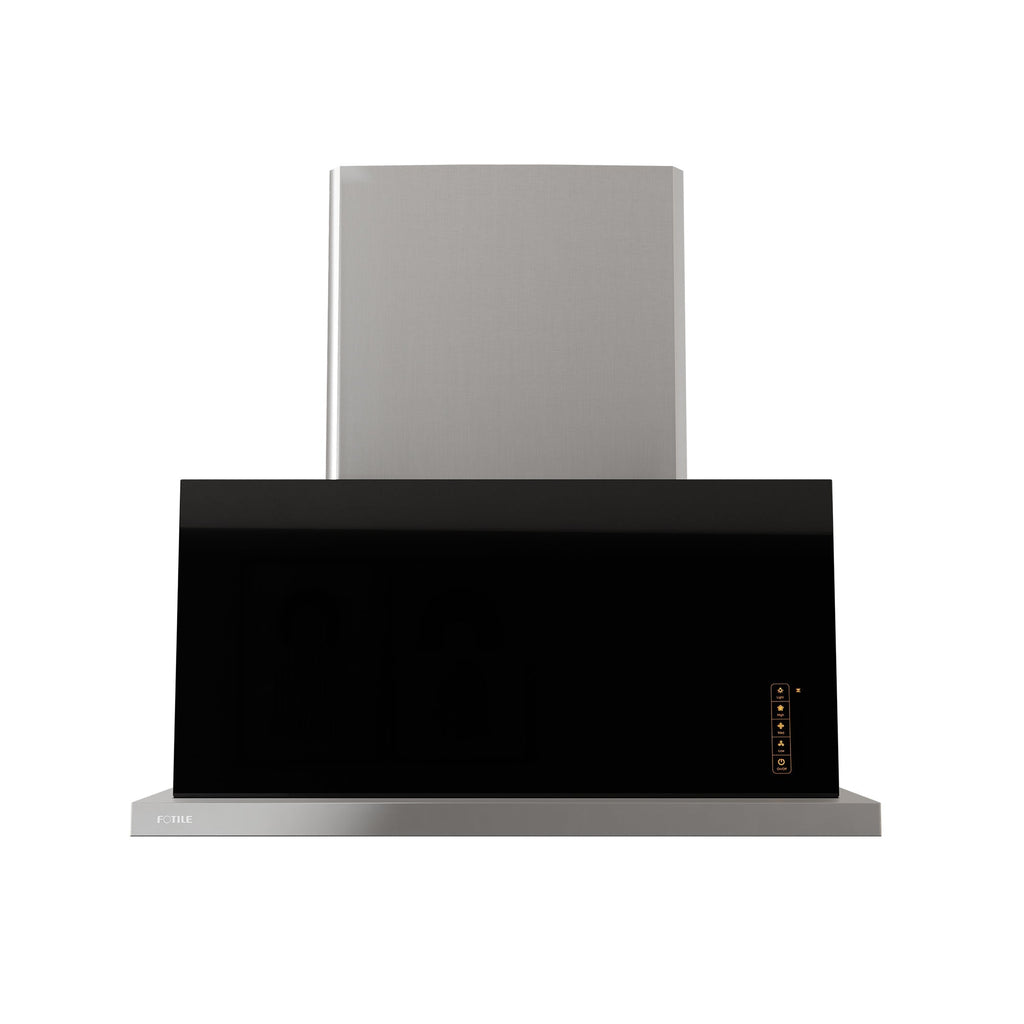

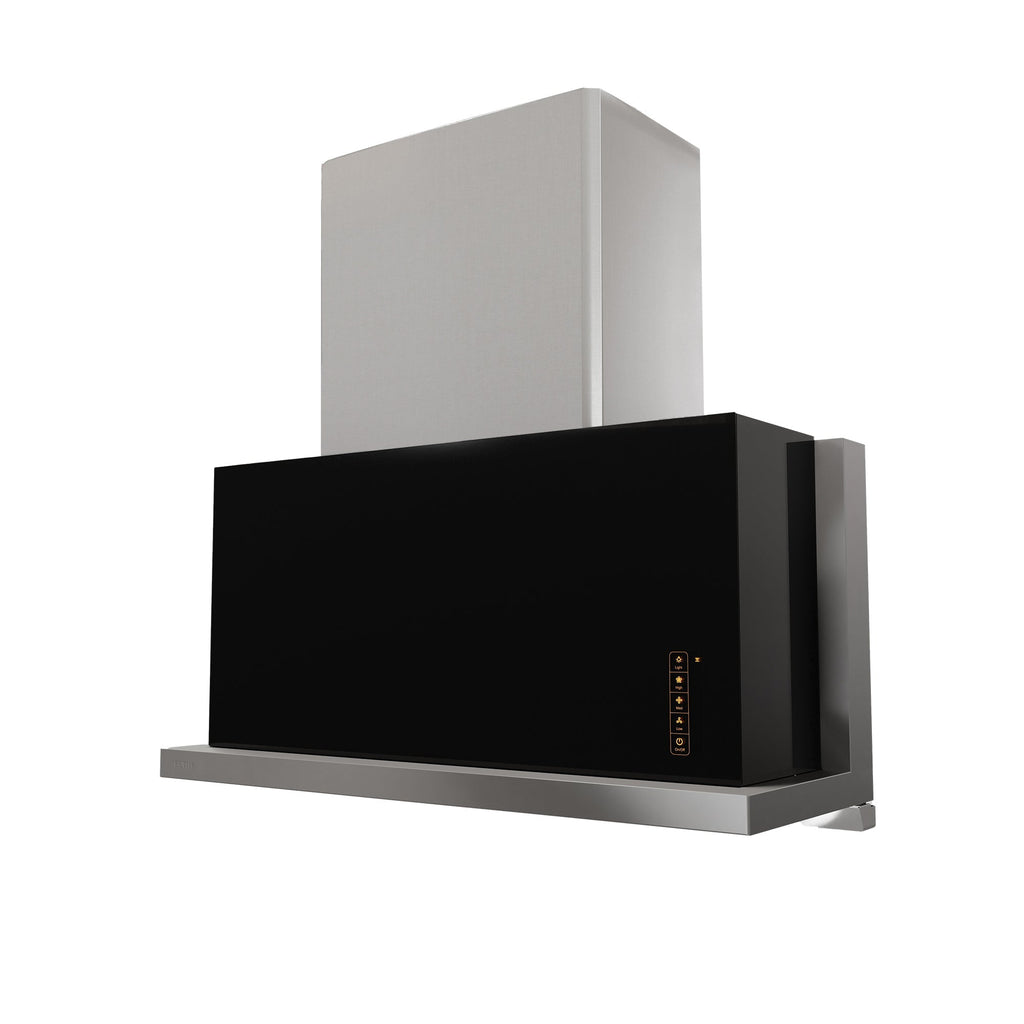

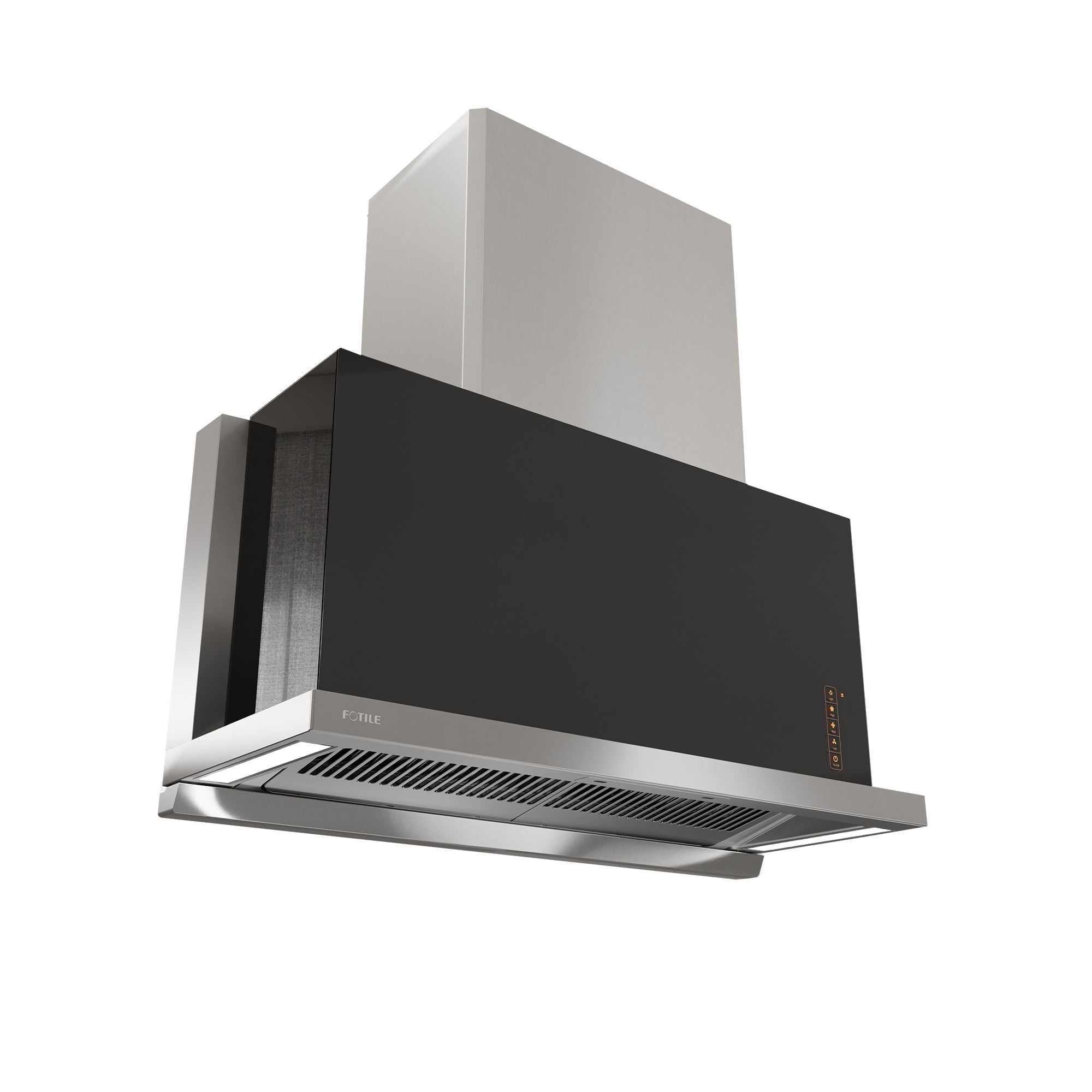

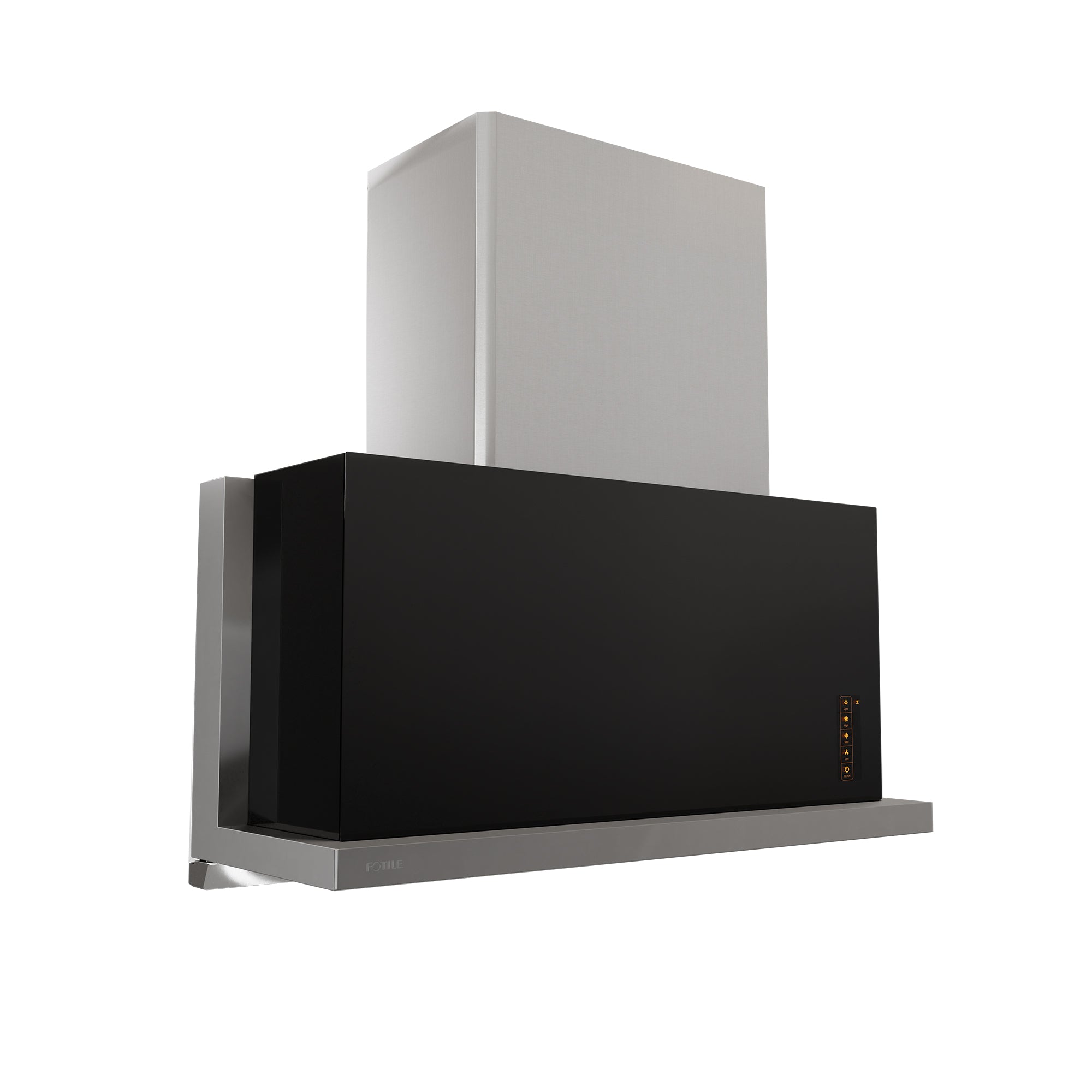

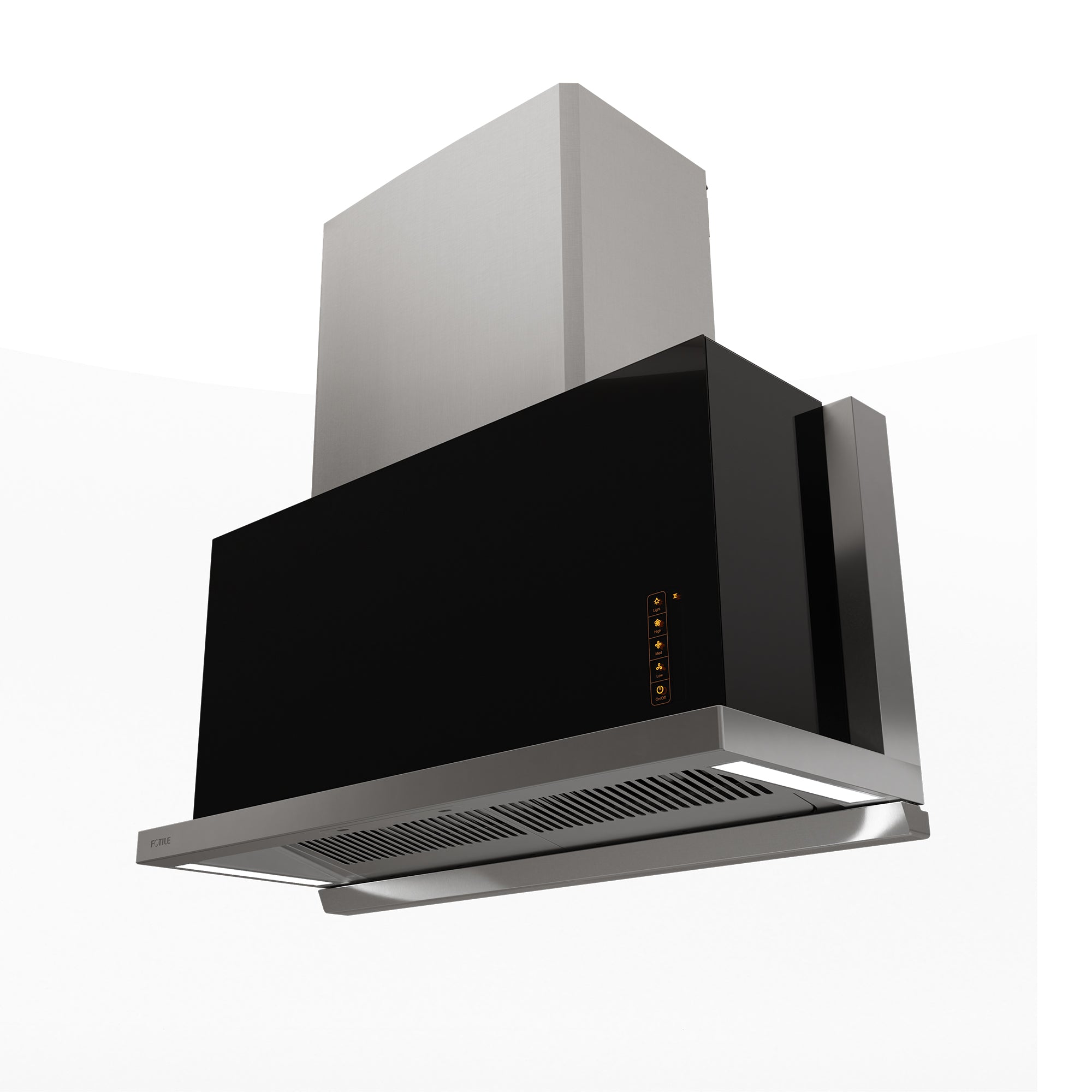

Fotile 36-Inch Insert Hood (BIG3610)

FotileSKU: BIG3610

Price:
Sale price$2,999.00
In Stock
Estimated delivery: Sep 5th-10th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Fotile 36" Insert Range Hood Available at Home Outlet Direct.

Highlights

  • Permanent Magnet Synchronous Motor (PMSM) - Higher performing motor compared to other DC motors. Providing higher torque, efficiency, & reliability.

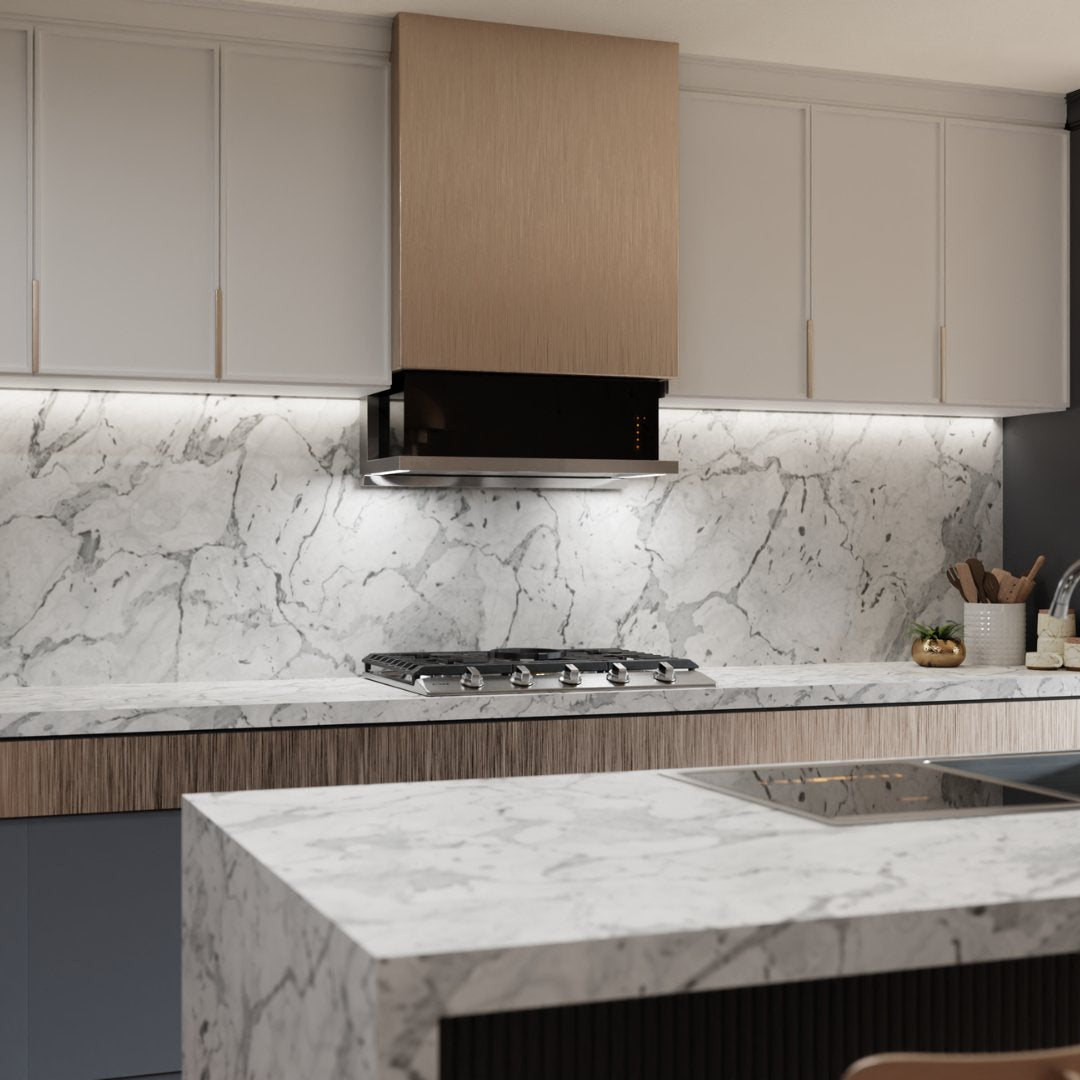

  • Automatic Height Adjustment - Dynamically lower or rise the Capture Shield to improve overall cooking conditions

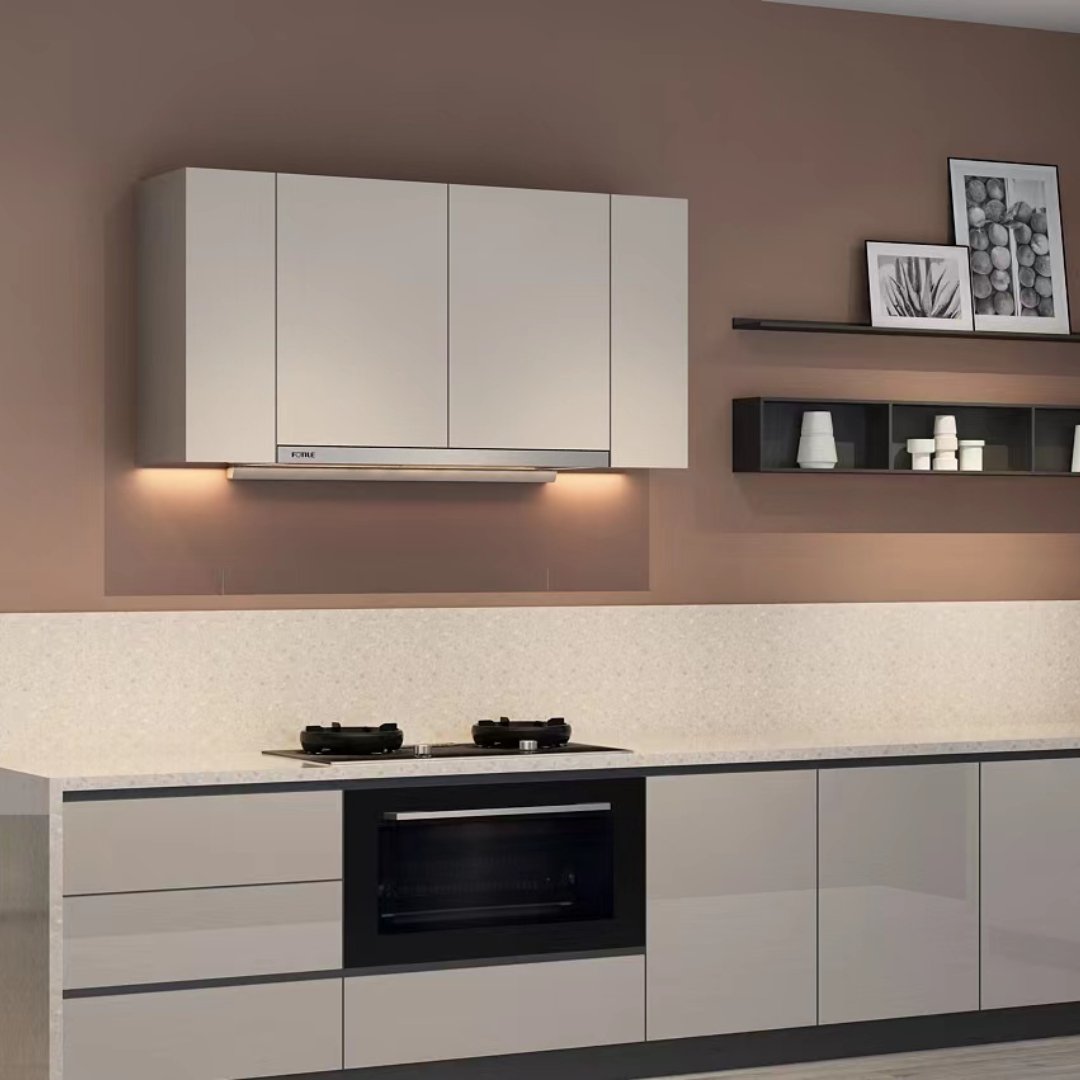

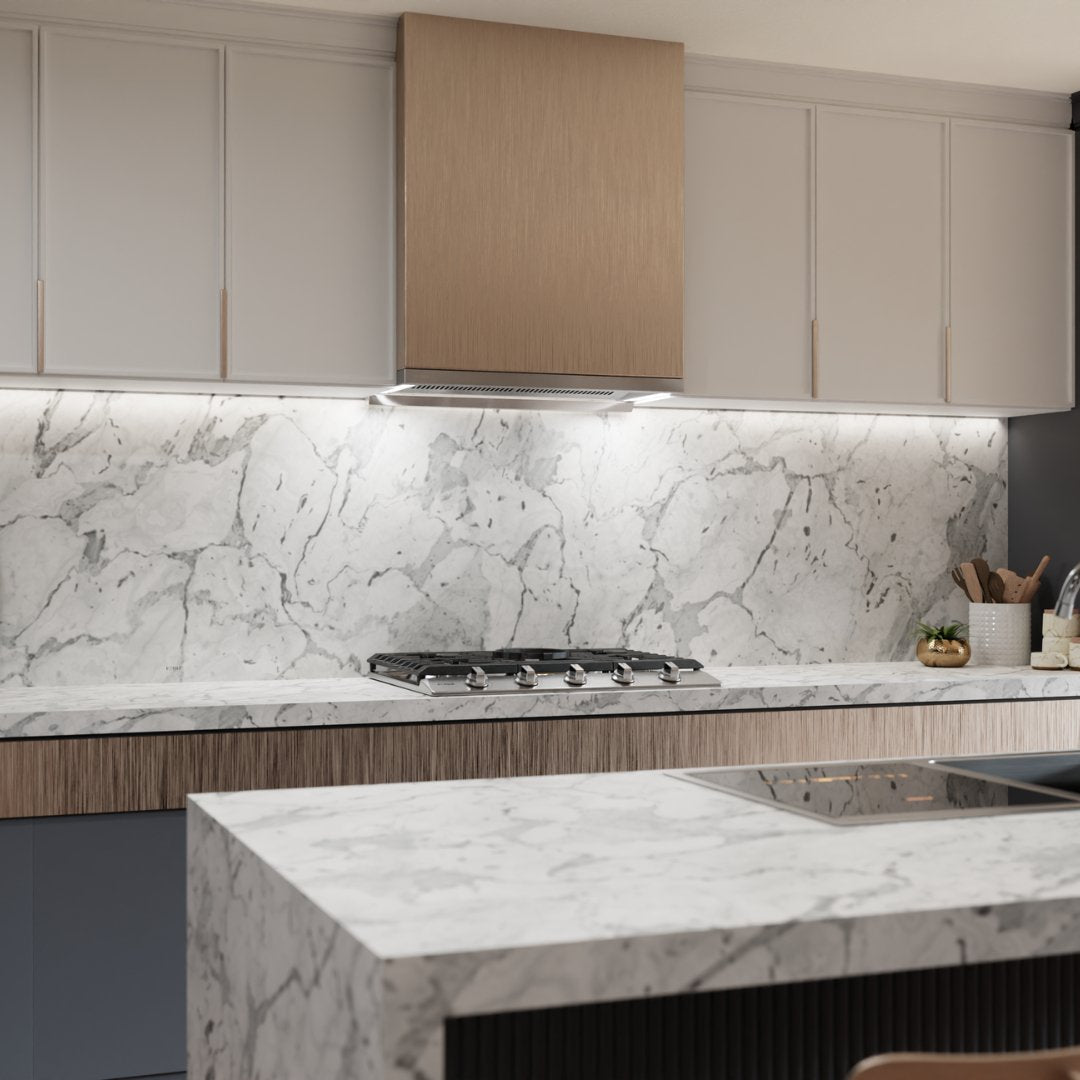

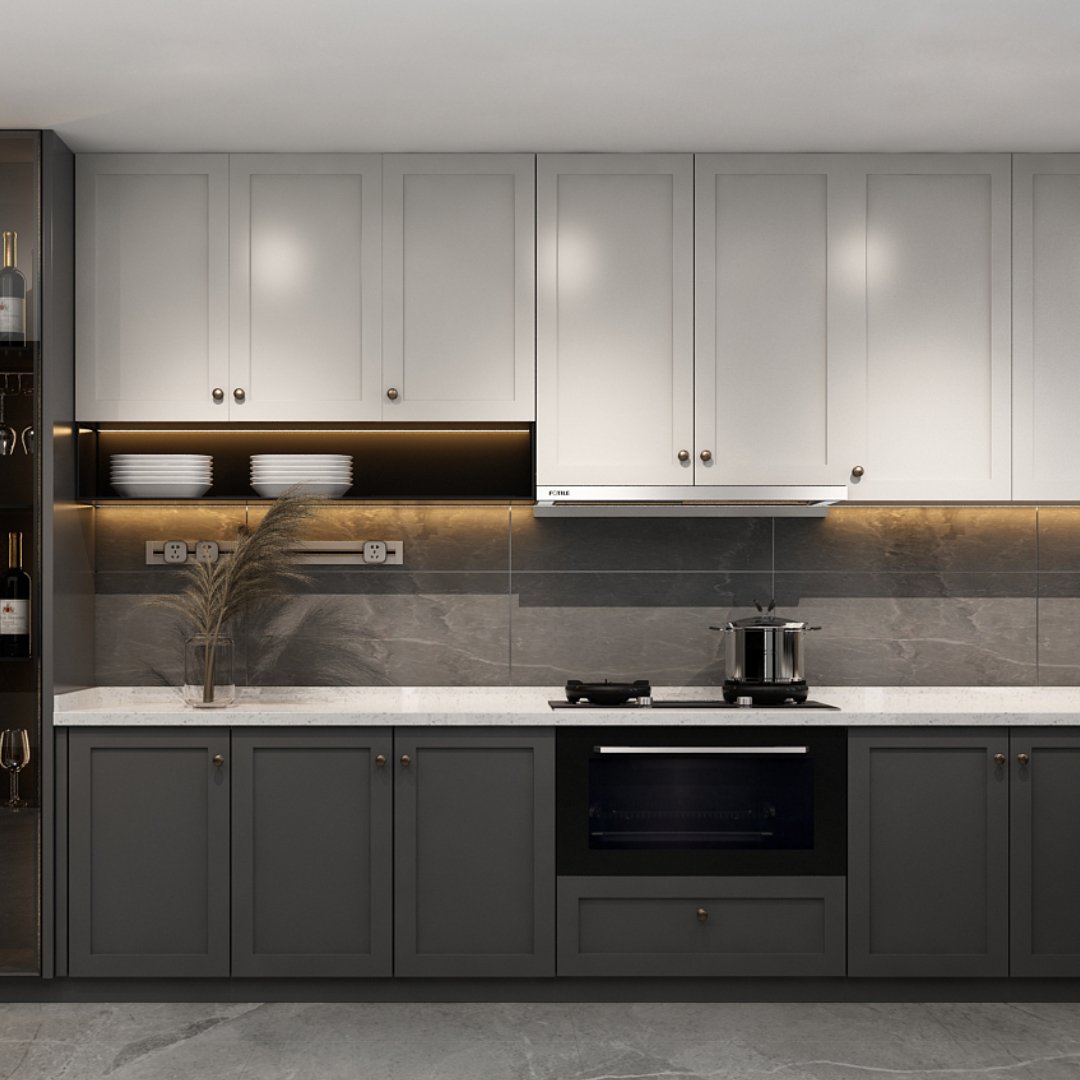

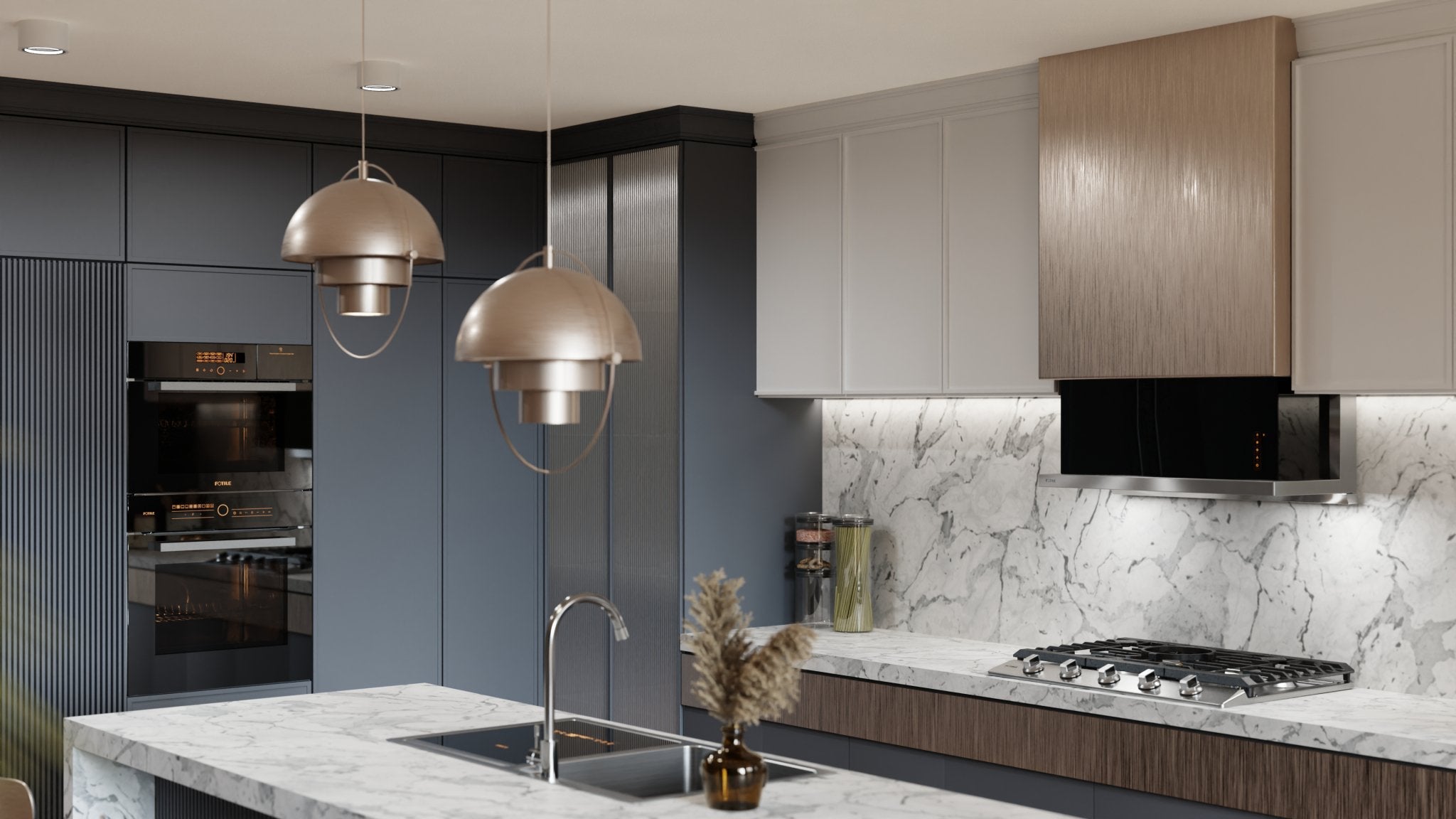

  • Versatile Installation - The built-in design offers a hidden appearance when not in use, providing a high-end and unobtrusive look to your kitchen
  • Motion Activation - Effortlessly summoned design activated by motion or a wave.
  • Sync Function with Cooktops - Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.

    Features:

    • Powerful PMSM Motor
    • Max. EQUIV. CFM: 1200
    • Auto Height Adjustment
    • Boost Mode
    • Motion Gesture Touch Free Operation
    • Screen Lock Function
    • Elegance In Motion: PMSM (Permanent Magnet Synchronous Motor) - Experience superior performance with our PMSM motor, surpassing conventional asynchronous DC motors.
    • Versatile Installation - An integrated range hood that seamlessly incorporates components and appliances into its design, offering a sleek and modern aesthetic with clean lines and a cohesive appearance.
    • Auto Height Adjust & Motion Activation - The BIG3610 gracefully adjusts its Capture Shield, providing chefs greater control over their environment. This enhancement aims to promote overall health and well-being.
    • Sync Function with Select Cooktops - Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.
    • Large Capacity Oil Cup - Spacious Oil Cup for Effortless Management: Streamlined, drip-free design ensures a cleaner and easily maintainable cooking area.
    • Downward Facing LED Lights - Maintain adequate illumination without causing glare or discomfort.
    • Advanced Capture Shield - Refined smoke and grease capture technology. The capture shield adjusts to the optimal height for enhanced proximity to cooking gas, ensuring a clean and healthy culinary environment.
    • Polished Stainless Steel Design - Elevate kitchen aesthetics with a sleek and sophisticated appearance. Avoid compromises—seamless perfection for an impeccable kitchen look.
    • Sturdy Glide Rail - Our lifting guide is engineered to endure over 50,000 cycles. With daily use of 10 times, it reliably meets your needs for more than 13 years.

    *FOTILE Equivalent CFM is a higher CFM rating due to our filterless technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (7.2 sq.ft.) and achieve a 95% oil filtration rate, and 97% odor reduction rate, keeping your kitchen smoke free and smelling fresh.

    DIMENSIONS
    Product Dimensions
    35 1/8" W x 13 5/8" D x 24 13/16 - 34 11/16" H
    Net Weight (lb)
    101.4lbs
    Gross Weight (lb)
    118.4lbs
    GENERAL INFORMATION
    Installation
    Insert
    DESIGN & FINISH
    Control Type
    Touch + Motion
    TECHNICAL DETAILS
    Power Supply(V/Hz)
    120V/60Hz
    Speed Setting
    3
    Max. Equiv. CFM
    1200 CFM
    Noise Level(dB)
    34 / 44.1 / 52.7
    Input Power
    300W
    Motor
    DC Motor
    Duct Type
    Vertical
    FEATURES
    Max Static Pressure(Pa)
    1000Pa
    Illumination(W)
    3W × 2 (LED)
    Oil Cup
    One Oversized Oil Cup
    Oil Filter
    Removable & Dishwasher Free
    Delay Shutoff
    5 Min
    Oil Filtration Rate
    95%
    Odor Elimination Rate
    97%
    Packing-Box Size(WxDxH) (inch)
    41 15/16 x 29 3/4 x 20 5/16
    WARRANTY & CERTIFICATIONS
    Certification
    CSA, HVI, FCC, CEC
