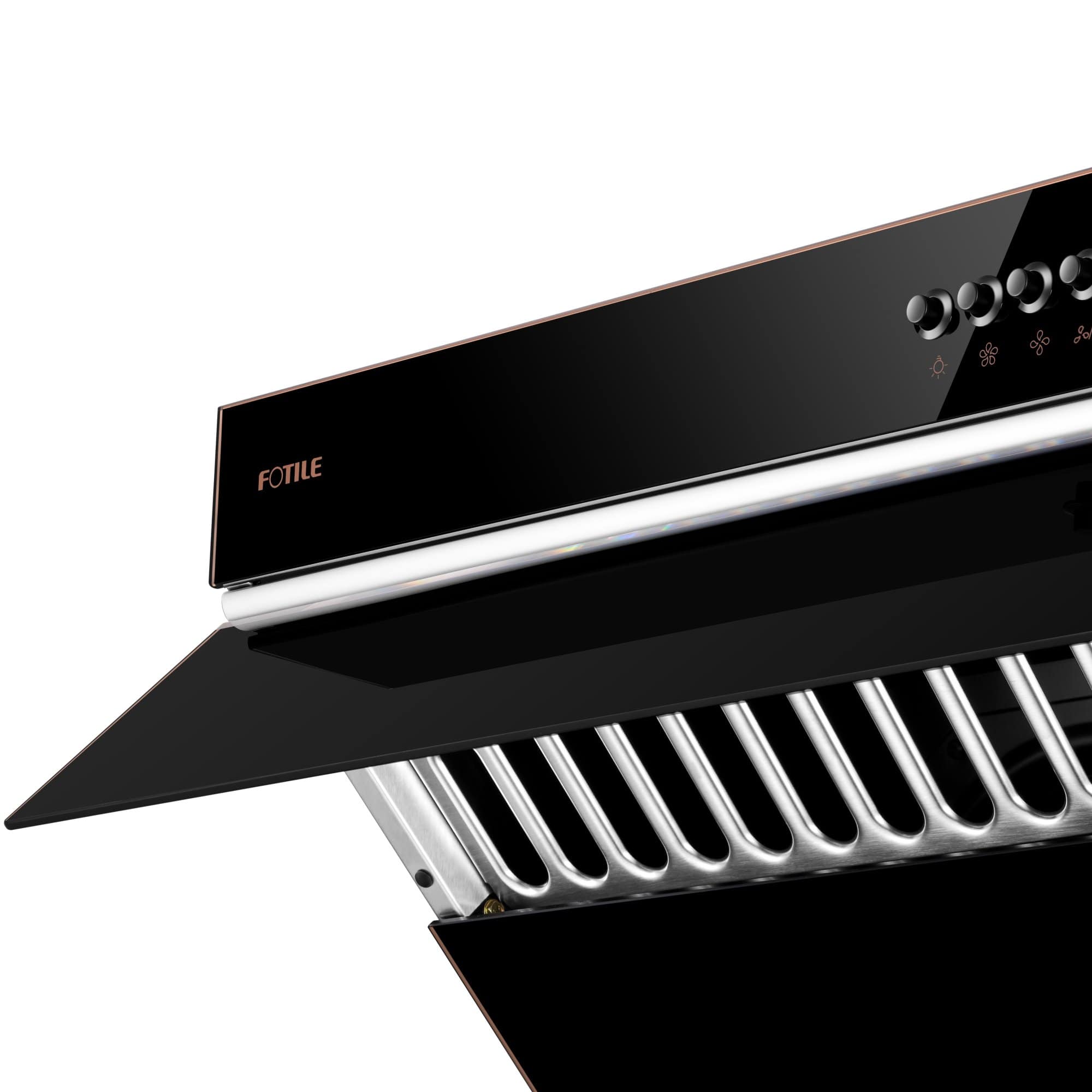

Slant range hood in onyx black tempered glass with push-button controls
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Roll over image to zoom in Click on image to zoom
Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Slant range hood in onyx black tempered glass with push-button controlsFotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)
Click on image to zoom

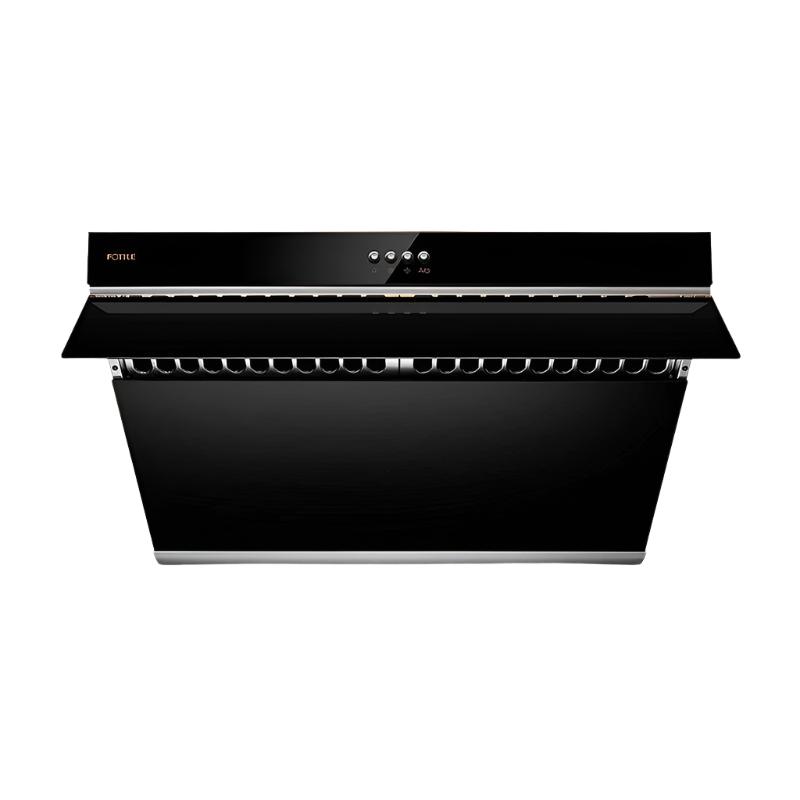

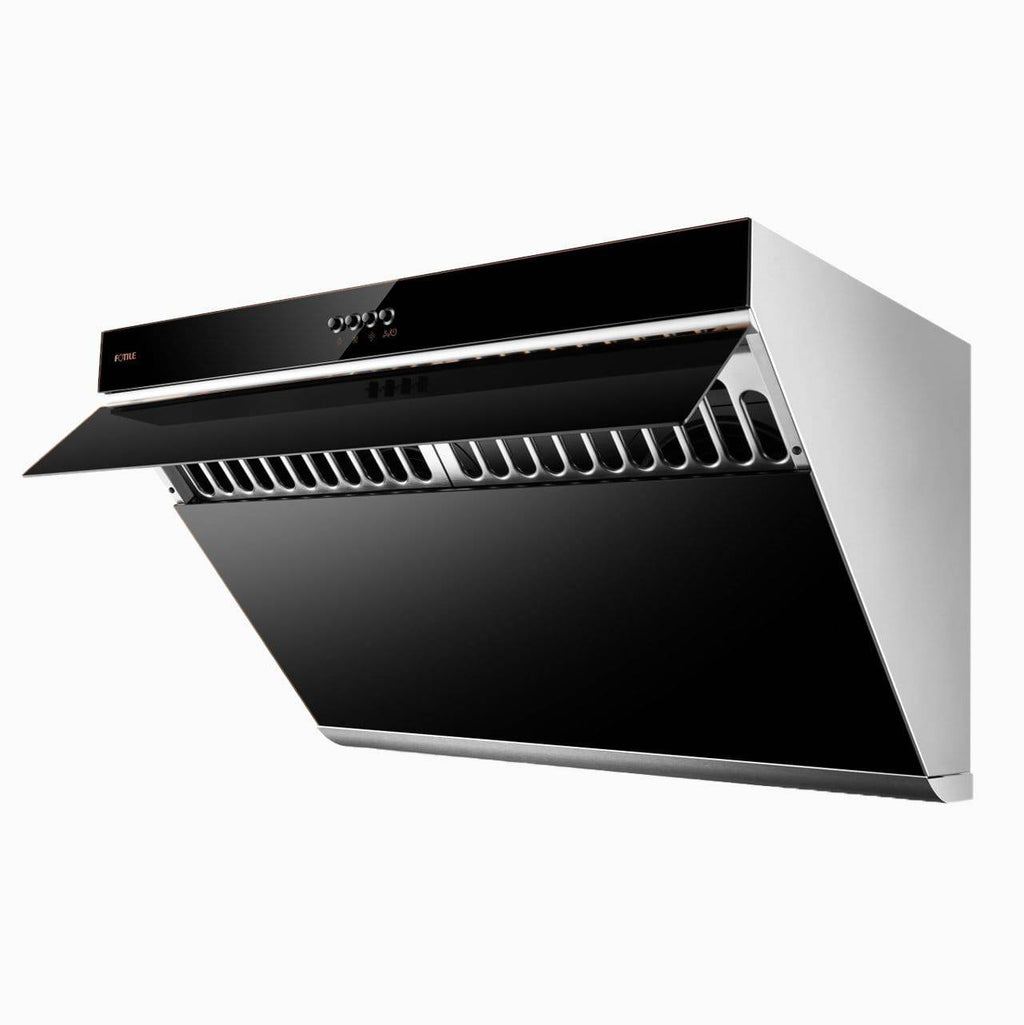

Fotile Slant Vent Series 30" 850 CFM Under Cabinet or Wall Mount Range Hood with 2 LED lights, and Push Buttons in Onyx Black Tempered Glass (JQG7522)

FotileSKU: JQG7522
Price:
$699.00 $999.00SAVE 30%
In Stock
Estimated delivery: Sep 25th-30th
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.
In-Home Protection Plan
Home Outlet Direct + CPS

Add an Extended Protection Plan by CPS and Enjoy Peace of Mind!

Protection Plan Benefits:
  • Covers 100% parts and labor for product defects in materials and workmanship
  • Replacement of product if it cannot be repaired
  • No deductibles
  • Protection from dust, heat and internal humidity damage
  • Damage caused by power surges
  • In-home service
Full Coverage Details
No deductibles
International coverage
Easy claims process

Description

Inclined Vent Series 30 in. 850 CFM Under Cabinet or Wall Mounted Range Hood in Onyx Black

Highlights

  • Installs as wall-mount or under-cabinet
  • Gives your kitchen a refined presence
  • Captures smoke before it spreads
  • Maximizes headroom & visibility

Features

  • 30" wall-mount/under-cabinet range hood
  • Black tempered glass
  • Max EQUIV. CFM: 850*
  • 39dB Min. Noise Level
  • Inclined design for exhaust extraction
  • Close proximity to cooking surface and smoke

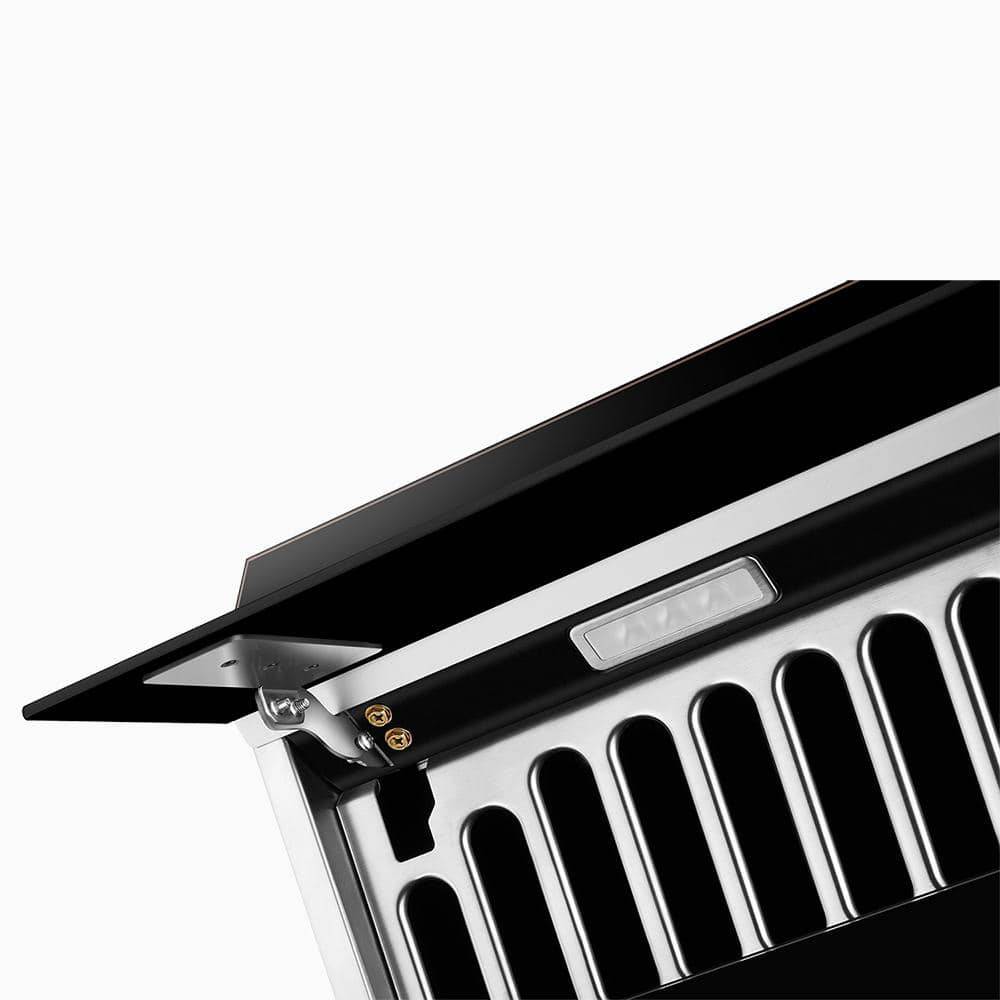

  • 90° Fixed Open Capture Shield
  • Covers 6ft² of Cooking Area (5-6 Burners)
  • Dual AC Motors
  • 95% Grease Separation Rate 98% Odor Elimination Rate

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

*FOTILE range hoods Equivalent CFM have a higher CFM rating due to our filter-less technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (6 Sq Ft) and achieve a 95% oil filtration rate, and 98% odor elimination rate, leaving your kitchen smoke free and smelling fresh.
WARNING: This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

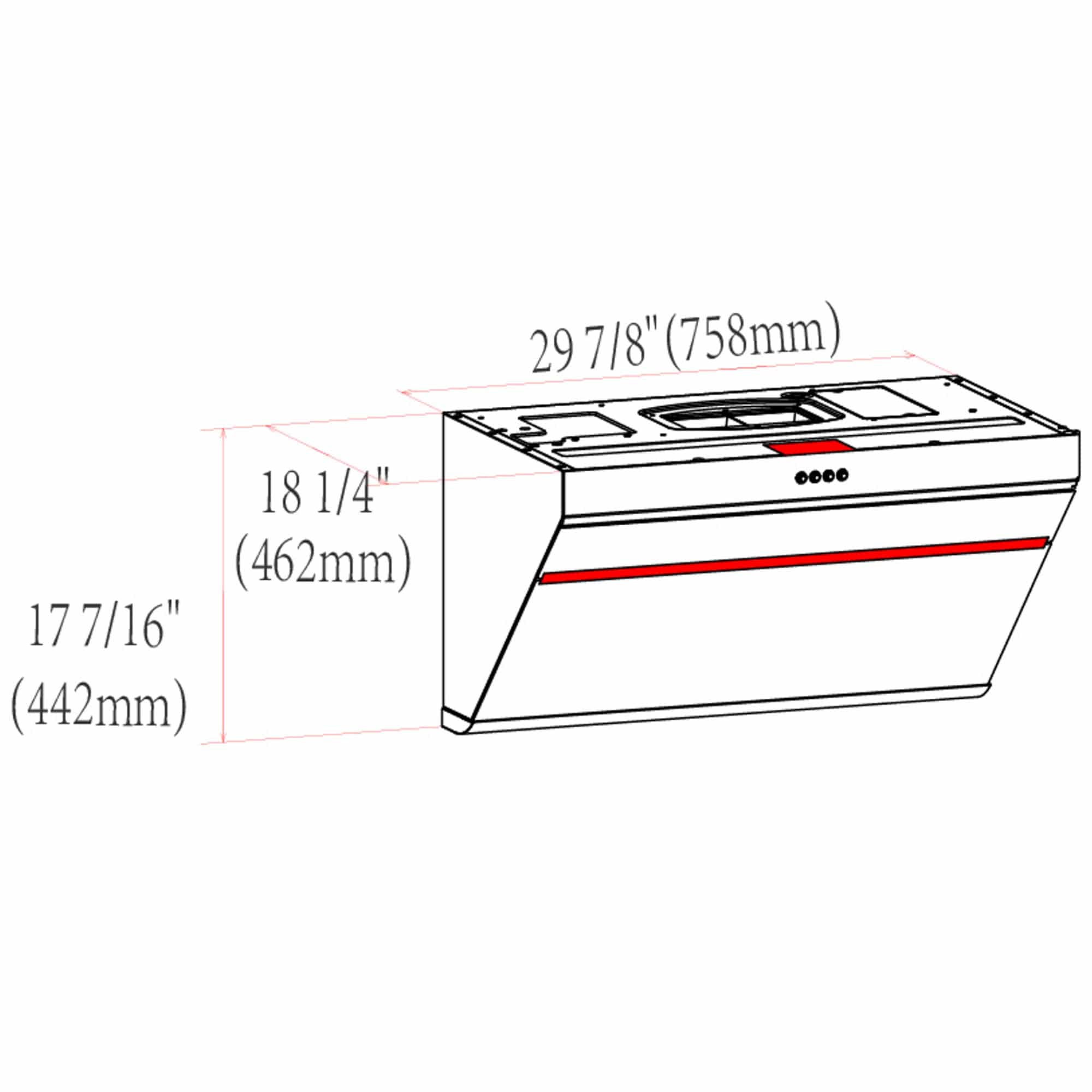

DIMENSIONS
Product Dimensions (W x D x H)
29 7/8" x 18 7/16" x 17 7/16"
Packing-Box Size (W x D x H)
33 9/16" × 22 11/16" × 23 7/8"
Net Weight
63.9 lb
Gross Weight
78.3 lb
GENERAL INFORMATION
Type
Range Hood

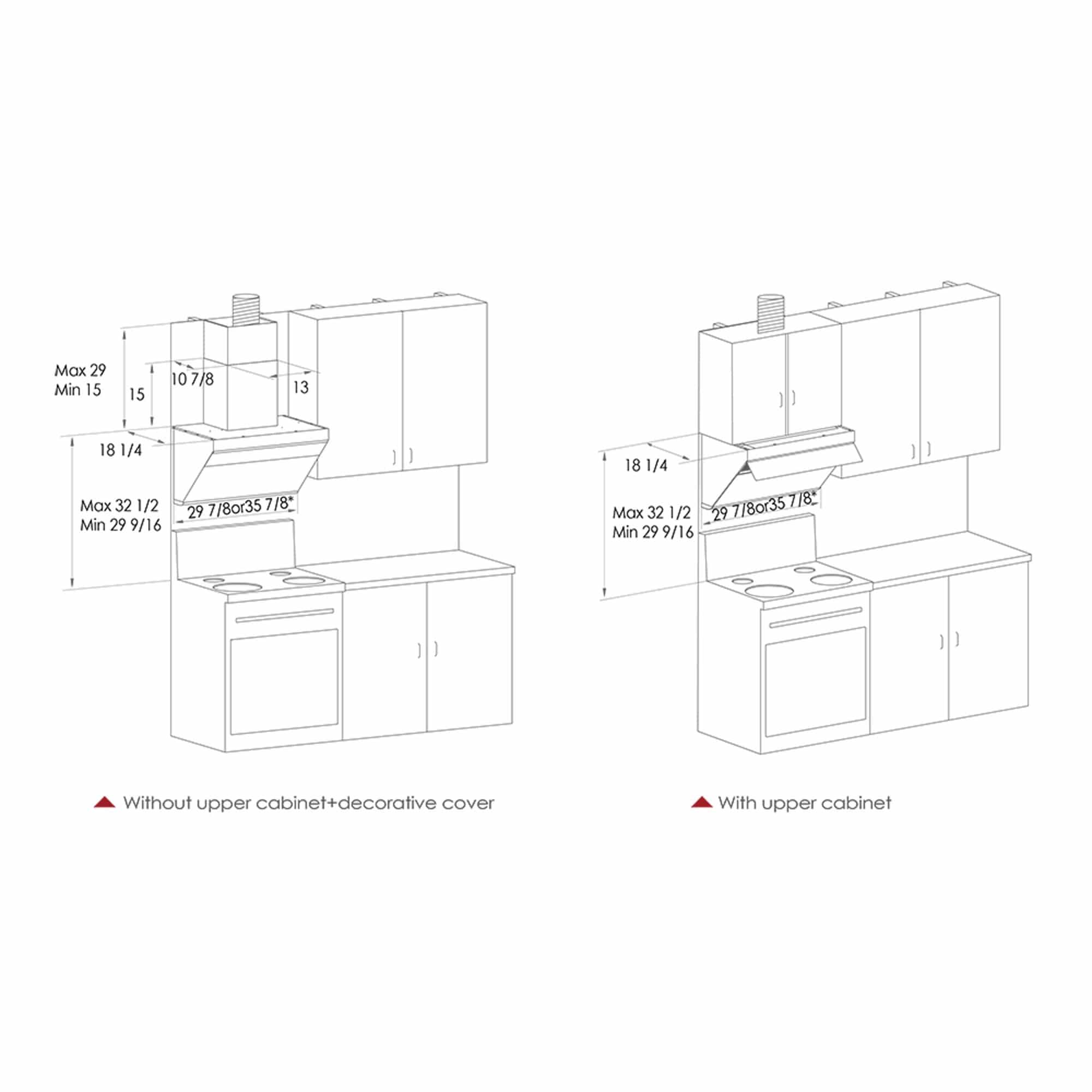

Installation
Under Cabinet / Wall Mount
Duct Type
Vertical
Duct Size
6" Round (Top Vented)
Accessories Included
Duct Kit, Oil Cup, Bracket
Optional Accessories
Decorative Cover, Decorative Panel
TECHNICAL DETAILS
Power Supply
120V / 60Hz
Motor
Dual AC Motors
Motor Power
256W
Max Static Pressure
400 Pa
Control Type
Button
Illumination
3W x2 (LED) 500 Lux
Capture Shield
Fixed Open
PERFORMANCE & FEATURES
Max. EQUIV. CFM
850*
Number of Speed Settings
3
CFM (HVI)
  • Low: 230
  • Medium: 400
  • High: 520
Noise Level (Sones)
  • Low: 1.2
  • Medium: 4
  • High: 6
Noise Level (dB)
  • Low: 39
  • Medium: 49.2
  • High: 54.3
Oil Filter
Removable & Dishwasher Free
Oil Cup
One Oversized Oil Cup
Oil Filtration Rate
95.10%
Odor Elimination Rate
98.63%
WARRANTY & CERTIFICATIONS
Warranty
5-Year Limited Warranty (2-Year Labor, 5-Year Parts, Lifetime Motor)
Certifications

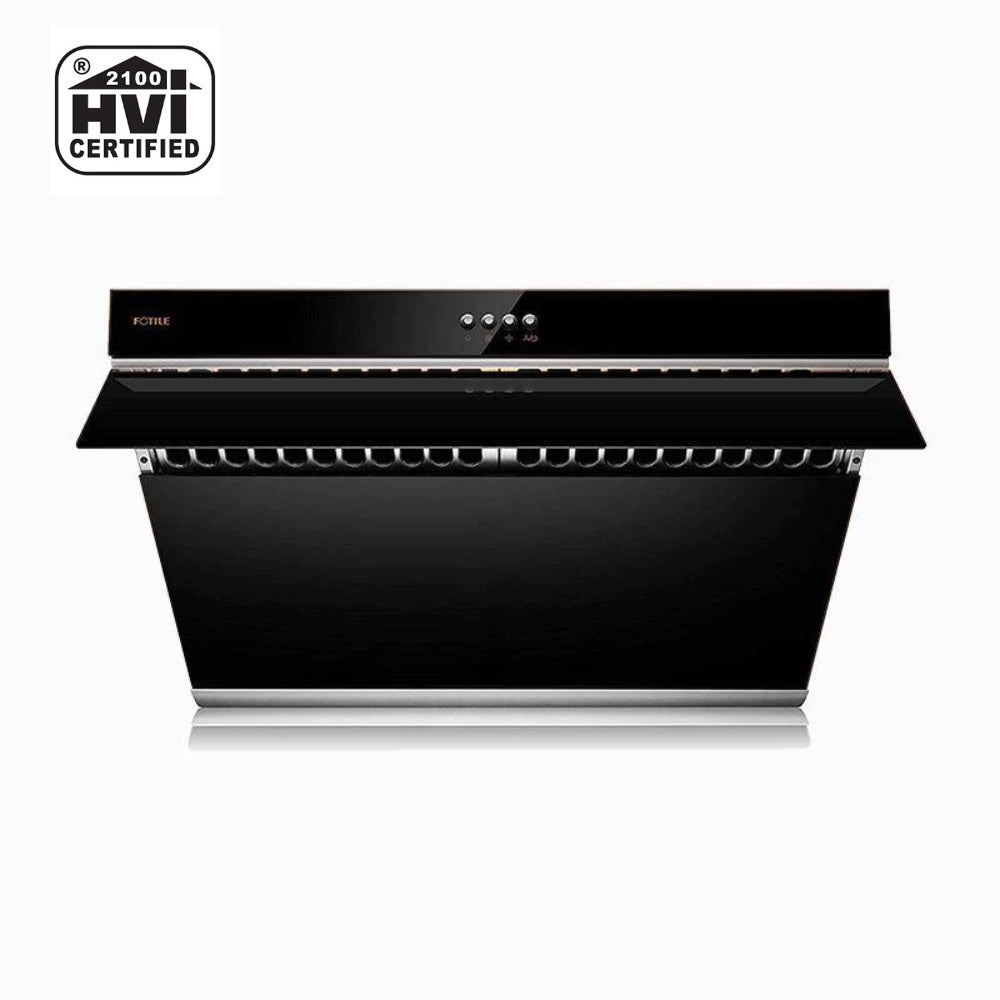

ETL, HVI, CEC
