Description

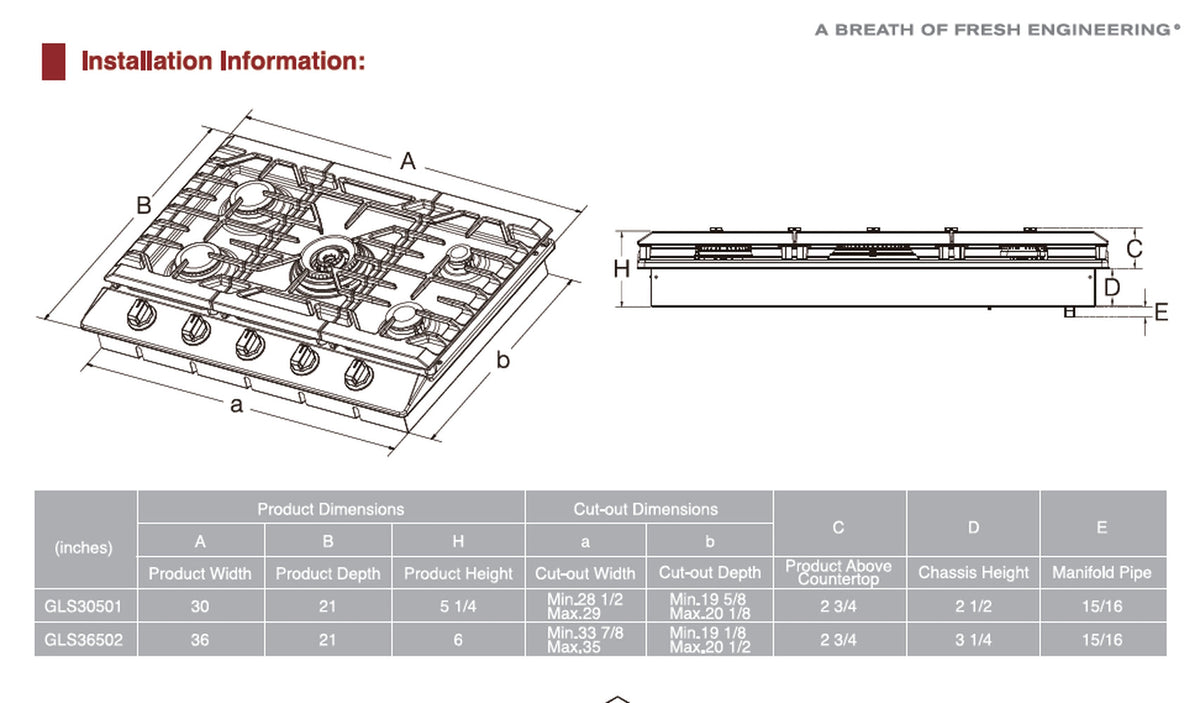

DIMENSIONS
- Product Dimensions (WxDxH)
- 30″ x 21″ x 5 1/4″
- Cut-Out Dimension (WxD)
- Min 28 1/2″ - Max 29″ x Min 19 5/8″ - Max 20 1/8″

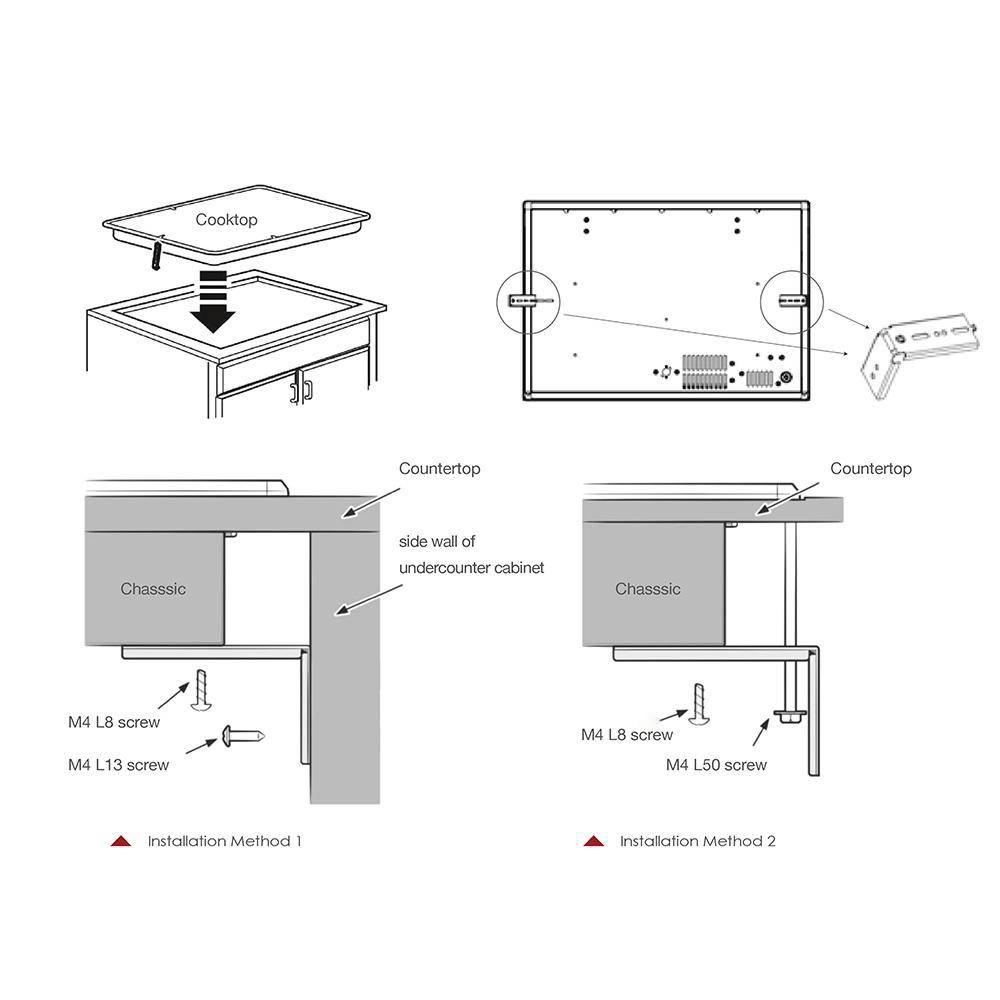

- Build-In Size (WxDxH)
- 28 1/4″ x 19 1/4″ x 3 3/8″
- Packing-Box Size (WxDxH)
- 34 5/16″ x 25 1/4″ x 9 11/16″
- Net Weight (lb)
- 48
- Gross Weight (lb)
- 57.5
GENERAL INFORMATION
- Energy Source
- Gas
- Gas Type
- NG/LPG
- Installation Type
- Built-In

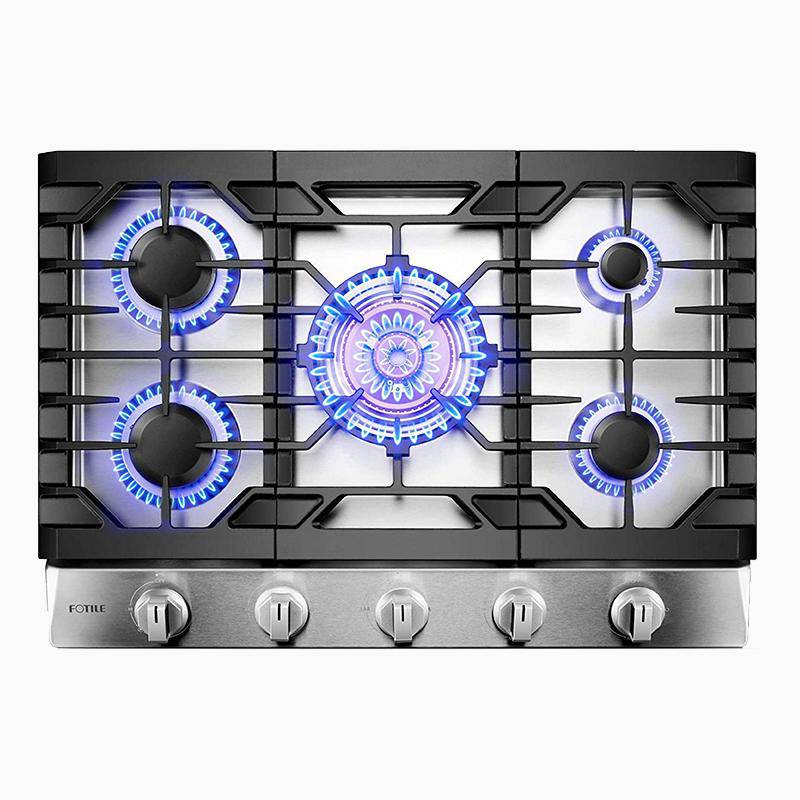

COOKTOP FEATURES
- No. of Burners
- 5
- Burner Sealness
- Sealed Burners

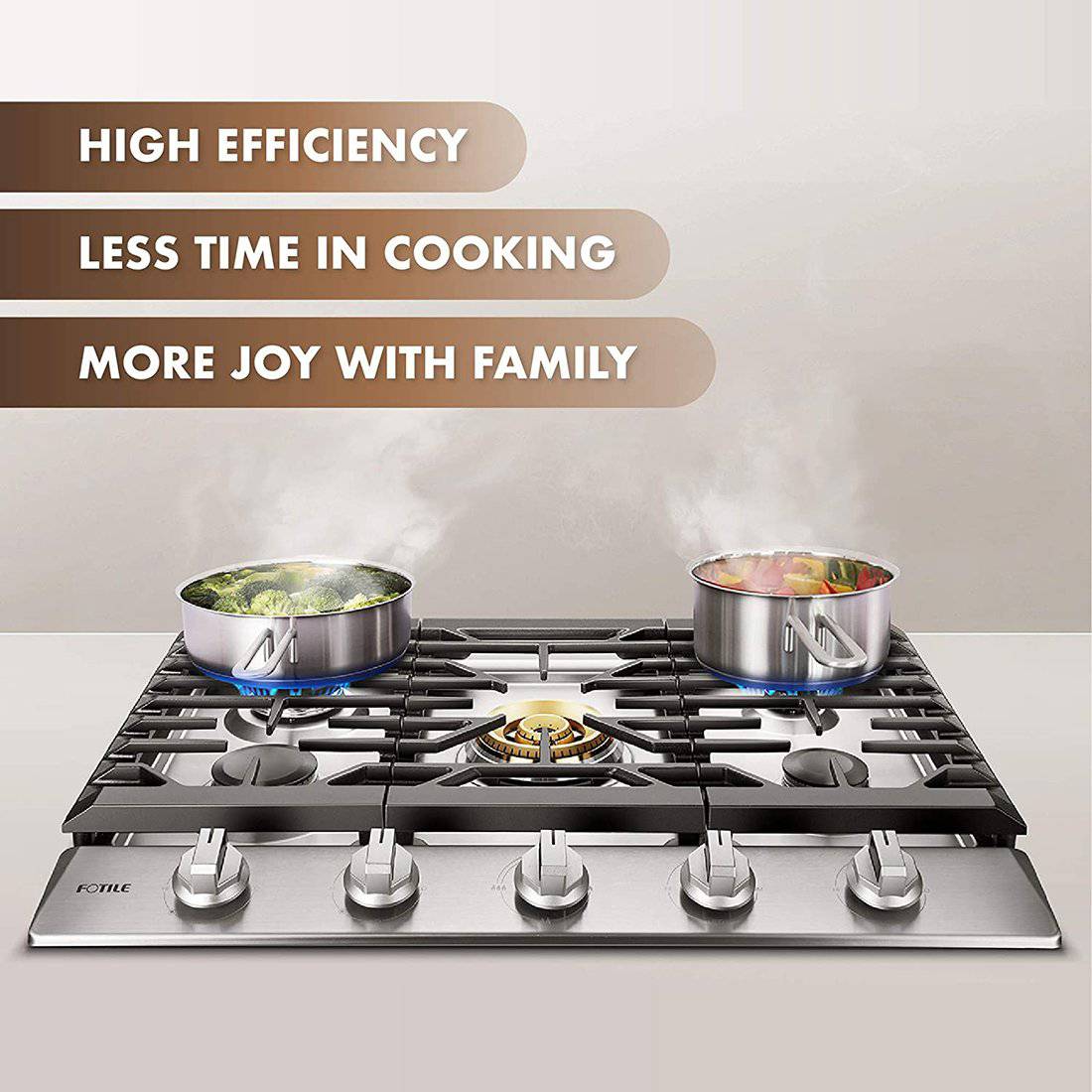

- Grate Material
- Cast Iron (Continuous)
- Heating Load (BTU)
- Total: 56,000 - Center Tri-Ring: 21,000; LF/LR: 13,000; RR: 3,000; RF: 6,000

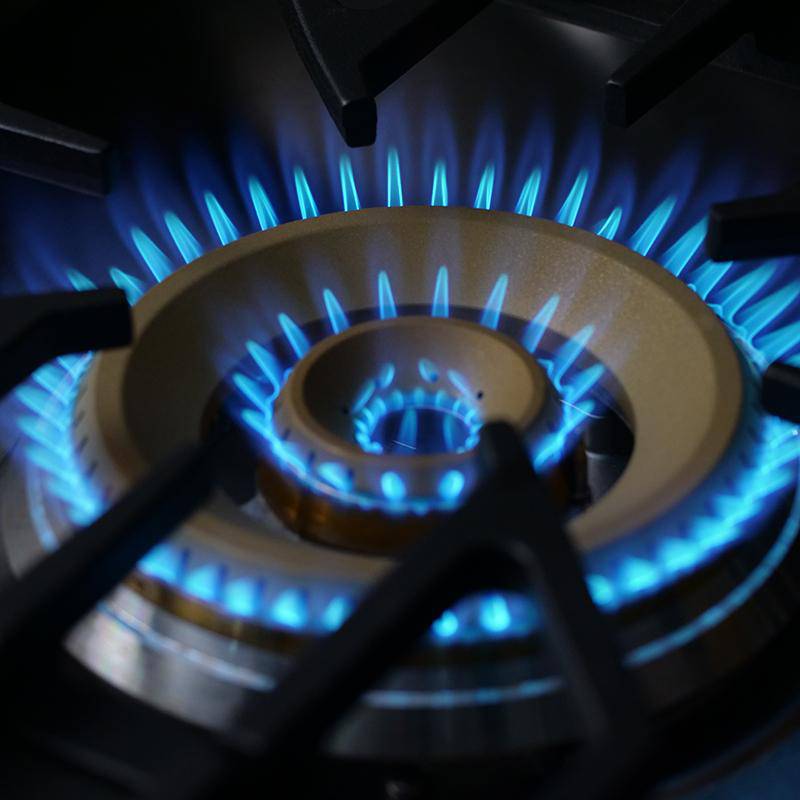

- Highest Output
- 21,000 BTU (Center Tri-Ring)
- Ignition Type
- Fast Ignition

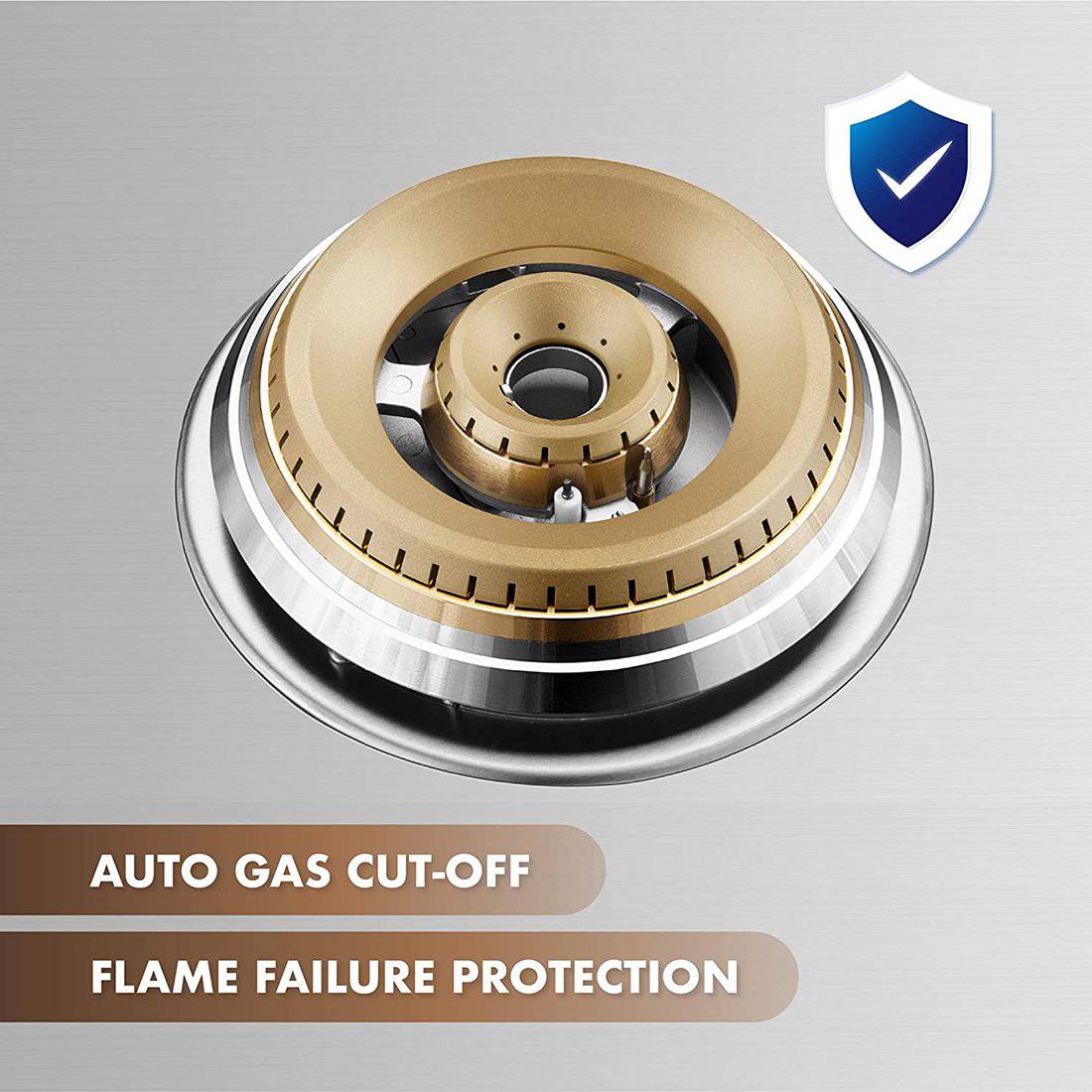

- Safety Device
- Flame Failure Device

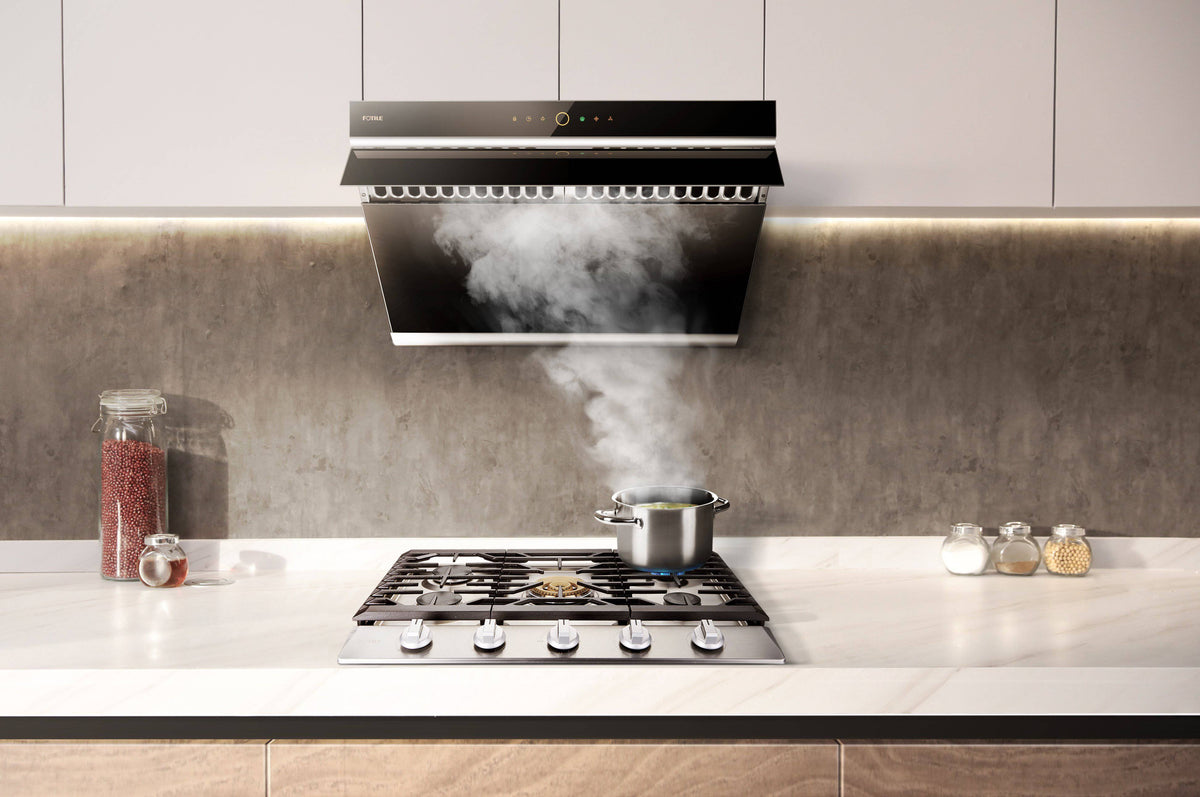

- Range Hood Sync
- Yes
DESIGN & FINISH
- Color of Frame / Surface
- Stainless Steel
TECHNICAL DETAILS
- Power Supply
- 120V / 60 Hz
- Location of Gas Connection
- Bottom
- Propane (LP) Convertible
- Yes
- Propane Conversion Kit Included
- Yes

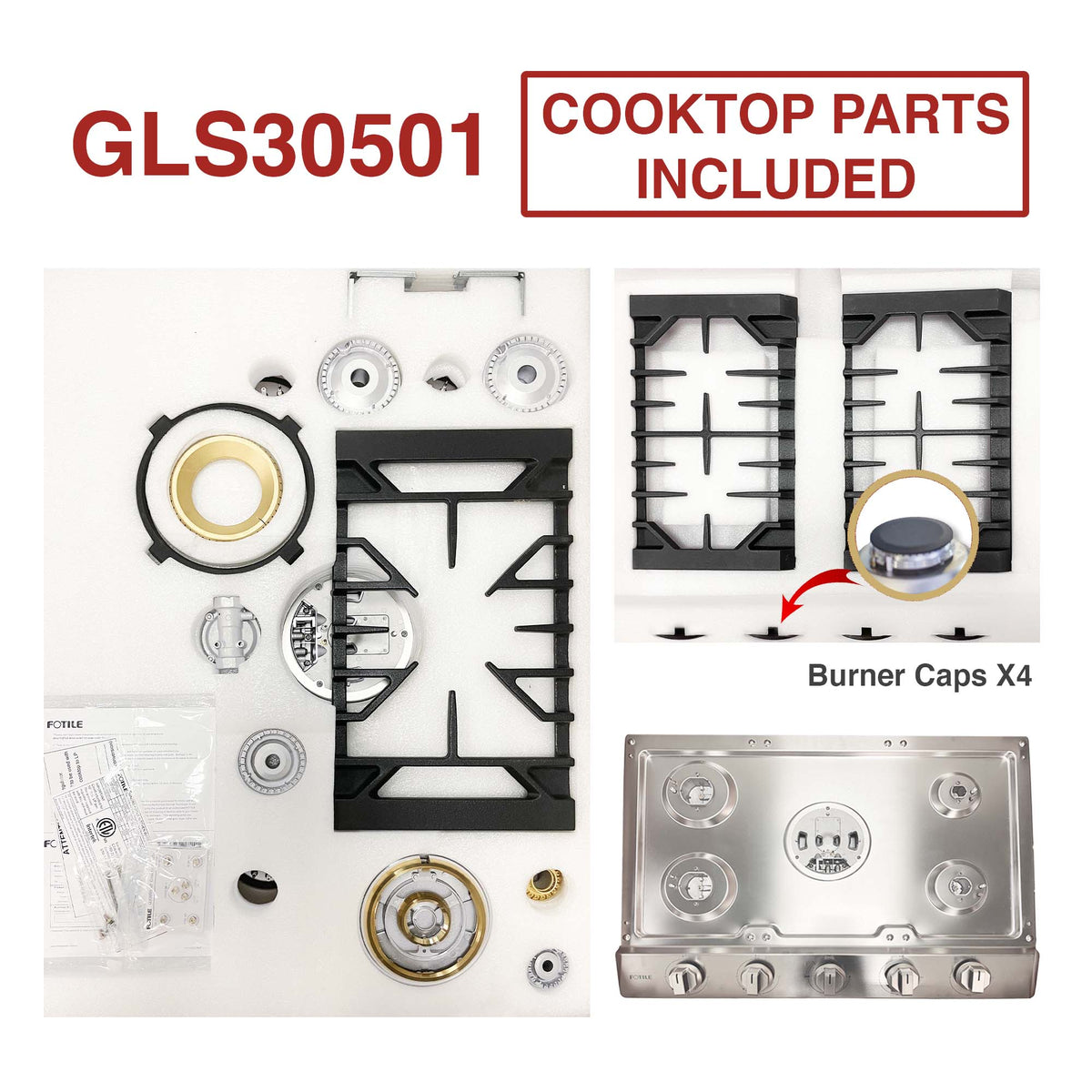

- Accessories Included
- 3 Cast Iron Grates, 5 Burners, Wok Ring, User Manuals, Installation Kit, Propane (LP) Conversion Kit
WARRANTY & CERTIFICATIONS
- Warranty
- 5-year Limited Warranty (1-year Labor, 5-year Parts)
- Certification
- ETL, ISTA-3A
