Description

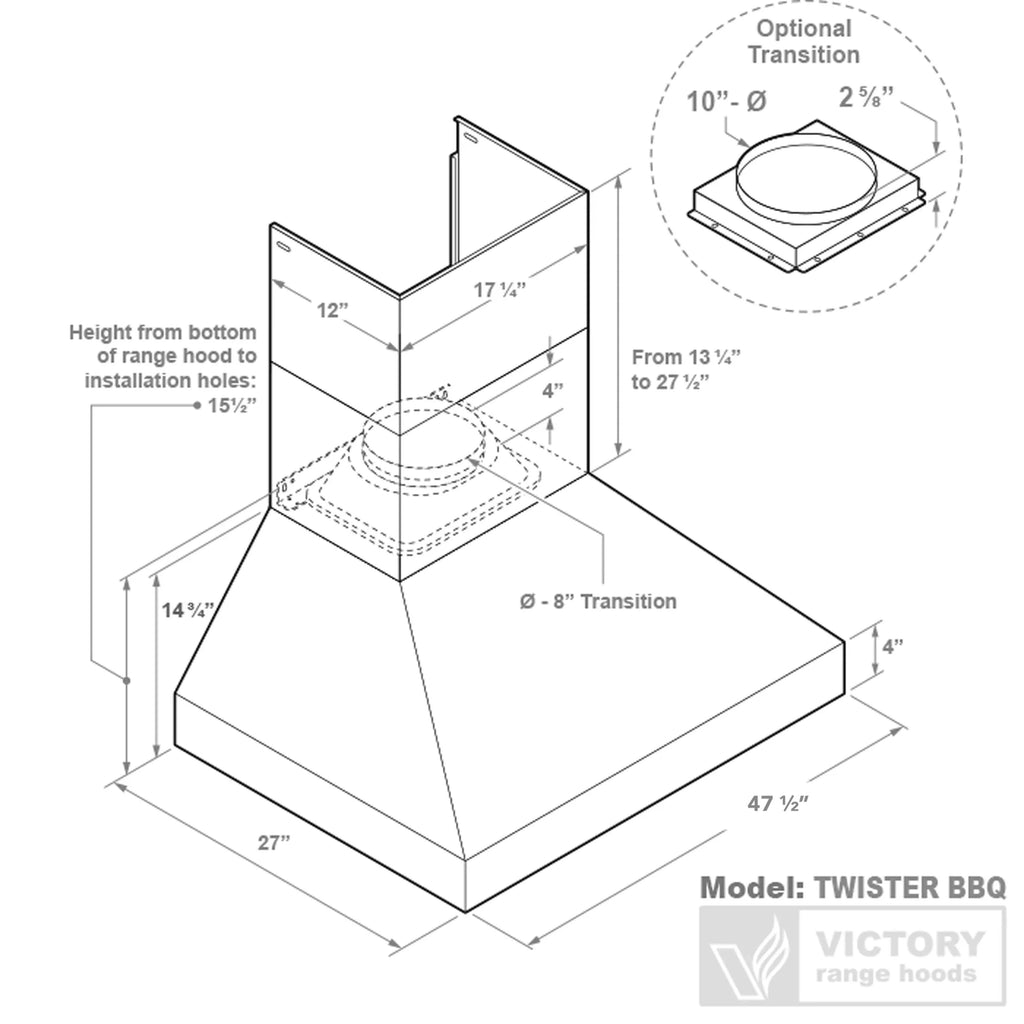

DIMENSIONS
- Dimensions
- 47 ½" W x 27" D x 15½" (Height from bottom of range hood to installation holes)
- Weight
- 90 lbs. - Increase by 10 lbs. every size up
- Ceiling Height
- 8' to 9' standard (extensions avail.)
GENERAL INFORMATION
- Body
- Stainless Steel (304) (1mm)
DESIGN & FINISH
- Levels Of Speed Control
- 4 Levels
- Controls
- Mechanical Switches with Hidden Design
TECHNICAL DETAILS
- Maximum Airflow
- 1200 CFM (10")
- Noise Level (Min/Max)
- 1.2 Sones / 6.6 Sones
- Power Rating
- 120 V / 60 Hz (USA & Canada standard)
- General Input Power
- 300 W + (# of Lights × 5W)
- Motor Input Power
- 300 W
- Motor Revolution
- 800 RPM to 1300 RPM (±10%)
- Duct Direction
- Top Exhaust
- Duct Type
- 10" Round

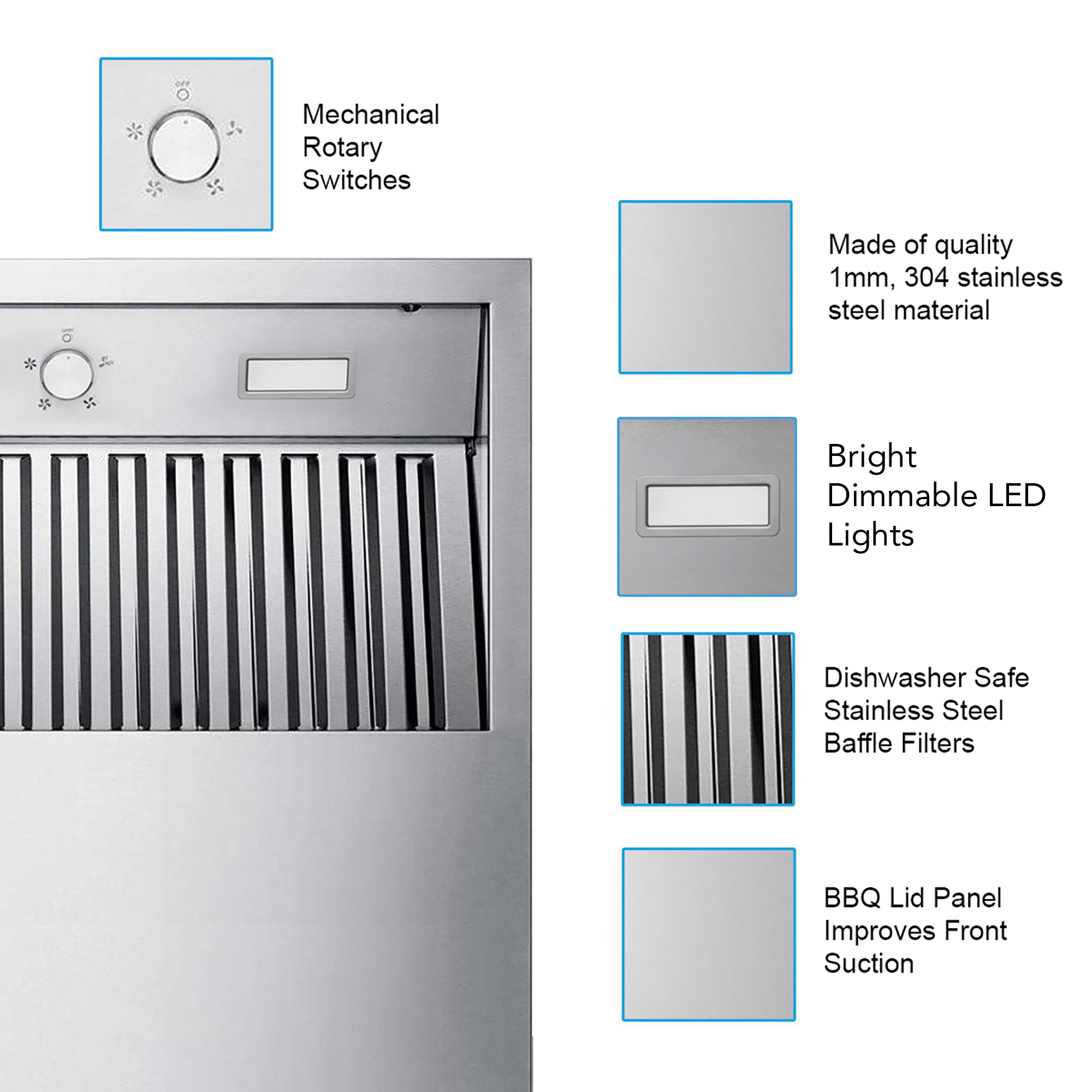

FEATURES
- Filtration Type
- Stainless Steel Filters + Grease Trap
- Dishwasher-safe
- Yes
- Light Type
- LED
- Light Bulb
- Integrated LED
WARRANTY & CERTIFICATIONS
- Certifications
- cETLus
- Warranty
- 5 Year Parts
