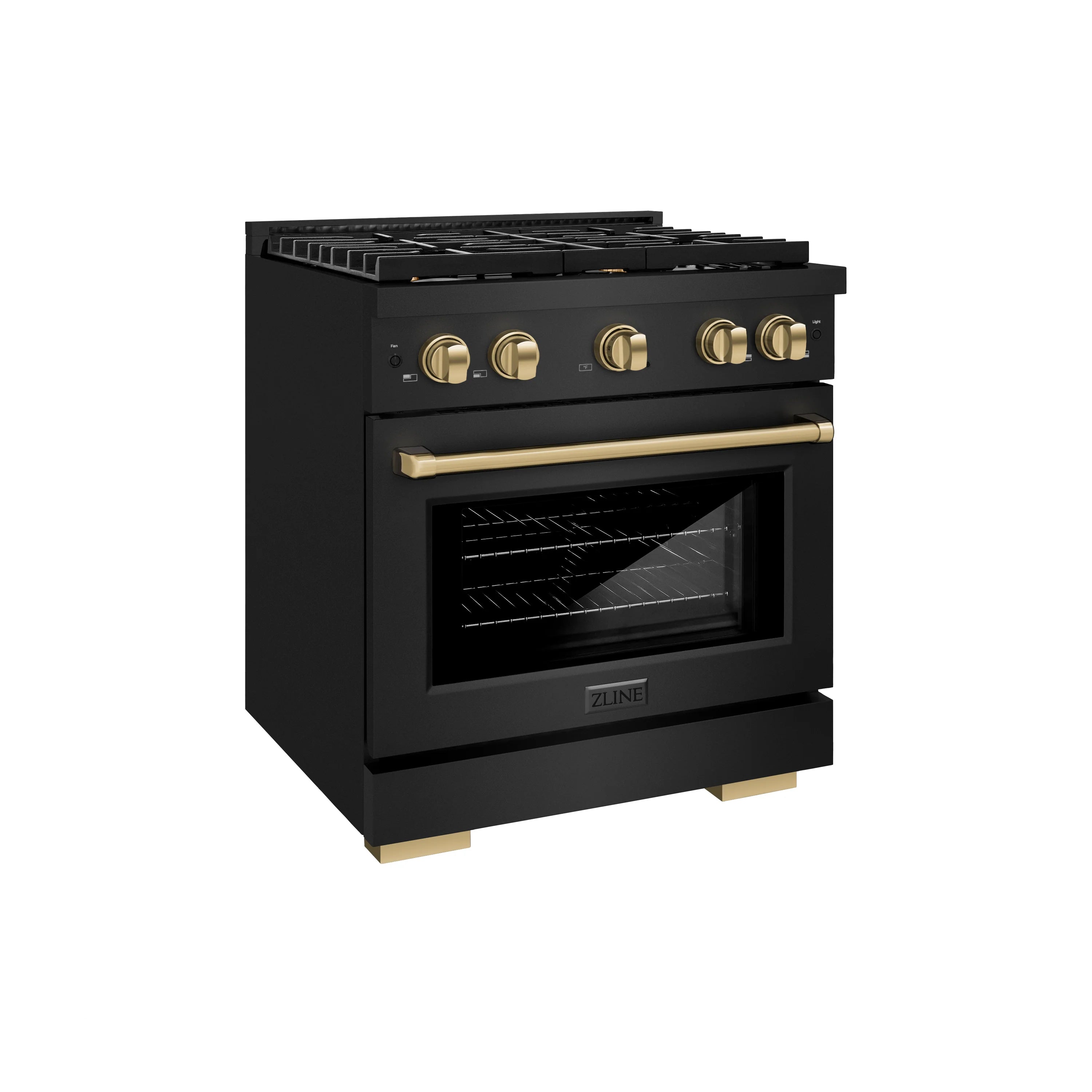

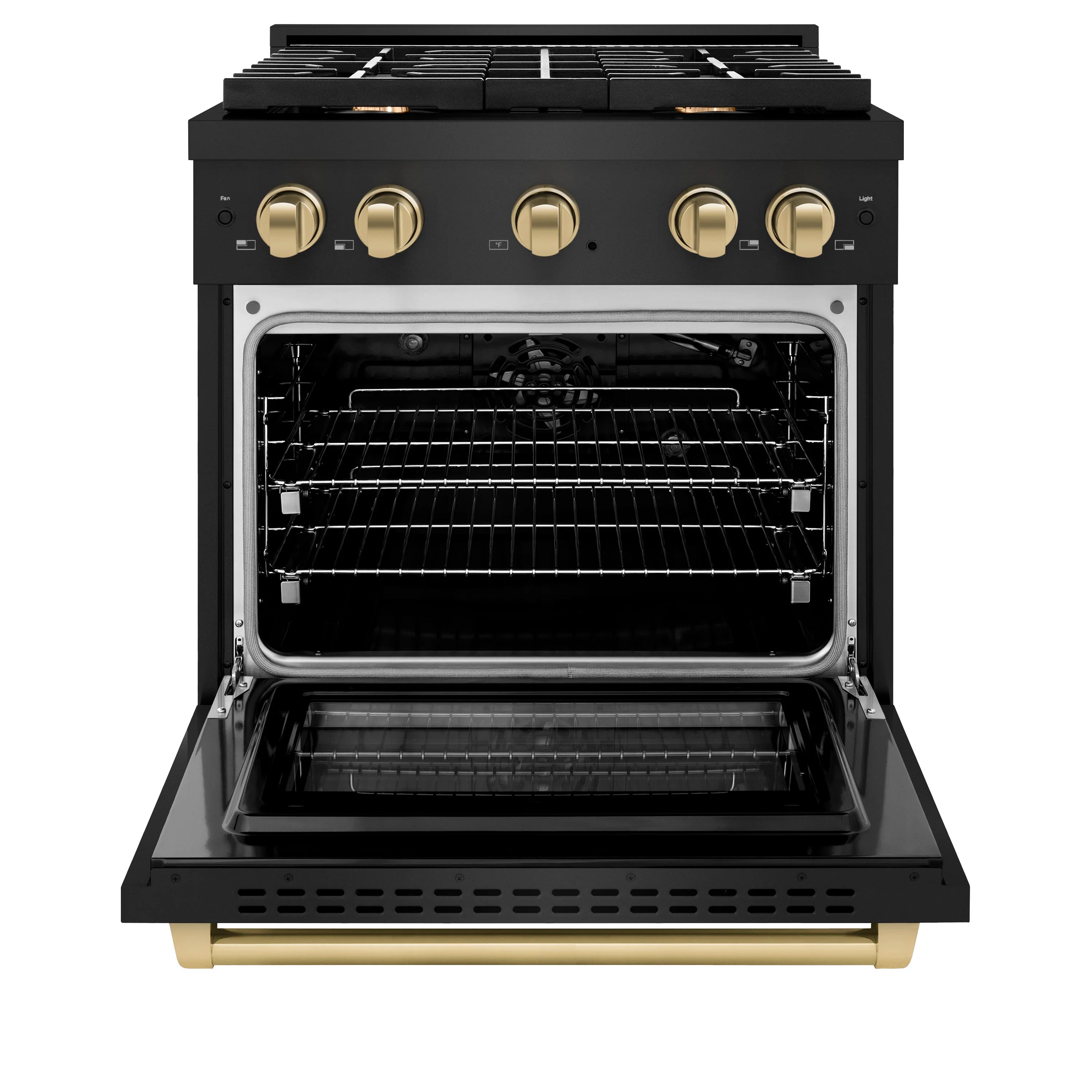

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.2 cu. ft. 4 Burner Gas Range with Convection Gas Oven in Black Stainless Steel and Champagne Bronze Accents (SGRBZ-30-CB) features a versatile gas cooktop with 4 Italian-made burners, a high-performing gas convection oven, and elegant champagne bronze knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Professional Gas Ranges are masterfully crafted to deliver an elevated culinary experience.
| DIMENSIONS | |
|---|---|

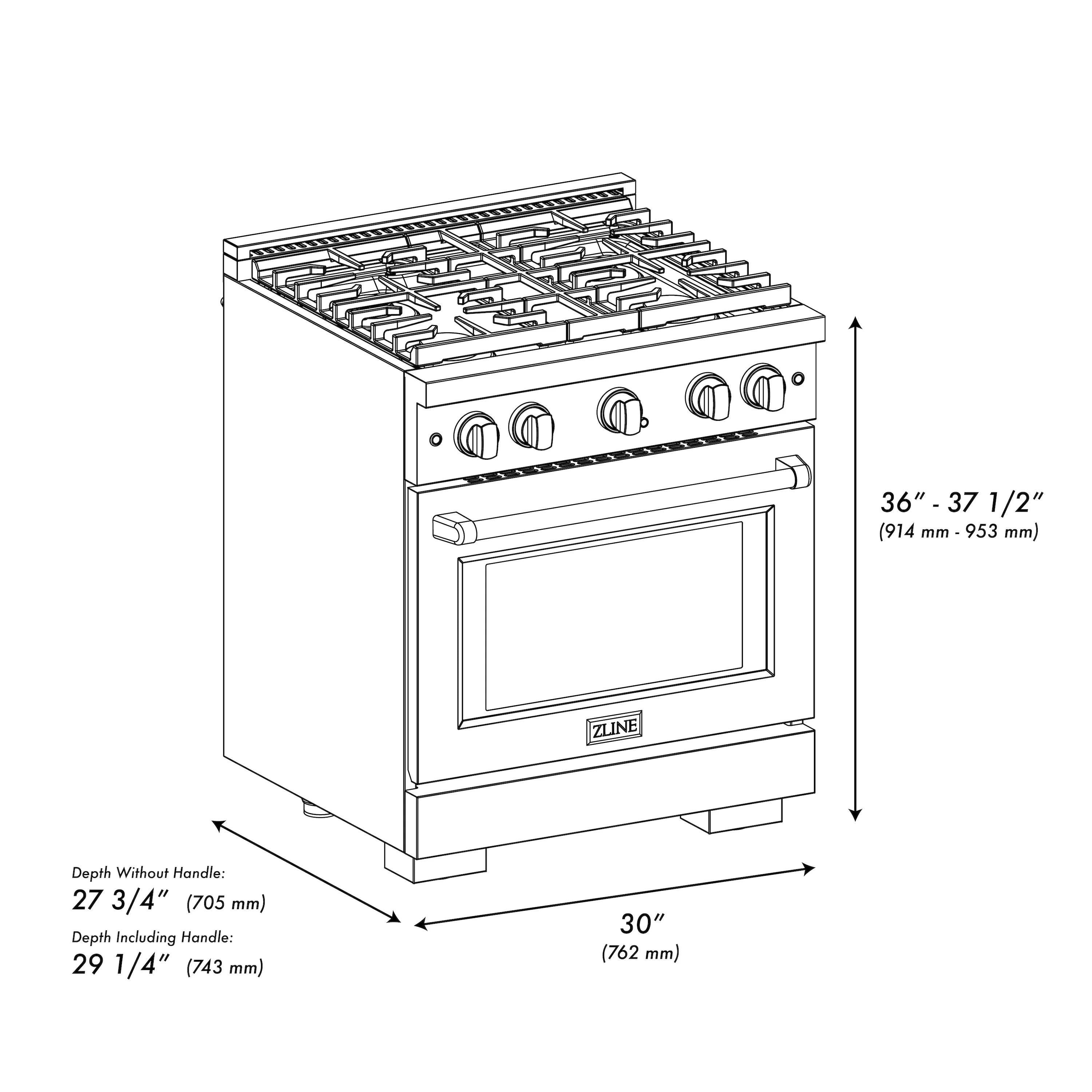

| Product Dimensions | 30 in. W x 27.75 in. D (29.25 with handle) x 36 in. H |
| Cut-Out Dimensions | 30.25 in. W x 24.75 in. D x 36 in. H |
| Adjustable Height | 36 - 37.5 in. H |
| Product Depth with Handle | 29.25 in. D |
| Open Door Depth | 45.1 in. D |
| Interior Oven Dimensions | 24.875 in. W x 17.75 in. D x 16 in. H |
| Weight | 218 lbs |
| GENERAL INFORMATION | |

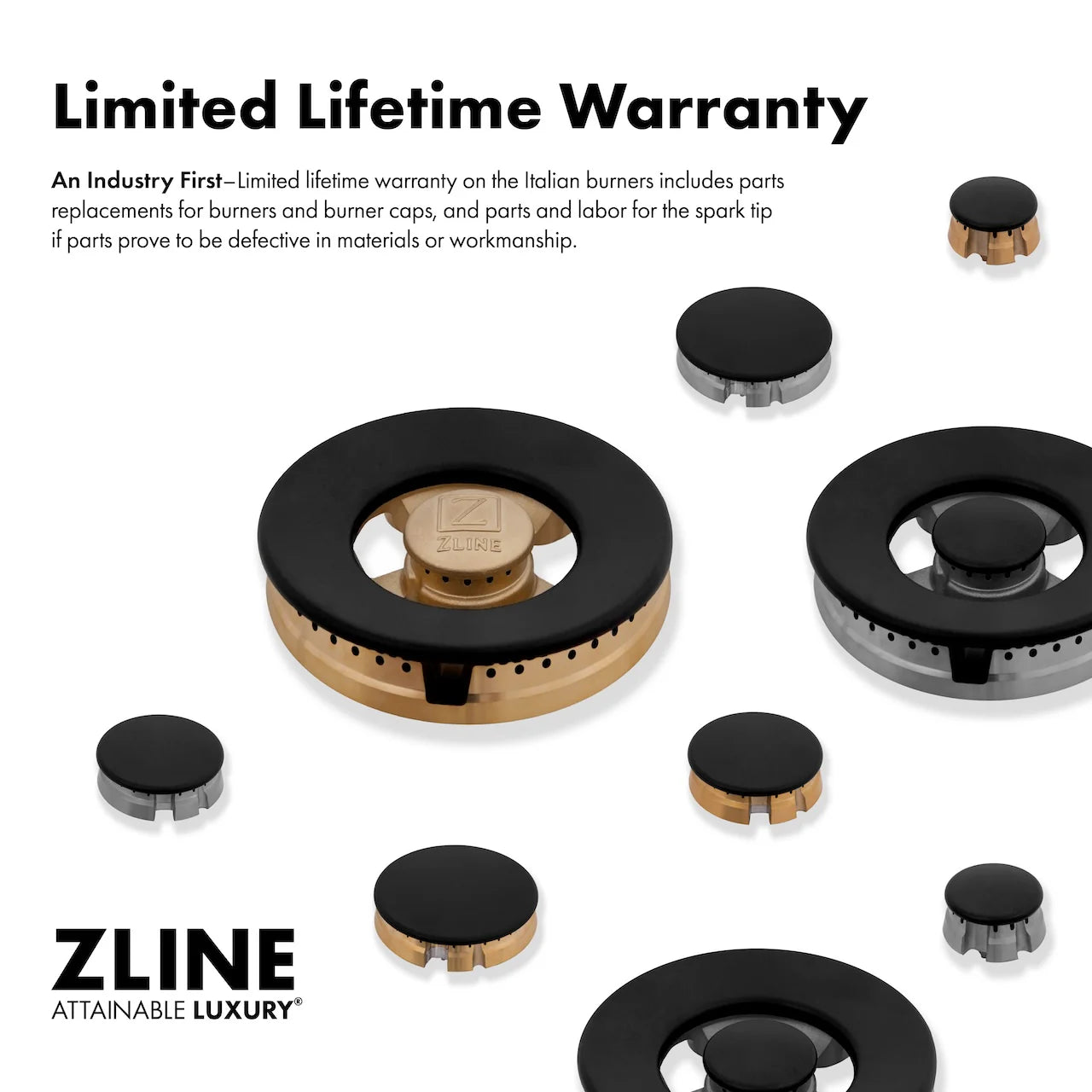

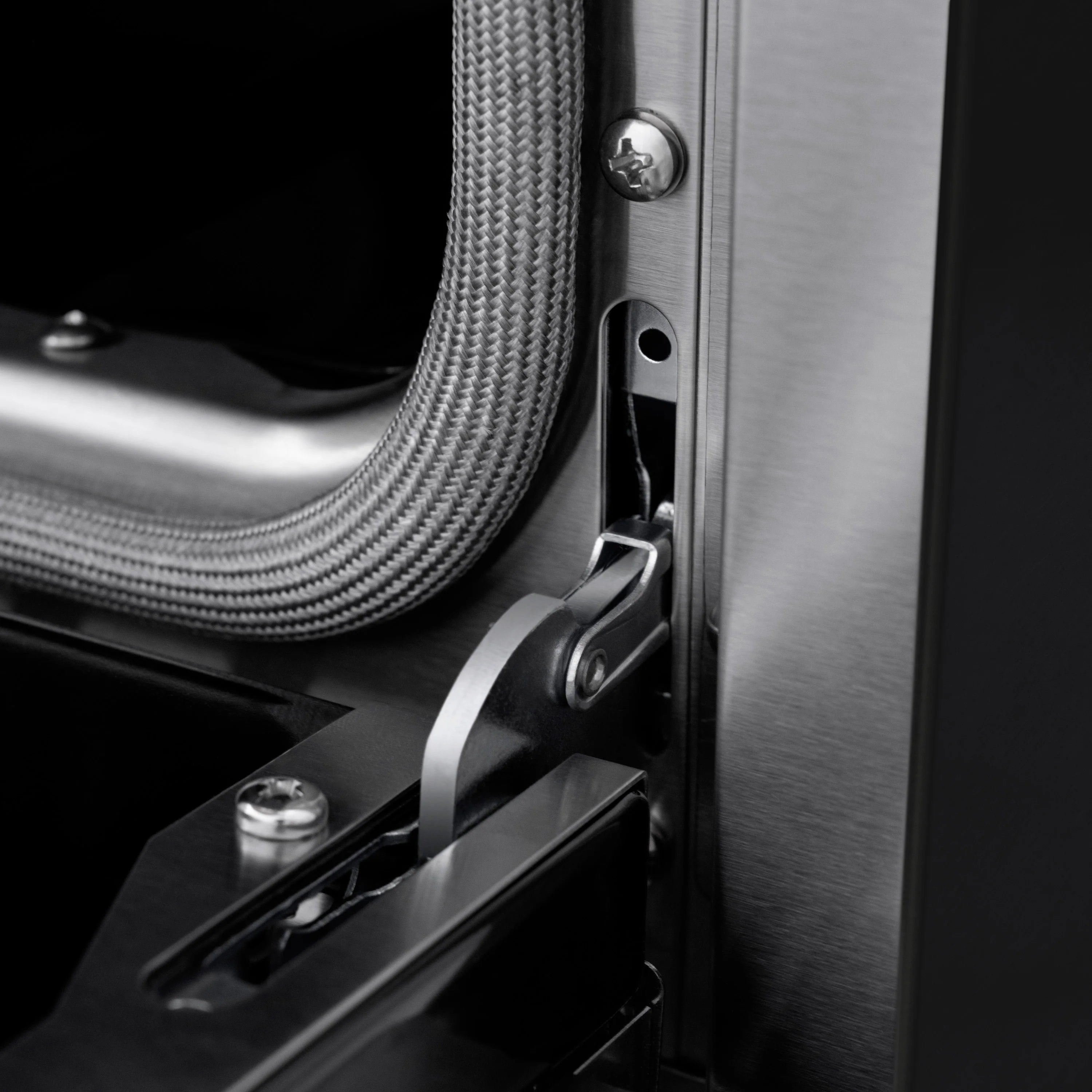

| Additional Features | Italian Burners: Lifetime Burner Warranty Electronic Ignition and Auto-Reignition Stay-Put Hinges Full Extension Telescoping Glide Racks LED Accent Lighting 3-Layered Glass on Oven Door |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Material | Black Stainless Steel |
| Accent Finish | Champagne Bronze |
| Control Type | Manual Front Control |
| Lighting | 2 Halogen Lights |
| TECHNICAL DETAILS | |
| Electrical Requirements | 120V/60 Hz/15A Dedicated Circuit |
| COOKTOP FEATURES | |
| Burner Fuel | Natural Gas and Liquid Propane Convertible |
| Number of Burners | 4 |

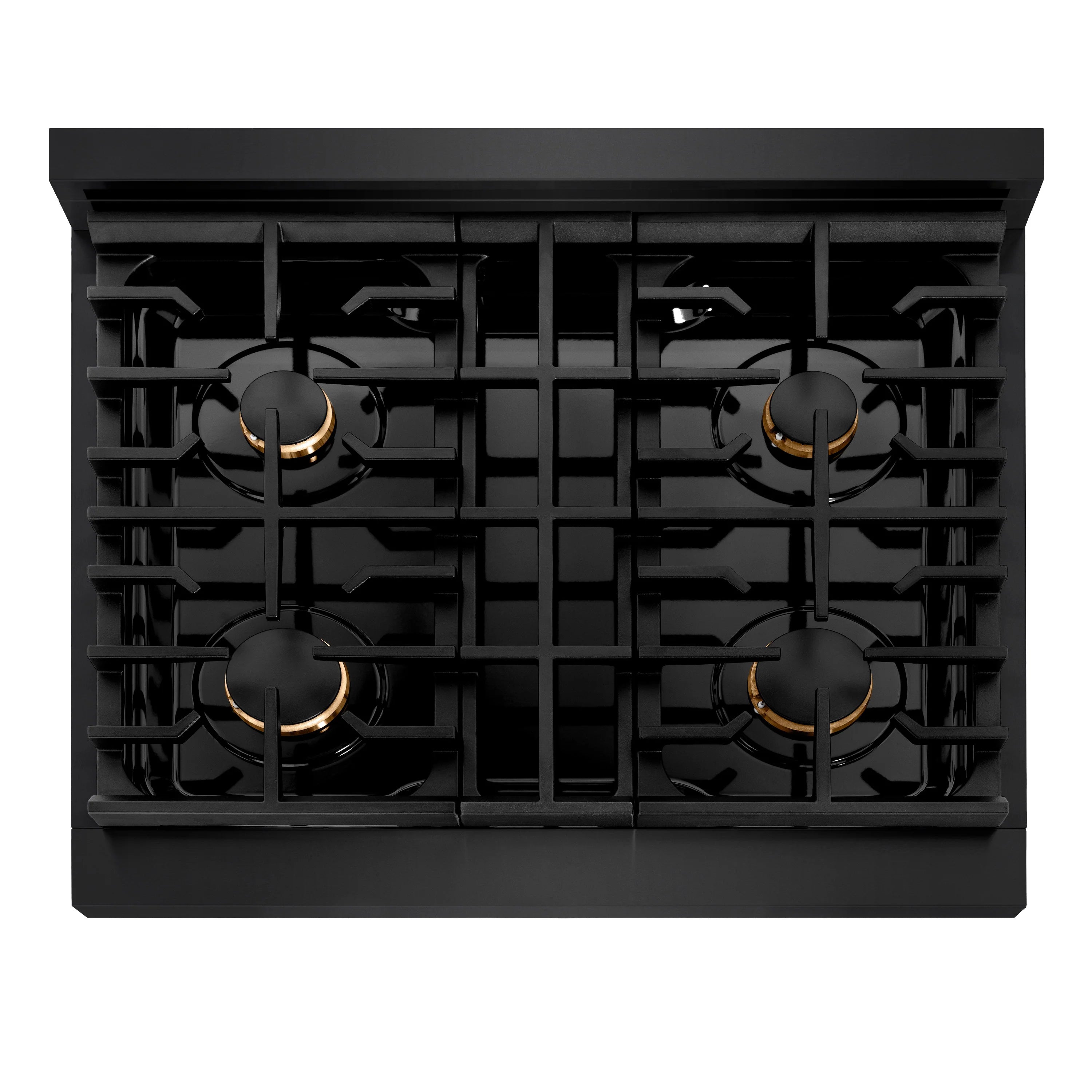

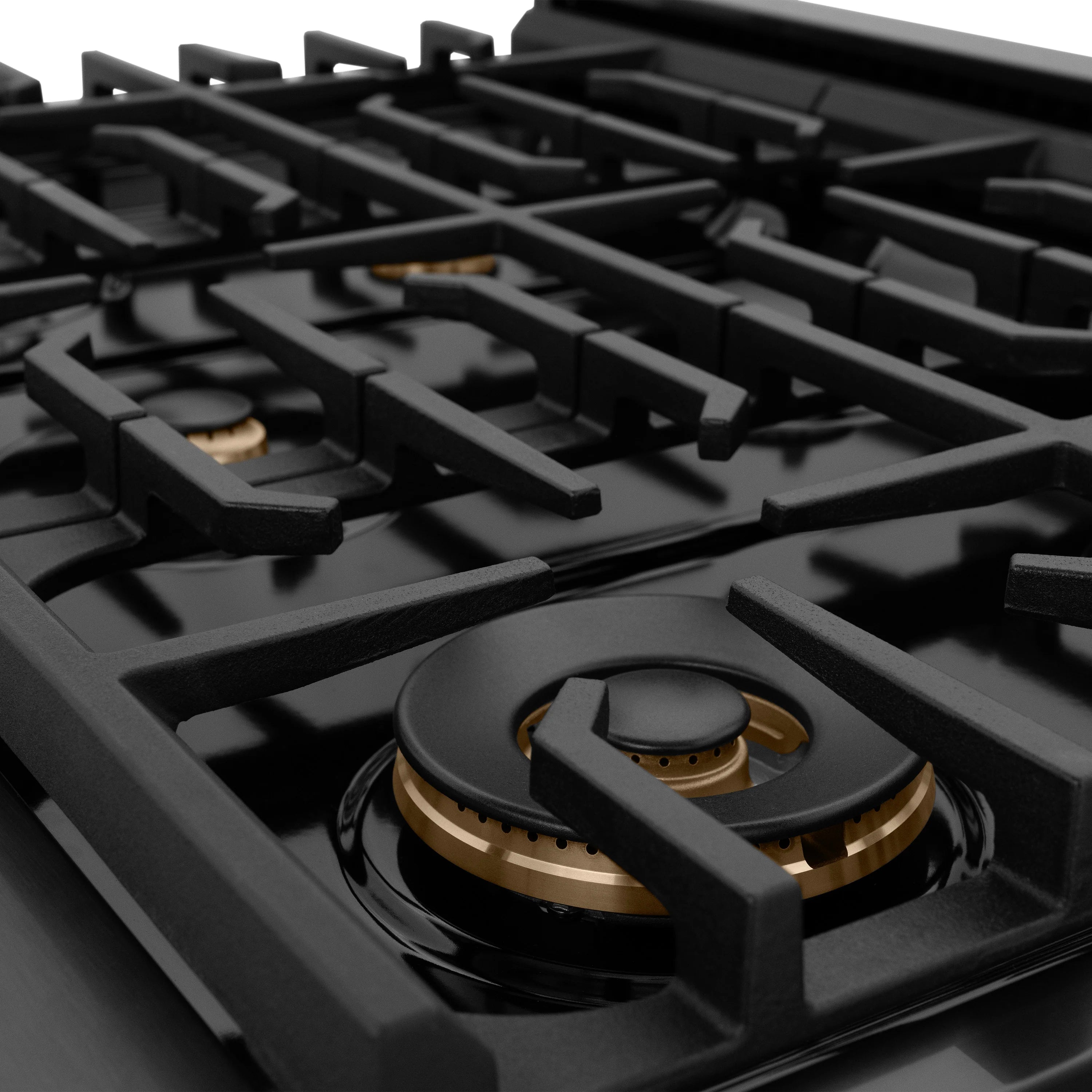

| Cooktop BTUs | Electronic Ignition and Auto-Reignition Back Left: Semi-Rapid 9,000 BTU Front Left: Rapid 15,000 BTU Back Right: Semi-Rapid 9,000 BTU Front Right: Rapid 15,000 BTU |
| OVEN FEATURES | |
| Oven Fuel | Natural Gas and Liquid Propane Convertible |
| Oven Capacity (cu.ft) | 4.2 cu. ft. |
| Oven BTUs | Broil BTU Output: 10,000 BTU Bake BTU Output: 22,000 BTU |
| Oven Features |
|

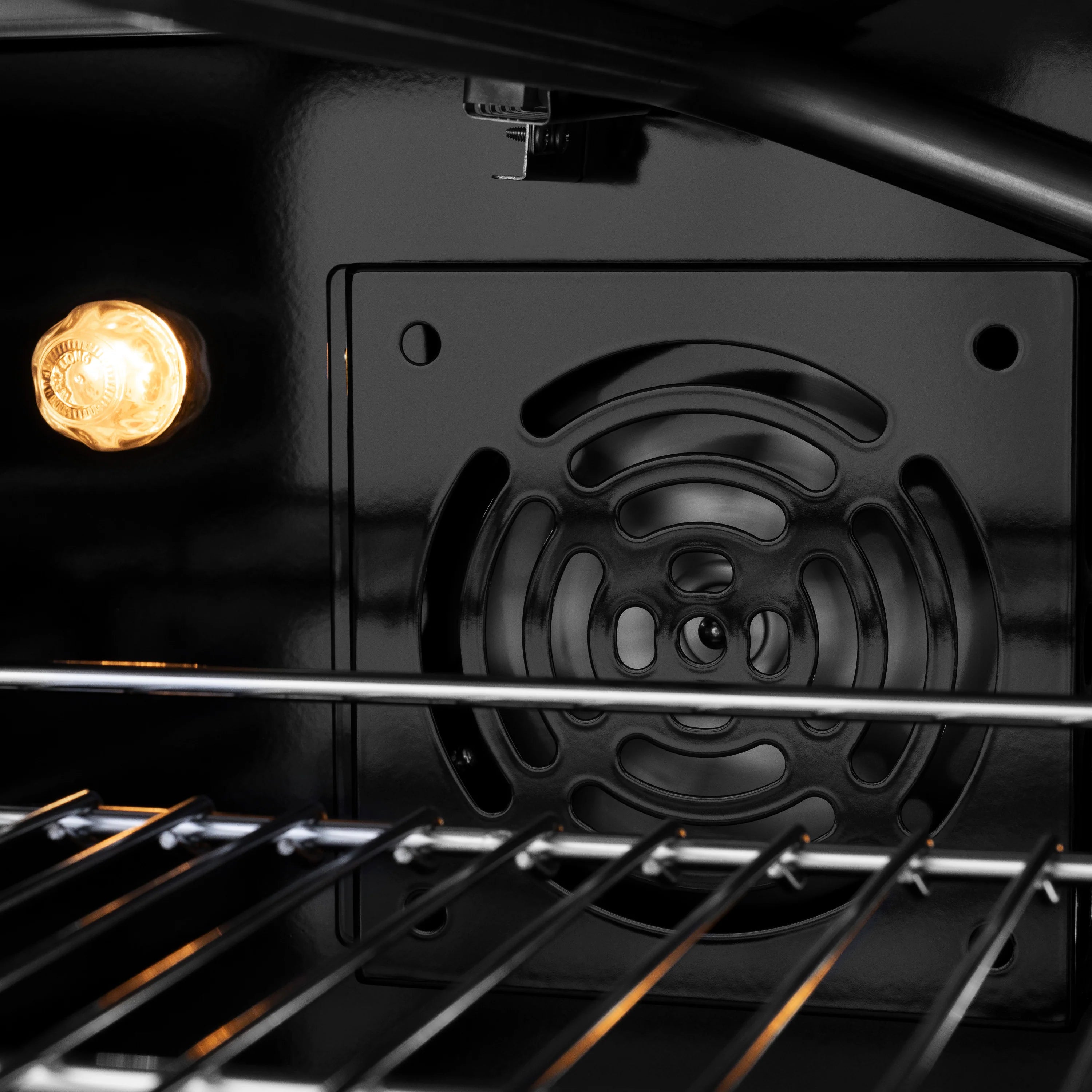

| Convection Fan | Yes |
| Self Clean (Y/N) | No |
| Timer (Y/N) | No |
| Number of Racks | 2 |
| WARRANTY & CERTIFICATIONS | |
| Certifications | ETL Listed |
| Warranty | 1-Year Parts and Service Lifetime Burner Warranty |
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel and Champagne Bronze Traditional Handles (RFMZ-36-BS-CB) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
This refrigerator and its door handles will ship in multiple boxes and requires assembly upon installation.
| DIMENSIONS | |
|---|---|
| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Black Stainless Steel with Champagne Bronze Accents |
| TECHNICAL DETAILS | |
| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |
| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |
| Humidity-Controlled Crispers | 2 |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.61 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

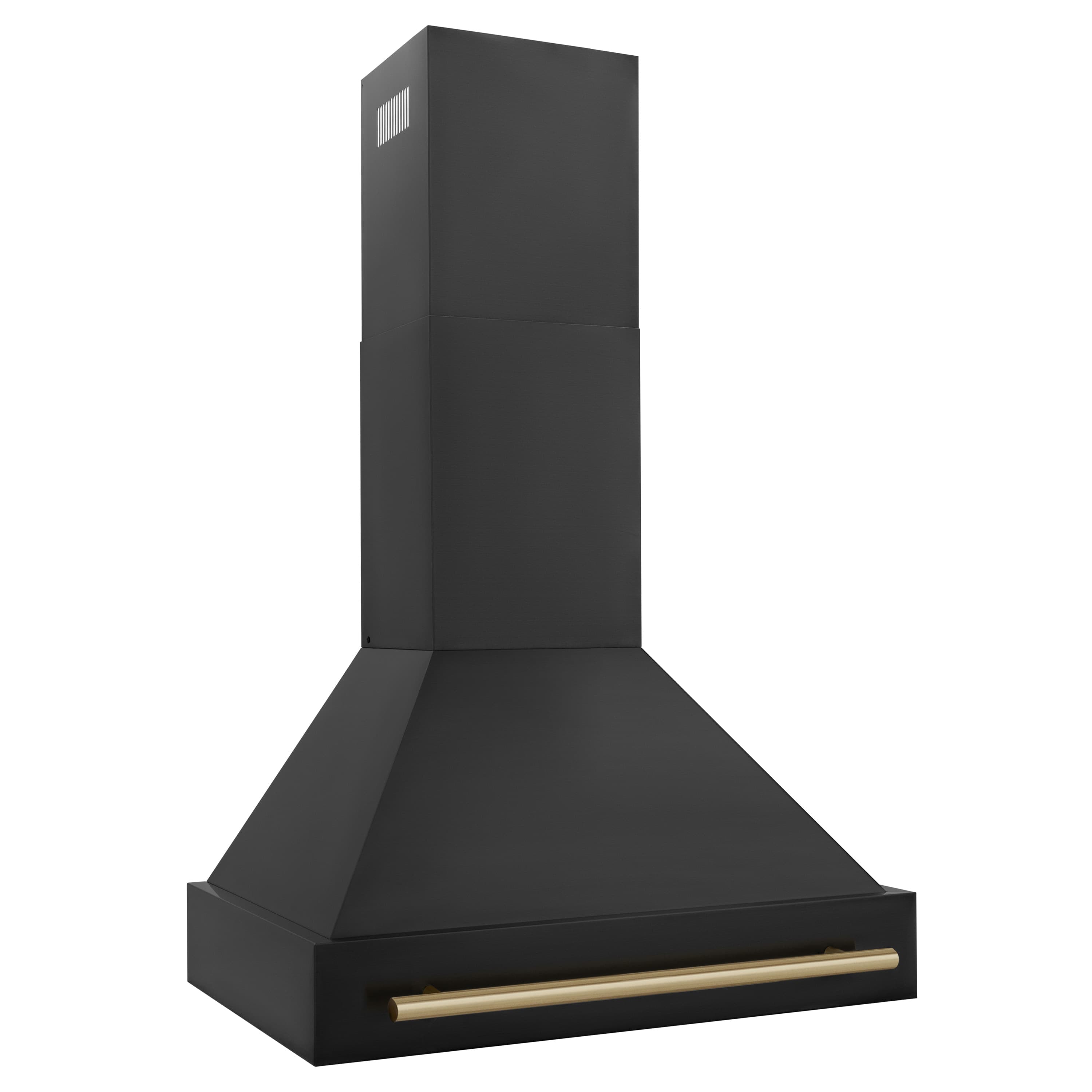

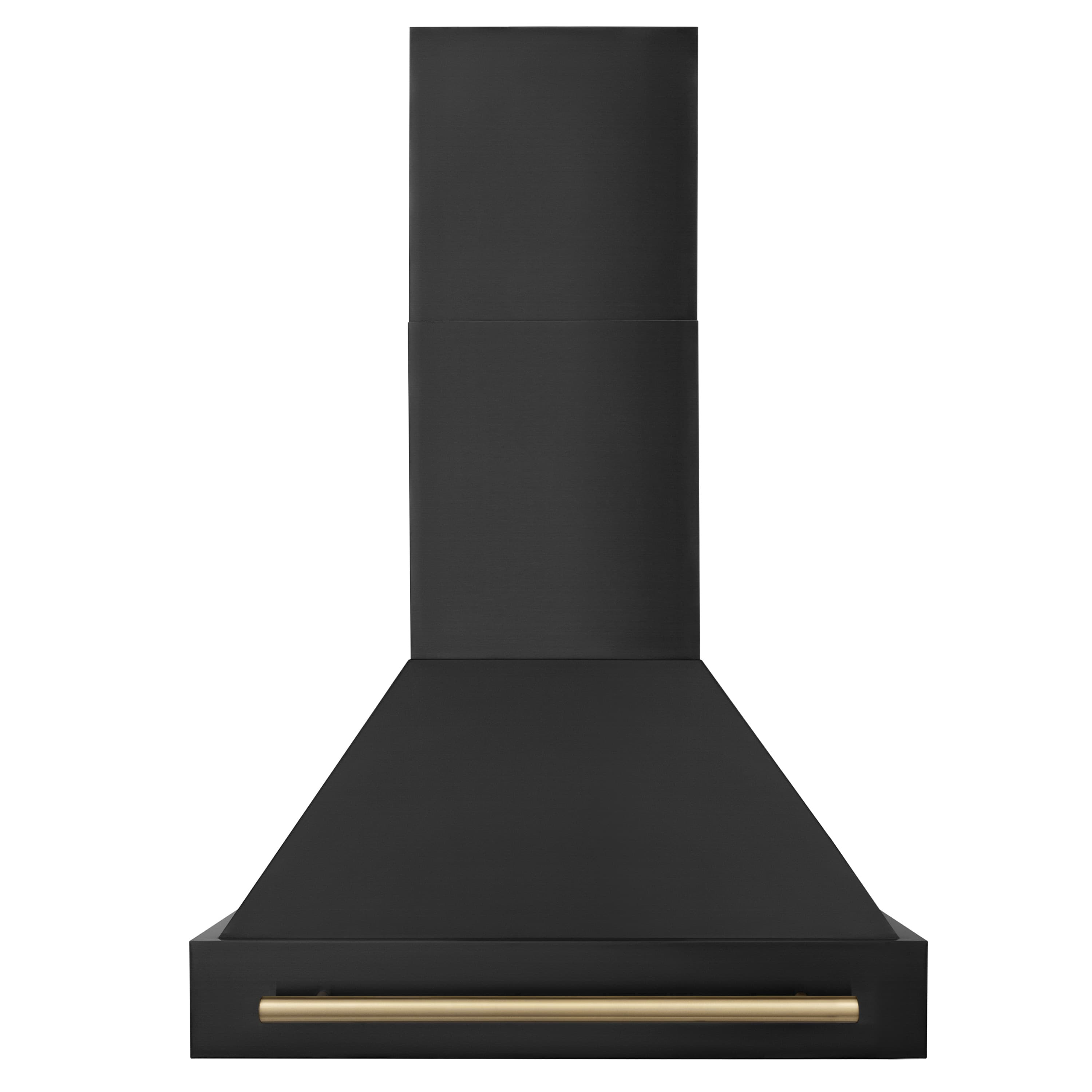

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.
Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a black stainless steel hood and a beautiful accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze or Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes.
From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
| DIMENSIONS | |
|---|---|
| Dimensions | 30 in. W x 23.75 in. D x 16.5 in. H |
| Chimney Dimensions | 13.5" W x 11.75" D x 16" H (x2) (Telescoping) |
| Handle Dimensions | 23.1" W x 0.8" D x 2.4" H |
| Min Ceiling Height | 7.37 Feet |
| Max Ceiling Height | 10.37 Feet |
| Weight | 90 |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath |
| Outdoor Use | Yes |
| Recirculating | No |
| DESIGN & FINISH | |
| Material | Black Stainless Steel |
| Handle Finish | Champagne Bronze |

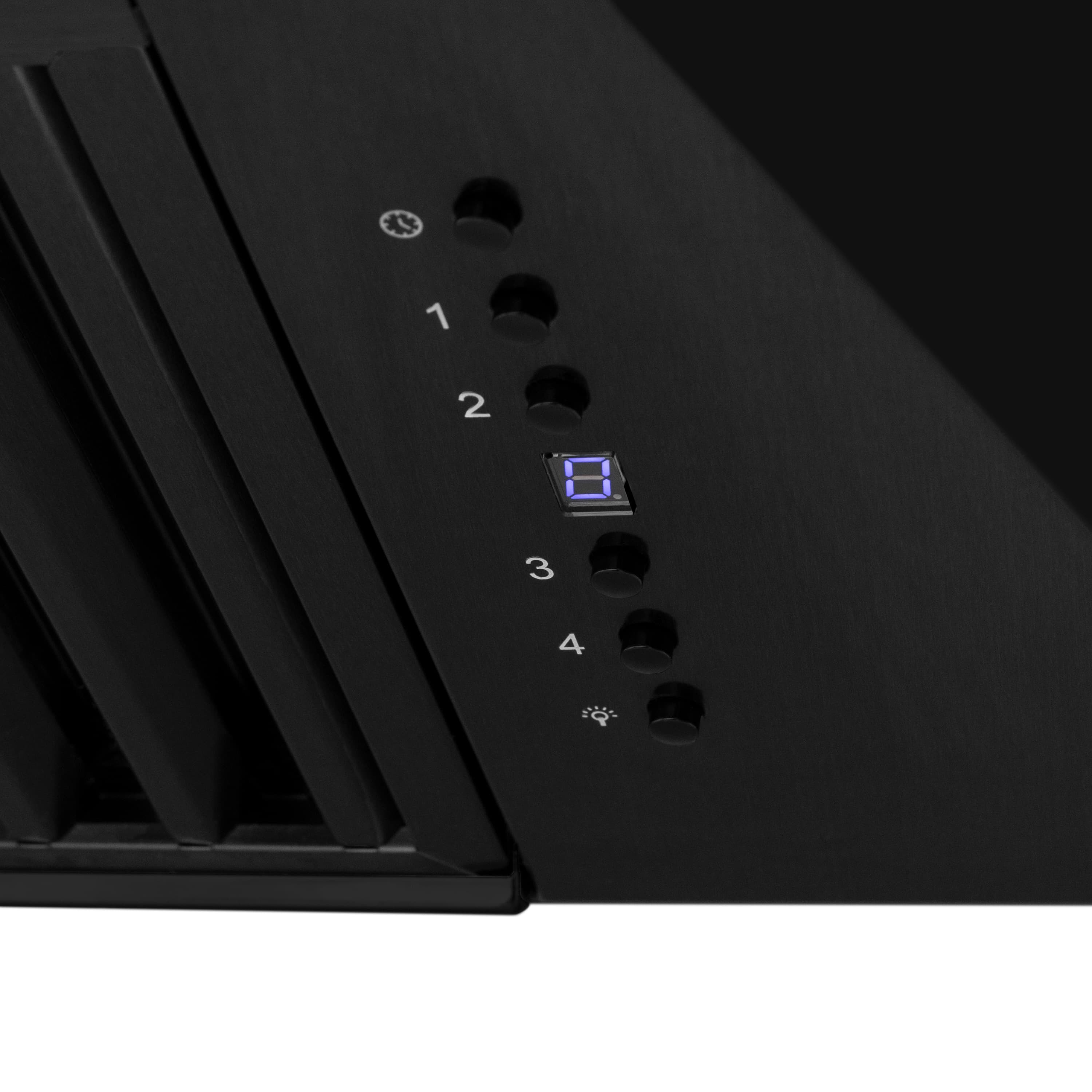

| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| TECHNICAL DETAILS | |
| Duct size | 6" |
| Voltage | 110 |
| Watts | 385 |
| Amps | 3.5 |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Decibels | 51/55/58/61 |
| Sones | 0.6/1.1/1.5/2.5 |
| Max CFM | 700 |
| # of Speeds | 4 |
| Recirculating / Ductless | Yes |
| FEATURES | |

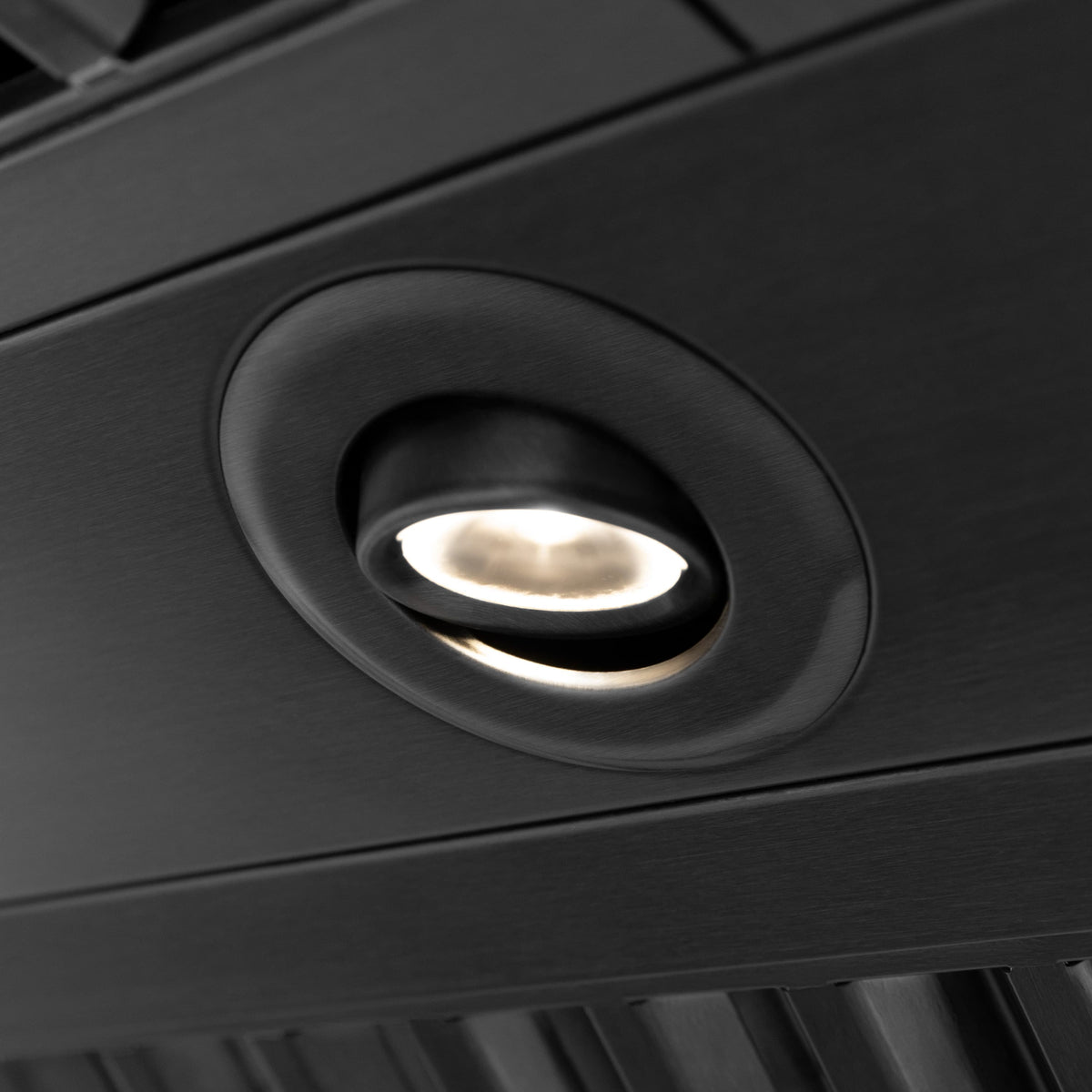

| Number of lights | 2 |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |

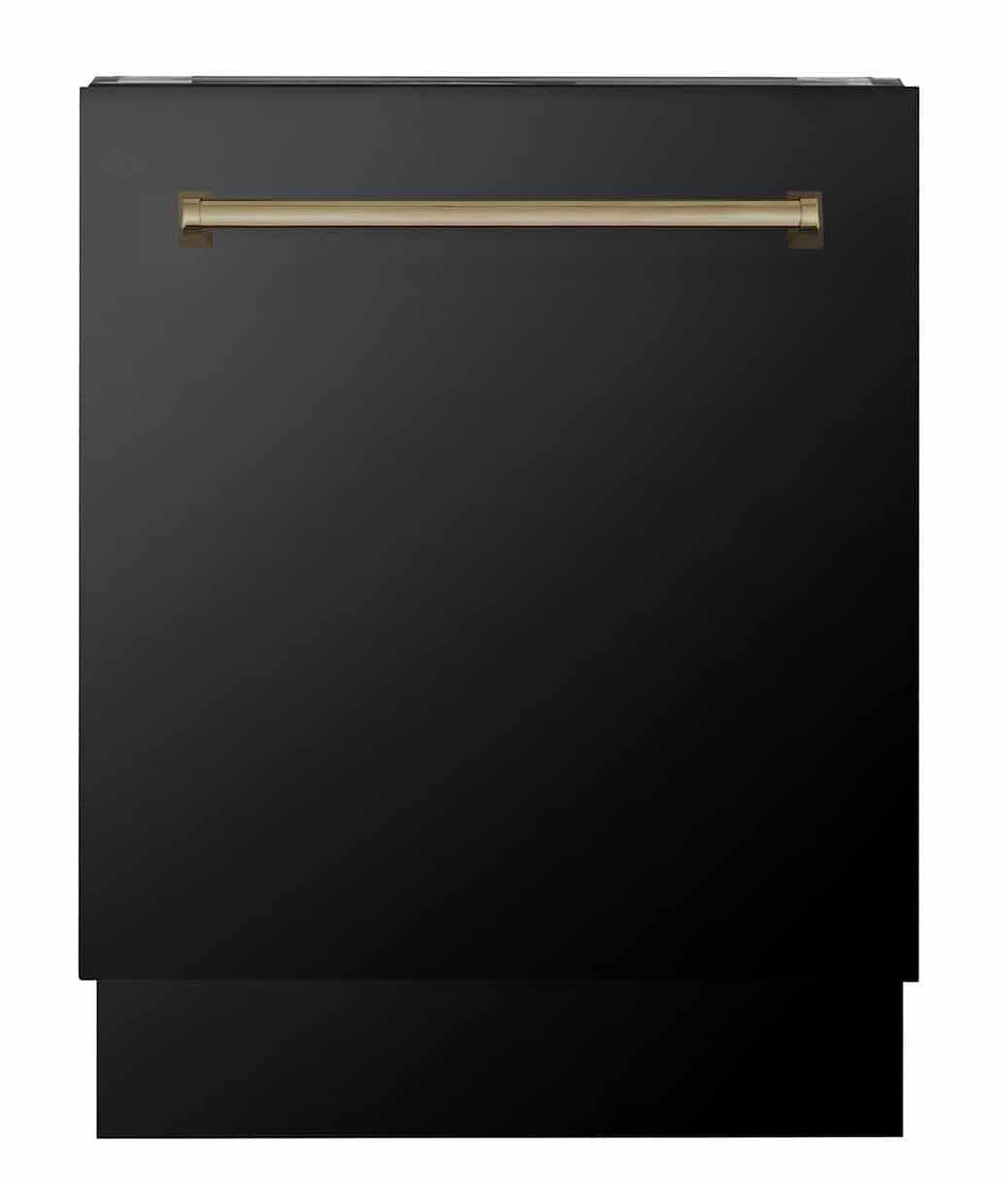

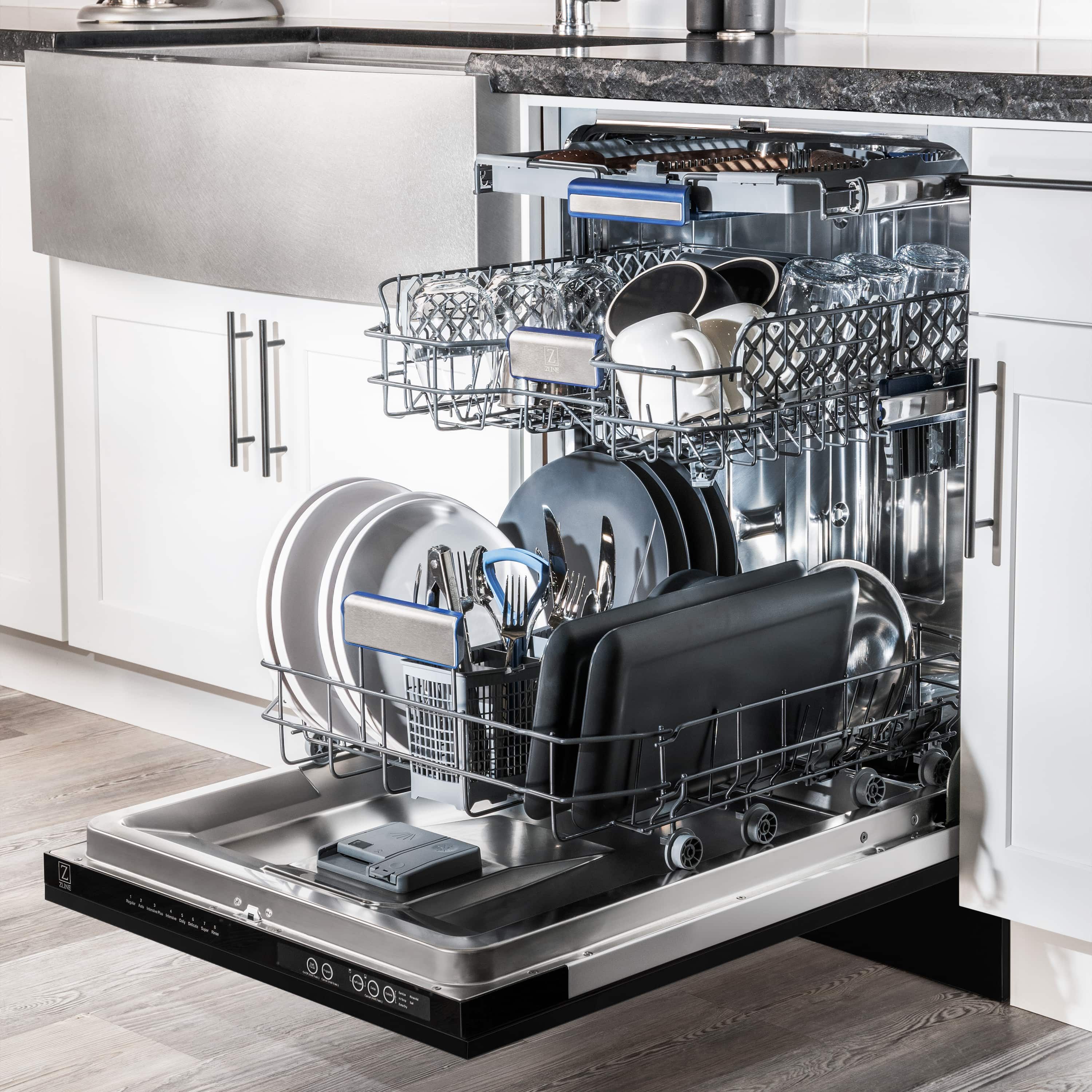

The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Champagne Bronze Handle (DWVZ-BS-24-CB) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |
| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | Black Stainless Steel |
| Handle Finish | Champagne Bronze |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |
| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |
| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
