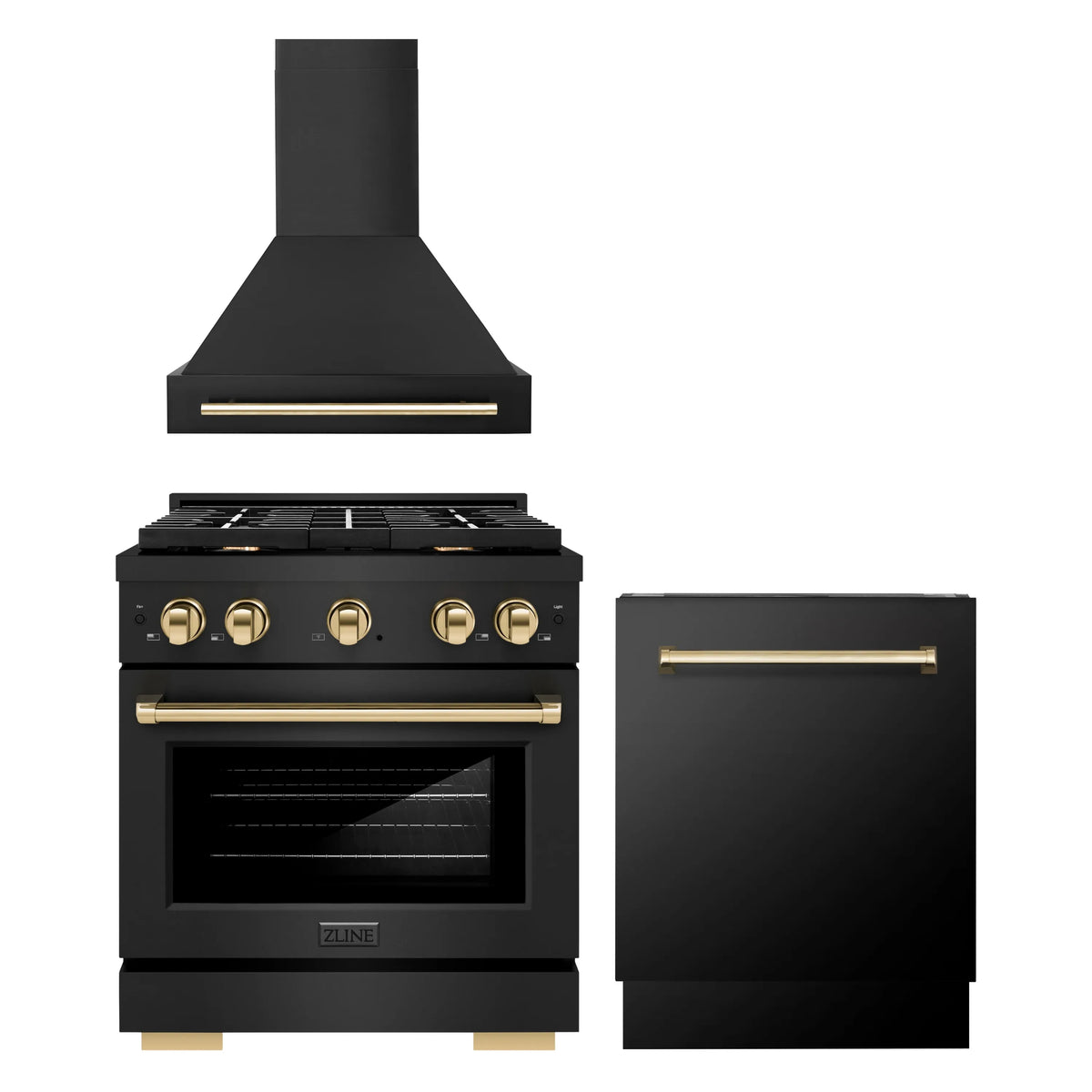

ZLINE Autograph Edition 3-Piece Appliance Package - 30-Inch Gas Range, Wall Mounted Range Hood, & 24-Inch Tall Tub Dishwasher in Black Stainless Steel with Gold Trim (3AKP-SGRBRHDWV30-G)
Click on image to zoomClick on image to zoom
/
Secure Payment
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺
Package Overview
Home Outlet Direct brings together the most popular ZLINE kitchen appliances in one perfectly matched package.
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 30 in. 4.2 cu. ft. 4 Burner Gas Range with Convection Gas Oven in Black Stainless Steel and Polished Gold Accents (SGRBZ-30-G) features a versatile gas cooktop with 4 Italian-made burners, a high-performing gas convection oven, and elegant polished gold knobs and handle allowing you to master every meal. With a modern, timeless style and refined functionality, ZLINE Professional Gas Ranges are masterfully crafted to deliver an elevated culinary experience.
Features:
Custom Knobs and Handles -Outfit your ZLINE Autograph Edition Gas Range with elegant Polished Gold knobs and handle accents
Black Stainless Finish-Featuring stunning black stainless steel and durable cast iron grates that exceed standards for a true professional experience
Professional Gas Range -Gas cooktop with professional style burners that have 1,500 - 15,000 BTUs giving you the flexibility to reach lower temperatures or sear and sauté
Italian-Made Auto-Reignition Burners -4 Italian-made gas burners that easily ignite and automatically reignite for improved temperature control and safety
Convection Gas Oven -Standard bake, broil, and convection bake modes with a maximum BTU output of 22,000 to elevate your culinary endeavors
Stainless Steel Oven Burners -Tubular bake and broil burners are designed for optimal gas combustion that allows for even heat distribution for a perfect baking experience
Large Oven Capacity -4.2 cu. ft. oven capacity that fits pans up to 20 in. wide for maximum space and convenience with everyday cooking
StayPut Oven Door Hinges -Designed to support the full weight of the oven door, offering additional convenience and safety
Premium Oven Insulation -3-layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, creating perfect dishes every time
Smooth Glide Ball-Bearing Oven Racks -Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
Dual Oven Lights -Illuminate your oven space with dual halogen lighting, located in the upper and lower sections of the oven and controlled by a switch conveniently located on the front control panel
Minimal Cleaning -Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
LP Conversion Kit -Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
Industry First Lifetime Burner Warranty -Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
Manufacturer Warranty -1-year parts and service warranty
DIMENSIONS
Product Dimensions
30 in. W x 27.75 in. D (29.25 with handle) x 36 in. H
Cut-Out Dimensions
30.25 in. W x 24.75 in. D x 36 in. H
Adjustable Height
36 - 37.5 in. H
Product Depth with Handle
29.25 in. D
Open Door Depth
45.1 in. D
Interior Oven Dimensions
24.875 in. W x 17.75 in. D x 16 in. H
Weight
218 lbs
GENERAL INFORMATION
Additional Features
Italian Burners: Lifetime Burner Warranty Electronic Ignition and Auto-Reignition Stay-Put Hinges Full Extension Telescoping Glide Racks LED Accent Lighting 3-Layered Glass on Oven Door
DESIGN & FINISH
Color
Black
Finish
Black Stainless Steel
Material
Black Stainless Steel
Accent Finish
Polished Gold
Control Type
Manual Front Control
Lighting
2 Halogen Lights
TECHNICAL DETAILS
Electrical Requirements
120V/60 Hz/15A Dedicated Circuit
COOKTOP FEATURES
Burner Fuel
Natural Gas and Liquid Propane Convertible
Number of Burners
4
Cooktop BTUs
Electronic Ignition and Auto-Reignition Back Left: Semi-Rapid 9,000 BTU Front Left: Rapid 15,000 BTU Back Right: Semi-Rapid 9,000 BTU Front Right: Rapid 15,000 BTU
Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.
Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a black stainless steel hood and a beautiful accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze or Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes.
From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
Features:
Gold handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents
Easy-to-use push button controls let's you easily control fan speed and lighting
4-Speed Fan Control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
ZLINE's black stainless steel is achieved through a technique called PVD (Physical Vapor Deposition) Coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality
Ductwork easily connects to the top of the range hood for external venting
Dishwasher-safe stainless steel baffle filters
LED lighting illuminates the cooktop beneath the hood
Handle is for cosmetic purposes only and should not be used for hanging items
3 year parts warranty, life-time motor warranty
DIMENSIONS
Dimensions
30 in. W x 23.75 in. D x 16.5 in. H
Chimney Dimensions
13.5" W x 11.75" D x 16" H (x2) (Telescoping)
Handle Dimensions
23.1" W x 0.8" D x 2.4" H
Min Ceiling Height
7.37 Feet
Max Ceiling Height
10.37 Feet
Weight
90
GENERAL INFORMATION
Brand
ZLINE Kitchen and Bath
Outdoor Use
Yes
Recirculating
No
DESIGN & FINISH
Material
Black Stainless Steel
Handle Finish
Gold
Button Panel
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Polished Gold Handle (DWVZ-BS-24-G) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Polished Gold handle paired with a beautiful black stainless steel door panel
Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
DIMENSIONS
Size
24 in.
Dimensions
23.6" W x 22.4" D x 33.9" H
Product Weight
106.8 lbs
Cut-Out Height
34.13 in.
Cut-Out Width
24 in.
Interior Dimensions
20.95" W x 20.5" D x 24.17"H
Max Plate Height
13 in.
GENERAL INFORMATION
Installation Type
Plug In - Nema 5-15
Panel Ready
N
DESIGN & FINISH
Panel Finish
Black Stainless Steel
Handle Finish
Polished Gold
Handle Type
Traditional Style
Control Location
Top Control
Control Type
Button Control
Silverware Basket Location
Bottom Rack Center
TECHNICAL DETAILS
Voltage
120vac
Frequency
60Hz
Dedicated Circuit
15A
Rated Current
12A
Motor Wattage
100W
Heater Wattage
1100W
Motor Amperage
0.84A
Heater Amperage
10A
Energy Consumption Per Year
239 kWh
Water Consumption Per Cycle (Liters)
11.73 L
Water Consumption Per Cycle (Gallons)
3.1 gal
Decibels
51 dBa
Extended Hose Length
56 in.
FEATURES
Drying System
Turbo Fan Drying + Auto Door
Steam Function
Without Steam
Features
Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Polished Gold handle paired with a beautiful black stainless steel door panel
Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
