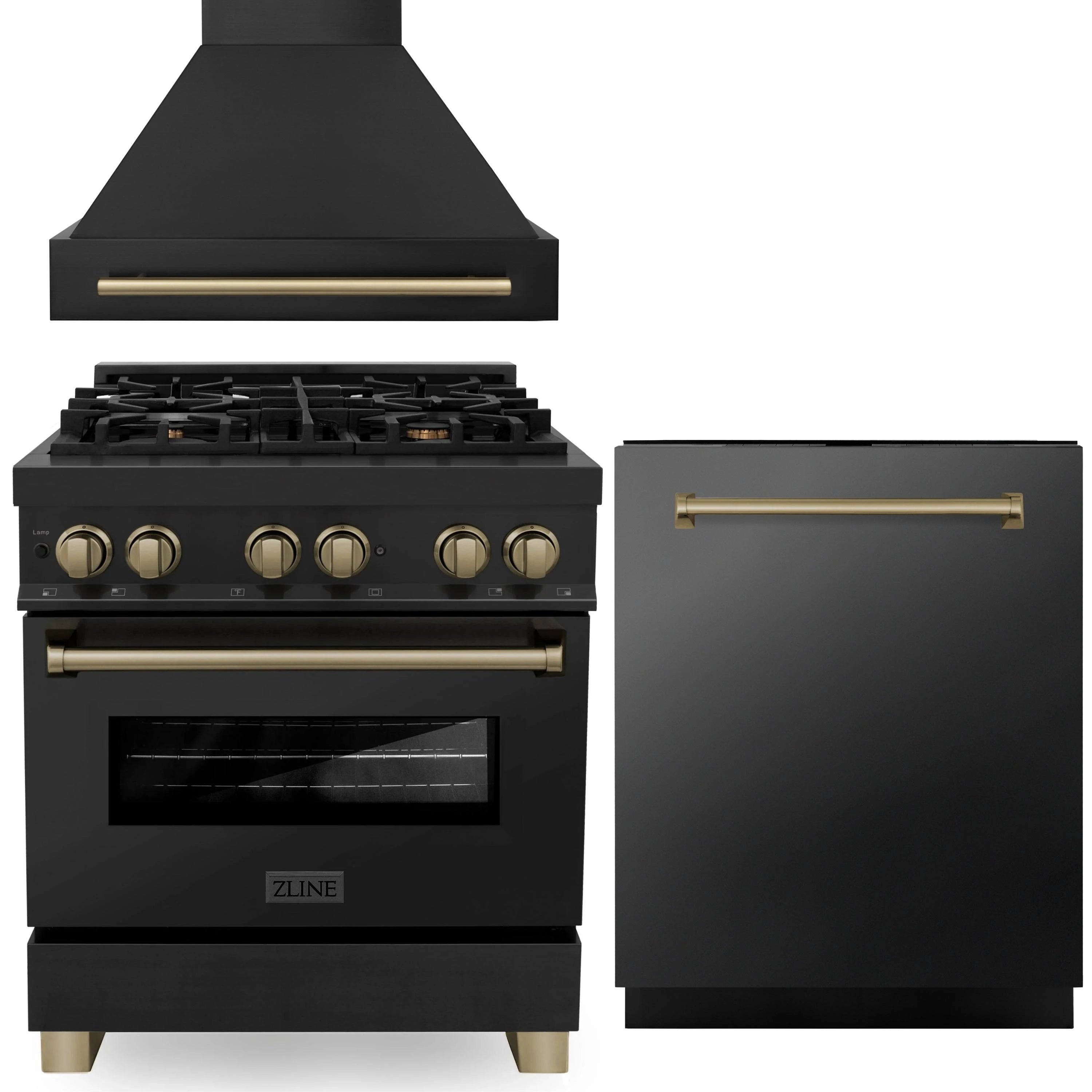

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

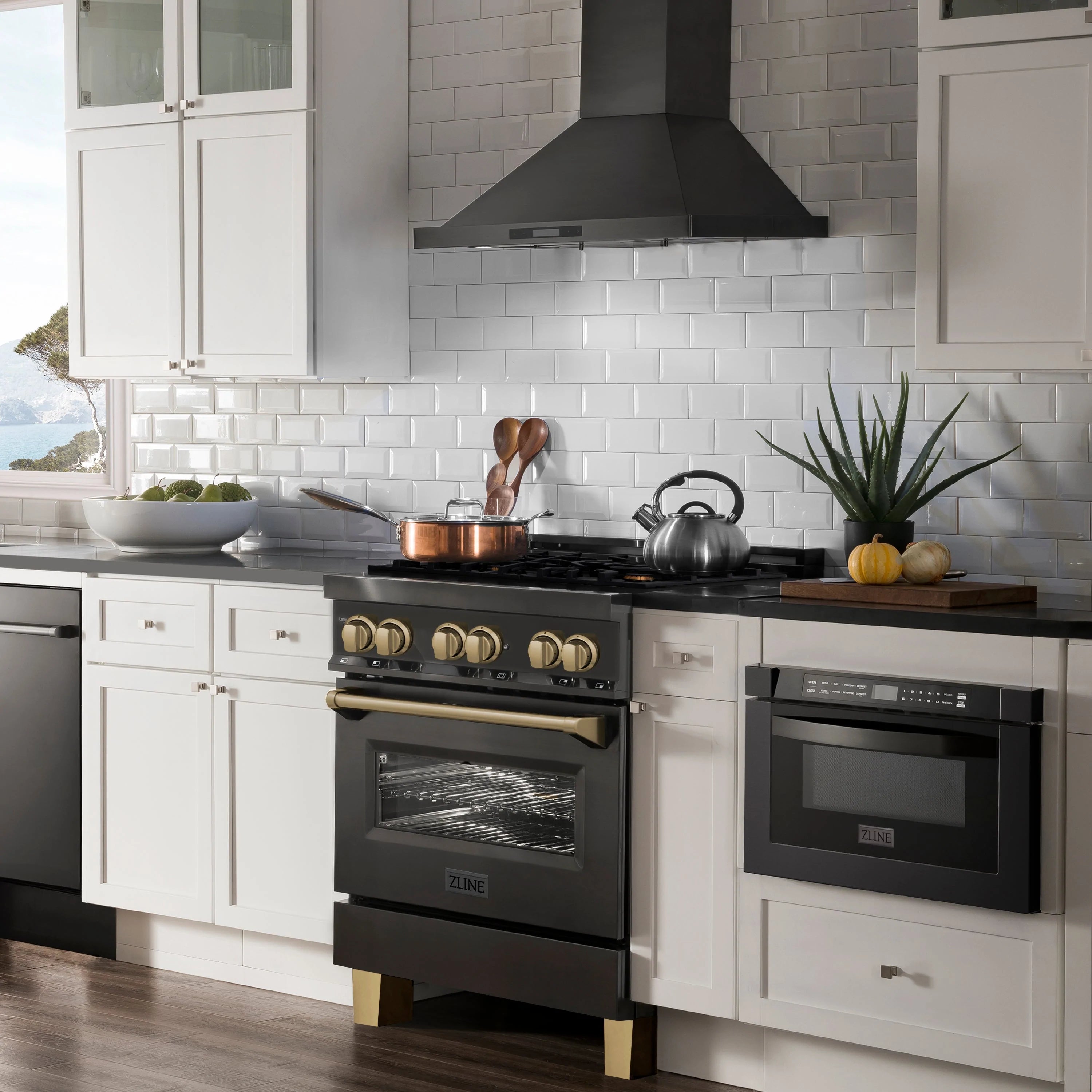

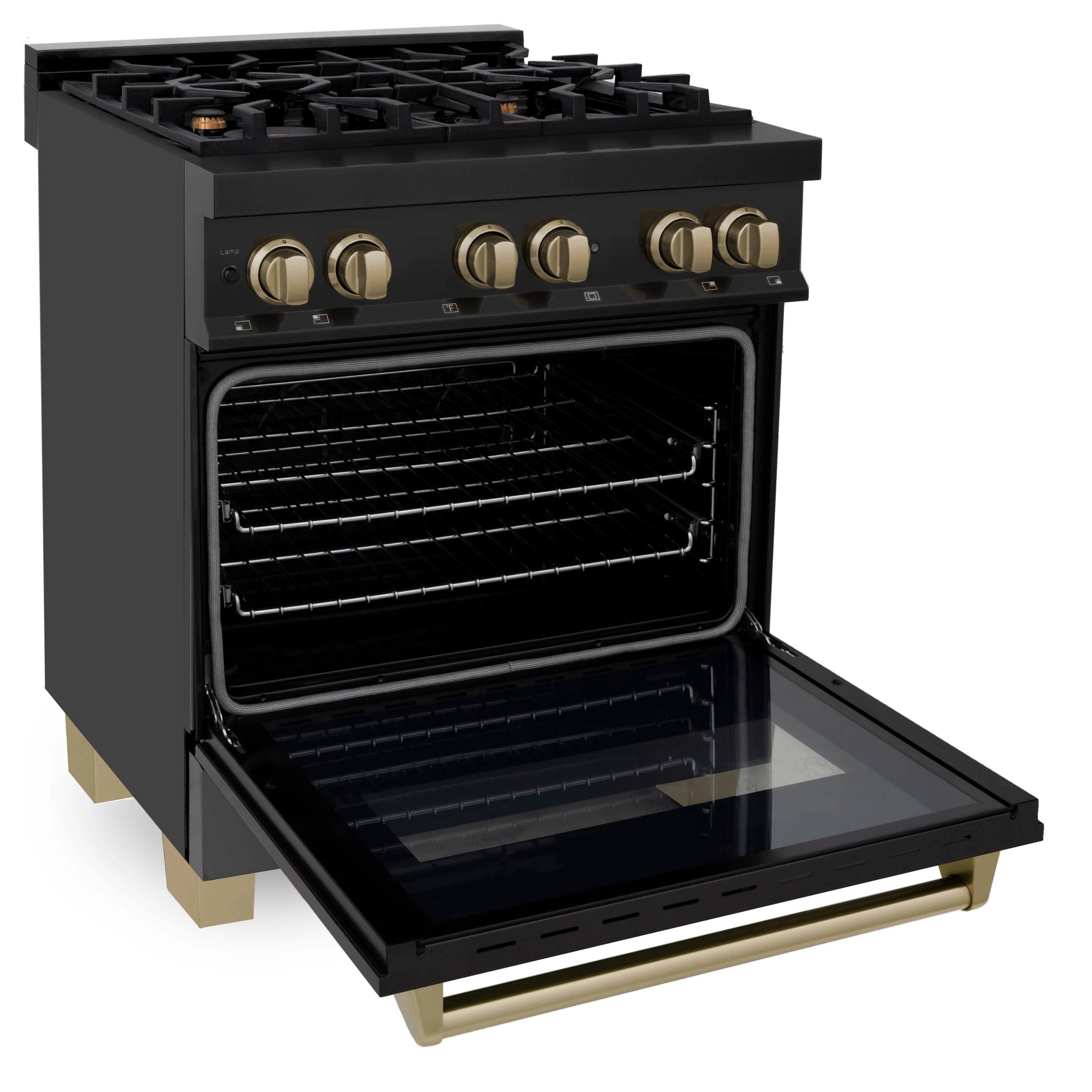

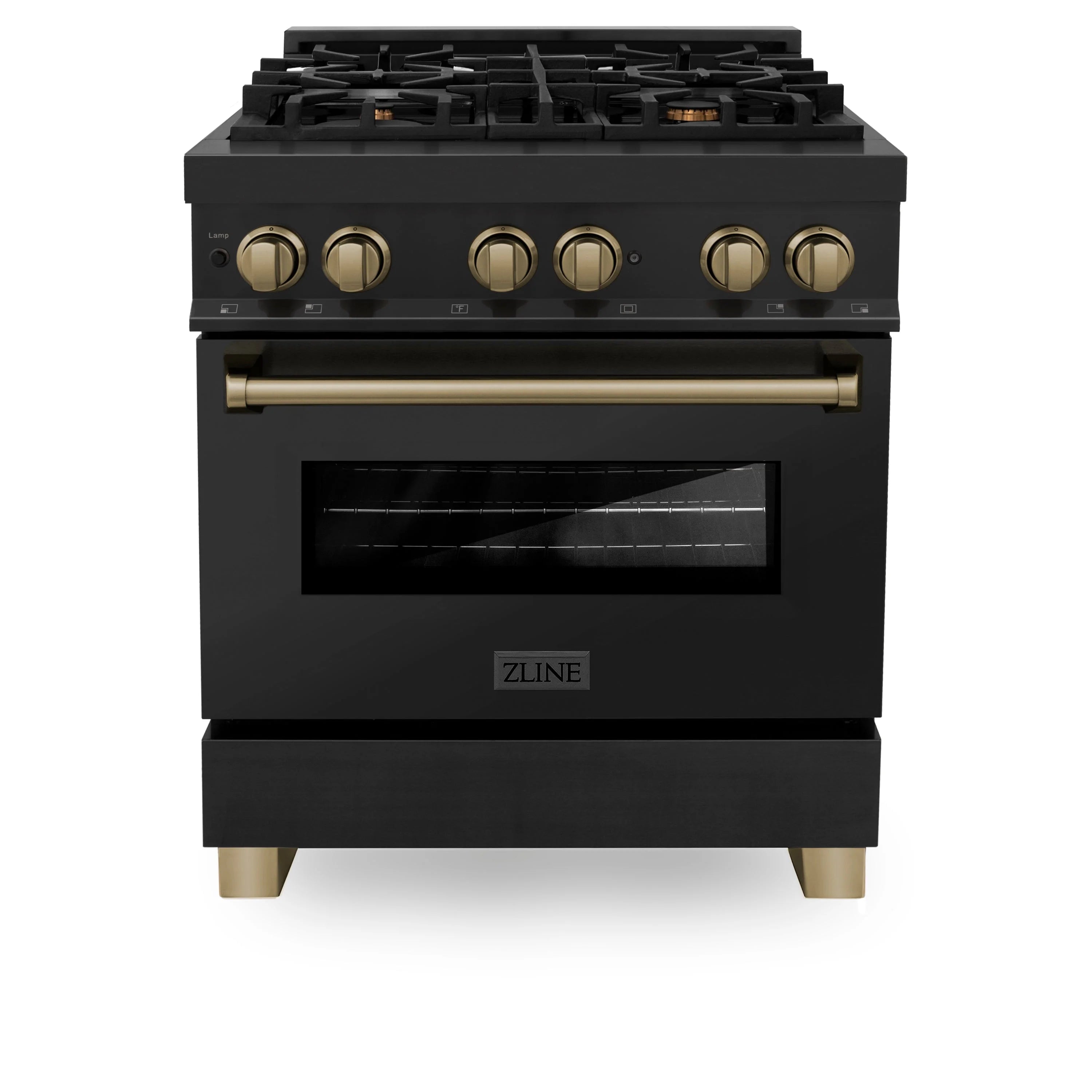

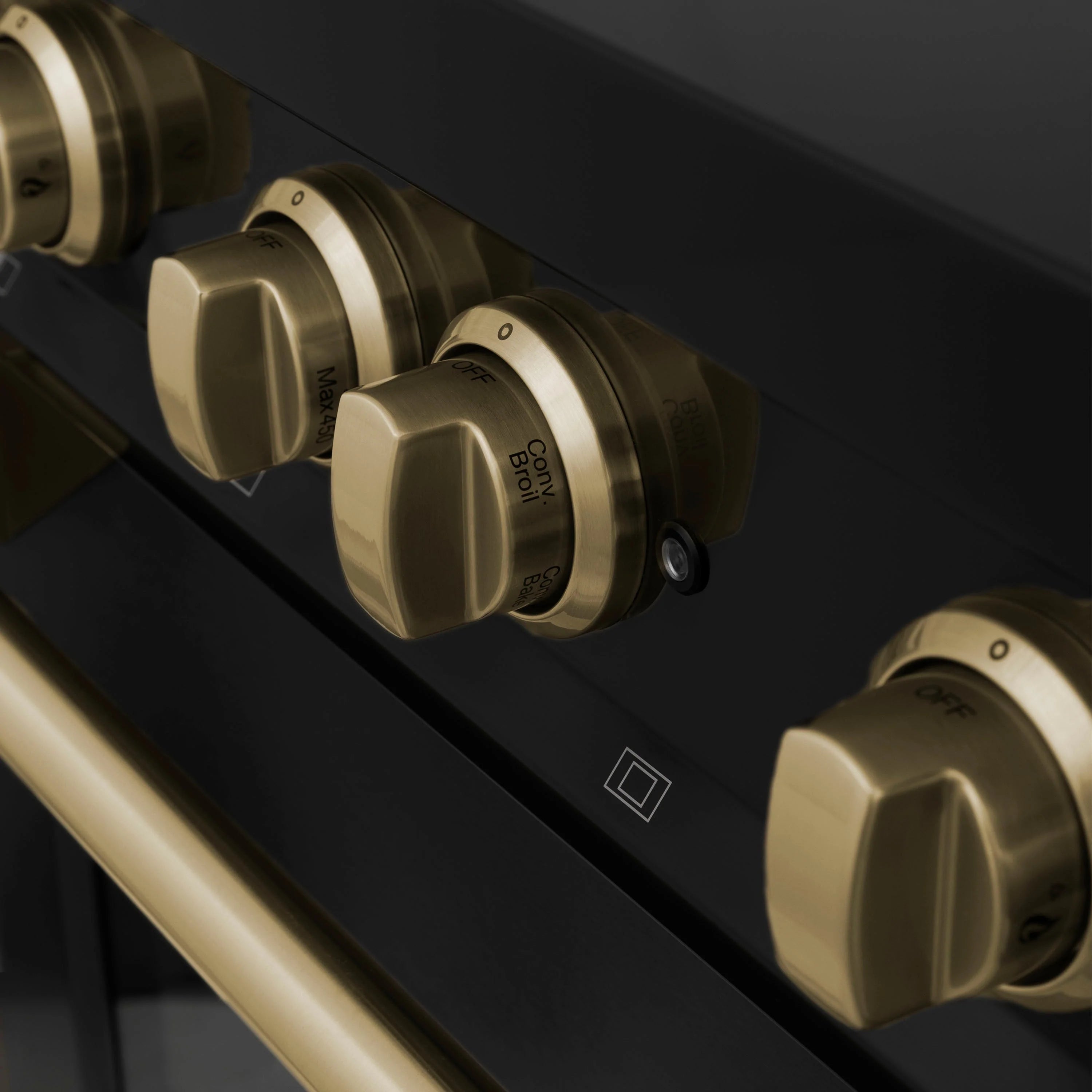

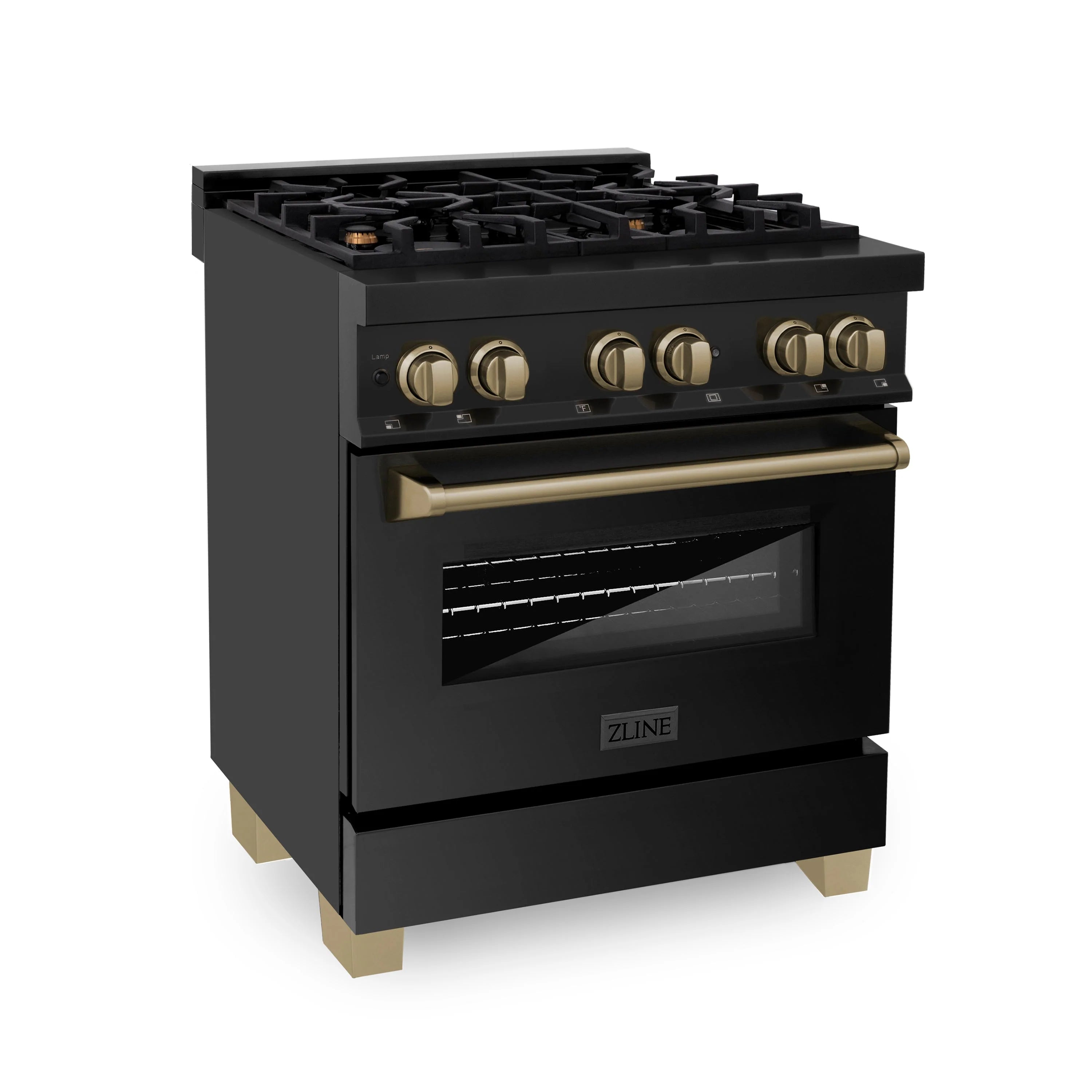

Experience Attainable Luxury with the ZLINE Autograph Edition Dual Fuel Range in Black Stainless Steel. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE Range with stunning gold accents, this sophisticated line of professional ranges brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with gold knobs, handles, legs, and brass burners. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with the Autograph Edition Dual Fuel Range.
Features:
- Rely on precise and even cooking for every homemade dish with a gas stove and electric convection oven.

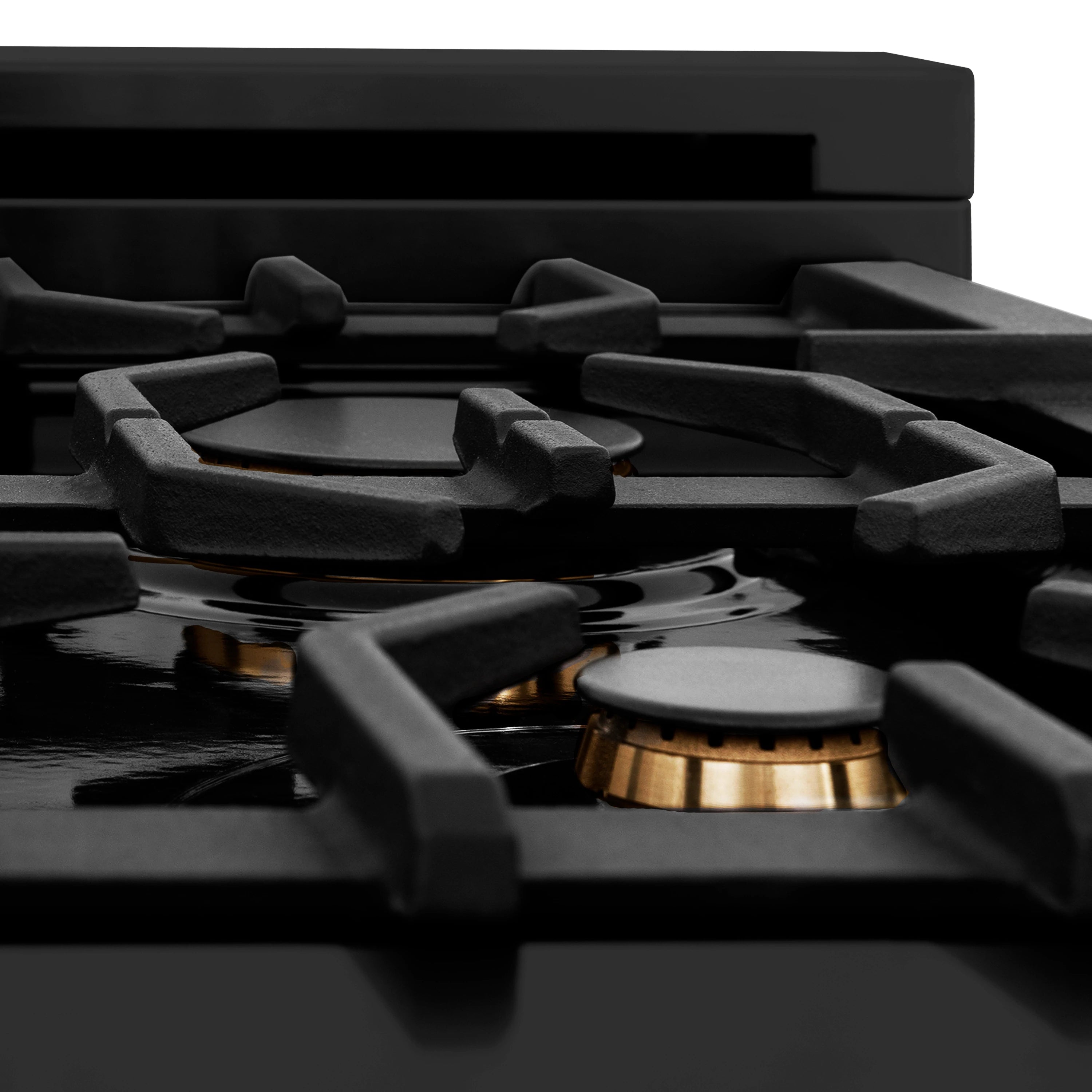

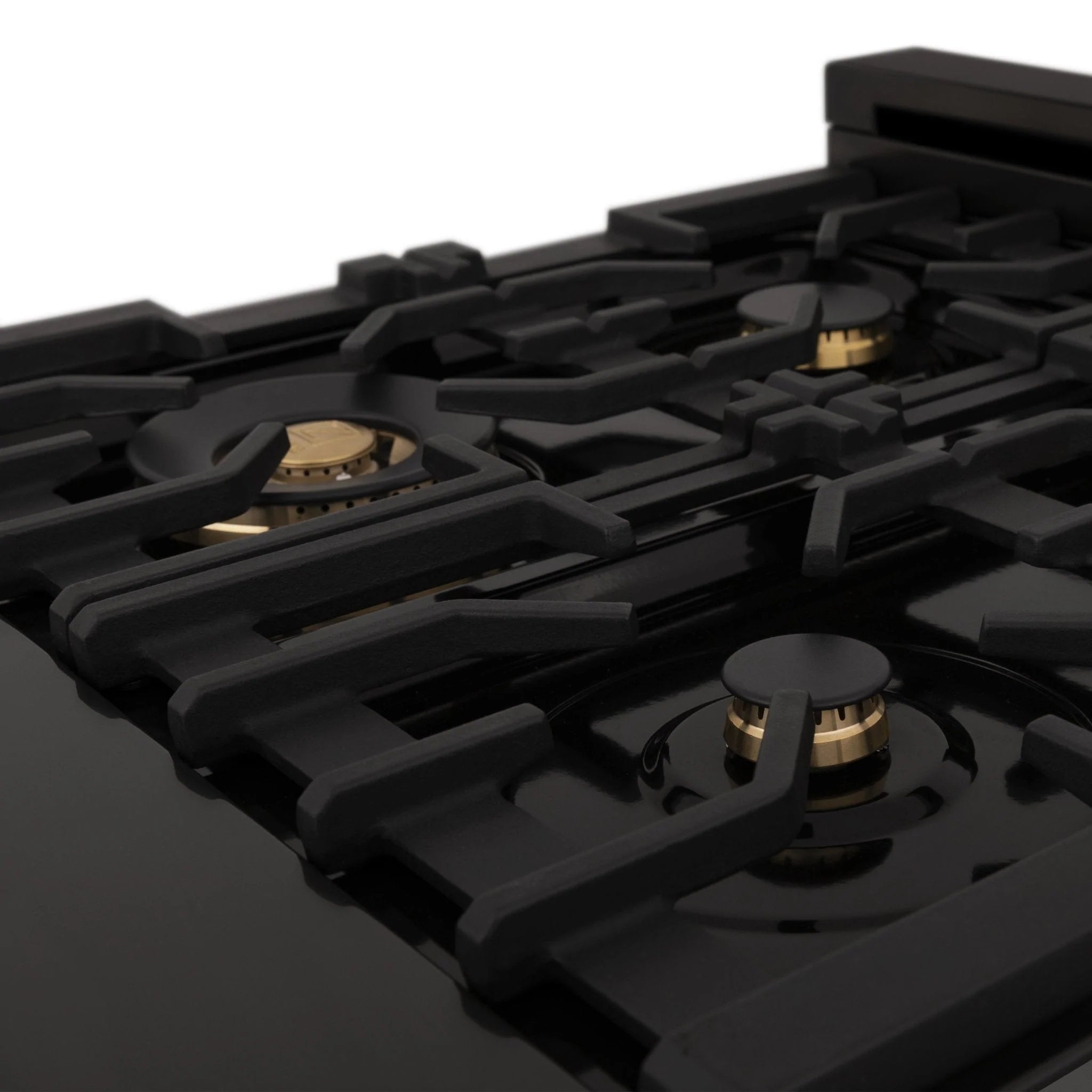

- ZLINE's Italian brass burners give this range an elevated, timeless pop of color while providing enhanced cooking benefits such as superior heat retention and even flame distribution.
- Achieve optimal results from our sealed burners with cooking power from 4,200 up to 18,000 BTUs.
- ZLINE's proprietary stay-put hinges are designed to support the full weight of the oven door and hold at any place.
- An ultra-deep 4.0 cu. ft. oven capacity with three layers of glass and dual lighting for crystal-clear visibility.
- Assembled with the highest quality materials, this range offers a durable, scratch resistant one-piece porcelain cooktop and durable cast iron grates.
- ZLINE's black stainless steel is achieved through a technique called PVD (Physical Vapor Deposition) Coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality.

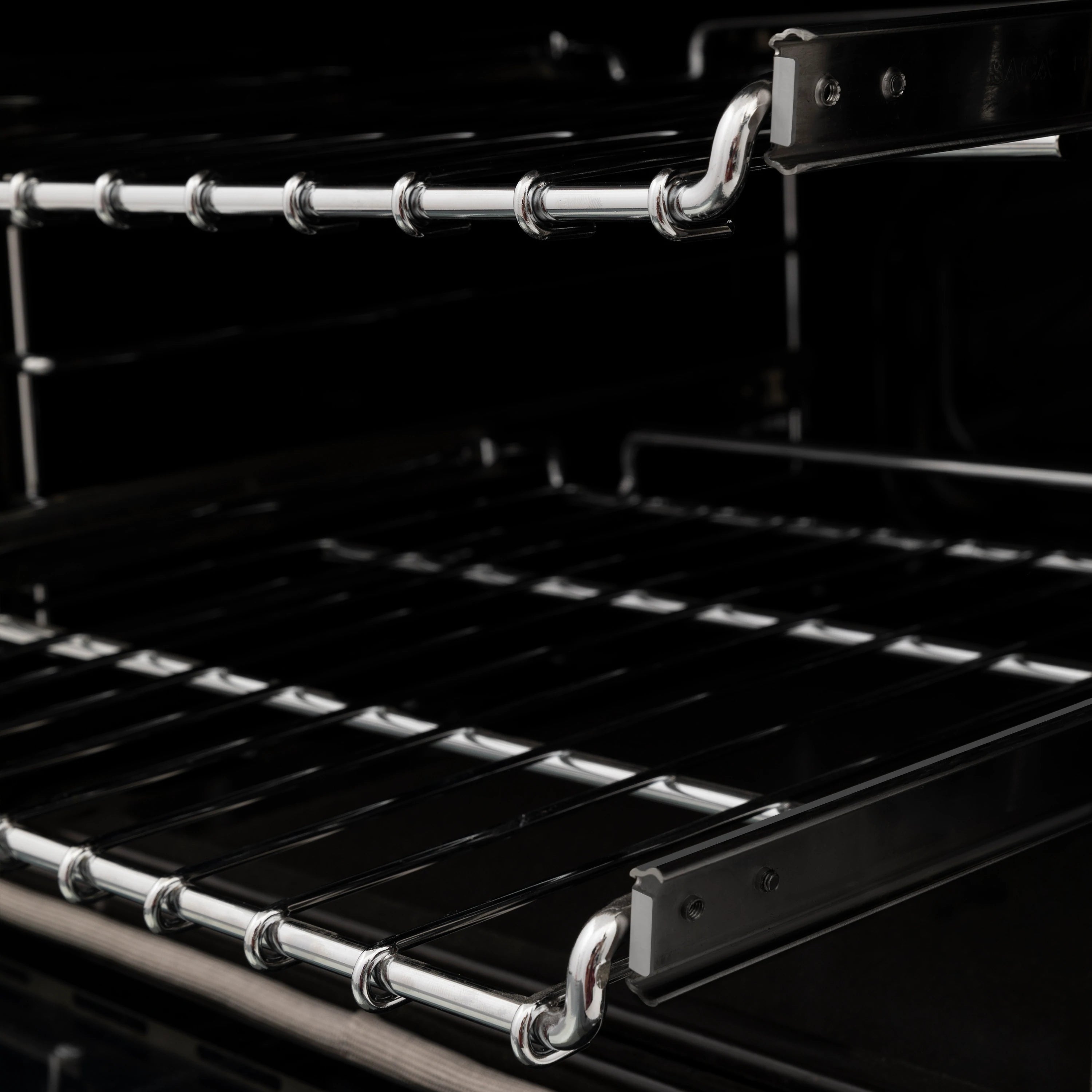

- SmoothGlide ball-bearing racks make it easier to work with larger, heavier dishes.
- Twist legs to adjust total range height anywhere from 36 inches to 38.5 inches.
- Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be performed by a professional

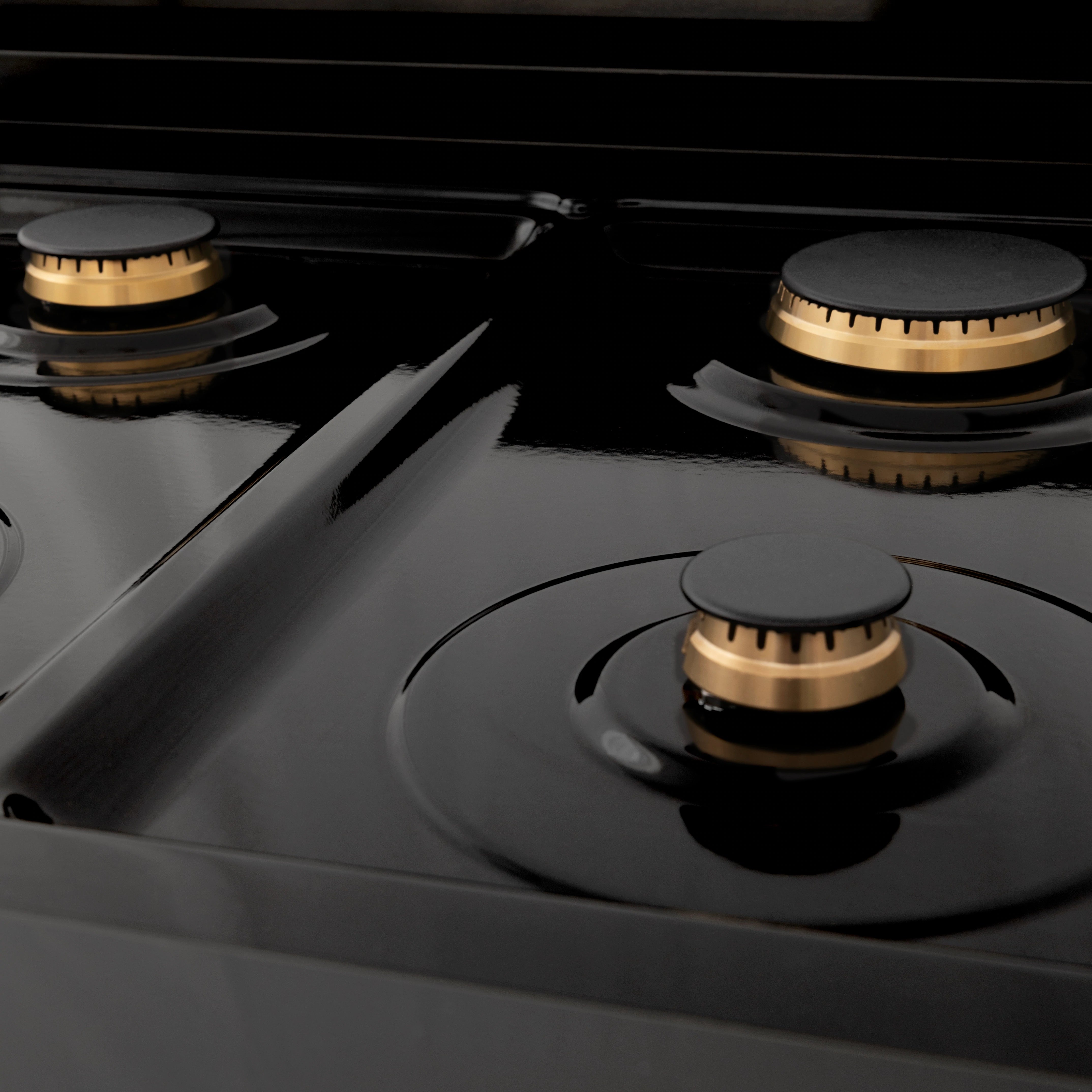

- Brass burners naturally form a patina and deeper brass hue to protect the burners from corrosion. This expected oxidation process ensures our brass burners will withstand the highest temperatures and is not cause for a return.
- Create a custom kitchen with easy installation - this Autograph Edition range is pre-assembled and shipped out complete with champagne bronze knobs, handles, legs and brass burners.
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.
Want to learn more about ZLINE? Read more here:

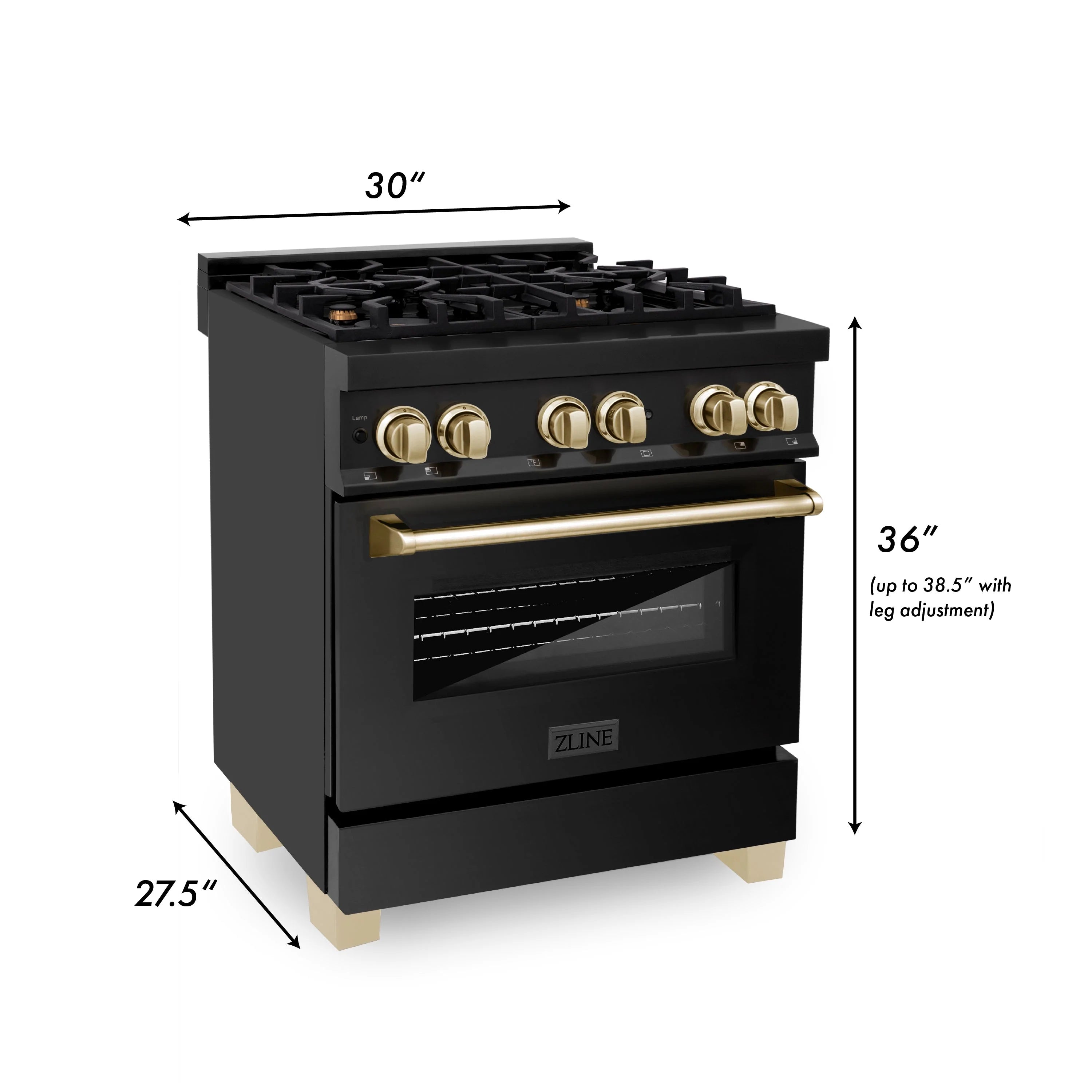

- Dimension
- 29.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 29.75" W x 29.63 " D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimensions
- 24.875" W x 17.75" D x 16" H
- Weight
- 230 lbs
- Brand
- ZLINE Kitchen and Bath
- Color
- Black
- Finish
- Black Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Material
- Black Stainless Steel frame with 1 Piece Porcelain Top
- Italian made hinges and burners
- Voltage
- 220V-240V/60HZ/50A
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel Type
- Convection Oven
- Gas Cooktop
- Cooktop

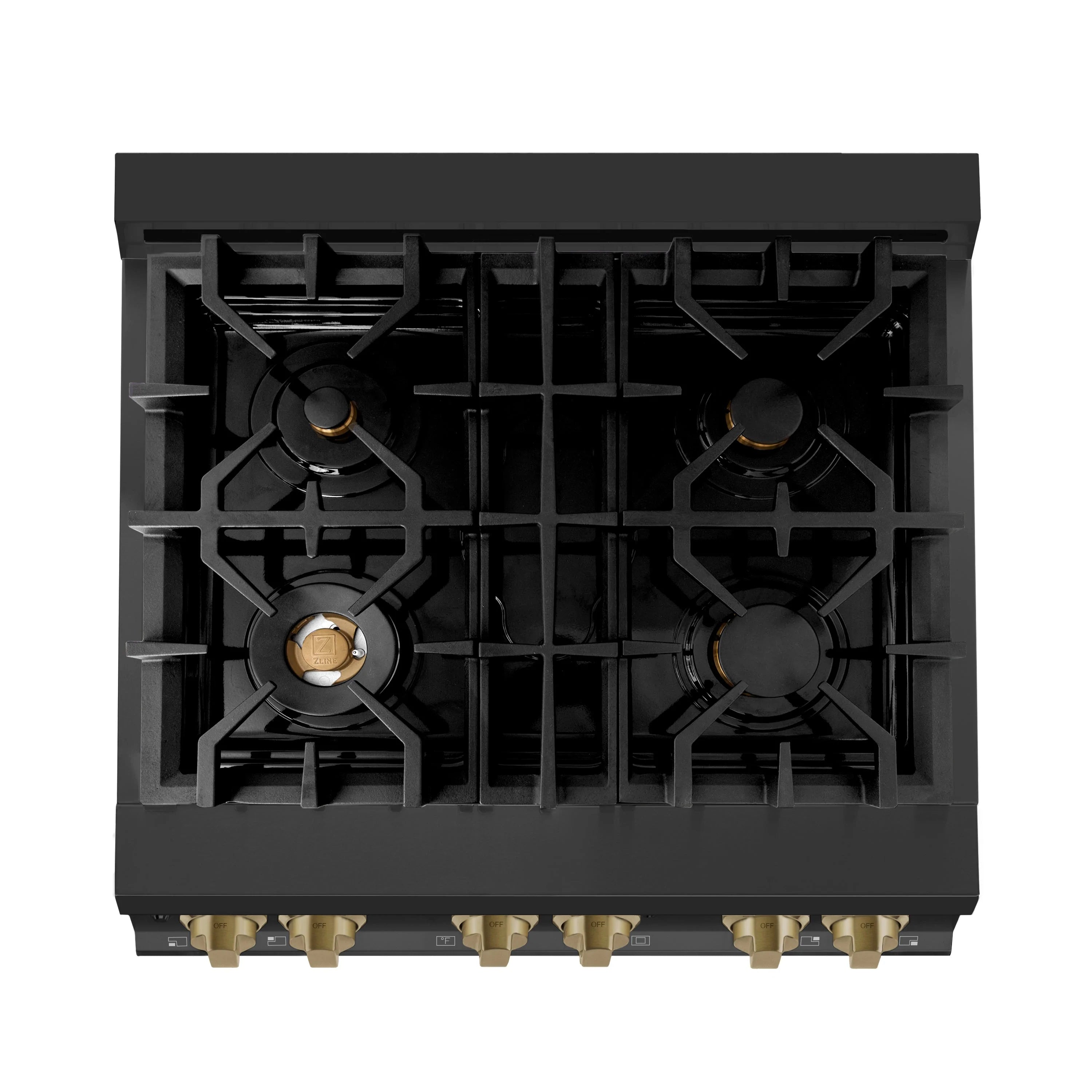

- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners

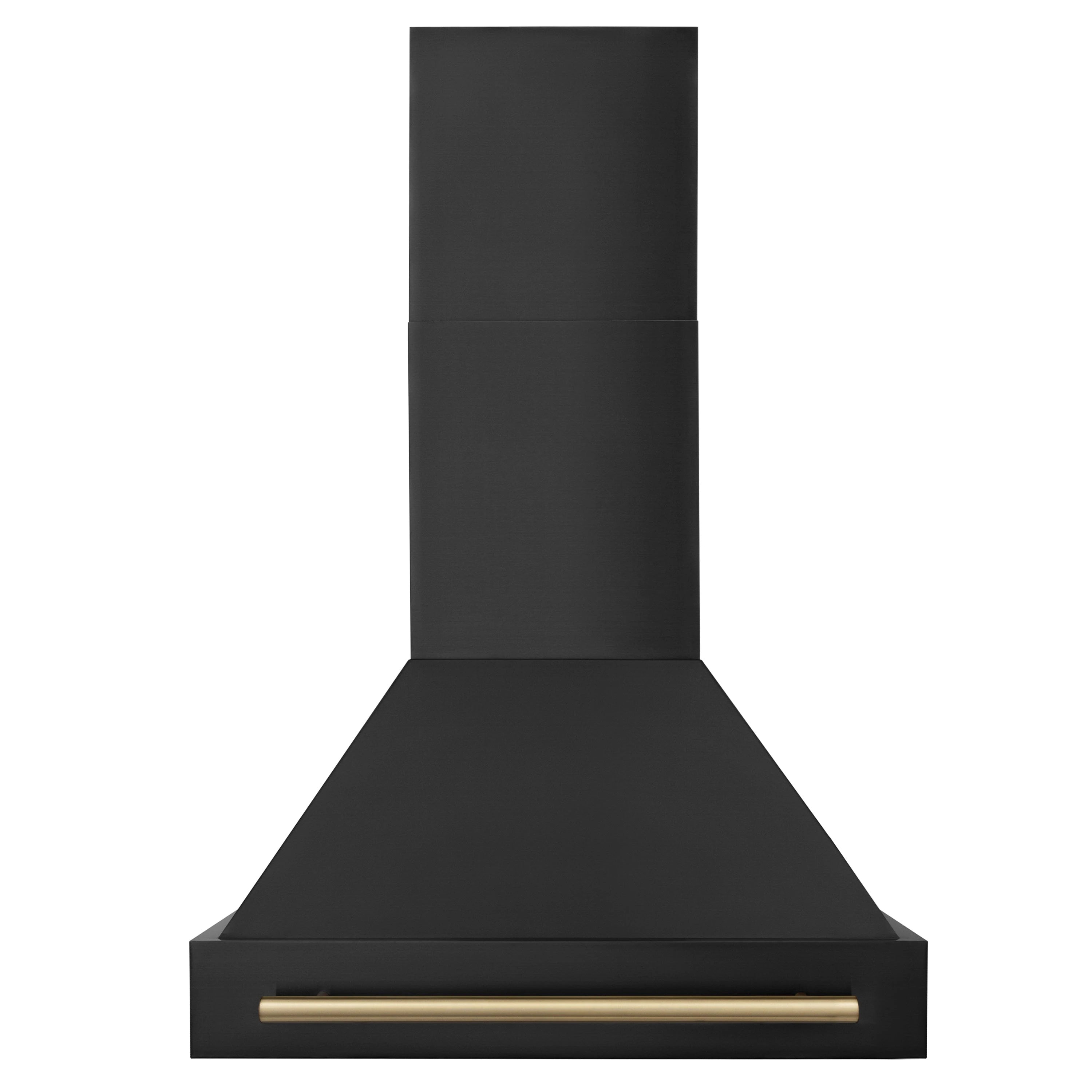

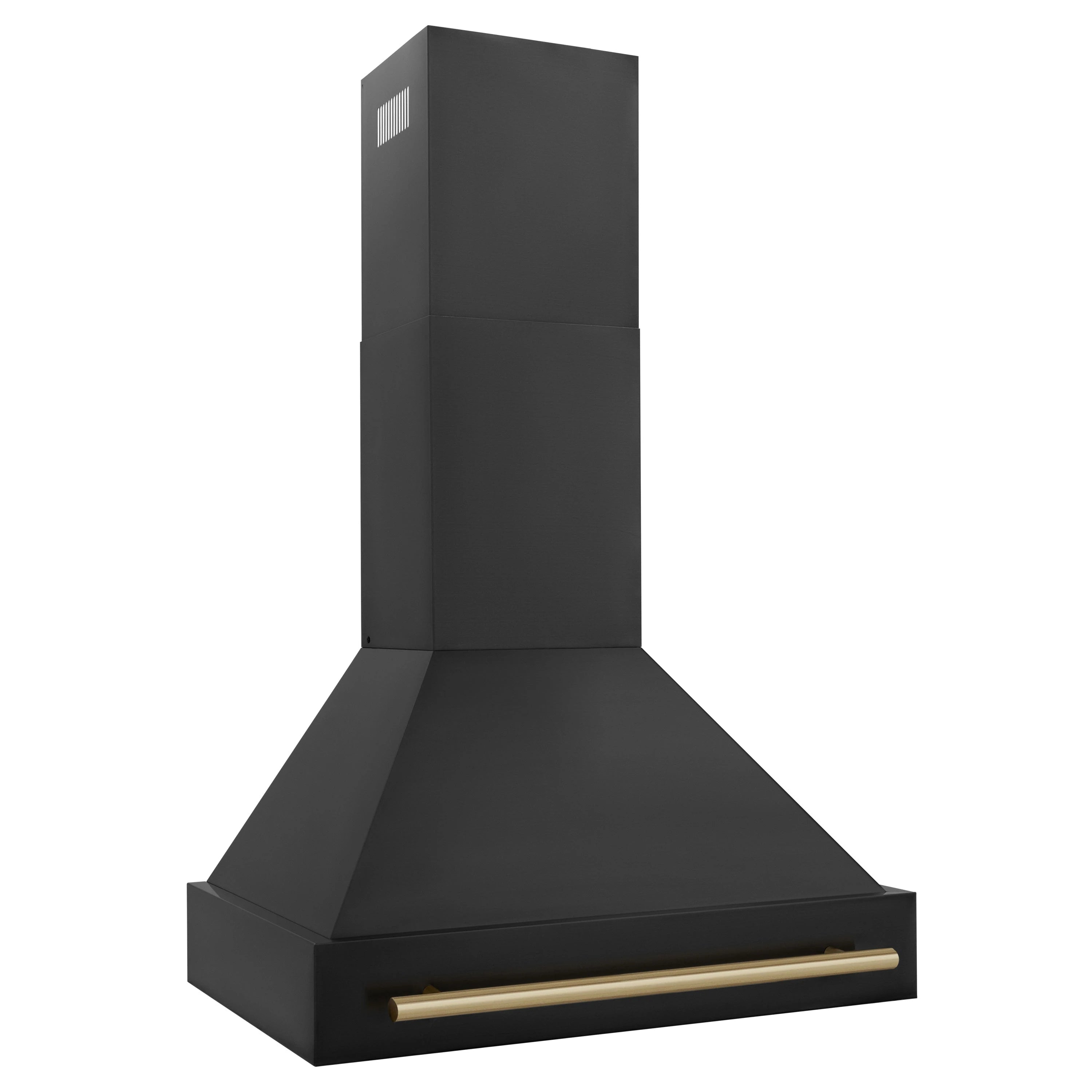

Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes.
Combining the professional power and functionality of a ZLINE range hood with stunning accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a black stainless steel hood and a beautiful accent handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze or Gold.
The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes.
From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
Features:
- Champagne Bronze handle matches ZLINE Autograph Edition Range or Rangetop with Champagne Bronze Accents

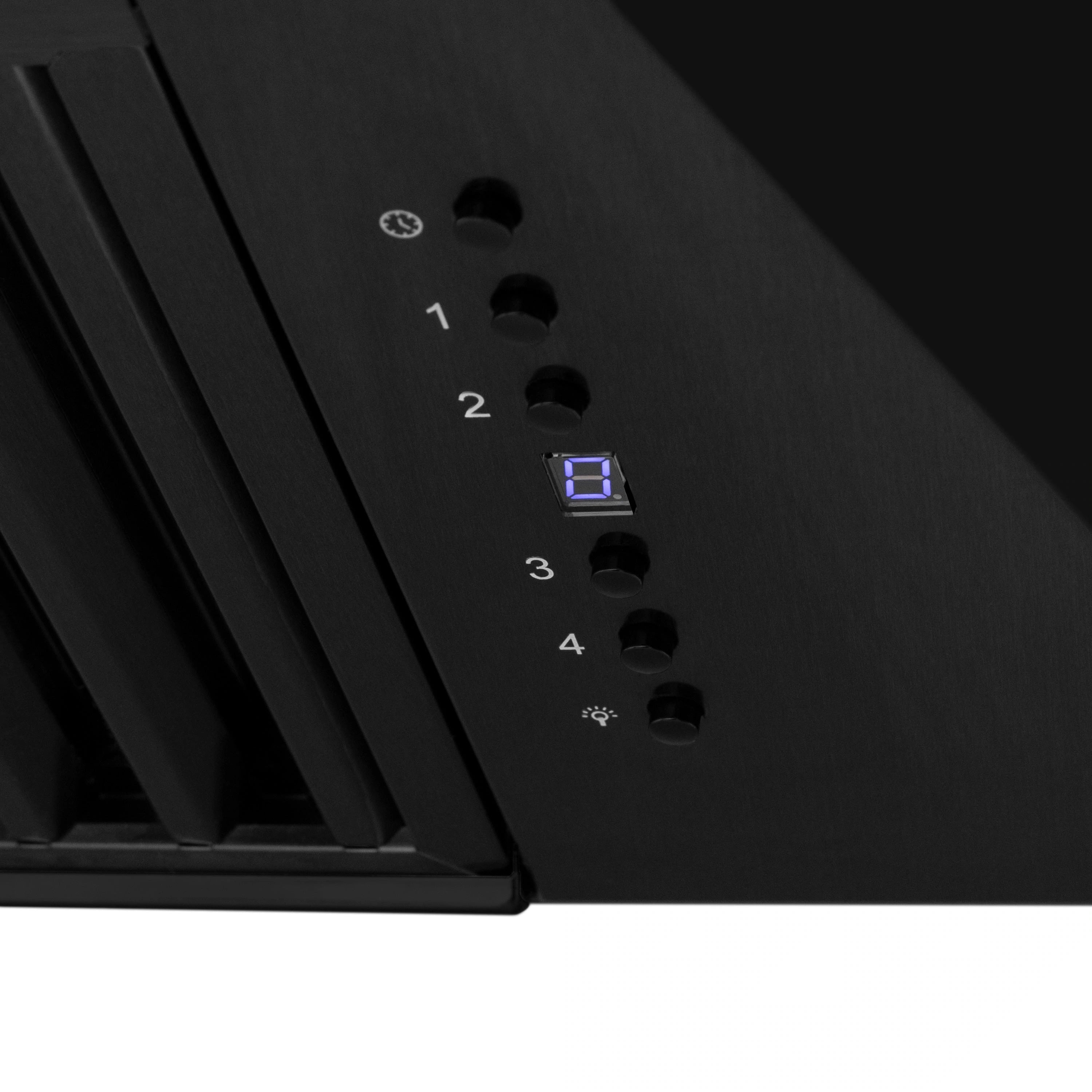

- Easy-to-use push button controls let's you easily control fan speed and lighting
- 4-Speed Fan Control (120/240/320/400 CFM) let's you choose the appropriate air flow for your cooking situation
- 400 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- ZLINE's black stainless steel is achieved through a technique called PVD (Physical Vapor Deposition) Coating which utilizes a vaporization process to create an atom-bonded, strong ceramic layer in order to achieve its stunning black stainless shine and built-to-last quality
- Ductwork easily connects to the top of the range hood for external venting

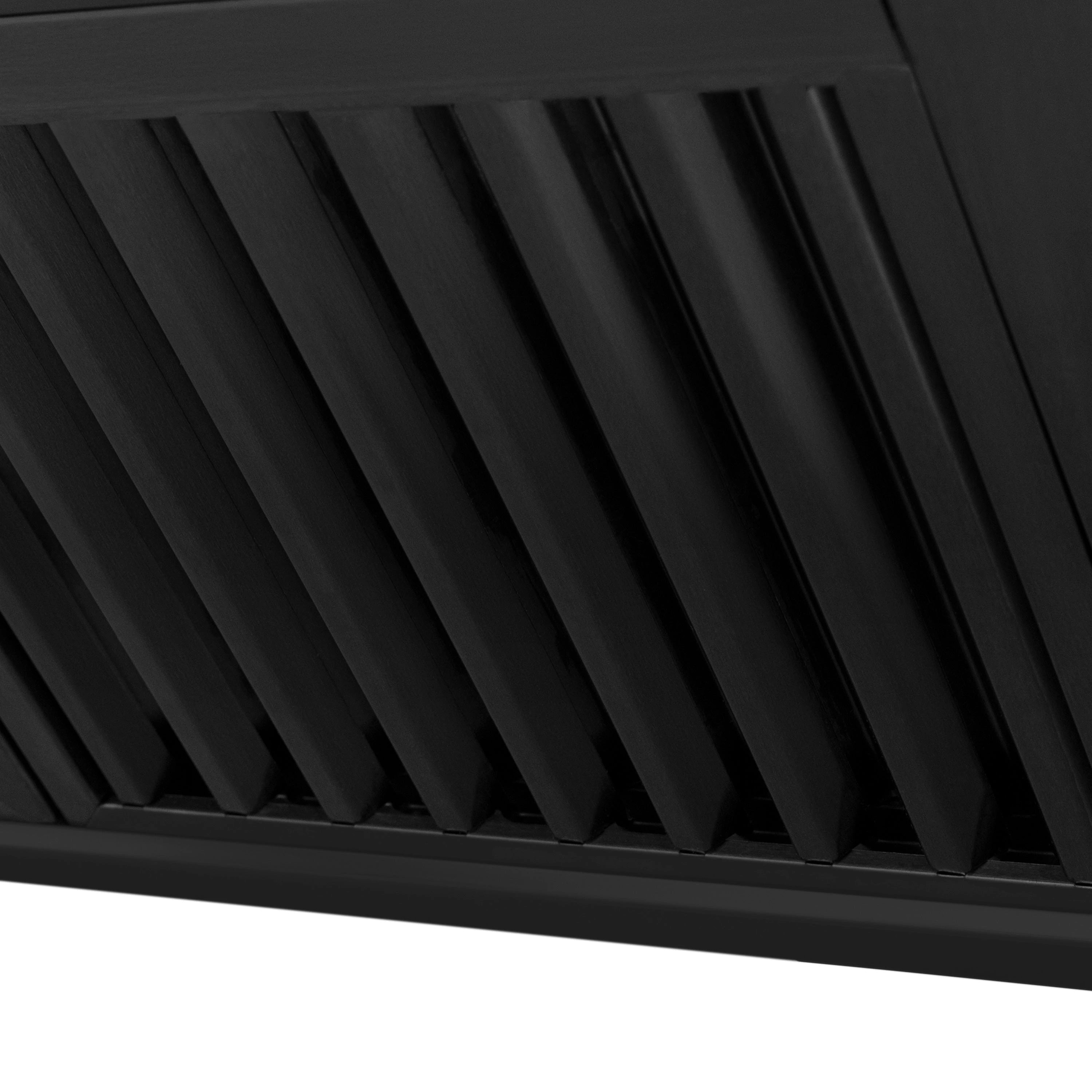

- Dishwasher-safe stainless steel baffle filters

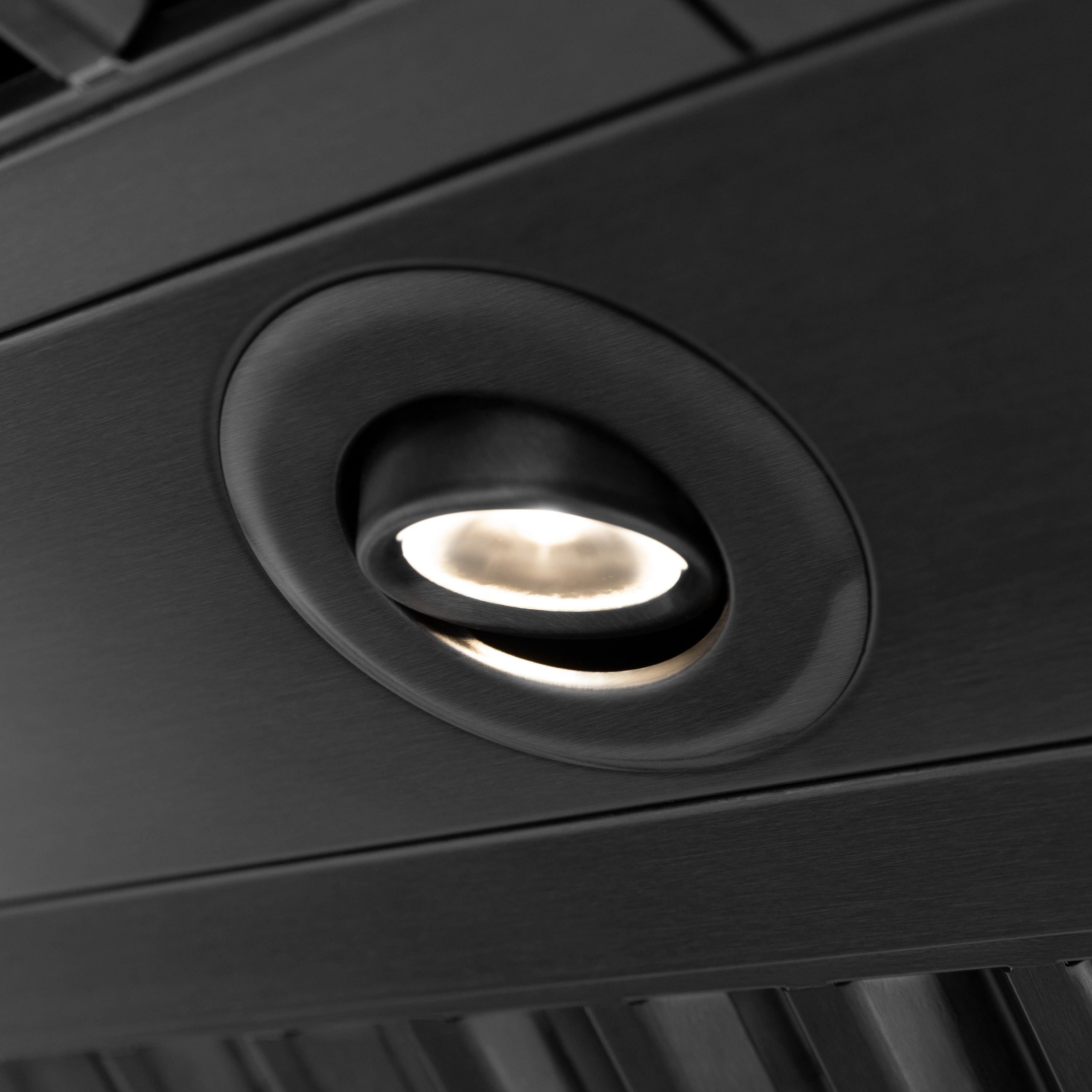

- LED lighting illuminates the cooktop beneath the hood
- Handle is for cosmetic purposes only and should not be used for hanging items
- 3 year parts warranty, life-time motor warranty
- Dimensions
- 30 in. W x 23.75 in. D x 16.5 in. H
- Chimney Dimensions
- 13.5" W x 11.75" D x 16" H (x2) (Telescoping)
- Handle Dimensions
- 23.1" W x 0.8" D x 2.4" H
- Min Ceiling Height
- 7.37 Feet
- Max Ceiling Height
- 10.37 Feet
- Weight
- 90
- Brand
- ZLINE Kitchen and Bath
- Outdoor Use
- Yes
- Recirculating
- No
- Material
- Black Stainless Steel
- Handle Finish
- Champagne Bronze
- Button Panel
- Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
- Duct size
- 6"
- Voltage
- 110
- Watts
- 385
- Amps
- 3.5
- Motor
- High Performance 400 CFM/4-Speed Motor
- Airflow (Q/L/M/H)
- 120/240/320/400
- Decibels
- 51/55/58/61
- Sones
- 0.6/1.1/1.5/2.5
- Max CFM
- 700
- # of Speeds
- 4
- Recirculating / Ductless
- Yes
- Number of lights
- 2
- Filters
- Stainless Steel Baffle Filters (Dishwasher-safe)
The ZLINE Autograph Edition 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel with Champagne Bronze Handle (DWVZ-BS-24-CB) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Champagne Bronze handle paired with a beautiful black stainless steel door panel
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Size
- 24 in.
- Dimensions
- 23.6" W x 22.4" D x 33.9" H
- Product Weight
- 106.8 lbs
- Cut-Out Height
- 34.13 in.
- Cut-Out Width
- 24 in.
- Interior Dimensions
- 20.95" W x 20.5" D x 24.17"H
- Max Plate Height
- 13 in.
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
- Panel Finish
- Black Stainless Steel
- Handle Finish
- Champagne Bronze
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features
- Exclusive Autograph Edition Handle - Customize your ZLINE Autograph Edition Tallac Series Dishwasher with an elegant Champagne Bronze handle paired with a beautiful black stainless steel door panel
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Certifications
- Energy Star, CEC, UL
